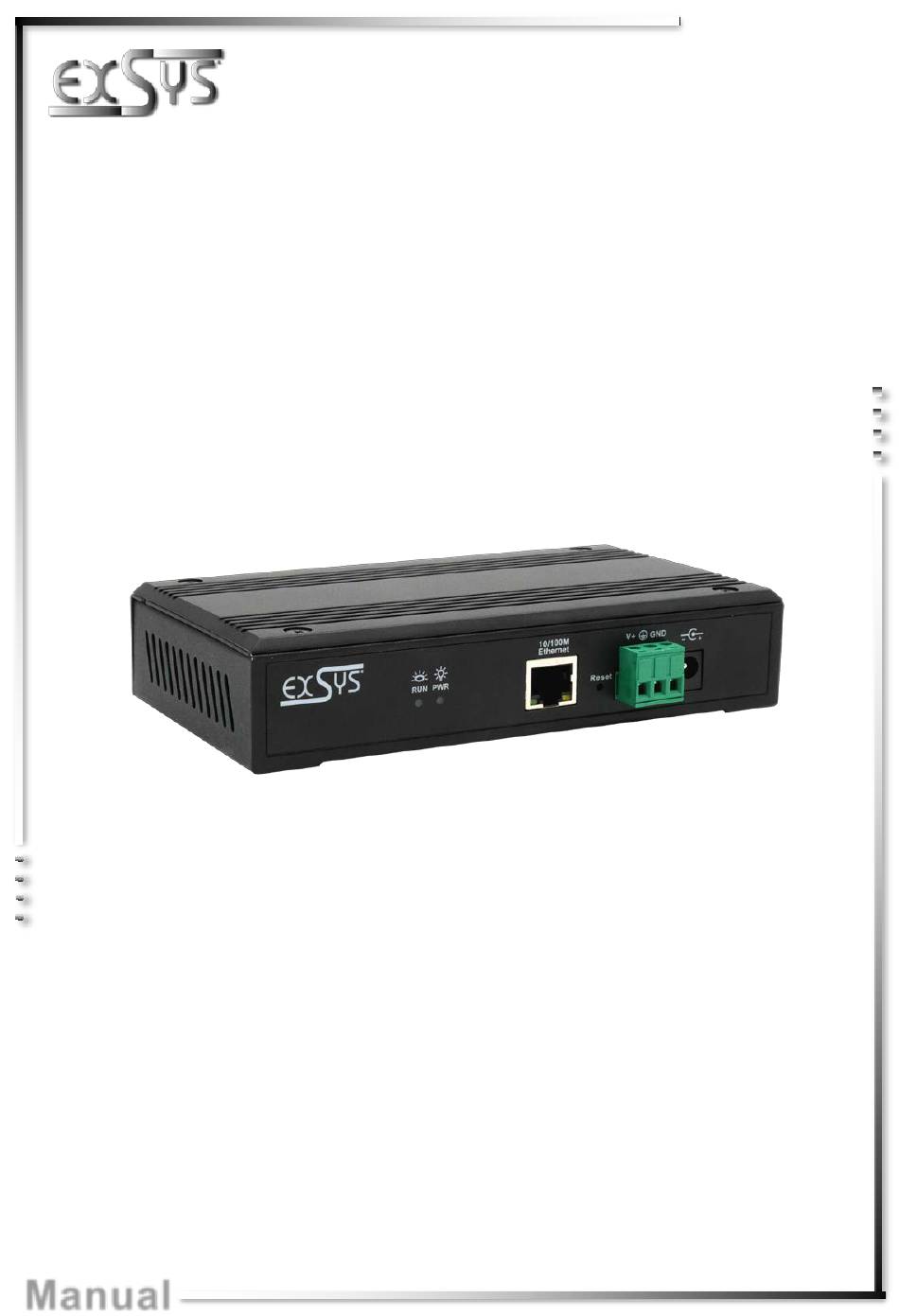

- Page 1 Manuale EX-61004 Dispositivo Server Seriale 4x RS-232/422/485 Serial Device Server 4x RS-232/422/485 www.exsys.de www.exsys.ch www.exsys.it Vers. 1.0 / 01.06.23 Manual...
-
Page 2: Table Of Contents
Hardware Installation ···························································································· 19 Configuration of the Device Server ············································································ 20 VCOM Utility ·································································································· 21-23 Server Settings ······························································································ 23-27 Cleaning ············································································································ 28 Technical Information ··························································································· 28 Technical Drawing ······························································································· 28 © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved... -
Page 3: Descrizione
Configurazione: utilità di amministrazione VCOM basata su Windows e browser web • Certificazioni per: 2 . Contenuto della Confezione Prima di installare e configurare in rete l‘EX-61004, verifica il contenuto della confezione: • EX-61004 • 4 cavi adattatori da RJ45 a DB9 da 20 cm •... -
Page 4: Layout, Connettore & Leds
Acceso fisso: il dispositivo è acceso Power LED Rosso Spento: il dispositivo è spento Acceso fisso: il Server avviato RUN LED Verde Lampeggiante: il Server è pronto Spento: il Server non in funzione © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved... -
Page 5: Connettore & Leds
Da utilizzare solo con quello incluso e/ o qualsiasi altro alimentatore conforme! T-Block da +12V fino +48V: ATTENZIONE!!! Non collegare mai l'alimentazione alla messa a terra dell'armadio, questo può distruggere l'hardware! Messa a Terra © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved... -
Page 6: Installazione Hardware
2. Collegare EX-61004 alla rete utilizzando un cavo patch RJ45 Ethernet CAT.5/6. 3. Collegare ora l'alimentatore da 12 V incluso alla presa da 12 V dell'EX-61004 prevista per tale scopo. In alternativa, il dispositivo server EX-61004 può anche essere collegato a un alimentatore per guida DIN da 12-48 V CC esistente tramite la morsettiera. -
Page 7: Configurazione Del Device Server
"Apri nel browser". Se si conosce l'indirizzo IP assegnato dal server DHCP, è anche possibile inserirlo direttamente nel browser e accedere al dispositivo. Il software Virtual COM è disponibile per il download sul sito Web EXSYS: www.exsys.ch www.exsys.de www.exsys.it... -
Page 8: Utility Vcom
Italiano EX-61004 6 . Utilit y VCOM Sul sito Web EXSYS è disponibile un utility VCOM per le applicazioni COM virtuali (per il download vedere pagina 7). Importante! Si prega di eseguire il programma di installazione con il tasto destro "Esegui come amministratore"! Dopo aver completato l'installazione, riavviare il computer. - Page 9 2. Allocazione delle porte COM: Per creare la porta COM virtuale e mapparla al dispositivo seriale, fare clic su Mappatura COM > Aggiungi COM > OK COM2-COM5 sono stati aggiunti © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
-
Page 10: Impostazione Del Server
Si aprirà il browser Internet e verrà visualizzata la finestra di accesso. Le credenziali predefinite di fabbrica sono: User Name: admin Password: admin Si aprirà il browser Internet e verrà visualizzata la finestra di accesso. Le credenziali predefinite di fabbrica sono © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved... - Page 11 1. System Home – Informazioni del Sistema Le informazioni generali sul sistema sono elencate qui. 2. System Settings - IP Address Settings Scegli tra assegnazione IP automatica tramite DHCP o IP statico. © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
- Page 12 1. Impostazioni di sistema - Impostazioni indirizzo IP Limitare l'accesso al server del dispositivo specificando intervalli di indirizzi IP autorizzati. 3. Impostazioni di sistema - Gestione utenti Crea nuovi utenti e definisci le loro autorizzazioni. © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
- Page 13 Specificare la codifica del delimitatore (0 fino a 0xff) Delimiter handling Scegli tra tenere e scartare Apply to all serial ports Applica le impostazioni per tutte le porte seriali del server del dispositivo © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
- Page 14 Si declina ogni responsabilità per aggiornamenti eseguiti in modo errato. Restore Factory Ripristino del dispositivo alle impostazioni di fabbrica Port Restart Riavvio delle singole porte (ad es. in caso di malfunzionamento) System Restart Riavvia il server del dispositivo © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
-
Page 15: Pulizia
Temperatura di conservazione: da -40° fino a 85° Celsius Rel. Umidità: da 5% fino a 95% Classe di Protezione : IP30 Alimentazione elettrica: +12-48V Dimensione: 161 x 91 x 37 mm Peso: 530g 1 0 . Disegno Tecnico © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved... -
Page 16: Description
Configuration: Windows-based VCOM administrator utility and web browser • Certificate for 2 . Ex tent of de li ve r y Before you integrate the EX-61004 into your network, you should first check the contents of the delivery: • EX-61004 •... -
Page 17: Layout, Connections & Led's
Steady on: Device is powered Power LED Off: No power connected Steady on: Device is booting RUN LED Green Blinking: Server is ready for end devices Off: Server is not ready © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved... -
Page 18: Connections & Led's
Only for use with the power supply unit included in the scope of delivery or another compliant power supply unit! +12V to +48V T-Block: ATTENTION! Never connect power to the enclosure earth, this can destroy your hardware! enclosure earth © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved... -
Page 19: Hardware Installation
4 . Hardw are Ins talla tion Please observe the following installation instructions. Since there are major differences between PCs, we can only give you general instructions for connecting the EX-61004. If anything is unclear, please refer to the operating instructions of your computer system. -
Page 20: Configuration Of The Device Server
English EX-61004 5 . Configura tion of the Devic e S e rve r The EX-61004 is delivered with the following factory settings: Login User Name: admin Password: admin IP Address: DHCP Network Operation Mode: VCOM Serial Interface: RS232 By pressing and holding the "Reset" button for 5 seconds, the device will be reset to the factory settings. -
Page 21: Vcom Utility
„Run as Administrator“). • Click Remote Device Management > ADD Device > Search • After the device is found, click Cancel to abort the search. Click OK, to add the EX-61004. © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved... - Page 22 2. Assignment of COM-Ports: To create the virtual COM port and assign it to the serial device, click COM Mapping > Add COM > OK COM2-COM5 have now been added © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
-
Page 23: Server Settings
User Name: admin Password: admin If you know the IP address assigned by the DHCP server, you can also enter it directly into your browser and log in to the unit. © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved... - Page 24 7 . Se rve r S e ttings 1. System Home - System Information General information about the system. 2. System Settings - IP Address Settings Choose between automatic IP assignment via DHCP or static IP. © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
- Page 25 2. System Settings - Address Filter Limit access to the device server by setting authorised IP address ranges. 2. System Settings - User Management Create new users and define their authorisation. © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
- Page 26 Set the encoding of the delimiter for the transmitted data (0-0xff) Delimiter handling Chose to keep und discard Apply to all serial ports Applies the settings for all serial ports of the device server © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
- Page 27 We cannot accept any responsibility for incorrectly executed updates. Restore Factory Resetting the unit to factory defaults Port Restart Restarting individual ports (e.g. in case of a malfunction) System Restart Reboot the serial device server © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
-
Page 28: Cleaning
-40° to 185° Fahrenheit Rel. Humidity: 5% to 95%, non-condensing Protection Class: IP30 Power: +12-48V Size: 161 x 91 x 37 mm Weight: 530g 1 0 . Te c hnica l Draw ing © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
