Summary of Contents for Exsys EX-6114

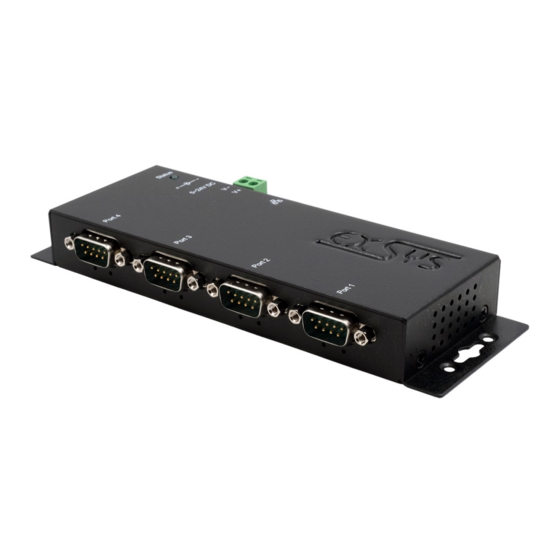

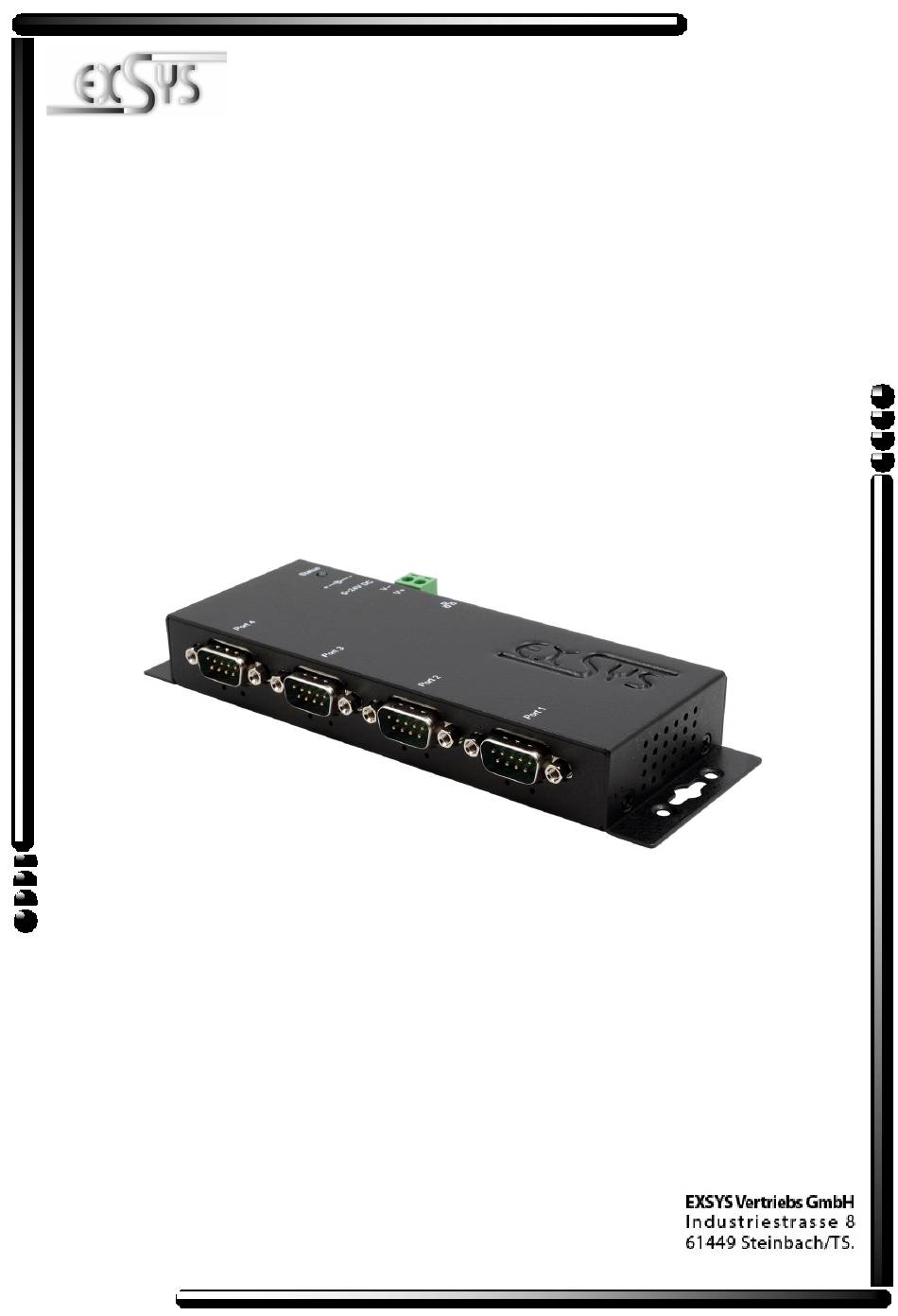

- Page 1 Manuale EX-6114 Ethernet a 4x Seriele RS-232 Ethernet to 4x Serial RS-232 Vers. 1.0 / 04.02.21 Manual...
-
Page 2: Table Of Contents
Layout ······················································································································ 14 Connections & LED‘s······························································································· 14-15 Hardware Installation ····················································································· 16-17 Configuration of the Device Server ········································································16 VCOM Admin Utility ······················································································ 17-21 Cleaning ··········································································································22 Technical Information ·························································································22 Technical Drawing ·····························································································22 © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 3: Descrizione
Supporta la protezione ESD 15KV per tutti i segnali seriali Supporta 5 V tramite porta seriale Certificazione: 2. Contenuto Prima di installare la EX-6114 nella tua rete, dovresti prima controllare il contenuto della consegna: EX-6114 Alimentatore (12V/3A) ... -
Page 4: Struttura, Connessioni & Led's
3.2 Connessioni & LED‘s Connettore DB 9M: Seriale 9 Pin D-SUB Maschio Signal Signal Signal GROUND (Power) Connettore RJ45 : RJ45 Signal Signal Signal BI_DA+ BI_DC+ BI_DD+ BI_DA- BI_DC- BI_DD- BI_DB+ BI_DB- © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 5: Installazione Hardware
PC, possiamo solo darvi una guida generale per il collegamento dell'EX-6114. In caso di doman- de, fare riferimento alle istruzioni per l'uso del proprio computer. 1. Installare l'EX-6114 su una guida di montaggio utilizzando il kit guida DIN opzionale o su una parete. -
Page 6: Configurazione Del Device Server
Italiano EX-6114 4. Installazione Hardware 3. Ora usa un cavo Ethernet e collegalo alla porta RJ45 dell'EX-6114 e l'altra estremità a un PC o uno switch. 4. Ora collega i tuoi dispositivi seriali ai connettori D-SUB a 9 pin dell'EX-6114. -
Page 7: Vcom Admin Utility
Windows e avviarla con "Esegui come amministratore"). Fare clic su Gestione dispositivo remoto> AGGIUNGI Dispositivo> Cerca Dopo aver trovato l'EX-6114, fare clic su Annulla per interrompere la ricerca. Fare clic su OK per aggiungere EX-6114. © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... - Page 8 Mappatura COM> Aggiungi COM> OK Per modificare il numero della porta COM, fare clic su COM Mapping> Modifica COM Ora è stata aggiunta la COM1-COM4! © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
- Page 9 (ad es.Descrizione dispositivo, Pass- word, ...), è necessario prima accedere al Device Server (la password predefinita per questo è sistema " "). Fare clic su Gestione dispositivo remoto> Accedi © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
- Page 10 Dopo aver effettuato l'accesso, fare clic su Gestione dispositivo remoto e quindi fare doppio clic sul server del dispositivo selezionato nell'elenco. Doppio click Clicca su Remote Device Management > (Doppio click sulla voce selezionata nell'elenco) > Basic > Device Description > OK Doppioclick © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
- Page 11 Gestione dispositivo remoto> (selezionare "Elemento server dispositivo")> Apri nel browser e im- mettere le seguenti credenziali: User Name: admin Password: system Clicca su Port Config > Port 1 > Operation Mode > Apply > Save & Restore © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
-
Page 12: Pulizia
Temperatura di donservazione: da -20° bis 75° Celsius Rel. Umidità: dal 5% al 95% Classe di protezione: IP30 Alimentazione: +12/3A o +5-24V Dimensione: 179,00 x 59,50 x 23,00 mm Peso: 691g 9. Disegno Tecnico © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 13: Description
Support 15KV ESD-Protection for all serial Signals Support 5V over serial Connector Certificate for 2. Extent of Delivery Before you integrate the EX-6114 into your network, you should first check the contents of the delivery: EX-6114 Power Supply (12V/3A) ... -
Page 14: Layout, Connections & Led's
3.2 Connections & LED‘s DB 9M: Serial 9 Pin D-SUB Connector Signal Signal Signal GROUND (Power) RJ45 Port: RJ45 Port Signal Signal Signal BI_DA+ BI_DC+ BI_DD+ BI_DA- BI_DC- BI_DD- BI_DB+ BI_DB- © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 15: Hardware Installation
PC's, we can only give you a general guide for connecting the EX-6114. If you have any questions, please refer to the operating instructions of your computer system. 1. Install the EX-6114 on a mounting rail by using the optional DIN rail kit or on a wall. Holes for Wall Installation... -
Page 16: Configuration Of The Device Server
EX-6114 4. Hardware Installation 2. Now use an Ethernet cable and connect it to the RJ45 port of the EX-6114 and the other end to a PC or a switch. 3. Now connect your serial devices to the 9 pin D-SUB connectors of the EX-6114. -
Page 17: Vcom Admin Utility
Windows desktop and start this with „Run as Administrator“). Click Remote Device Management > ADD Device > Search After the EX-6114 was found, click Cancel to abort the search. Click OK, to add the EX-6114. © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... - Page 18 2. Assignment of COM-Ports: To create the virtual COM-Port and assign it to the serial device, click COM Mapping > Add COM > OK To change the COM-Port number, click COM Mapping > Modify COM The COM1-COM4 has now been added! © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
- Page 19 (e.g. Device Description, Password, ...), you must first log in to the Device Server (the default password for this is "system"). Click Remote Device Management > Login © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
- Page 20 After you are logged in, click Remote Device Management and then double-click the selected de- vice server in the list. double click Click Remote Device Management > (double-click on the selected element in the list) > Basic > Device Description > OK double click © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
- Page 21 Server Item") > Open in Browser and enter following credentials: User Name: admin Password: system Click Port Config > Port 1 > Operation Mode > Apply > Save & Restore © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
-
Page 22: Cleaning
Storage Temperature: -4° to 167° Fahrenheit Rel. Humidity: 5% to 95% Protection Class: IP30 Power: +12/3A or +5-24V Size: 179,00 x 59,50 x 23,00 mm Weight: 691g 9. Technical Drawing © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
