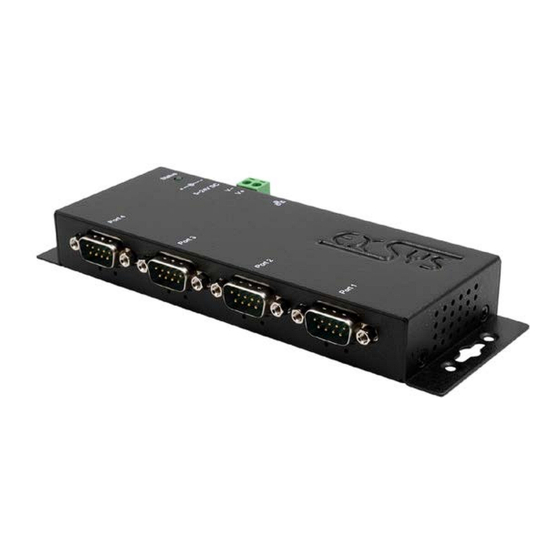

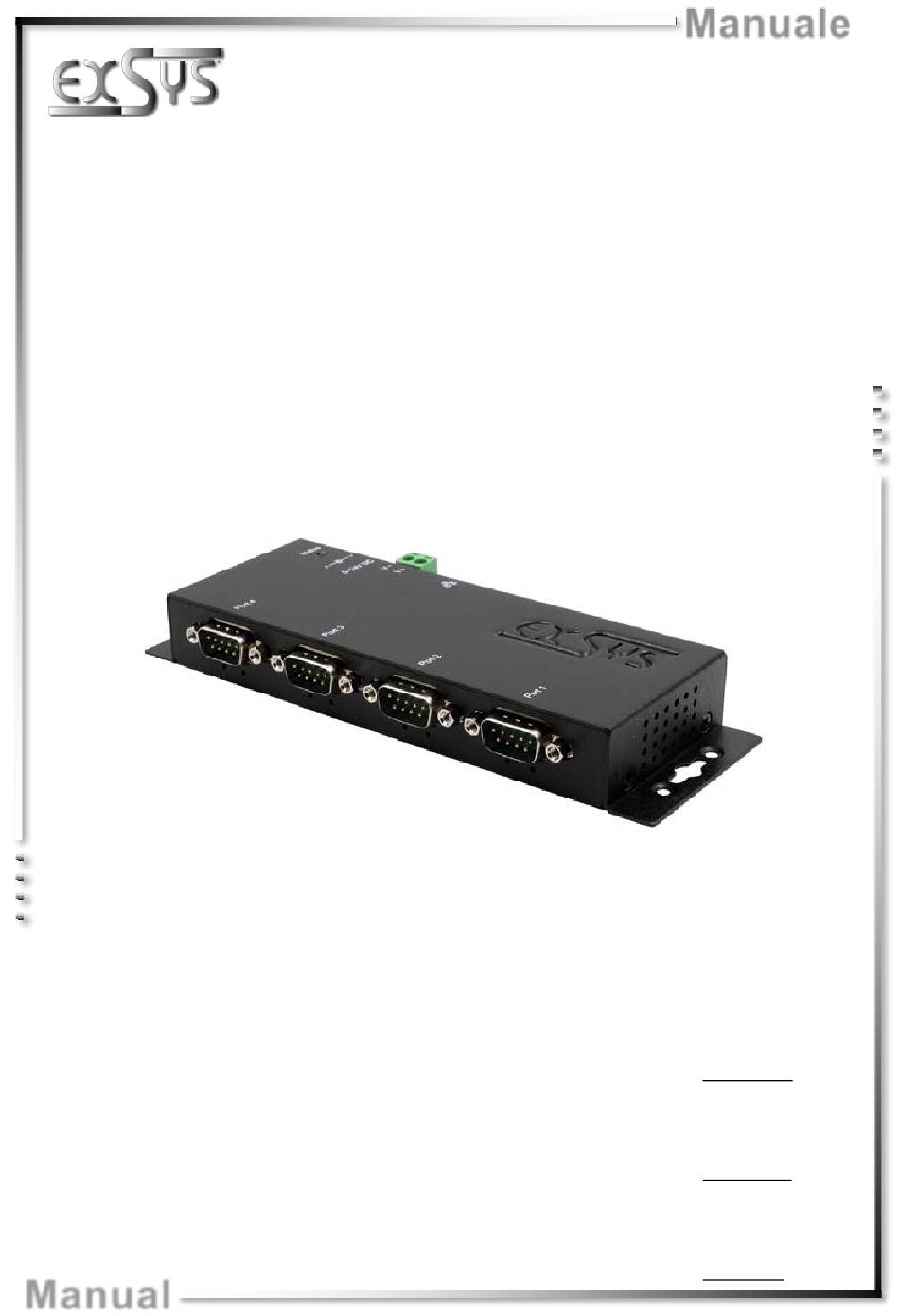

  • Page 1 Manuale EX-6114-2PoE Dispositivo Server seriale 4x RS-232 con alimentazione su Ethernet Serial Device Server 4x RS-232 with Power over Ethernet Germania: EXSYS Vertriebs GmbH Industriestraße 8 61449 Steinbach www.exsys.de Svizzera: EXSYS Vertriebs GmbH Dübendorfstrasse 17 8602 Wangen www.exsys.ch Italia: EXSYS Italia Srl...
  • Page 2 Server Settings 26-30 Server Settings via web browser 26-27 Direct connection via Socket Port (Peer-to-Peer-Modus) 28-29 System Management Settings via SDS Administrator UDP and TCP ports Cleaning Technical Information Technical Drawing © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Page 3: Contenuto Confezione

    La configurazione remota viene eseguita tramite protocolli di rete estesi come server TCP, client TCP, UDP, VCOM o Telnet/RFC2217 seriale. Per garantire la compatibilità con i dispositivi seriali legacy che eseguono il software applicativo della porta COM esistente, l’EX-6114-2PoE fornisce una porta COM virtuale (VCOM) che migra perfettamente l'applicazione seriale senza modificare il software.
  • Page 4 Verde Lampeggiante: l'interfaccia seriale sta inviando dati (Destro) Spento: l'interfaccia seriale non invia dati RXD LED Verde Lampeggiante: l'interfaccia seriale sta ricevendo dati (Sinistro) Spento: l'interfaccia seriale non riceve dati © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Page 5 T-Block / Jack DC +5V fino a +24V: ATTENZIONE! Da utilizzare solo con l'alimentatore incluso o con un altro alimentatore compatibile! Prestare attenzione alla corretta polarità, ad un collegamento errato l'alimentatore potrebbe distruggere il tuo hardware! © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Page 6: Installazione Hardware

    2PoE. Se qualcosa non vi è chiaro, fare riferimento al manuale d’istruzione per l'uso del proprio computer. Installare l’EX-6114-2PoE a parete o su una guida DIN da 35 mm utilizzando il kit guida DIN opzionale. Fori per il montaggio a muro 2.
  • Page 7 Modificare questa impostazione solo se il +5V sono realmente necessari per il dispositivo esterno. Per le normali applicazioni, non modificare i ponticelli (posizione DIS), altrimenti la vostra apparecchiatura verrà danneggiata! © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Page 8 Se conosci l'indirizzo IP assegnato dal server DHCP, puoi inserirlo direttamente nel browser ed effettuare il login al dispositivo. • Administrator Software EXSYS Serial Device Server (SDS) è disponibile per il download sul sito Web EXSYS: www.exsys.de , www.exsys.ch oppure www.exsys.it...
  • Page 9 Remote Server(s). Se con la ricerca automatica non è possibile trovare il server del dispositivo (ad es. se si trova su Internet e non sulla rete locale), è possibile utilizzare • Immettere manualmente l'indirizzo IP e fare clic su Trova. © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Page 10 (Delete or Delete All) Se modifichi le impostazioni, devi aggiornarle anche nel Device Server per garantirne la coerenza. Per fare ciò, si consiglia di accedere all'utilità di configurazione del Device Server, apportare le modifiche necessarie alle impostazioni, quindi tornare per aggiungerle automaticamente. © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Page 11 Se conosci l'indirizzo IP assegnato dal server DHCP, puoi anche inserirlo direttamente nel browser ed effettuare il login al dispositivo. Nella finestra seguente è possibile configurare il server del dispositivo per la propria applicazione. Applicare le impostazioni facendo clic su Salva modifiche. © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Page 12 COM virtuali di Windows per migliorare la connettività e il controllo.  Descrizione: assegna descrizioni univoche a ciascun dispositivo seriale per semplificare l'identificazione e la gestione. © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Page 13 Il server TCP ascolta le connessioni in entrata su una porta socket definita. Per ciascuna porta seriale è possibile definire una porta socket. Applicare le impostazioni facendo clic su Salva modifiche. © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Page 14: Gestione Del Sistema

    Questa funzione è particolarmente utile quando si duplicano le impostazioni per altri Device Server. © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Page 15 IP del server richiesto e fare clic su Configura nell'app. Nella finestra di accesso, inserisci la password (predefinita: admin). Nella finestra seguente è possibile effettuare le stesse impostazioni del menu di configurazione basato sul web. Fare clic su Invia per applicare le modifiche. © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Page 16 Nella zona dei collegamenti, assicurarsi che non rimangano fibre del panno nella presa. Non utilizzare in nessun caso un panno umido o bagnato per la pulizia! © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Page 17: Dati Tecnici

    Da -20° a 75° Celsius Temp. di conservazione: Dal 5% al 95% Umidità Rel.: IP30 Classe di Protezione: +5V-24V / PoE Alimentazione: 179.0 x 59.5 x 23.0 mm Dimensione: Peso: 306g 11. Disegno Tecnico © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Page 18: Extent Of Delivery

    Supports 5V over serial Connector • IEEE802.3af PoE-PD: Can be powered by Ethernet cable • Certificates 2. Extent of delivery Before you integrate the EX-6114-2PoE into your network, you should first check the contents of the delivery: • EX-6114-2PoE • Power Supply (12V/3A) •...
  • Page 19 Off: The Serial Port is not sending out any data RXD LED Blinking: The Serial Port is receiving data Green Off: The Serial Port is not receiving any data (left) © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Page 20 Only for use with the power supply unit supplied or another compliant power supply unit! +V -V Pay attention to the correct polarity, an incorrectly connected power supply unit can destroy your hardware! © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Page 21: Hardware Installation

    EX-6114-2PoE. If anything is unclear, please refer to your computer system's user manual. 1. Install the EX-6114-2PoE on the wall or on a 35mm DIN-Rail using the optional DIN-Rail kit. Holes for wall installation 2.
  • Page 22 Caution! Only change this setting if +5V is really needed for the peripheral device. For normal applications, do not change the jumpers (position DIS), otherwise your equipment will be damaged! © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Page 23: Device Server Configuration

    RS232 Configuration: • Install the EXSYS Serial Device Server (SDS) Administrator utility (download, see below) as administrator (right click, "Run as administrator"). Then restart the computer. • Once you have connected the server (see the next pages for details), you can access the device via the "Open in Browser"...
  • Page 24 EX-6114-2PoE 6. SDS Serial Device Server Administrator The EX-6114-2PoE is in DHCP mode at delivery and requires an IP address for configuration. By default, the Device Server automatically obtains an IP address from a DHCP server (e.g. your router). To determine the IP address, the EXSYS SDS Administrator utility must be installed (download, see page 20).
  • Page 25 Device Server to ensure consistency. To do this, it is recommended that you go to your Device Server's configuration utility, make the necessary changes to the settings, and then return to have them added automatically. © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Page 26 In the following window you can configure the Device Server for your application. After finishing the necessary changes, click Save Changes to apply them. © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Page 27: Server Settings

    Configure the virtual COM port: Seamlessly redirect communication through Windows virtual COM ports to improve connectivity and control. • Description: Assign unique descriptions to each serial device to simplify identification and management. © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Page 28 Configuration TCP Server: The TCP server listens for incoming connections on a defined socket port. A socket port can be defined for each serial port. Apply the settings by clicking Save Changes. © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Page 29: System Management

    Users can change the required settings in the exported settings file using a text editor and then import the changes to update the settings. This feature is particularly useful when duplicating settings for other Device Servers. © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Page 30 Configure in App. In the login window, enter the password (default: admin). In the following window you can make the same settings as in the web-based configuration menu. Click Submit to apply the changes. © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Page 31 In the area of the connections, please make sure that no fibers of the cloth are left in the socket. Attention! Never use a moist or wet cloth for cleaning! © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
  • Page 32: Technical Information

    -4° to 167° Fahrenheit Storage Temperature: 5% to 95%, non-condensing Rel. Humidity: IP30 Protection Class: +5V-24V / PoE Power: 179.0 x 59.5 x 23.0 mm Size: 306g Weight: 11. Technical Drawing © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
