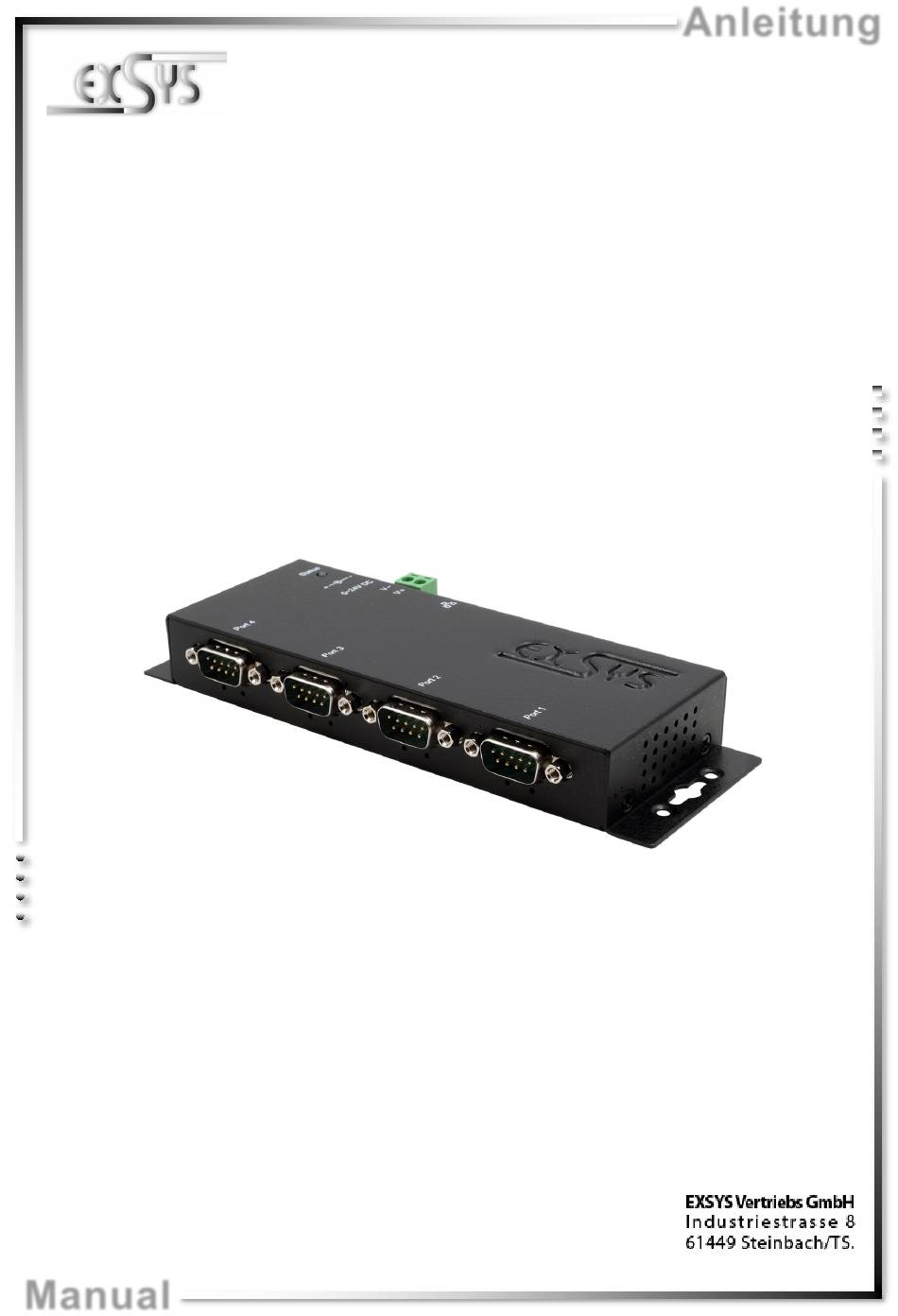

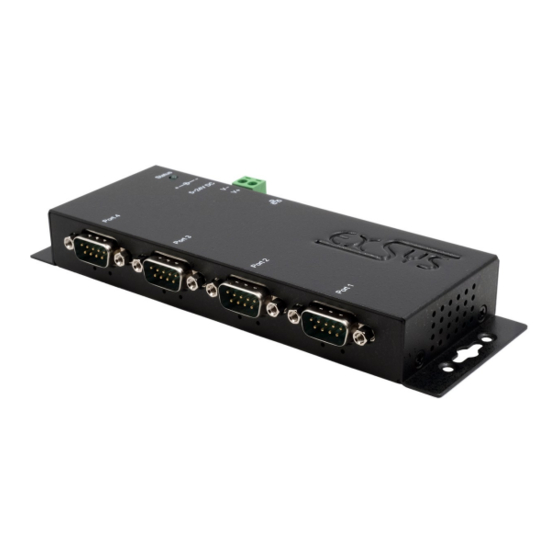

- Page 1 Anleitung EX-6124PoE Ethernet zu 4x Seriell RS-232/422/485 mit Power over Ethernet Funktion Ethernet to 4x Serial RS-232/422/485 with Power over Ethernet Function Vers. 1.0 / 10.02.21 Manual...
-
Page 2: Table Of Contents
Layout ······················································································································ 16 Connections & LED‘s······························································································· 16-17 Hardware Installation ·························································································18 Configuration of the Device Server ·······································································19 VCOM Admin Utility ····················································································· 20-24 DIP-Switch Settings ···························································································25 Cleaning ··········································································································26 Technical Information ·························································································26 Technical Drawing ·····························································································26 © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 3: Beschreibung
Unterstützt 5V über seriellen Anschluss • IEEE802.3af PoE-PD: Kann über das Ethernet-Kabel mit Strom versorgt werden • Zertifiziert für 2. Lieferumfang Bevor Sie den EX-6124PoE in Ihr Netzwerk einbinden, überprüfen Sie bitte zuerst den Inhalt der Lieferung: • EX-6124PoE • Netzteil (12V/3A) •... -
Page 4: Aufbau, Anschlüsse & Led's
Seriell 9 Pin D-SUB Stecker (RS-232) Signal Signal Signal GROUND (Power) DB 9M (RS-422 & RS-485 4-Draht): Seriell 9 Pin D-SUB Stecker (RS-422 & RS-485 4-Draht) Signal Signal Signal TXD- RXD- TXD+ GROUND RXD+ (Power) © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... - Page 5 Blinken: Die serielle Schnittstelle sendet Daten Grün (rechts) Aus: Die serielle Schnittstelle sendet keine Daten RXD LED Blinken: Die serielle Schnittstelle empfängt Daten Grün (links) Aus: Die serielle Schnittstelle empfängt keine Daten © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
-
Page 6: Hardware Installation
EX-6124PoE und das andere Ende mit einem PC oder einem Switch. 3. Verbinden Sie nun Ihre seriellen Endgeräte mit den 9 Pin D-SUB Stecker der EX-6124PoE. 4. Schließen Sie jetzt das im Lieferumfang enthaltene 12V Netzteil an die dafür vorhergesehene 12V Buchse der EX-6124PoE an. -
Page 7: Konfiguration Des Geräteserver
VCOM Mode Serial Interface: RS-232 Falls Sie den EX-6124PoE auf „Werkseinstellung“ zurücksetzen möchten, dann drücken und hal- ten Sie den Reset Schalter für ca. 3-5 Sekunden gedrückt. Die Status LED erlischt und fängt ein paar Sekunden später wieder an zu blinken. -
Page 8: Vcom Admin Utility
EX-6124PoE 6. VCOM Admin Utility Da der EX-6124PoE mit aktiviertem DHCP-Modus ausgeliefert wurde, ist eine IP-Adresse erforder- lich, um ihn zu konfigurieren. Der EX-6124PoE erhält standardmäßig automatisch eine IP-Adresse von einem DHCP-Server (z.B. Ihrem Router). Wenn er nicht mit einem DHCP-Server verbunden ist, verwenden Sie die Standard-IP-Adresse: 192.168.2.1. - Page 9 Gerät zuzuordnen, klicken Sie auf COM Mapping > Add COM > OK Um die COM-Port-Nummer zu ändern, klicken Sie auf COM Mapping > Modify COM Der COM1-COM4 wurde nun hinzugefügt! © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
- Page 10 Schnittstelle auf andere Werte als die Standardwerte ändern (z.B. Device Description, Pass- word, ...), müssen Sie sich zuerst am Device Server anmelden (das Standardpasswort hierfür "system"). Klicken Sie auf Remote Device Management > Login © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
- Page 11 Klicken Sie auf Remote Device Management > (Doppelklick auf das ausgewählte Element in der Liste) > Serial > (Doppelklick auf den Port in der Liste) > Das gewünschte Interface auswählen > OK Doppelklick Doppelklick © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
- Page 12 > Open in Browser und geben Sie folgende Anmeldedaten ein: User Name: admin Password: system Klicken Sie auf Port Config > Port 1 > Operation Mode > Apply > Save & Restore © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
-
Page 13: Dip-Schalter Einstellungen
Deutsch 7. DIP-Schalter Einstellungen Es gibt vier 4-Pin DIP-Schalter im inneren auf der Platine der EX-6124PoE. Hierzu müssen Sie die vier Schrauben auf den Seiten der EX-6124PoE herausschrauben und das obere Gehäuse lösen. Für jeden Port gibt es einen separaten DIP-Schalter. In den meisten Fällen müssen Sie an den DIP-Schalter keine Änderungen vornehmen! Die DIP-Schalter sind bei Werksauslieferung alle auf... -
Page 14: Reinigung
0° bis 60° Celsius Lagertemperatur: -20° bis 75° Celsius Rel. Luftfeuchtigkeit: 5% bis 95% Schutzklasse: IP30 Stromversorgung: +12/3A oder +5-24V Abmessung: 179,00 x 59,50 x 23,00 mm Gewicht: 691g 10. Technische Zeichnung © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 15: Description
Support 5V over serial Connector • IEEE802.3af PoE-PD: Can be powered by Ethernet Cable • Certificate for 2. Extent of Delivery Before you integrate the EX-6124PoE into your network, you should first check the contents of the delivery: • EX-6124PoE • Power Supply (12V/3A) •... -
Page 16: Layout, Connections & Led's
Serial 9 Pin D-SUB Connector (RS-232) Signal Signal Signal GROUND (Power) DB 9M (RS-422 & RS-485 4-wire): Serial 9 Pin D-SUB Connector (RS-422 & RS-485 4-wire) Signal Signal Signal TXD- RXD- TXD+ GROUND RXD+ (Power) © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... - Page 17 Off: The Serial Port is not sending out any data RXD LED Blinking: The Serial Port is receiving data Green (left) Off: The Serial Port is not receiving any data © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
-
Page 18: Hardware Installation
1. Install the EX-6124PoE on a mounting rail by using the optional DIN rail kit or on a wall. Holes for Wall Installation 2. Now use an Ethernet cable and connect it to the RJ45 port of the EX-6124PoE and the other end to a PC or a switch. -
Page 19: Configuration Of The Device Server
Serial Interface: RS-232 If you want to reset the EX-6124PoE to "Factory Settings", then press and hold the reset button for approx. 3-5 seconds. The status LED goes out and starts flashing again a few seconds later. Please note that the settings after the reset are not identical to the factory settings! When you have reset the EX-6124PoE to "Factory Settings", you will have the following settings in the device:... -
Page 20: Vcom Admin Utility
EX-6124PoE 6. VCOM Admin Utility Since the EX-6124PoE was shipped with DHCP mode enabled, an IP address is required to con- figure it. By default, the EX-6124PoE automatically receives an IP address from a DHCP server (e.g. your router). If it is not connected to a DHCP server, use the default IP address: 192.168.2.1. - Page 21 2. Assignment of COM-Ports: To create the virtual COM-Port and assign it to the serial device, click COM Mapping > Add COM > OK To change the COM-Port number, click COM Mapping > Modify COM The COM1-COM4 has now been added! © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
- Page 22 (e.g. Device Description, Password, ...), you must first log in to the Device Server (the default password for this is "system"). Click Remote Device Management > Login © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
- Page 23 Click Remote Device Management > (double-click on the selected element in the list) > Serial > (double-click on the port in the list) > Select the Interface > OK double click double click © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
- Page 24 Server Item") > Open in Browser and enter following credentials: User Name: admin Password: system Click Port Config > Port 1 > Operation Mode > Apply > Save & Restore © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
-
Page 25: Dip-Switch Settings
There are four 4-pin DIP-switches inside on the EX-6124PoE board. To do this, you need to un- screw the four screws on the sides of the EX-6124PoE and loosen the top case. There is a sepa- rate DIP-switch for each port. In most cases you do not have to make any changes to the DIP- switches! The DIP-switches are all set to "OFF"... -
Page 26: Cleaning
Storage Temperature: -4° to 167° Fahrenheit Rel. Humidity: 5% to 95% Protection Class: IP30 Power: +12/3A or +5-24V Size: 179,00 x 59,50 x 23,00 mm Weight: 691g 10. Technical Drawing © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
