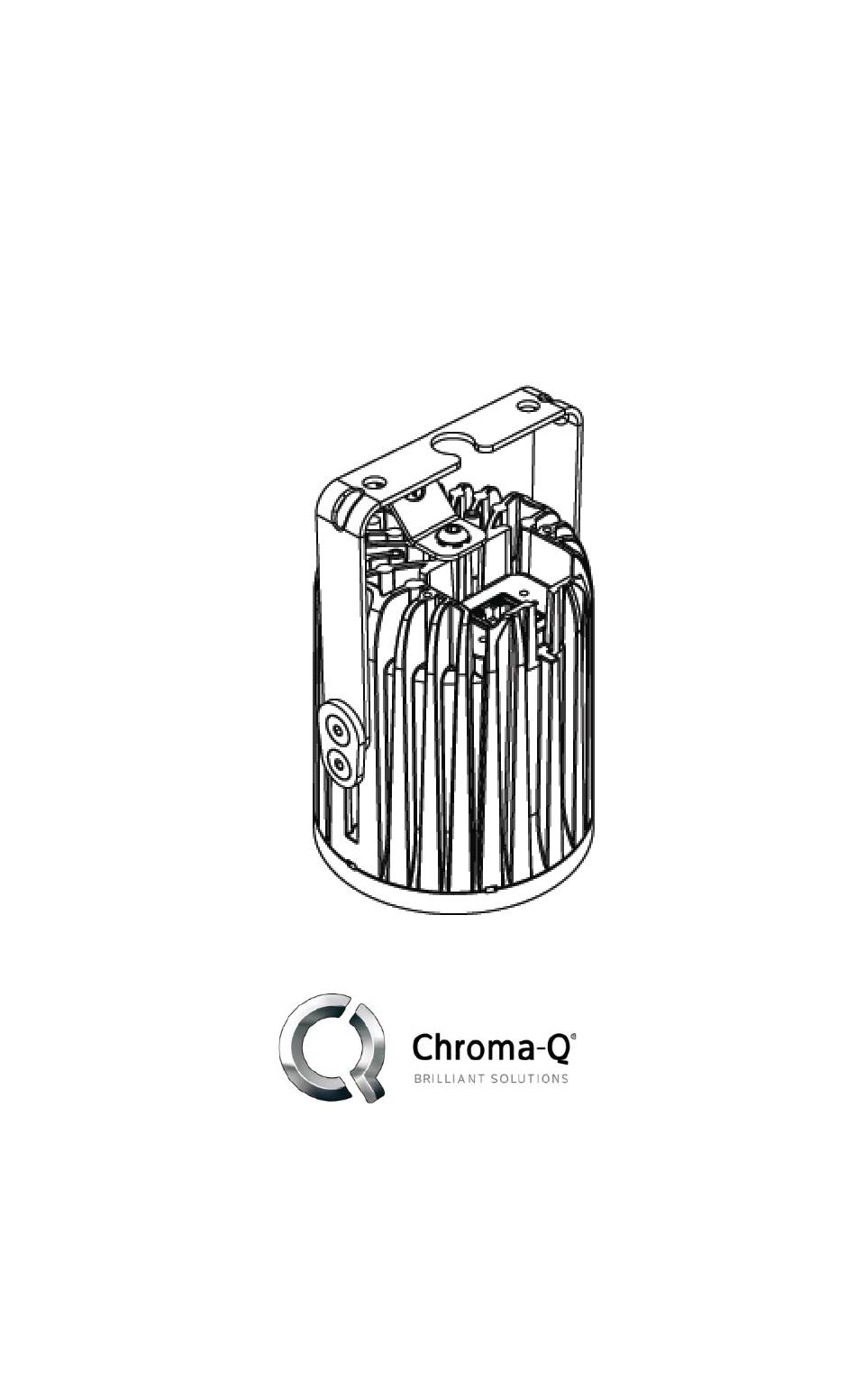

Installation Guide
®
Chroma-Q
TM
2inspire
YOKE KIT
For a full product manual please visit www.chroma-q.com
For use with
Part Number: CQ1509-9106, CQ1509-9107,
CQ1509-9206, CQ1509-9207,
CQ1509-9306, CQ1509-9307.
Model: 1509-9106, 1509-9107, 1509-9206, 1509-9207,
1509-9306, 1509-9307.
TM
YOKE KIT 2inspire
Installation Guide V1.0
ISG P/N: 1509-0712
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Chroma 2inspire 100
Summary of Contents for Chroma 2inspire 100
- Page 1 Installation Guide ® Chroma-Q 2inspire YOKE KIT For a full product manual please visit www.chroma-q.com For use with Part Number: CQ1509-9106, CQ1509-9107, CQ1509-9206, CQ1509-9207, CQ1509-9306, CQ1509-9307. Model: 1509-9106, 1509-9107, 1509-9206, 1509-9207, 1509-9306, 1509-9307. YOKE KIT 2inspire Installation Guide V1.0 ISG P/N: 1509-0712...
- Page 2 Items in the Kit: 1. Tools Required ➢ 3 mm Allen key ➢ 2.5 mm Allen key 2. Installation Procedure (in Sequence) Insert the set screw on the barrel nut. Insert M5x14 on the barrel nut. Insert M5x10 on the barrel nut though the pivoting washer and #10 Washer. Note: Keep the fasteners loose for steps 1,2 and 3.
- Page 3 Slide it through the slots located on the fixture. Recommended Yoke location with respect to fixture. 1501 Model 1502 Model 1503 Model Once the yoke is at desired position, tighten up the loose fasteners. YOKE KIT 2inspire Installation Guide V1.0 ISG P/N: 1509-0712...
- Page 4 Further Information Please refer to the Chroma-Q 2inspire Manual for more detailed information about the fixture. A copy of the manual can be found at the Chroma-Q website – http://www.chroma-q.com/support/downloads.asp Approvals & Disclaimer The information contained herein is offered in good faith and is believed to be accurate.
