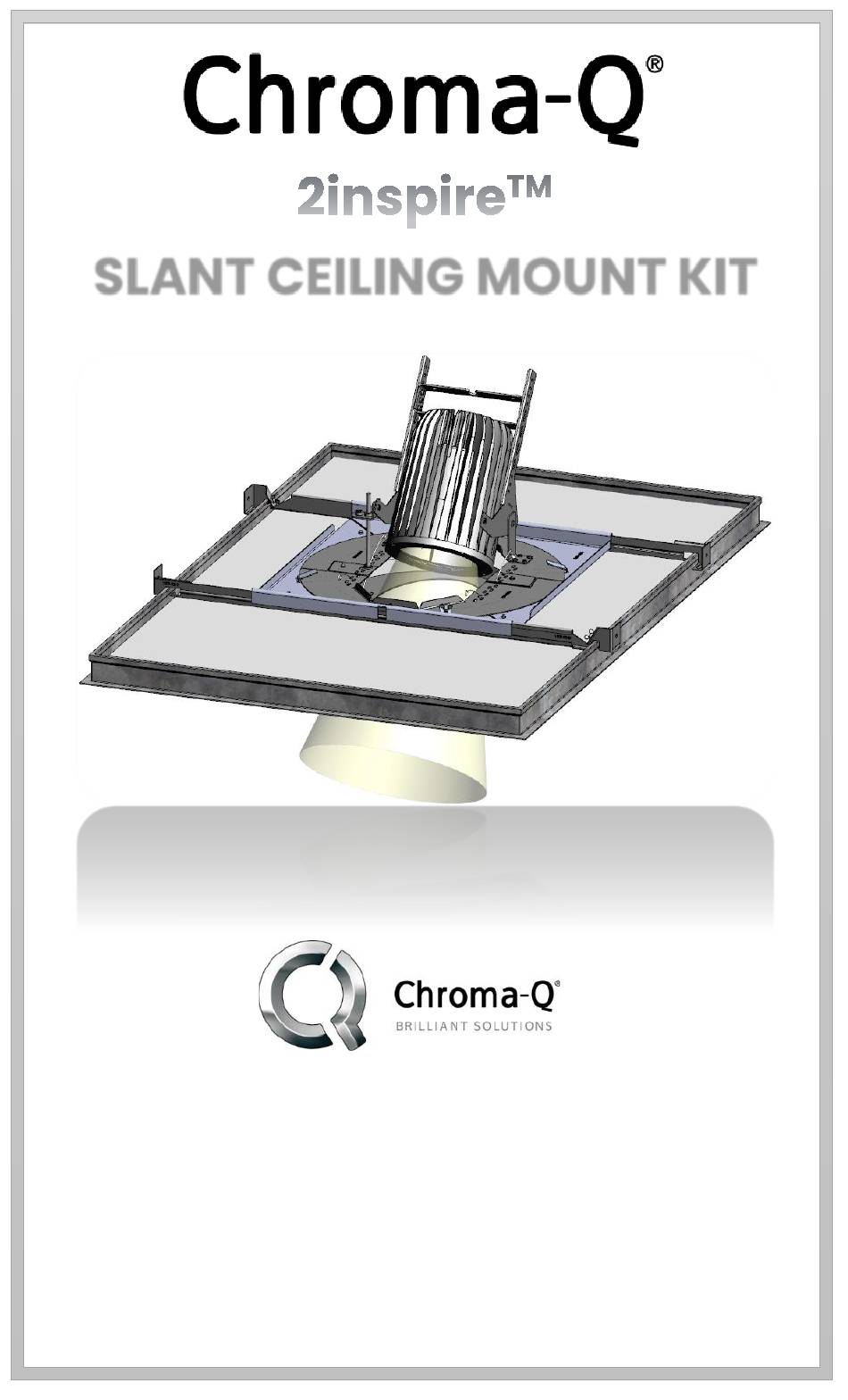

SLANT CEILING MOUNT KIT
Installation Guide
For a full product manual please visit www.chroma-q.com
For use with
Part Number: CQ1509-9221, CQ1509-9222, CQ1509-9226, CQ1509-9227
CQ1509-9231, CQ1509-9232, CQ1509-9321, CQ1509-9322
CQ1509-9326, CQ1509-9327, CQ1509-9331, CQ1509-9332
Model: 1509-9221, 1509-9222, 1509-9226, 1509-9227
1509-9231, 1509-9232, 1509-9321, 1509-9322
1509-9326, 1509-9327, 1509-9331, 1509-9332
SLANT CEILING MOUNT 2inspire
Installation Guide V1.0
ISG P/N: 1509-0714
TM
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Chroma 2inspire 1509-9221
Summary of Contents for Chroma 2inspire 1509-9221
- Page 1 SLANT CEILING MOUNT KIT Installation Guide For a full product manual please visit www.chroma-q.com For use with Part Number: CQ1509-9221, CQ1509-9222, CQ1509-9226, CQ1509-9227 CQ1509-9231, CQ1509-9232, CQ1509-9321, CQ1509-9322 CQ1509-9326, CQ1509-9327, CQ1509-9331, CQ1509-9332 Model: 1509-9221, 1509-9222, 1509-9226, 1509-9227 1509-9231, 1509-9232, 1509-9321, 1509-9322...
- Page 2 ° Bill of Material: SLANT CEILING MOUNT (2inspire 200) (0-45 SLANT CEILING MOUNT 2inspire Installation Guide V1.0 ISG P/N: 1509-0714...
- Page 3 °) Bill of Material: SLANT CEILING MOUNT (2inspire 300) (0-45 * Items part of S/A Slant Ceiling Mount Kit. ** Items part of S/A Trim Ring Kit SLANT CEILING MOUNT 2inspire Installation Guide V1.0 ISG P/N: 1509-0714...
-
Page 4: Kit Contents
KIT CONTENTS: TOOLS REQUIRED: ➢ Phillips-head screw driver (Minimum torque: 5.5 in-lb / 0.62N·m) ➢ 3mm Allen key ° ° ° ➢ Ceiling cut out sizes for 2inspire 200/300 (0 ) respectively as shown in the picture below: ➢ Prior to installation, the fixture must be secured with a safety cable to avoid accidents. -
Page 5: Installation Procedure
INSTALLATION PROCEDURE: Insert the M4x10mm Wing Screw (440-1510-0) and place the Rails (1509-0315 & 1509-0320) inside the ceiling as shown in the picture below: Safely prepare the Main Fixture for assembly Attach the Shroud Mounting Bracket (1509-0051) to the Main Fixture and secure it with screws. - Page 6 Prepare the M3X10 Screw (430-1110-0) with the Rest Ring (1509-0305) Slide the M3x10 Screw through the provided threaded hole. Clip the Retainer Ring onto the M3x10 Screw by the cut out near the head. SLANT CEILING MOUNT 2inspire Installation Guide V1.0 ISG P/N: 1509-0714...
- Page 7 Attach the Hinge Brackets (1509-0310) on the left piece of the Rest Ring (1509-0305), and secure them with M3x6 Screws. Slide the Hinge Brackets accordingly to the size of the Main Fixture as indicated (200/300). Insert a M3x6 Screw into the screw hole that joins the two pieces and only apply two rotations (Do not tighten).
- Page 8 ASSEMBLED PIECE #2 Prepare ½ of the Center Plate (1509-0300) for installation. Insert the M3x6 Screw into the screw hole (Keep it loose). Insert the M4x10mm Wing Screw into both the Threaded Standoff and the clip. Do the same for the other ½. SLANT CEILING MOUNT 2inspire Installation Guide V1.0 ISG P/N: 1509-0714...
- Page 9 After sending both ½ of the Center Plates through the ceiling, clip the loose M3x6mm Screws through the key hole and screw it tight, completing the assembly. (See below) ASSEMBLED PIECE #3 SLANT CEILING MOUNT 2inspire Installation Guide V1.0 ISG P/N: 1509-0714...
- Page 10 Slide the ½ of the Rest Ring through the ceiling and make sure it sits inside both of the clips on the Center Plate. (See Below) Do the same for the Mount Ring (1509-0355) and join the two by clip the loose M3x6mm Screw through the key hole and tightening.
- Page 11 Slide the Main Fixture (ASSEMBLED PIECE #1) through the hole in the ceiling and clip the Holding Brackets into the rotate socket of the Hinge Brackets. Rotate the Adjusting Bracket through the M6x100 Screw. Secure it into place and lock in the rotational degree by screwing tight the M3x6 Screw into the Holding bracket.
- Page 12 ASSEMBLED PIECE #5 SLANT CEILING MOUNT 2inspire Installation Guide V1.0 ISG P/N: 1509-0714...
- Page 13 TRIM RING SIZES: 1509-0240 (0deg) 1509-0245 (25deg) 1509-0250 (45deg) 1509-0340 (0deg) 1509-0345 (25deg) 1509-0350(45deg) Wrap the Cache Slant Ceiling (1509-0376) around the Trim Ring (1509-0350) with the Spring Hook Ceiling 2inspire (1509-0361), then push it all through the ceiling hole covering the Main Fixture. SLANT CEILING MOUNT 2inspire Installation Guide V1.0 ISG P/N: 1509-0714...
- Page 14 hooking the Spring Hooks through your preferred cutouts on the Rest & Mount Rings. Press into the Trim Ring until you hear a clip to lock it into place. ASSEMBLED PIECE #5 Note: Different Trim Ring will have different end results SLANT CEILING MOUNT 2inspire Installation Guide V1.0 ISG P/N: 1509-0714...
- Page 15 COMPLETED ASSEMBLY (ILLUSTRATION) COMPLETED ASSEMBLY (SOLID) SLANT CEILING MOUNT 2inspire Installation Guide V1.0 ISG P/N: 1509-0714...
- Page 16 Suggestions of use shall not be taken as inducements to infringe any patent. Chroma-Q sole warranty is that the product will meet the Chroma-Q sales specifications in effect at the time of shipment. Your exclusive remedy for breach of such warranty is limited to refund of purchase price or replacement of any product shown to be other than as warranted.
