Summary of Contents for Chroma Color Force
- Page 1 Chroma-Q™ Color Force™ User Manual Version 1.2 October 2009 Software Version 1.1 PN: 622-0500...
- Page 2 Suggestions of use shall not be taken as inducements to infringe any patent. Chroma-Q sole warranty is that the product will meet the sales specifications in effect at the time of shipment. Your exclusive remedy for breach of such warranty is limited to refund of purchase price or replacement of any product shown to be other than as warranted.
-
Page 3: Table Of Contents
Table of Contents Product overview....................3 Operation.......................3 Unpacking the units..................3 Cabling ......................3 Mounting .....................4 Control......................4 DMX Protocol....................7 Thermal Performance.................9 Troubleshooting....................10 Specification......................10 Technical specifications ................10 Drawings ....................11 Maintenance......................11 Color Force User Manual V1.2 November 2009... -
Page 4: Product Overview

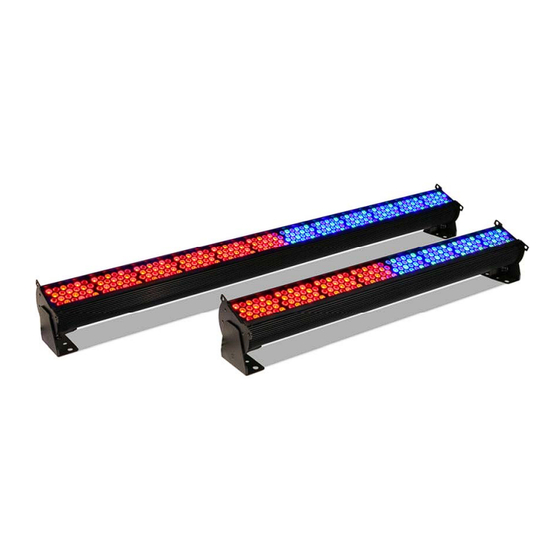

Product overview The Chroma-Q Color Force LED batten range is a brute of a light. At up to 12,000 hot lumens output (Color Force 72); the super bright fixture easily washes up to 8m / 26 foot. In addition, the advanced colour mixing and control management technologies together give you a radically increased colour palette, a high CRI of 92 and theatrical grade dimming, all in the same fixture. -
Page 5: Mounting
Note: Secure the fixture with a safety bond. Provision for a fixing hold is built into the brackets. 2.4 Control Color Force 48 & 72 fixtures can operate as a stand-alone unit or be controlled remotely by ANSI E1.11 USITT DMX512-A. The control functions of both fixture models are identical and can be accessed through the LCD display at the rear of the fixture with 4 push buttons. - Page 6 Grouping options: grouping by individual “cell” and “all” cells. A Color Force 72” fixture consists of 12 cells and a Color Force 48” fixture consists of 8 cells. “Cell” grouping allows individual control of each single cell. In “All” grouping, all cells in either the 72” or 48” fixture can be controlled as 1 group.
- Page 7 There are two ways to record a look: Simple, with DMX console. Set the Color Force to the desired Control Mode. Use a DMX console to adjust channel levels and create the desired look or effect. Press Up/Down buttons to Look Store and press Enter, press Up/Down buttons to the desired Look number and press Enter.
-
Page 8: Dmx Protocol
2.5 DMX Protocol Color Force DMX Personality Mode 1-3. In mode 1 grouping is variable & in modes 2 -3 each cell is a group Color Force Mode 1 (43ch) Mode 2 (36ch) Mode 3 (36ch) (v1.1) 7fx + 12 x HSI... - Page 9 Color Force DMX Personality Mode 4-6. In modes 4-5 each cell is a group & in mode 6 all cells are a group (All) Color Force Mode 4 (48ch) Mode 5 (49ch) Mode 6 (9ch) (v1.1) 12 x RGBA 1s + 12 x RGBI...
-
Page 10: Thermal Performance
65-68 2.6 Thermal Performance The Color Force 72 and Color Force 48 fixtures feature 2 internal fans that drive the internal cooling system. If the internal temperature of the Color Force exceeds 75ºC the output of the fixture is reduced for automatic protection. -
Page 11: Troubleshooting
Specialised close focus lens Beam angle: 12º (provisional) Beam distribution: Symmetrical direct illumination CCT: Adjustable 1000 – 10000K CRI: Lamp Life: L70 up to 50,000 hours IP Rating: IP20 Operating temperature: 0ºC to 40ºC Approvals: Pending Color Force User Manual V1.2 November 2009... -
Page 12: Drawings
Color Force 48 Maintenance With care, the Color Force will require little maintenance. However, as the unit is likely to be used in a stage environment we recommend periodical internal inspection and cleaning of any resulting dust and cracked oil residue.
