Installation Guide
Chroma-Q
®
2inspire
TM
For a full product manual please visit www.chroma-q.com
For use with
Part Number: CQ1509-9146, CQ1509-9147,
CQ1509-9246, CQ1509-9247,
CQ1509-9346, CQ1509-9347.
Model: 1509-9146, 1509-9147, 1509-9246, 1509-9247,
1509-9346, 1509-9347.
SNOOT KIT 2inspire
TM
Installation Guide V1.0
ISG P/N: 1509-0717
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Chroma 2inspire SNOOT KIT
Summary of Contents for Chroma 2inspire SNOOT KIT

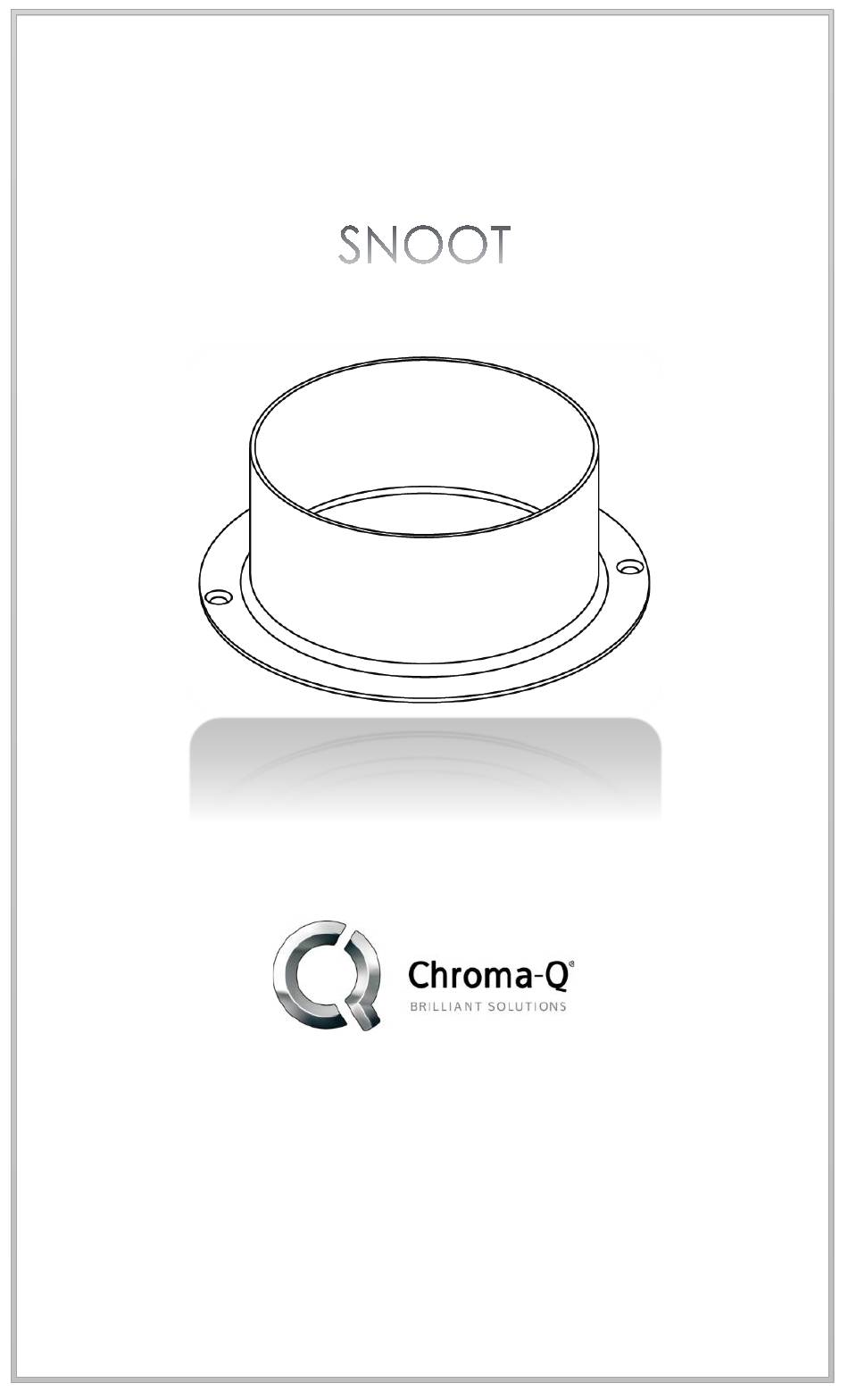

- Page 1 Installation Guide Chroma-Q ® 2inspire For a full product manual please visit www.chroma-q.com For use with Part Number: CQ1509-9146, CQ1509-9147, CQ1509-9246, CQ1509-9247, CQ1509-9346, CQ1509-9347. Model: 1509-9146, 1509-9147, 1509-9246, 1509-9247, 1509-9346, 1509-9347. SNOOT KIT 2inspire Installation Guide V1.0 ISG P/N: 1509-0717...
- Page 2 Items in the Kit 1. Tools Required ➢ 2.5mm/3mm Allen Key ➢ Phillips Head Screwdriver 2. Installation Procedure (in Sequence) Remove the two Socket Head screws from the main fixture diagonally with an Allen Key. SNOOT KIT 2inspire Installation Guide V1.0 ISG P/N: 1509-0717...
- Page 3 Align the Snoot with the main fixture. Assemble the Phillips head screws through the Snoot and into the main fixture. Tighten each of the screws on either side with a Phillips head screwdriver. **Refer to the table (Items in the kit) to identify the parts 1509-XXXX 1501 Model 1502 Model 1503 Model...
- Page 4 Chroma-Q products are safe, effective, and fully satisfactory for the intended end use. Suggestions of use shall not be taken as inducements to infringe any patent.
