Installation Guide
®
Chroma-Q
TM
2inspire
For a full product manual please visit www.chroma-q.com
For use with
Part Number: CQ1509-9136, CQ1509-9137,
CQ1509-9236, CQ1509-9237,
CQ1509-9336, CQ1509-9337.
Model: 1509-9136, 1509-9137, 1509-9236, 1509-9237,
1509-9336, 1509-9337.

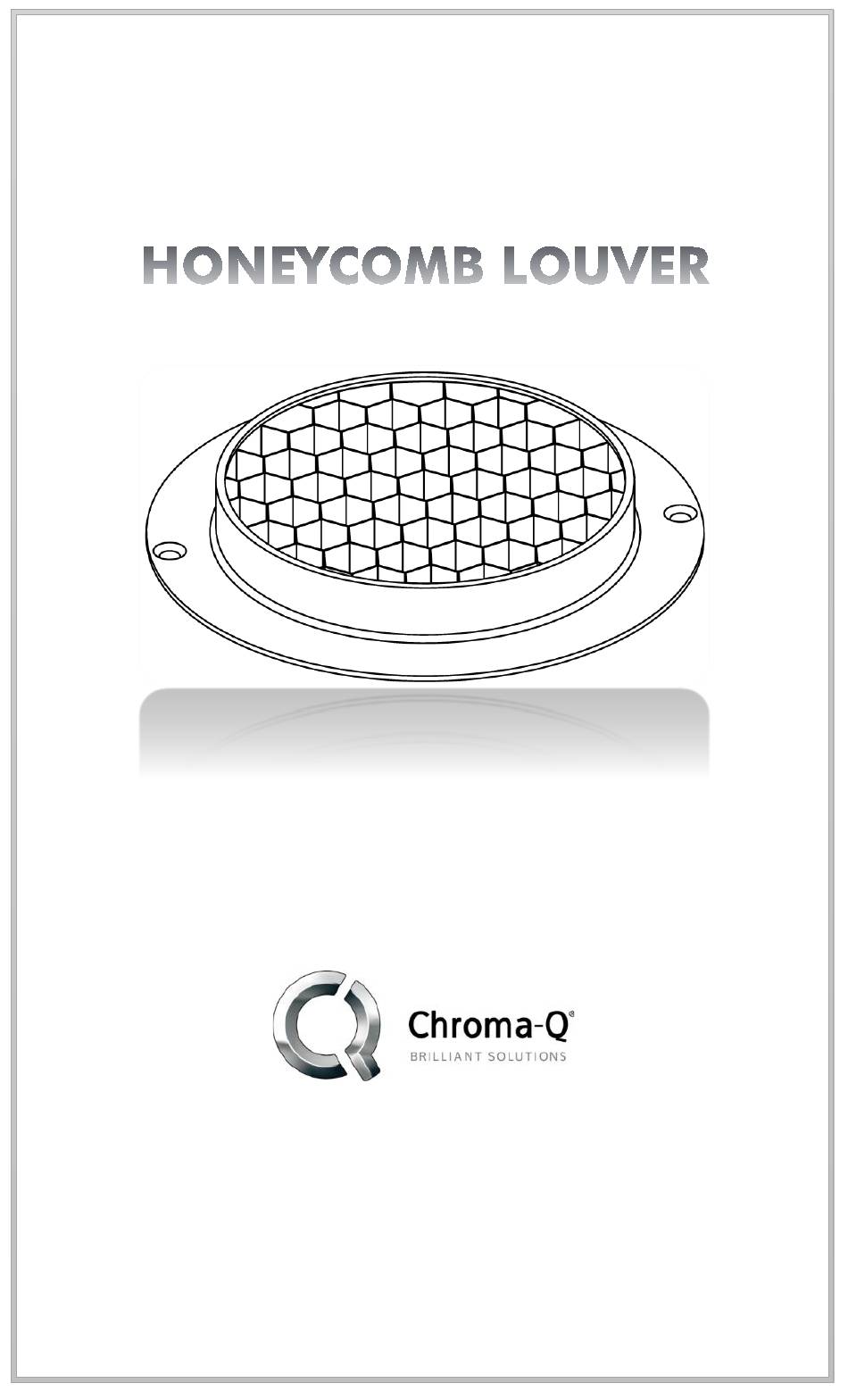

HONEYCOMB LOUVER KIT 2inspire
Installation Guide V1.0
ISG P/N: 1509-0715
TM
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Chroma 2inspire HONEYCOMB LOUVER
Summary of Contents for Chroma 2inspire HONEYCOMB LOUVER
- Page 1 Installation Guide ® Chroma-Q 2inspire For a full product manual please visit www.chroma-q.com For use with Part Number: CQ1509-9136, CQ1509-9137, CQ1509-9236, CQ1509-9237, CQ1509-9336, CQ1509-9337. Model: 1509-9136, 1509-9137, 1509-9236, 1509-9237, 1509-9336, 1509-9337. HONEYCOMB LOUVER KIT 2inspire Installation Guide V1.0 ISG P/N: 1509-0715...
- Page 2 Items in the Kit**: Tools Required ➢ 2.5mm/3mm Allen Key ➢ Phillips Head Screwdriver 2. Installation Procedure (in Sequence) Remove the two Socket Head screws from the main fixture diagonally with an Allen Key. HONEYCOMB LOUVER KIT 2inspire Installation Guide V1.0 ISG P/N: 1509-0715...
- Page 3 Align the Honeycomb Louver with the main fixture. Assemble the Phillips head screws through the Honeycomb Louver and into the main fixture. Tighten each of the screws on either side with a Phillips head screwdriver. **Refer to the table (Items in the kit) to identify the parts 1509-XXXX 1501 Model 1502 Model 1503 Model...
- Page 4 Suggestions of use shall not be taken as inducements to infringe any patent. Chroma-Q sole warranty is that the product will meet the Chroma-Q sales specifications in effect at the time of shipment. Your exclusive remedy for breach of such warranty is limited to refund of purchase price or replacement of any product shown to be other than as warranted.
