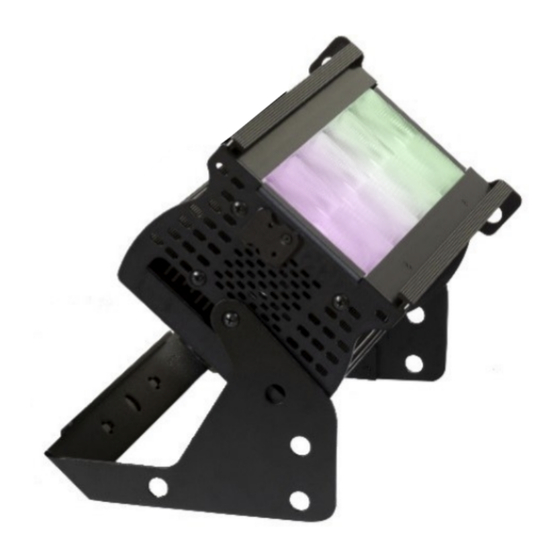

Chroma-Q
®
Studio Force II™ V12/ V48/ V72
User Manual
Part Number: CHSF2V12, CHSF2V12LR, CHSF2V12W,
CHSF2V48, CHSF2V48LR, CHSF2V48W,
CHSF2V72, CHSF2V72LR, CHSF2V72W
(Model: 652-1150, 652-1650, 652-1250,
641-4000, 641-4100, 641-4500,
641-5000, 641-5100, 641-5500)
Software Version 1.4
Manual: 641-0906 V1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Studio Force II V12 and is the answer not in the manual?

Questions and answers

Summary of Contents for Chroma Studio Force II V12

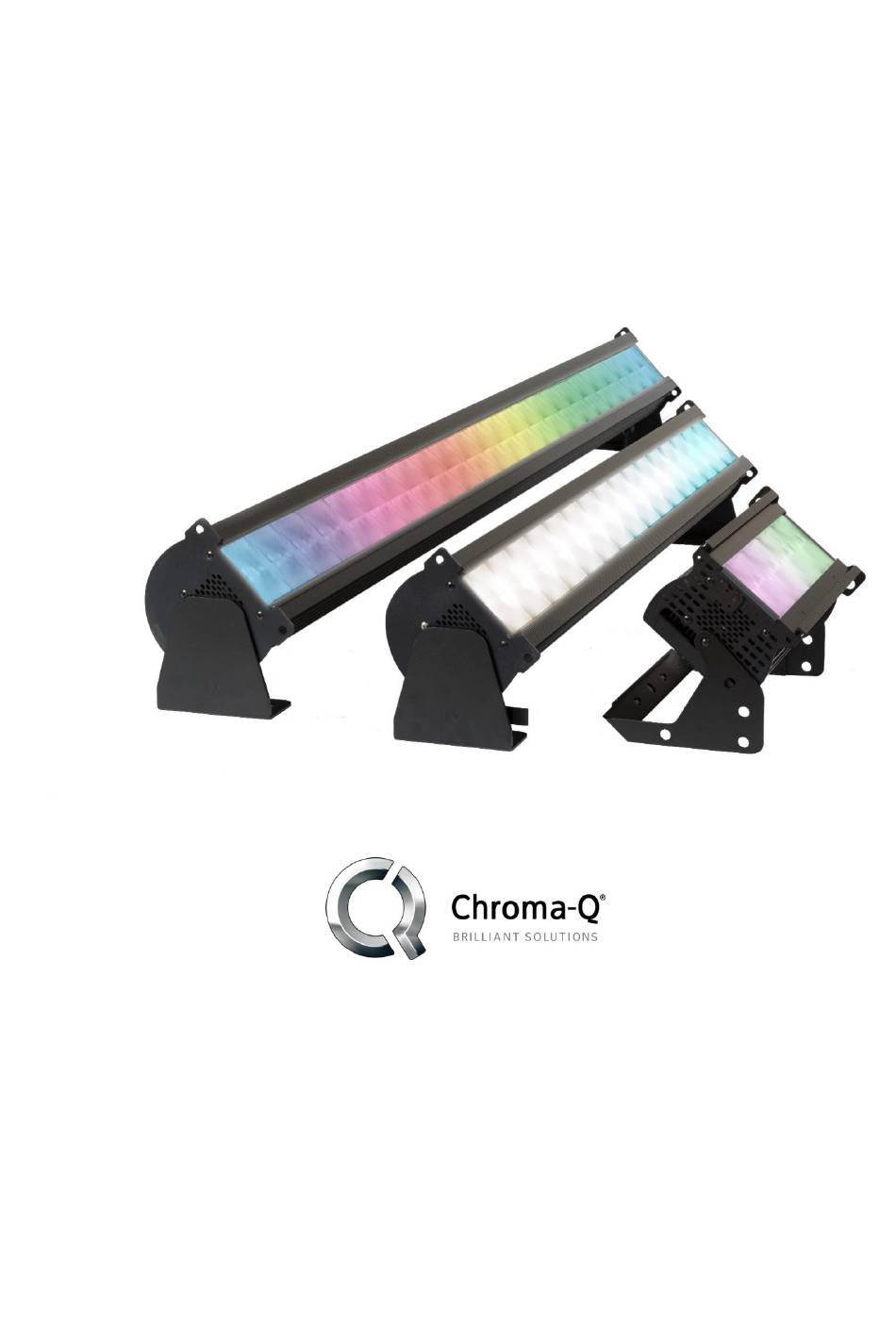

  • Page 1 Chroma-Q ® Studio Force II™ V12/ V48/ V72 User Manual Part Number: CHSF2V12, CHSF2V12LR, CHSF2V12W, CHSF2V48, CHSF2V48LR, CHSF2V48W, CHSF2V72, CHSF2V72LR, CHSF2V72W (Model: 652-1150, 652-1650, 652-1250, 641-4000, 641-4100, 641-4500, 641-5000, 641-5100, 641-5500) Software Version 1.4 Manual: 641-0906 V1.1...
  • Page 2 Chroma-Q to do such modification, repair or service unless the Customer provides acceptable proof to Chroma-Q that the defect or damage was not caused by the above; (f) due to procedures, deviating from procedures specified by Chroma-Q or (g) due to failure to store,...
  • Page 3 However, because conditions and methods of use of our products are beyond our control, this information should not be used in substitution for customer's tests to ensure that Chroma- Q products are safe, effective, and fully satisfactory for the intended end use. Suggestions of use shall not be taken as inducements to infringe any patent.
  • Page 4 If you experience difficulties with any Chroma-Q products please contact your local dealer. If your local dealer is unable to help then please contact support@chroma-q.com. If you are having trouble finding what you are looking for on our website, then contact our Chroma-Q marketing department by sending an email to marketing@chroma-q.com.
  • Page 5 PROTECTION FROM ELECTRIC SHOCK • Use only the cables specified in this manual and on the Chroma-Q website at www.chroma-q.com to interconnect devices in the installation. If the specified cables are not long enough for an intended cable run, consult Chroma-Q for assistance in finding or creating a safe alternative solution.
  • Page 6: Table Of Contents

    Specification ............................26 9.1. Technical specifications ....................... 26 9.2. Technical Drawings ........................27 Studio Force II 72 ............................27 Studio Force II 48 ............................28 Studio Force II 12 ............................29 www.chroma-q.com Studio Force II User Manual V1.1 Aug. 2019...
  • Page 7 11.7. Studio Force II DMX map group modes ..................35 11.8. Studio Force II DMX map Control channel .................. 35 RDM FUNCTIONS ..........................36 12.1. FREQUENCY, FAN_SPEED and GROUPING ................36 www.chroma-q.com Studio Force II User Manual V1.1 Aug. 2019...
  • Page 8: Product Overview

    1. Product overview The Chroma-Q Studio Force II LED batten range is a powerful lineup of professional lighting industry. With up to ≈36,000/ Studio Force II 72, ≈24,000/ Studio Force II 48, ≈6,500/ Studio Force II 12 hot lumens output, these super bright fixtures are specifically designed for TV Broadcast and film applications but also performs particularly well in other situations demanding high quality tunable white light such as touring key lights, exhibitions, corporate events and theatre lighting.
  • Page 9: Operation

    SF II 48 550W 3 x SF II 48 6 x SF II 48 SF II 12 150W 10 x SF II 12 20 x SF II 12 Table 3 (Fixtures in series) www.chroma-q.com Studio Force II User Manual V1.1 Aug. 2019...
  • Page 10: Mounting

    Matching indentations on both ends of lens are provided for locking the lens in place. Studio Force II comes standard with a 22º X 22º beam angle optics. 2 additional lenses can be position in front www.chroma-q.com Studio Force II User Manual V1.1 Aug. 2019...
  • Page 11: Control

    ON and configure the fixture when it is Tap on Focus not connected to the AC mains button to turn ON power. the fixture for 30 Figure 6 (Start-up Screen) www.chroma-q.com Studio Force II User Manual V1.1 Aug. 2019...
  • Page 12: Main Menu

    DMX signal from an external DMX source/ console. DMX > > > -appears when the fixture is set at Master and is outputting a DMX data signal. Table 4 (Data Signal Indicator) www.chroma-q.com Studio Force II User Manual V1.1 Aug. 2019...
  • Page 13: Configuration Option Buttons

    Control goes back to the Main menu screen and the new DMX start address will be displayed Tap on Escape anytime to cancel Mode Pixel Ordering Options Mode options Mode Select options Grouping options Apply Changes/Save Cancel / Go Back Figure 9 (Mode Options Screen) www.chroma-q.com Studio Force II User Manual V1.1 Aug. 2019...
  • Page 14: Mode Select Options

    The default value for Kelvin and Hue parameters should be 50%. The crossfade parameter can be set to 16-bit for a more accurate crossfade when using very long transition. The DMX map is shown in Table 20 (DMX Map-CINE-Q-iKHRGBW). Figure 10 (CINE-Q CROSSFADE) www.chroma-q.com Studio Force II User Manual V1.1 Aug. 2019...
  • Page 15 **Extended Control Channel: An extra Control parameter can be enabled, it will be place as the last parameter of the fixture control mode. The Control channel allows for remotely control certain aspect of the fixture such as the fan speed, PWM frequency and more functions. www.chroma-q.com Studio Force II User Manual V1.1 Aug. 2019...
  • Page 16: Mode Options

    RDM. HSi Legacy The option allows the new Studio force fixtures match the HSi pattern, with old Chroma-Q HSi mode enabled fixtures. With Legacy hue mode enabled, the Hue channel is from Blue to Blue (B→G→R→B).
  • Page 17: Grouping Options

    Grouping: Studio Force II Flip: L→R Group Group Number(s) Selected Od/Ev Table 8 (SFII 48 DMX Grouping) Studio Force L→R Group Group Selected Number(s) Od/Ev Table 9 (SFII 12 DMX Grouping) www.chroma-q.com Studio Force II User Manual V1.1 Aug. 2019...
  • Page 18: Pixel Ordering Options

    Cine-Q Cine-Q RGBW 16bit Grouping Od/Ev Table 12 (SFII 48 Mode-Grouping DMX Values) Studio Force II Control Mode Cine-Q Cine-Q RGBW 16bit Grouping Od/Ev Table 13 (SFII 12 Mode-Grouping DMX Values) www.chroma-q.com Studio Force II User Manual V1.1 Aug. 2019...
  • Page 19: Set Up Menu

    DMX Source Displays current DMX source – cable or wireless Eng Temp Displays LIVE value for temperature of all the engines in fixture. Escape Exit the screen Table 14 (Setup Menu Options) www.chroma-q.com Studio Force II User Manual V1.1 Aug. 2019...
  • Page 20: Dmx Data

    To set the orientation of the display, 1. On the Main Menu screen, tap Setup Menu. 2. On the Screen Setup screen, tap RotateDisp 3. The display screen rotates by 180 degrees www.chroma-q.com Studio Force II User Manual V1.1 Aug. 2019...
  • Page 21: Pwm Frequency

    Apply to save Note: If a Look is selected for playback when DMX is lost, the unit will playback the selected look on power up, as long as DMX is not present. www.chroma-q.com Studio Force II User Manual V1.1 Aug. 2019...
  • Page 22: Lock Feature

    If the Lock feature is enabled, touch and hold the lock icon for 5 seconds to unlock. Display Lock Icon Note: The Lock Icon turns green when pressed and held for 5 sec to unlock Figure 17 (Lock Feature Select Icon) www.chroma-q.com Studio Force II User Manual V1.1 Aug. 2019...
  • Page 23: Reset And Factory Defaults

    1. On the Main Menu, tap Setup Menu 2. On the Setup screen, tap Reset 3. On the Reset Setting screen, tap Default 4. Press and hold Apply for 3 seconds to restore the factory default settings www.chroma-q.com Studio Force II User Manual V1.1 Aug. 2019...
  • Page 24: Upload Engine

    4.8. Upload Engine RECOMMENDED ONLY FOR FACTORY TRAINED PERSONNEL. LED Engine software can be uploaded to the fixture from the Chroma-Q Uploader II by accessing this menu. Refer to the Quick Start Guide of the Chroma-Q Uploader II. Link: http://www.chroma-q.com/support/quick-start/CHUSBLOADERII_Uploader-quickstartguide.pdf...
  • Page 25: Look Store

    4. “Look Stored” will be displayed on the screen to confirm. 5. Multiple looks can be saved from Look (1-31). 6. Playback button allows the user to check what look is at (1-31). www.chroma-q.com Studio Force II User Manual V1.1 Aug. 2019...
  • Page 26: Thermal Performance

    The airflow to and from the fan must not be constricted to maintain the maximum light output of the Studio Force II 7. Troubleshooting Troubleshooting is a process of elimination. First, rule out the other field factors (i.e. bad connections, faulty cables and power supplies). For technical support and/or parts, please contact nearest Chroma-Q dealer. Symptom Possible Cause...
  • Page 27: Specification

    9. Specification 9.1. Technical specifications Studio Force II V72 Studio Force II V48 Studio Force II V12 Product CHSF2V72 CHSF2V48 CHSF2V12 Code: Dimensions: 1759mm x182mm x 1,181mm x 165mm x 335mm x 190mm 177mm 69.25" x 191mm / 46.5” x 6.5”...
  • Page 28: Technical Drawings

    9.2. Technical Drawings Studio Force II 72 www.chroma-q.com Studio Force II User Manual V1.1 Aug. 2019...
  • Page 29: Studio Force Ii 48

    Studio Force II 48 www.chroma-q.com Studio Force II User Manual V1.1 Aug. 2019...
  • Page 30: Studio Force Ii 12

    Studio Force II 12 www.chroma-q.com Studio Force II User Manual V1.1 Aug. 2019...
  • Page 31: Menu Tree

    6,000 Hz 12,000 Hz 24,000 Hz Hold SETUP DMX Lost Look (Select) Disable Lock Enable Default User Reset Upload Eng Fw Version Cable DMX Source Wireless Eng Temp Select LOOKS Playback Store www.chroma-q.com Studio Force II User Manual V1.1 Aug. 2019...
  • Page 32: Dmx Map

    Control parameter is only present when Extended mode is enabled Control parameter is always last, its position will change according the grouping mode. For example, in odd/even grouping mode, the control parameter would be on 7 www.chroma-q.com Studio Force II User Manual V1.1 Aug. 2019...
  • Page 33: Studio Force Ii Dmx Map For Hsi Control Mode

    Control parameter is only present when Extended mode is enabled Control parameter is always last, its position will change according the grouping mode. For example, in odd/even grouping mode, the control parameter would be on 7 www.chroma-q.com Studio Force II User Manual V1.1 Aug. 2019...
  • Page 34: Studio Force Ii Dmx Map For Cine-Q I-Kh-Rgbw Control Mode

    Control parameter is only present when Extended mode is enabled Control parameter is always last, its position will change according the grouping mode. For example, in odd/even grouping mode, the control parameter would be on 17 www.chroma-q.com Studio Force II User Manual V1.1 Aug. 2019...
  • Page 35: Studio Force Ii Dmx Map For Cine-Q I-Kh-Rgbw 16Bit Control Mode

    Control parameter is only present when Extended mode is enabled Control parameter is always last, its position will change according the grouping mode. For example, in odd/even grouping mode, the control parameter would be on 19 www.chroma-q.com Studio Force II User Manual V1.1 Aug. 2019...
  • Page 36: Studio Force Ii Dmx Map Group Modes

    Reserved for future feature Reserved DMX Lost default fixture to selected look Reserved for future feature Reserved No Function Values must be held for 5 second before its function is activated www.chroma-q.com Studio Force II User Manual V1.1 Aug. 2019...
  • Page 37: Rdm Functions

    RDM Values for Fan Speed Modes are as follows Byte Value Fan Speed 0x01 Quiet 0x02 Studio 0x03 Live 0x04 Live-Quiet RDM Values for Grouping are as follows Byte Value Grouping 0x01 0x02 0x03 0x04 Od/Ev www.chroma-q.com Studio Force II User Manual V1.1 Aug. 2019...
