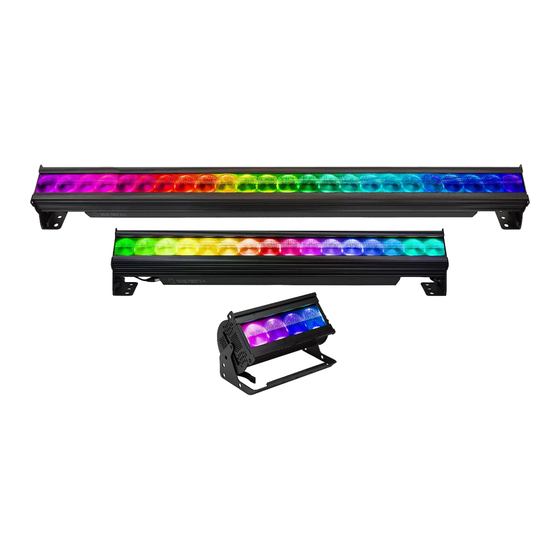

Color Force II Plus 72™
Color Force II Plus 48™
Color Force II Plus 12™
Part Numbers: CQ1652-1012, CQ1652-1100, CQ1652-1500, CQ1652-1600,
CQ1641-2000, CQ1641-2100, CQ1641-2500, CQ1641-2600, CQ1641-3000,
CQ1641-3100, CQ1641-3500, CQ1641-3600
(Model: 1652-1012, 1652-1100, 1652-1500,
Software Version: Addressing 4.0, Engine 4.2
Chroma-Q
User Manual
1652-1600, 1641-2000, 1641-2100,
1641-2500, 1641-2600, 1641-3000,
1641-3100, 1641-3500, 1641-3600)
Manual P/N: 1641-0701 V1.0
®
Advertisement
Table of Contents
Related Manuals for Chroma Color Force II Plus 72
Summary of Contents for Chroma Color Force II Plus 72
- Page 1 Chroma-Q ® Color Force II Plus 72™ Color Force II Plus 48™ Color Force II Plus 12™ User Manual Part Numbers: CQ1652-1012, CQ1652-1100, CQ1652-1500, CQ1652-1600, CQ1641-2000, CQ1641-2100, CQ1641-2500, CQ1641-2600, CQ1641-3000, CQ1641-3100, CQ1641-3500, CQ1641-3600 (Model: 1652-1012, 1652-1100, 1652-1500, 1652-1600, 1641-2000, 1641-2100,...
- Page 2 ® This warranty is subject to the shipment of the goods, within the warranty period, to the Chroma-Q warranty returns department, by the purchaser, at the purchaser’s expense. If no fault is found, Chroma- ®...
- Page 3 If you experience any difficulties with any Chroma-Q products please contact your selling dealer. If your selling dealer is unable to help, please contact support@chroma-q.com. If the selling dealer is unable to satisfy your servicing needs, please contact the following, for full factory service:...
- Page 4 If your local dealer is unable to help then please contact support@chroma-q.com. ® If you are having trouble finding what you are looking for on our website, then contact our Chroma-Q marketing department by sending an email to marketing@chroma-q.com. www.chroma-q.com ®...
- Page 5 PROTECTION FROM ELECTRIC SHOCK • ® Use only the cables specified in this manual and on the Chroma-Q website at www.chroma- q.com to interconnect devices in the installation. If the specified cables are not long enough ® for an intended cable run, consult Chroma-Q for assistance in finding or creating a safe alternative solution.
-
Page 6: Table Of Contents
Technical specifications ..............................21 8.1. Technical specification ............................21 8.2. Technical Drawings ..............................23 Menu Tree: ..................................26 DMX MAP ..................................27 CCT ....................................28 RDM Functions ..................................30 12.1. Frequency, Grouping and Fan_Speed ........................30 www.chroma-q.com ® Chroma-Q Color Force II Plus User Manual V1.0 Mar. 2024... -
Page 7: Product Overview
The Color Force II Plus is available in three lengths, the Color Force II Plus 72 model which features a total of 24 high output RGBA cells (or pixels), the Color Force II Plus 48... -
Page 8: Operation
Note: Secure the fixture with a safety bond. Provisions for fixing holes are built in to the endplates and fixture brackets. www.chroma-q.com ® Chroma-Q Color Force II Plus User Manual V1.0... -
Page 9: Orientation
Spring Plungers are pre-installed at the far ends of the accessory slot to lock in-place the slide-in panels. The heights of the spring plungers are preset at the factory do not need adjustment. www.chroma-q.com ® Chroma-Q Color Force II Plus User Manual V1.0... -
Page 10: Control
No Power Menu Access: Insert a small blunt object, such as a paperclip, into the hole to turn the display on and configure the fixture when it is not connected to line power. www.chroma-q.com ® Chroma-Q Color Force II Plus User Manual V1.0... -
Page 11: Main Menu
DMX signal from an external DMX control console is present. DMX > > > -appears when the fixture is set at Master and outputting a DMX data signal. www.chroma-q.com ® Chroma-Q Color Force II Plus User Manual V1.0 Mar. 2024... -
Page 12: Dmx
33 4. Press Apply to save, display goes back to the main menu with the new DMX start address 5. Press Escape anytime to cancel www.chroma-q.com ® Chroma-Q Color Force II Plus User Manual V1.0 Mar. 2024... -
Page 13: Mode
Look Sel (Look Select) gives 1 control channel to select a preset look based on the DMX value. Refer to the table below for factory presets. MASTER sets the fixture to output a DMX stream for control of any fixtures connected “downstream”. www.chroma-q.com ® Chroma-Q Color Force II Plus User Manual V1.0... -
Page 14: Grouping Options
Flip: Force II Plus 72 L→R Group Group Number(s) Select Od/Ev Skp2 Skp3 Skp6 Grouping: Color Force II Flip: L→R Plus Group Group Number(s) Selected Od/Ev Skp3 Skp7 www.chroma-q.com ® Chroma-Q Color Force II Plus User Manual V1.0 Mar. 2024... -
Page 15: Flip Options
“Left” is defined as the side where the power & data enter the fixture, “right” is the side where power and data exit. Shown below is the example of address ordering for a Color Force II Plus 72 with x1 Grouping selected. - Page 16 Additional Channels, base Random Color colour determined by DMX values following and Mode & Grouping selected DMX Footprints - Number of DMX Channels used in Mode/Grouping Combinations Color Force II Plus 72 Strobe Off Strobe On Strobe on Top Strobe Random Control...
-
Page 17: Look Select
4. If enabled, the user can then select one of the stored looks using a D M X v a l u e f r o m a n external DMX console. The DMX values and associated looks are shown on the table below. Note that transitions between looks are “bumps” not fades. www.chroma-q.com ® Chroma-Q Color Force II Plus User Manual V1.0... -
Page 18: Master Mode
• Remove the DMX cable. • Change the mode to Master. When the warning screen appears, follow the display text prompts. www.chroma-q.com ® Chroma-Q Color Force II Plus User Manual V1.0 Mar. 2024... -
Page 19: Set Up Menu
Displays current DMX source – cable or wireless DMX Source Eng Temp Tells LIVE value for temperature of all the engines in fixture. Escape Exit the screen without saving www.chroma-q.com ® Chroma-Q Color Force II Plus User Manual V1.0 Mar. 2024... -
Page 20: Etc Compatible
On the Main Menu, tap SETUP Then tap DMX Data The display shows the DMX start channel and the values (0-99) of the DMX channels Tap Escape to go to back www.chroma-q.com ® Chroma-Q Color Force II Plus User Manual V1.0 Mar. 2024... -
Page 21: Fan Speed
1. On the Main Menu, tap Setup Menu 2. On the Setup screen, tap Frequency 3. On the Frequency screen, select and tap a Frequency option, then tap Apply to save www.chroma-q.com ® Chroma-Q Color Force II Plus User Manual V1.0... -
Page 22: Dmx Lost
1. On the Main Menu, tap Setup Menu 2. On the Setup screen, tap Lock 3. On the Lock Future screen, tap Enable or Disable, then tap Apply to save www.chroma-q.com ® Chroma-Q Color Force II Plus User Manual V1.0... -
Page 23: Reset And Factory Defaults
1. On the Main Menu, tap Setup Menu 2. On the Setup screen, tap Reset 3. On the Reset Setting screen, tap Default 4. Press and hold Apply for 3 seconds to restore the factory default settings www.chroma-q.com ® Chroma-Q Color Force II Plus User Manual V1.0... -
Page 24: Upload Engine
Upload Engine 4.16. RECOMMENDED ONLY FOR QUALIFIED PERSONNEL. ® LED Engine software can be uploaded to the fixture from the Chroma-Q Uploader II by accessing this ® menu. See Quick Start Guide of the Chroma-Q Uploader II™. ® Software for LED engines must be uploaded to the Color Force II Plus... -
Page 25: Look Store
DMX console. Go to the Look Store screen as shown above and select the Look number where the Look will be stored. Press Store for 2 seconds to save the Look. www.chroma-q.com ® Chroma-Q Color Force II Plus User Manual V1.0... -
Page 26: Thermal Performance
Do not spray liquids on the front or rear panel. If the front enclosure requires cleaning, wipe with a mild detergent on a damp cloth. www.chroma-q.com ® Chroma-Q Color Force II Plus User Manual V1.0... -
Page 27: Technical Specifications
Forced - 1 fan Anodized aluminum extrusion for Black. Construction: Powder coated aluminum extrusion for White Color: Black / White Built-in Hardware Quick release lever for tilt adjustment www.chroma-q.com ® Chroma-Q Color Force II Plus User Manual V1.0 Mar. 2024... - Page 28 Operating Humidity Dry locations only, non-condensing humidity CISPR 22:2006/EN55022:2006 & CISPR 24:1997/EN55024:1998 ICES-003:2004 & FCC Part 15 Sub-part B:2007 Approvals: CSA C22. No. 166-M1983:R2008 UL 1573:2003; UL 8750 www.chroma-q.com ® Chroma-Q Color Force II Plus User Manual V1.0 Mar. 2024...
-
Page 29: Technical Drawings
Technical Drawings 8.2. Color Force II Plus 72™ www.chroma-q.com ® Chroma-Q Color Force II Plus User Manual V1.0 Mar. 2024... - Page 30 Color Force II Plus 48™ www.chroma-q.com ® Chroma-Q Color Force II Plus User Manual V1.0 Mar. 2024...
- Page 31 Color Force II Plus 12™ www.chroma-q.com ® Chroma-Q Color Force II Plus User Manual V1.0 Mar. 2024...
-
Page 32: Menu Tree
24,000 Hz Hold DMX Lost Look (Select) Disable Lock Enable Default Reset User Upload Eng Save User Fw Version Cable DMX Source Wireless Eng Temp Select LOOKS Playback Store www.chroma-q.com ® Chroma-Q Color Force II Plus User Manual V1.0 Mar. 2024... -
Page 33: Dmx Map
DMX MAP Color Force II Plus ™ Generic DMX Map for RGBA Control Mode www.chroma-q.com ® Chroma-Q Color Force II Plus User Manual V1.0 Mar. 2024... -
Page 34: Cct
Color Force II Plus RGBA mix for maximum output at individual CCTs 1600 2000 2400 2800 3200 3600 4000 4400 4800 5200 5600 6000 6400 6800 7200 7600 8000 8400 8800 9200 9600 10000 www.chroma-q.com ® Chroma-Q Color Force II Plus User Manual V1.0 Mar. 2024... - Page 35 Color Force II Plus RGBA mix for best color rendering at individual CCTs 1600 2000 2400 2800 3200 3600 4000 4400 4800 5200 5600 6000 6400 6800 7200 7600 8000 8400 8800 9200 9600 10000 www.chroma-q.com ® Chroma-Q Color Force II Plus User Manual V1.0 Mar. 2024...
-
Page 36: Rdm Functions
300Hz 0x04 6000Hz 0x05 12000Hz 0x06 24000Hz RDM Values for Fan Speed Modes are as follows Byte Value Fan Speed 0x01 Quiet 0x02 Studio 0x03 Live 0x04 Live-Quiet www.chroma-q.com ® Chroma-Q Color Force II Plus User Manual V1.0 Mar. 2024... - Page 37 0x05 0x06 Od/Ev 0x07 Skip3 0x08 Skip7 Grouping for CFII 72 Byte Value Grouping 0x01 0x02 0x03 0x04 0x05 0x06 0x07 Od/Ev 0x08 Skip2 0x09 Skip3 0x10 Skip6 www.chroma-q.com ® Chroma-Q Color Force II Plus User Manual V1.0 Mar. 2024...
