- Page 1 101530 / BF 16E 101560 / BF 30E 101535 / BF 30E OU Original-Gebrauchsanleitung V2-1/0716...
-
Page 2: Table Of Contents
5. Installation and operation ..................39 5.1 Installation ......................39 5.2 Operation ......................41 6. Cleaning ........................46 7. Possible Malfunctions .................... 47 8. Waste disposal ......................48 Bartscher GmbH phone: +49 5258 971-0 Franz-Kleine-Str. 28 fax: +49 5258 971-120 33154 Salzkotten... -
Page 3: Safety
Read this instruction manual before using and keep them available at all times! This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. - Page 4 This device may only be operated in technically proper and safe condition. Prevent access of children to the package materials like plastic bags and foamed polystyrene elements. Suffocation hazard! Only a qualified technician and using original spare parts and ...
- Page 5 The supply cable must be disconnected from the socket only by pulling the plug. Never carry or lift the device by the supply cable. Always use the device handles. In any case do not open the device housing. In case of electrical or ...
-
Page 6: Key To Symbols
WARNING! Fire or explosion hazard! Follow the safety instructions listed in order to avoid the hazard: Never operate the device near combustible, easily flammable materials (e.g. petrol, spirit, alcohol etc.). They evaporate through heating and in case of contact with ignition sources deflagrations can occur which can lead to serious personal injuries and property damages. -
Page 7: Proper Use
CAUTION! This symbol highlights dangerous situations which could lead to light injuries, or damage, malfunction, and/or destruction of the device. NOTE! This symbol highlights recommendations and information aimed for effective and trouble-free device operation. 1.3 Proper use The operational safety of the device is assured only in case of proper use, according to the operation manual. -
Page 8: General Information
2. General information 2.1 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. -
Page 9: Transport, Packaging And Storage
3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints. -
Page 10: Technical Data
4. Technical data 4.1 Overview of parts 101530 Control panel Blockade Control box handle Base unit with the oil basin Frying basket support Stainless steel cover with handle Control box Frying basket handle Base unit handle (2) Frying basket hooks Feet (4) Frying basket Lever of the oil drain mechanism... - Page 11 101560 Control panel Blockade Control box handle Base unit with the oil basin Frying basket support Stainless steel cover with handle Control box Frying basket handles Base unit handle (2) Frying basket hooks Feet (4) Frying basket Lever of the oil drain mechanism Oil drain pipe Nozzle - 34 -...

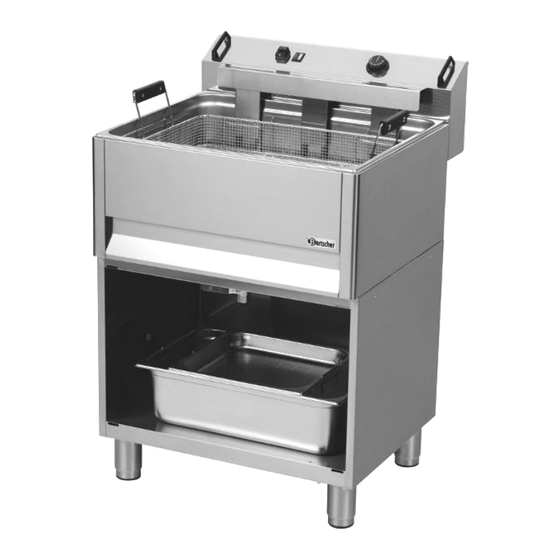

- Page 12 101535 Control panel Base unit with oil basin Control box handle Open base frame Frying basket support Height-adjustable feet (4) Control box Sieve with handle 2/3 GN Oil collecting container Frying basket handle with handle 1/1 GN (2) Frying basket Oil drain lever Frying basket hooks Stainless steel cover with handle...
- Page 13 Additional equipment (not included in the delivery!) Substitute basket for deep fat fryer 101530, 16L Basket size: W 475 x D 245 x H 80 mm Weight: 1.3 kg Code-No. 101533 Substitute basket for deep fat fryer 101560, 30L Basket size: W 570 x D 440 x H 80 mm Weight: 1.9 kg Code-No.
-
Page 14: Technical Specification
4.2 Technical specification Name Pastries deep fat fryer BF 16E 101530 Code-No.: Material: stainless steel: oil basin with a large cooling zone Design: safety thermostat (overheating protection) oil drain mechanism with a blockade Number of oil basins: 1, basin size: W 515 x D 305 x H 130 mm Oil basin capacity: 16 litres... - Page 15 Pastries deep fat fryer BF 30E OU Name with open base frame 101535 Code-No.: Material: stainless steel oil basin with a large cooling zone Design: safety thermostat (overheating protection) oil drain mechanism with a blockade Number of oil basins:...
-
Page 16: Installation And Operation
5. Installation and operation 5.1 Installation CAUTION! Any installation, connection and maintenance work related to the device may be performed by the qualified and authorised technician only, according to the valid international, national and local regulations. Positioning Unpack the device and remove all packing material. ... - Page 17 Connection DANGER! Electric shock hazard! The device can cause injuries due to improper installation! Before installation and connecting the local power grid specification should be compared with that of the device (see rating plate). Connect the device only in case of compliance! Before connecting the power supply to the device, the local power grid specification ...
-
Page 18: Operation
5.2 Operation CAUTION! The deep fat fryer can be serviced only be people who are familiar with operation of the device and the risks occurring during frying. Preparation of the device Using the handles, remove the cover and take the frying basket out of the device. ... - Page 19 Starting the device WARNING! Before operation of the device make sure the device is switched off (Temperature controller is in „0“ position). There may be no water at the bottom of the basin before filling it with the frying oil. ...
- Page 20 Carefully pour oil to the oil basin until the appropriate level is reached (between “MIN“ and “MAX“ marks in the oil basin). Marks are located on the side wall of the oil basin. CAUTION! Never start the device without frying oil in the basin. Always make sure that the oil or fat level is between “MIN“- and “MAX”...
- Page 21 The basket is well designed for frying of pastries. The basket is equipped with two side handles and two hooks for hanging the basket. Place the desired food products in the basket and slowly dip the basket in the oil to fry ...
- Page 22 Pastries deep fat fryer 101535 Place the supplied oil collecting container at the bottom of the base frame under the oil drain tap and secure the sieve at the edge of the oil collecting container. In order to drain oil, open the oil drain tap (turn the lever ...
-
Page 23: Cleaning
6. Cleaning WARNING! Before cleaning set the temperature controller to “0”, turn the device off with use of ON/OFF switch. Let the device cool down. Therefore, do not use any kind of pressure water jet for cleaning the device! Make sure that no water gets into the device. CAUTION! Never use abrasive cleaning agents or scouring materials which may damage the surface of the deep fat fryer. -
Page 24: Possible Malfunctions
Storage o If the device is not used for any lengthy period, clean it according to the aforementioned description and store it in dry, clean place protected against cold, sun and children. To protect the device against dirt, cover or pack it. Do not place any heavy objects on the device. -
Page 25: Waste Disposal
Utilization of the stale frying oil Please, remove the used frying oil / fat with due care for the environment and in accordance with all applicable local regulations. Bartscher GmbH phone: +49 5258 971-0 Franz-Kleine-Str. 28 fax: +49 5258 971-120...
