Summary of Contents for multicomp pro MP LOAD Series

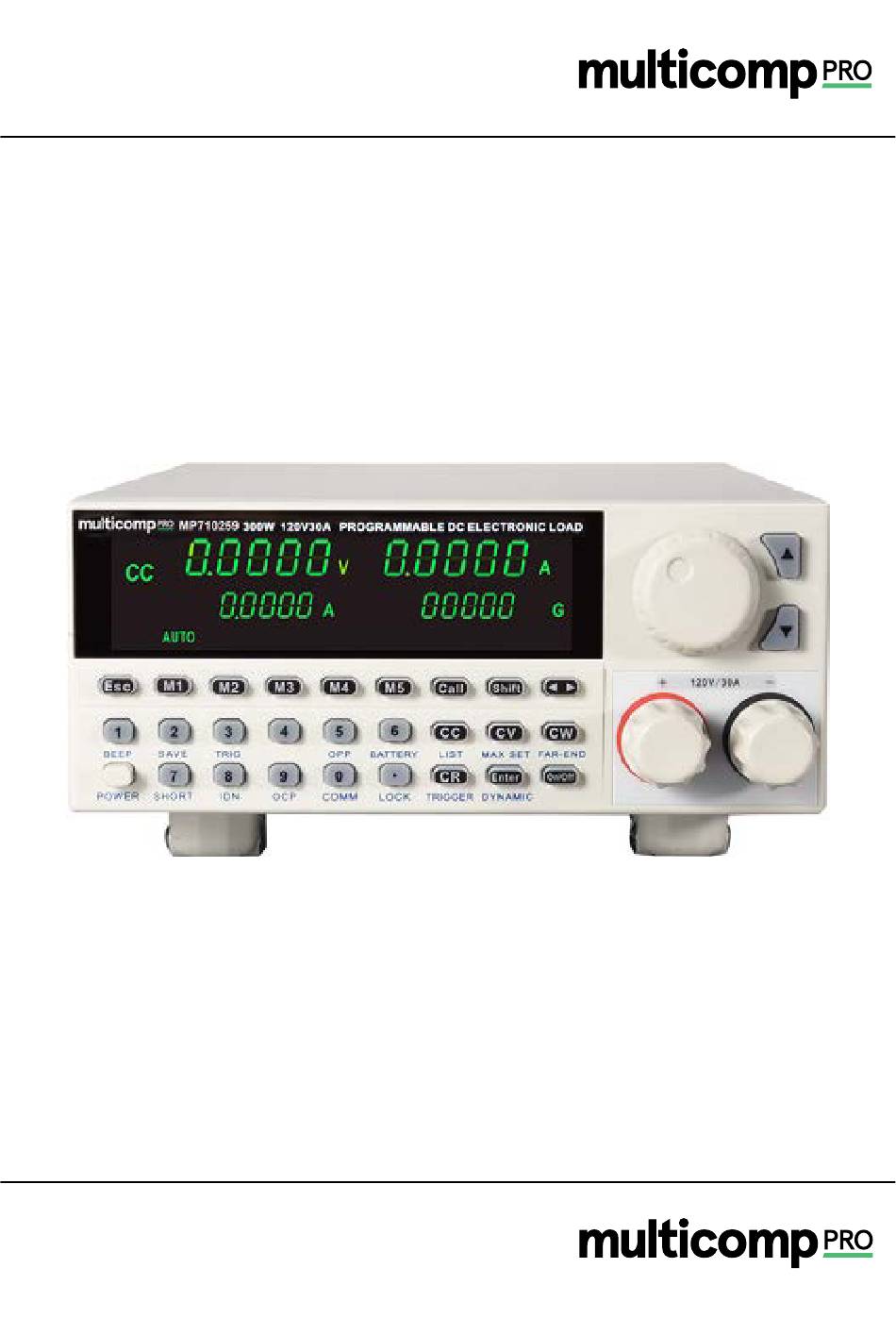

  • Page 1 PC Upper Computer Software User Manual Electronic Loads MP LOAD Series Part Number: MP710259 US Newark.com/multicomp-pro Farnell.com/multicomp-pro sg.element14.com/b/multicomp-pro Page <1> 07/03/25 V1.0...
  • Page 2: Table Of Contents

    Table of Content 1. Preface ........3 2.
  • Page 3: Preface

    1. Preface This software is suitable for remote control of MP LOAD Series power supplies. The above series also include multiple models, and there are differences in various functions among different models, such as some models without external control functions or some parameters not open for setting.
  • Page 4 05. Continue clicking ‘Next’ 06. Wait for a moment, complete the installation by clicking “Finish”; and then find the installed software and proceed with the operation. Newark.com/multicomp-pro Farnell.com/multicomp-pro sg.element14.com/b/multicomp-pro Page <4> 07/03/25 V1.0...
  • Page 5: Software Startup And Interface Operation Instructions

    3. Software startup and interface operation instructions 3.1 Selection of Communication Ports The communication methods include RS232, USB, and LAN. At first, connect the PC and the power supply by using the provided or corresponding communication cable. After inserting the corresponding communication cable, select the corresponding communication method and configure the corresponding communication settings to perform remote control.
  • Page 6: Power Measurement

    01. Figure number 1, select communication methods COMM and LAN. As the USB communication cable will transform into a COMM port after insertion, USB here belongs to COMM port communication. And select the corresponding COMM port number. If choosing RS232 communication cable, select COMM here; if selecting USB communication cable, select COMM here;...
  • Page 7: Settings

    3.2.3 Settings The setting area can set the output modes CC/CV/CW/CR, the corresponding output values and control outputs of the modes. 3.2.4 Configuration 3.2.4.1 System BEEP: the buzzer is turned on and off, and the button will light up when turned on. LOCK: press the button to lock and unlock, and the button will light up when turned on.
  • Page 8 3.2.4.2 Max/Min Display the maximum and minimum voltage, maximum and minimum current, maximum and minimum power, and maximum and minimum resistance values of the current device. 3.2.4.3 Current Range Click to switch the current level, and select High or Low. 3.2.4.4 Increment Incremental setting: after setting the target value, the voltage, current, power, and resistance of settings will increase incrementally, which is used for fine-tuning operations as shown in the following figure:...
  • Page 9 Newark.com/multicomp-pro Farnell.com/multicomp-pro sg.element14.com/b/multicomp-pro Page <9> 07/03/25 V1.0...
  • Page 10 03. Data Waveform - After clicking, it will enter the data waveform interface. Click the drop-down menu to select the file to display. Data refresh button - click to refresh the latest data during the recording process. Display all the data in the file and scroll the wheel to view it. Newark.com/multicomp-pro Farnell.com/multicomp-pro sg.element14.com/b/multicomp-pro...
  • Page 11: Fast Call

    3.2.4.5 Time HMS: Set the device’s hours, minutes, and seconds; YMD: Set the device’s year, month, and date. 3.2.5 Fast Call A total of 44 sets of parameters are available for users to call at any time, and will be automatically saved to the Datasave path when the software exits.
  • Page 12 3.2.7 Battery After entering battery mode, the Mode of Power Measurement will change to BATT mode in red font, indicating that it has entered BATT mode but is not running. Then, it will automatically read the parameters stored in the device, totaling 7 sets. After setting the corresponding parameters, select the set of parameters to be executed in the BATT CALL NO.
  • Page 13: List

    3.2.8 List After entering List mode, the Mode of Power Measurement will change to LIST mode in red font, indicating that it has entered LIST mode but not yet run, and then automatically reads the parameters stored in the device. Parameter description: Preview: After parameter configuration is completed, a preview waveform will be automatically generated here.
  • Page 14: Dynamic

    Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its negligence. Multicomp Pro is the registered trademark of Premier Farnell Limited 2019.
