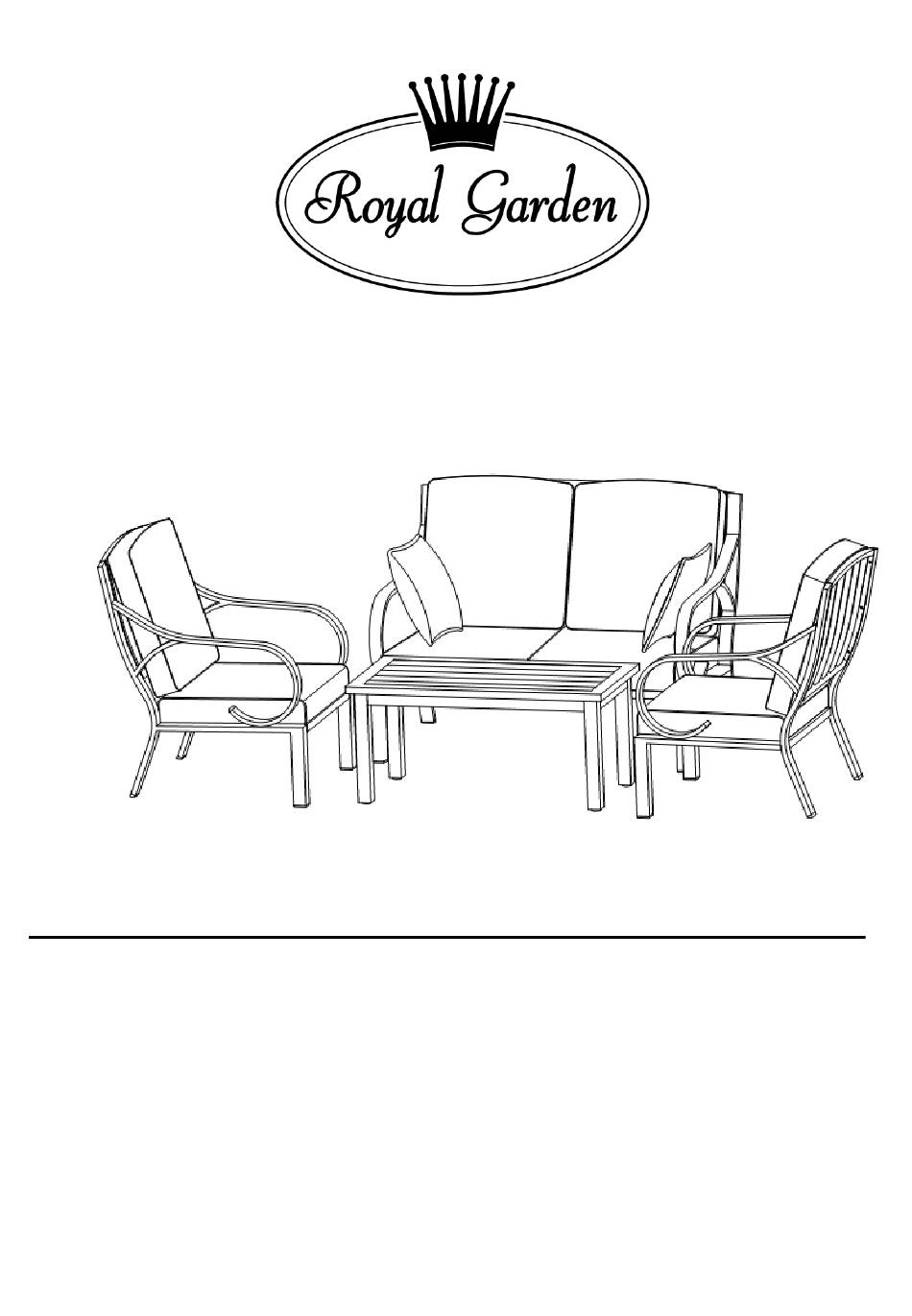

- Page 1 Assembly Instructions Norman 4pc Seating Set Questions, problems, or missing parts? Before returning to the store, call Royal Garden Customer Service. 866-988-3300 8 a.m. -5 p.m., PST Monday - Friday Retain this manual for future use.
-
Page 2: Parts And Tools
Norman 4pc Seating Set Chair SKU # 1700040003 Parts & Tools PART PICTURE & DESCRIPTION PART PICTURE & DESCRIPTION M6X18 Bolt Left Arm M6X28 Bolt Right Arm M6 Flat Washer Seat Frame Hex Wrench Back Frame Seat Cushion Back Cushion WARNING: To avoid damage of your new patio furniture, please use either the carton or another soft surface such as... - Page 3 Norman 4pc Seating Set Chair SKU # 1700040003 Assembly Step 1: • Place the left arm (A) on a soft flat surface. • Attach the back frame (D) to the left arm (A) using M6X18 bolts (AA) and M6 flat washers (DD) as shown.
- Page 4 Norman 4pc Seating Set Loveseat SKU # 1700040003 Parts & Tools PART PICTURE & DESCRIPTION PART PICTURE & DESCRIPTION M6X18 Bolt Left Arm M6X28 Bolt Right Arm Seat M6 Flat Washer Hex Wrench Backrest Seat Cushion Back Cushion Pillow WARNING: To avoid damage of your new patio furniture, please use either the carton or another soft surface such as carpet as a working surface to prevent...
- Page 5 Norman 4pc Seating Set Loveseat SKU # 1700040003 Assembly Step 1: Place the left arm (H) on a soft flat surface. • • Attach the backrest (J) to the left arm (H) using M6X18 bolts (AA) and M6 flat washers (DD) as shown.
- Page 6 Norman 4pc Seating Set Table SKU # 1700040003 Parts & Tools PART PICTURE & DESCRIPTION PART PICTURE & DESCRIPTION Table top M8X50 Hex Bolt M8 Flat Washer Table leg M8 Spring Washer Wrench WARNING: To avoid damage of your new patio furniture, please use either the carton or another soft surface such as carpet as a working surface to prevent product damage during assembly.
- Page 7 Norman 4pc Seating Set Table SKU # 1700040003 Assembly Step 1: Place the table top (L) upside down on a • soft flat surface. • Attach the table legs (M) to the table top (L) using M8x50 hex bolts (CC), M8 spring washers (FF), and M8 flat washers (EE).
- Page 8 - About Your New Outdoor Furniture - IMPORTANT STOP If you have any problems with this product (missing or damaged parts, assembly issues, etc.), Contact us directly for fastest service customerservice@royalgarden.com • Email Us at: 1-866-988-3300 • Call our Toll-Free Customer Service Hotline at: Between 8:00 AM and 5:00 PM PST, Monday through Friday **To expedite any future warranty claims please retain the your Assembly instructions with the product ID #, warranty sheet, and origional receipt for future use.
- Page 9 - About Your New Outdoor Furniture - Our Warranty Program For a period of one (1) year a er date of purchase, the Manufacturer will either repair or replace defective components in accordance with this Limited Warranty. This warranty is between the Manufacturer and the original purchaser and is valid only when accompanied by the original purchaser’s sales receipt showing original date of purchase and location of purchase.
