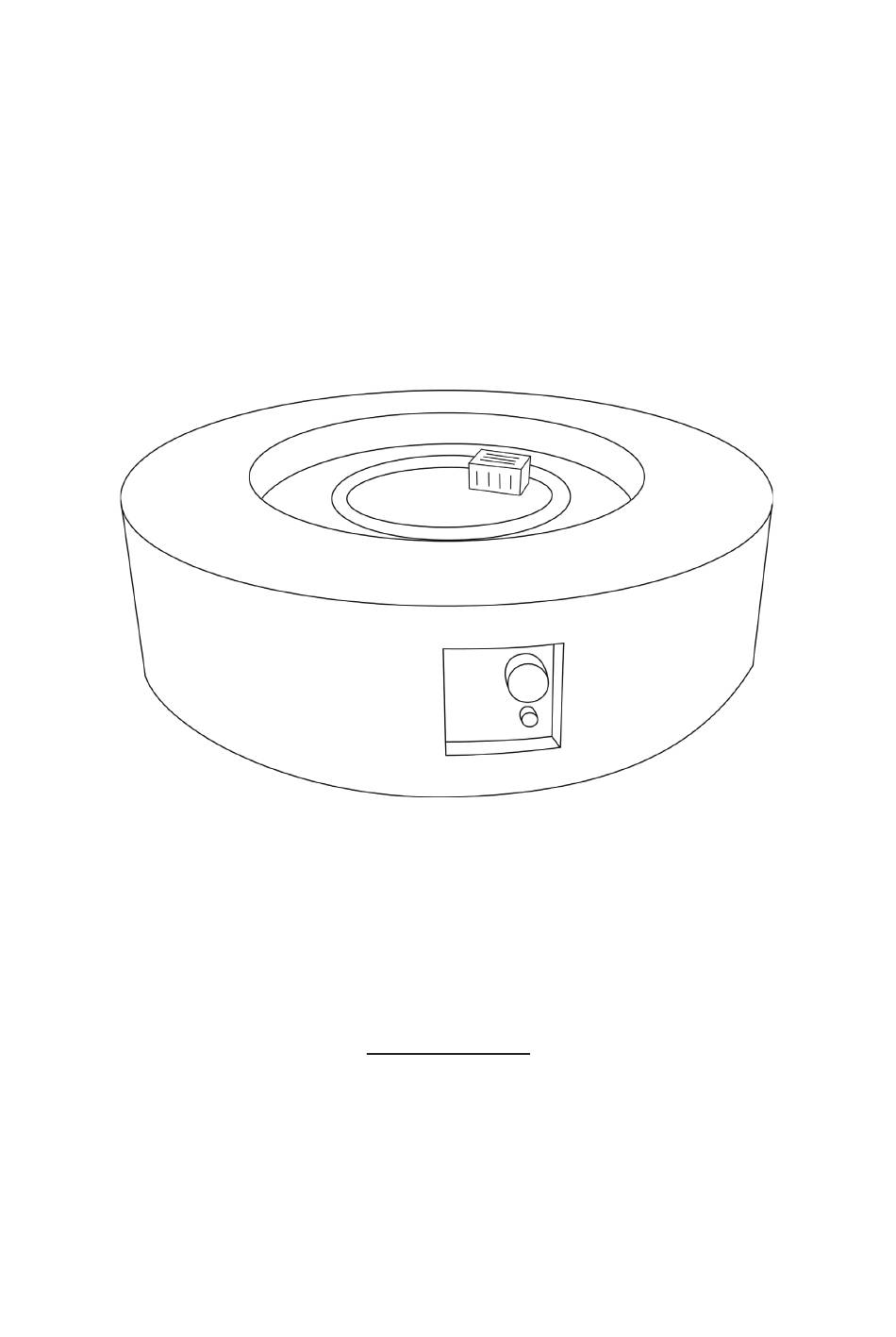

Assembly Instructions ITM. / ART. # TM21RD41FPT1 IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY THE ITEM IS INTENDED FOR OUTDOOR DOMESTIC USE ONLY, NOT FOR COMMERCIAL USE. Fire Table Questions, problems, or missing parts? Before returning to the store please visit sunvilla.com, or contact our Customer Service Department at cs@sunvillahome.com or call...
Page 1 of 14 Warnings DANGER WARNING CARBON MONOXIDE HAZARD WARNING indicates an ● This appliance can produce carbon ● imminently hazardous situation monoxide which has no odor. Using it in which, if not avoided, will result an enclosed space can kill you. in death or serious injury.
Page 4
Page 2 of 14 Warnings WARNING The installation of this unit must adhere to local codes or either the ● National Fuel Gas Code, ANSI Z223. 1/NFPA54, OR CAN/CGA- B149.1, National Gas and Propane Installation Code. This unit is to be used with propane gas only! (sold separately), is ●...
Page 5
Page 3 of 14 Warnings WARNING DO NOT add water into the unit. ● ● DO NOT disconnect any part while the unit is in use. DO NOT operate on a boat or vehicle. ● ● DO NOT set the Protective Cover over the unit until the Fire Table / Column is turned off and completely cooled down (where applicable).
Page 6
Page 4 of 14 Warnings WARNING Do not operate unit until all parts are fully assembled. ● Do not attempt to move it while in use. ● This unit is not intended for cooking. ● Young children should be carefully supervised when they are in the ●...
Page 5 of 14 Parts Diagram Item Picture Description Guard Themocouple GroundWire Ignition Pin Burner Plate Main Frame of Fire Table Lava Rock Burner Nozzle Corrugated Pipe Swithing Valve Regulator Valve with Gas Hose Control Knob Igniter Foot Warning Label Wing Screw with Metal Stand...
Page 8
Page 6 of 14 Parts List Item Picture Description Lava Rocks 4 box AAA Battery 1 pc Main Frame 1 pc of Fire Table...
Page 7 of 14 Assembly Instructions Step 1 Check that the control knob (13) for the gas supply system is turned to the “OFF” position before starting any assembly. Step 2 Place a 20 lbs Propane Gas Tank (not included) into the Metal Stand (18).
Page 10
Page 8 of 14 Assembly Instructions Step 4 Remove the Electronic igniter Cap on the Electronic igniter (14) by unscrewing and slide the Battery (B) into the battery slot. Make sure the positive side of the Battery (B) faces outwards. Screw the Electronic Igniter Cap (14) over the battery,tightly.
Page 9 of 14 Operation FOR YOUR SAFETY, READ BEFORE LIGHTING Before performing a leak test, make sure that no sparks can occur and you • are in a spacious outdoor area. Connect the propane gas tank to the regulator and turn the valve on the •...
Page 12
Page 10 of 14 Operation Using Your Fire Table Make sure the Control Knob (13) is in the “OFF” position. Open the Door and slowly open the Valve (22) on the Propane Gas Tank by turning the Control Knob (13) counterclockwise. Close the Door on the Main Frame (06) of the Fire Table.
Page 11 of 14 Maintenance & Storage To enjoy years of outstanding performance from your heater, make sure you perform the following maintenance activities on a regular basis: Before performing any maintenance always disconnect propane gas • tank. Use warm soapy water for cleaning. Never use flammable or corrosive •...
Page 12 of 14 Trouble Shooting PROBLEM CAUSE SOLUTION Wipe dry with cloth. Electrode and burners are wet Check that the battery is inserted correctly in the Igniter battery is dead or igniter or replace the battery. Make sure the backwards plastic wrap on the battery has been removed.
Page 15
Page 13 of 14 Trouble Shooting Problem: Burner JUST LIGHT UP FOR SECOND AND WILL AUTOMATICALLY TURN OFF PILOT GUARD THERMOCOUPLE IGNITION IGNITION THERMOCOUPLE 1. The thermocouple will be under the Pilot Guard on the top of the unit. Please remove the Pilot guard by unscrewing it from the metal bowl with a screw driver. 2.
Page 14 of 14 Warranty Information This product has been manufactured under the highest standards of quality and workmanship. We warrant to the original consumer that all aspects of this product will be free of defects in material and workmanship for one year from the date of purchase.
