Assembly Instructions
ITM. / ART. # TM21RT56FPT1
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
THE ITEM IS INTENDED FOR OUTDOOR DOMESTIC USE ONLY,
NOT FOR COMMERCIAL USE.

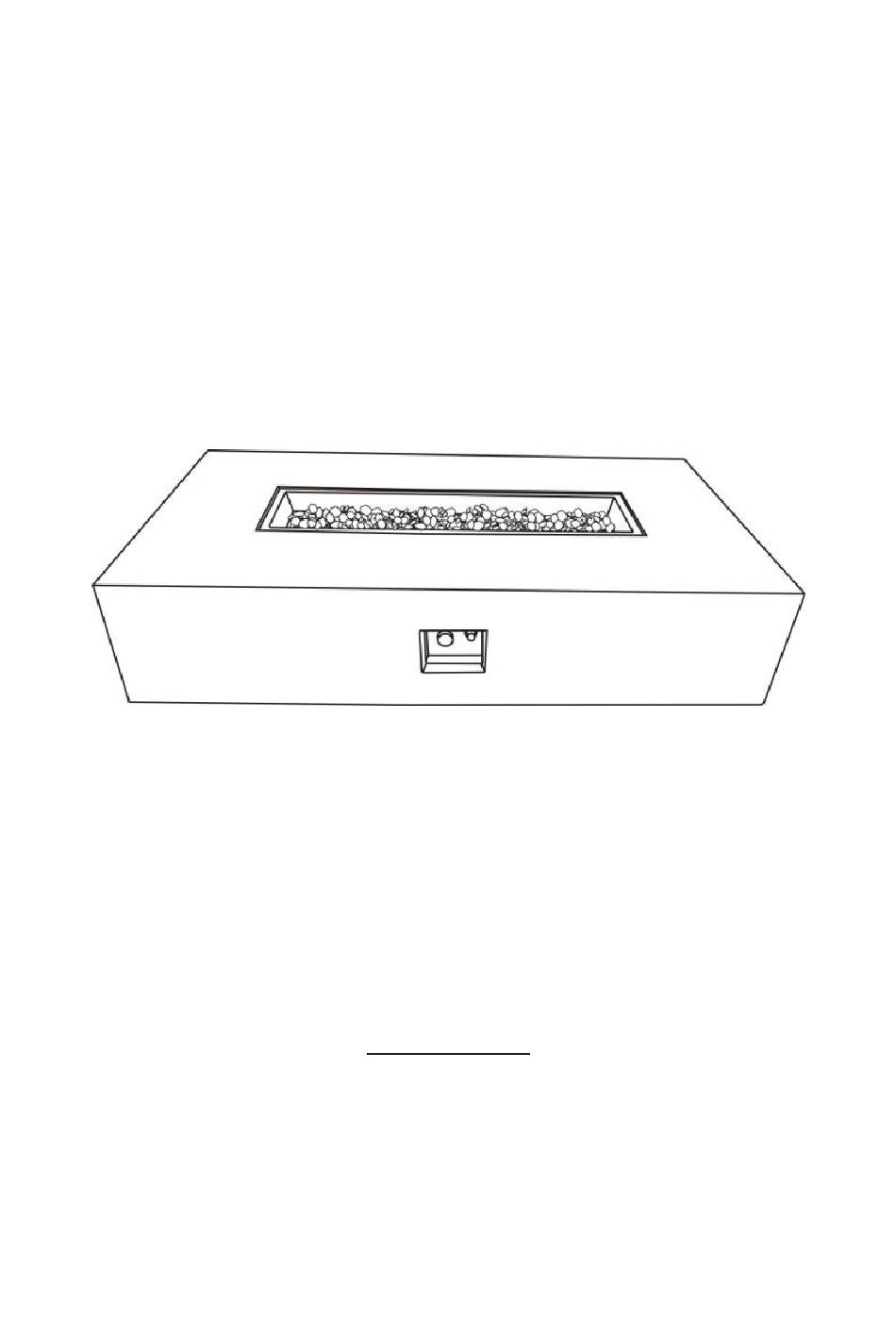

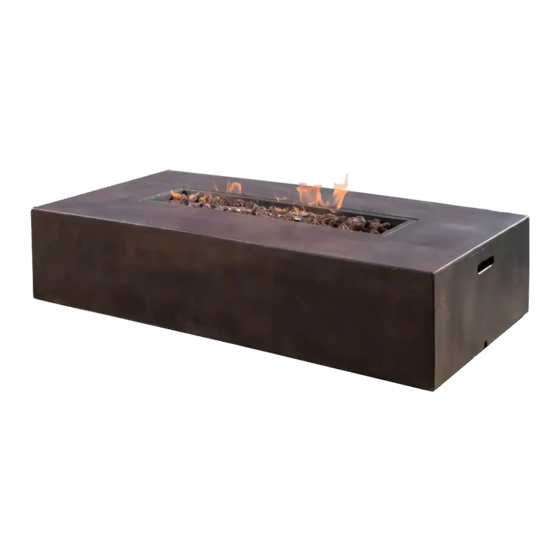

Fire Table
Questions, problems, or missing parts?
Before returning to the store please visit sunvilla.com,
or contact our Customer Service Department
at cs@sunvillahome.com or call
1-888-690-9800
8am - 5pm PST Monday - Friday
Advertisement
Related Manuals for Royal garden TM21RT56FPT1
Summary of Contents for Royal garden TM21RT56FPT1
- Page 1 Assembly Instructions ITM. / ART. # TM21RT56FPT1 IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY THE ITEM IS INTENDED FOR OUTDOOR DOMESTIC USE ONLY, NOT FOR COMMERCIAL USE. Fire Table Questions, problems, or missing parts? Before returning to the store please visit sunvilla.com, or contact our Customer Service Department at cs@sunvillahome.com or call...
-
Page 2: Table Of Contents
CONTENTS Warnings ..............• Diagram ..............• Assembly ..............• Operation ..............• Maintenance & Storage ......... • Trouble Shooting ............ • 11-12 Warranty Information ..........•... -
Page 3: Warnings
Page 1 of 13 Warnings DANGER WARNING CARBON MONOXIDE HAZARD WARNING indicates an ● This appliance can produce carbon ● imminently hazardous situation monoxide which has no odor. Using it in which, if not avoided, will result an enclosed space can kill you. in death or serious injury. - Page 4 Page 2 of 13 Warnings WARNING The installation of this unit must adhere to local codes or either the ● National Fuel Gas Code, ANSI Z223. 1/NFPA54, OR CAN/CGA- B149.1, National Gas and Propane Installation Code. This unit is to be used with propane gas only! (sold separately), is ●...
- Page 5 Page 3 of 13 Warnings WARNING Remove the PVC Cover from the firebowl before opening the appliance. ● ● Do not pour water into the firebowl. Do not use this firebowl if any part has been under water. ● ● Do not use this firebowl on vehicles or boats.
- Page 6 Page 4 of 13 Warnings WARNING Do not operate unit until all parts are fully assembled. ● Do not attempt to move it while in use. ● Do not use this firebowl for cooking. ● Young children should be carefully supervised when they are in the ●...
-
Page 7: Diagram
Page 5 of 13 Parts Diagram Parts List Lava Rocks 2 box Battery (AAA) 1 pc PVC Cover Tank 1 pc Seat Burner 1 pc 1 pc Body 1 pc Screen 1 pc Burner 1 pc Control Knob Electric Ignition 1 pc... -
Page 8: Assembly
Page 6 of 13 Assembly Instructions Step 1 Step 2 (1) Open the carton and turn it upside down, (1) Turn the firebowl heads up on a flat make sure 4 pieces of it being open up. ground. (2) Lift off the carton carefully and be wary (2) Remove all the paper honeycomb of the accessories inside falling away. - Page 9 Page 7 of 13 Assembly Instructions Step 5 Locate the battery, remove the plastic cover first. Unscrew the rubber cap of the Electric Ignitor, place a AAA battery into the battery case. Make sure the positive pole ("+") towards the cap. Screw the cap back to the battery case tightly.
-
Page 10: Operation
Page 8 of 13 Operation FOR YOUR SAFETY, READ BEFORE LIGHTING Before performing a leak test, make sure that no sparks can occur and you • are in a spacious outdoor area. Connect the propane gas tank to the regulator and turn the valve on the •... - Page 11 Page 9 of 13 Operation LIGHTING INSTRUCTIONS Turn the cylinder valve on the gas tank counter-clockwise to open the gas supply. Close the storing door on the firebowl for the gas tank. Press and hold the Electric Ignitor. Meanwhile, push and turn the Control Knob counter-clockwise to the "LOW"...
-
Page 12: Maintenance & Storage
Page 10 of 13 Maintenance & Storage To enjoy years of outstanding performance from your heater, make sure you perform the following maintenance activities on a regular basis: Before performing any maintenance always disconnect propane gas • tank. Use warm soapy water for cleaning. Never use flammable or corrosive •... -
Page 13: Trouble Shooting
Page 11 of 13 Trouble Shooting PROBLEM CAUSE SOLUTION Wipe dry with cloth. Electrode and burners are wet Check that the AAA battery is inserted correctly in Igniter battery is dead or the igniter or replace the battery.Make sure the backwards plastic wrap on the battery has been removed. - Page 14 Page 12 of 13 Trouble Shooting Problem: Burner JUST LIGHT UP FOR SECOND AND WILL AUTOMATICALLY TURN OFF PILOT GUARD THERMOCOUPLE IGNITION IGNITION THERMOCOUPLE 1. The thermocouple will be under the Pilot Guard on the top of the unit. Please remove the Pilot guard by unscrewing it from the metal bowl with a screw driver. 2.
-
Page 15: Warranty Information
Page 13 of 13 Warranty Information This product has been manufactured under the highest standards of quality and workmanship. We warrant to the original consumer that all aspects of this product will be free of defects in material and workmanship for one year from the date of purchase.
