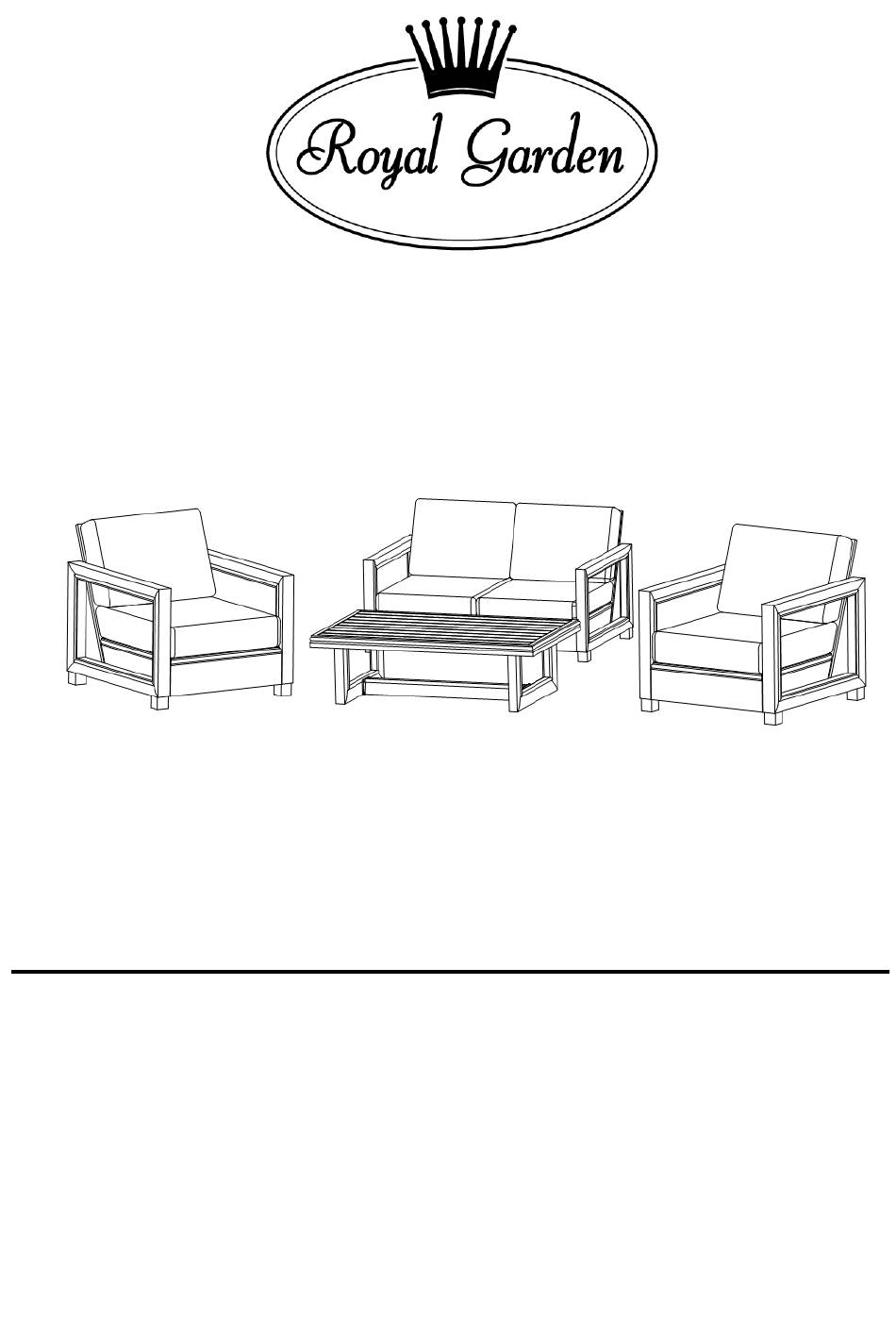

- Page 1 Assembly Instructions Russell 4pc Seating Set Questions, problems, or missing parts? Before returning to the store, call Royal Garden Customer Service. 866-988-3300 8 a.m. -5 p.m., PST Monday - Friday Retain this manual for future use.
-
Page 2: Parts And Tools
Russell 4pc Seating Set Deep Seating Chair Item # FSA60495D Parts & Tools PART PICTURE & DESCRIPTION PART PICTURE & DESCRIPTION M6X18 Bolt Right Arm M6X30 Bolt Left Arm M6 Flat Washer Seat Frame Hex Key Back Frame Back Cushion... - Page 3 Russell 4pc Seating Set Deep Seating Chair Item # FSA60495D Assembly Step 1: • Attach right arm (A) to back frame (D) by lining up the corresponding bolt holes on the right arm (A) and back frame (D). Insert M6x18 bolts (AA) through M6 flat washers (CC).
- Page 4 Russell 4pc Seating Set Deep Seating Chair Item # FSA60495D Assembly Step 4: • Ensure all bolts are securely tightened with hex key (DD). Place seat cushion (F) and back cushion (E) to the fully assembled chair.
- Page 5 Russell 4pc Seating Set Deep Seating Loveseat Item # FSA60495DL Parts & Tools PART PICTURE & DESCRIPTION PART PICTURE & DESCRIPTION M6X18 Bolt Right Arm M6X30 Bolt Left Arm M6 Flat Washer Seat Frame Back Frame Back Cushion Seat Cushion...
- Page 6 Russell 4pc Seating Set Deep Seating Loveseat Item # FSA60495DL Assembly Step 1: • Attach right arm (A) to back frame (D) by lining up the corresponding bolt holes on the right arm (A) and back frame (D). Insert M6x18 bolts (AA) through M6 flat washer (CC).
- Page 7 Russell 4pc Seating Set Deep Seating Loveseat Item # FSA60495DL Assembly Step 4: • Ensure all bolts are securely tightened with hex key (DD). Place seat cushions (F) and back cushions (E) to the full Step 5: • The loveseat is now ready to use.
- Page 8 Russell 4pc Seating Set Coffee Table Item # FTA60815C Parts & Tools PART PICTURE & DESCRIPTION PART PICTURE & DESCRIPTION M6X18 Bolt Table Top M6 Flat Washer Table Leg Leg Connector Bar WARNING: To avoid damage of your new patio furniture, please use either...
- Page 9 Russell 4pc Seating Set Coffee Table Item #FTA60815C Assembly Step 1: • Place leg connector bar (K) between the two table legs (J). Insert bolt M6x18 bolt (AA) through M6 flat washer (BB). Secure bolts using hex key (DD). Step 2: •...
-
Page 10: One-Year Limited Warranty
Garden does not warrant against acts of nature such as freezing, wind damage, fires, rain, and etc. In addition Royal Garden will not be liable for any shipping charges to or from the distribution center on merchandise returned after 12 months from the date of purchase.
