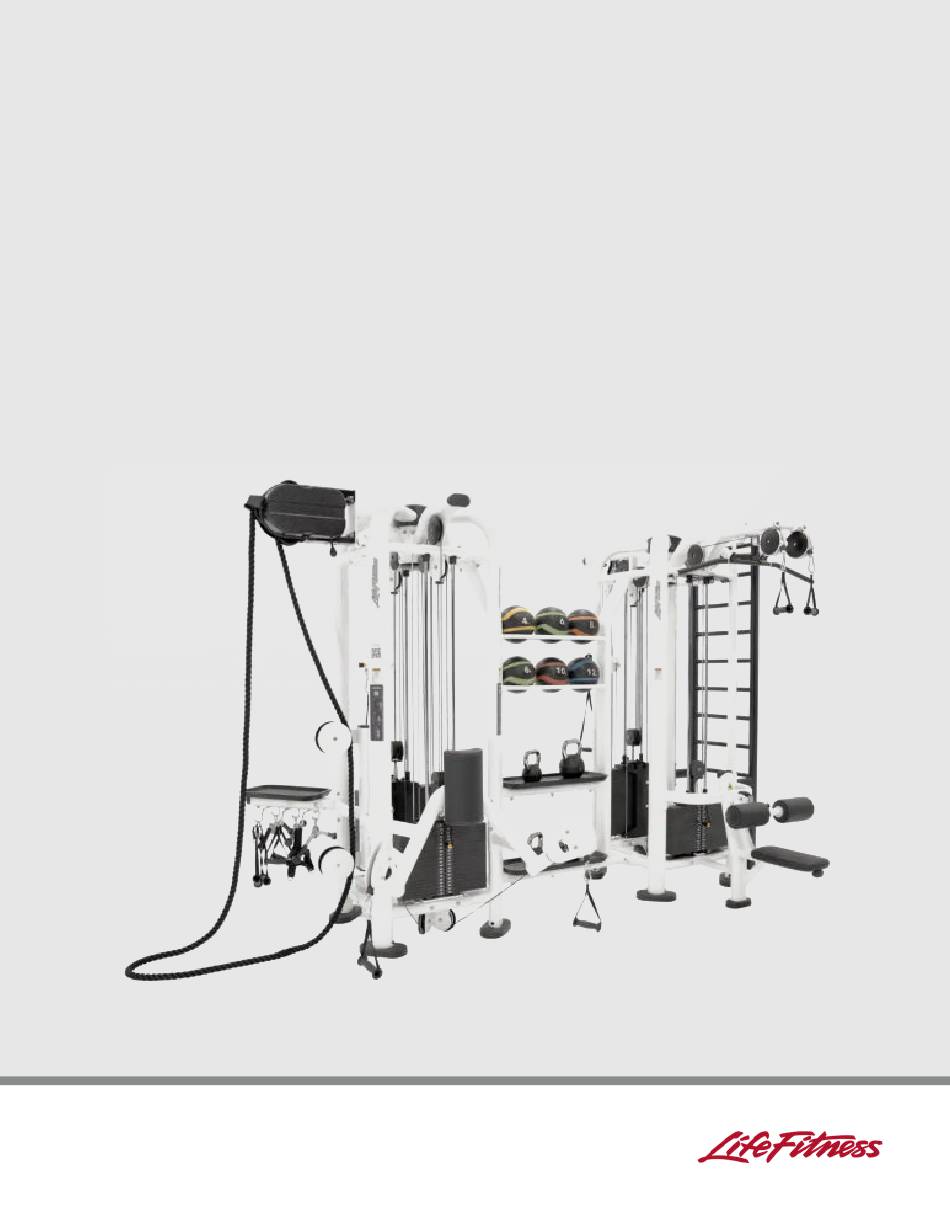

- Page 1 PWR Play LPP-AC, LPP-AD, LPP-BA, LPP-CB, LPP-CC, LPP-CORE, LPP-CX, LPP-DC, LPP-DH, LPP-DI, LPP-DL, LPP-DP, LPP-DR, LPP-HR, LPP-PA, LPP-PD, LPP-PP, LPP-PR, LPP-RP, LPP-RW, LPP-SB, LPP-ST, LPP-SX, LPP-TP, LPP-VA OWNER'S MANUAL 1025032-0001 REV AA...
-
Page 3: Corporate Headquarters
Latin America and Caribbean* Germany, Austria, and Switzerland Hong Kong Life Fitness, LLC Life Fitness Europe GMBH Life Fitness Asia Pacific LTD Columbia Centre III Neuhofweg 9 26/F, Global Trade Square 9525 Bryn Mawr Avenue 85716 Unterschleißheim 21 Wong Chuk Hang Road Rosemont, IL 60018 U.S.A. -
Page 4: User And Service Documents Link
User and Service Documents Link https://lfn.fit/KnowledgeBase https://lfn.fit/SupportDocuments Additional information is available online using the links above. أ علاه إل ر إبط باستخدإم إ لإ ن تر نت على إضافية معلومات تتوفر 点击上面的链接可在线获取更多信息。 Flere oplysninger er tilgængelige online gennem linket ovenfor. Bijkomende informatie is online beschikbaar via bovenstaande link. -
Page 5: Table Of Contents
Copyright 2023, Life Fitness, LLC. All Rights Reserved. Life Fitness, Hammer Strength, Cybex, ICG and SCIFIT are registered trademarks of Life Fitness, LLC and its affiliated companies and subsidiaries. Disclaimer: Images and specifications are current as of the date of publication and are subject to change. -
Page 6: Safety Information
• DO NOT attempt to use or repair any accessory approved for use with the equipment which appears to be damaged or worn. • DO NOT use or permit use of any equipment that is damaged and/or has worn or broken parts. For all Life Fitness equipment, use only replacement parts supplied by Life Fitness. - Page 7 • Ensure that any person(s) making adjustments or performing maintenance or repair of any kind is qualified to do so. Life Fitness will provide service and maintenance training at our corporate facility upon request or in the field if proper arrangements are made.
-
Page 8: Product Labels
Product Labels General Warning Label Weight at Handle Strap Training Warning Pinch Hazard Label Adjustable Carriage Warning FCC Compliant FCC Compliant Cable Power Pivot Warning Serial Number Label Carriage Fall Warning Page 6 of 61... -
Page 9: Core (Lpp-Core)
Label Locations Core (LPP-CORE) Item Description Qty. Strap Training Warning Serial Number FCC Compliant General Warning Core Connector - Adjustable Cable Crossover (LPP-CX) Item Description Qty. Adjustable Carriage Warning Placard (Cable) Serial Number FCC Compliant Cable Placard (Cable Crossover) Weight at Handle General Warning Pinch Hazard Carriage Fall Warning... -
Page 10: Core Connector - Accessory Storage
Core Connector - Accessory Storage (LPP-SX) Item Description Qty. FCC Compliant Serial Number Adjustable Cable Crossbar (LPP-CB) Item Description Qty. FCC Compliant Serial Number Page 8 of 61... -
Page 11: Adjustable Cable Crossover - Attached
Adjustable Cable Crossover - Attached (LPP-CC) Item Description Qty. Adjustable Carriage Warning Placard (Cable Crossover) Strap Training Warning Placard (Cable) Pinch Hazard Weight at Handle Carriage Fall Warning General Warning FCC Compliant Cable Serial Number Adjustable Cable Handle Storage (LPP-HR) Item Description Qty. -
Page 12: Adjustable 2:1 Cable
Adjustable 2:1 Cable (LPP-AC) Item Description Qty. FCC Compliant Cable Serial Number Placard Pinch Hazard Adjustable Carriage Warning Carriage Fall Warning Weight at Handle Adjustable 4:1 Dynamic Cable (LPP-AD) Item Description Qty. FCC Compliant Cable Serial Number Placard Pinch Hazard Adjustable Carriage Warning Carriage Fall Warning Weight at Handle... -
Page 13: Assisted Dip Chin
Assisted Dip Chin (LPP-DC) Item Description Qty. FCC Compliant Cable Serial Number Placard Dip (LPP-DI) Item Description Qty. FCC Compliant Serial Number Page 11 of 61... -
Page 14: Dual Cable High
Dual Cable High (LPP-DH) Item Description Qty. FCC Compliant Cable Serial Number Placard Weight at Handle Dual Cable Low (LPP-DL) Item Description Qty. FCC Compliant Cable Serial Number Placard Weight at Handle Page 12 of 61... -
Page 15: Dual Cable Pulldown
Dual Cable Pulldown (LPP-DP) Item Description Qty. FCC Compliant Cable Serial Number Placard Weight at Handle Dual Cable Row (LPP-DR) Item Description Qty. FCC Compliant Cable Serial Number Placard Weight at Handle Page 13 of 61... -
Page 16: Power Pivot
Power Pivot (LPP-PP) Item Description Qty. Placard FCC Compliant Serial Number Power Pivot Warning Power Pivot - Rope Pull (LPP-PR) Item Description Qty. Placard FCC Compliant Serial Number Power Pivot Warning Page 14 of 61... -
Page 17: Pulldown (Lpp-Pd)
Pulldown (LPP-PD) Item Description Qty. FCC Compliant Cable Serial Number Placard Punching Bag Anchor (LPP-BA) Item Description Qty. FCC Compliant Serial Number Placard Page 15 of 61... -
Page 18: Rope Pull (Lpp-Rp)
Rope Pull (LPP-RP) Item Description Qty. FCC Compliant Serial Number Placard Row (LPP-RW) Item Description Qty. FCC Compliant Cable Serial Number Placard Page 16 of 61... -
Page 19: Stall Bars (Lpp-Sb)
Stall Bars (LPP-SB) Item Description Qty. FCC Compliant Serial Number Placard Station Panel (LPP-PA) Item Description Qty. FCC Compliant Serial Number Page 17 of 61... -
Page 20: Step (Lpp-St)
Step (LPP-ST) Item Description Qty. FCC Compliant Serial Number Triceps Pushdown (LPP-TP) Item Description Qty. FCC Compliant Cable Serial Number Placard Page 18 of 61... -
Page 21: Versa (Lpp-Va)
Versa (LPP-VA) Item Description Qty. FCC Compliant Serial Number Page 19 of 61... -
Page 22: Specifications
2. Specifications Core (LPP-CORE) Machine Weight: 225 lbs. 102.1 kg. Size (L x W x H): in. = 34.8 x 34.8 x 94 cm = 88 x 88 x 239 Max User Weight: 300 lbs. 136 kg. Product Dimensions Page 20 of 61... - Page 23 Core Connector - Adjustable Cable Crossover (LPP-CX) Machine Weight: 980 lbs. 444.5 kg. Size (L x W x H): in. = 18.6 x 113.5 x 93.9 cm = 47 x 288 x 239 Live Area (L x W x H): in.
- Page 24 Core Connector - Accessory Storage (LPP-SX) Machine Weight: 164 lbs. 74.4 kg. Size (L x W x H): in. = 11.7 x 37 x 83.6 cm = 30 x 94 x 212 Max User Weight: 300 lbs. 136 kg. Product Dimensions Page 22 of 61...
- Page 25 Adjustable Cable Crossbar (LPP-CB) Max User Weight: 300 lbs. 136 kg. Short Connector Machine Weight: 56 lbs. 25.4 kg. Size (L x W x H): in. = 19.5 x 73.5 x 6 cm = 50 x 187 x 15 Live Area (L x W x H): in.
- Page 26 Adjustable Cable Crossover - Attached (LPP-CC) Machine Weight: 720 lbs. 326.6 kg. Size (L x W x H): in. = 28.5 x 140.5 x 94 cm = 72 x 357 x 239 Live Area (L x W x H): in. = 129 x 114.5 x 113 cm = 328 x 291 x 287 Max User Weight: 300 lbs.
- Page 27 Adjustable Cable Handle Storage (LPP-HR) Machine Weight: 34.2 lbs. 15.5 kg. Size (L x W x H): in. = 22.8 x 11.6 x 8.6 cm = 58 x 29.5 x 22 Product Dimensions Page 25 of 61...
- Page 28 Adjustable 2:1 Cable (LPP-AC) Machine Weight: 260 lbs. 117.9 kg. Size (L x W x H): in. = 17.1 x 14.3 x 92.1 cm = 43 x 36 x 234 Live Area (L x W x H): in. = 102 x 69 x 96 cm = 259 x 175 x 244 Max User Weight: 300 lbs.
- Page 29 Adjustable Dynamic 4:1 Dynamic Cable (LPP-AD) Machine Weight: 460 lbs. 208.7 kg. Size (L x W x H): in. = 17.1 x 14.3 x 92.1 cm = 43 x 36 x 234 Live Area (L x W x H): in. = 102 x 69 x 96 cm = 259 x 175 x 244 Max User Weight: 300 lbs.
- Page 30 Assisted Dip Chin (LPP-DC) Machine Weight: 610 lbs. 291 kg. Size (L x W x H): in. = 44.7 x 46.5 x 97.8 cm = 113 x 118 x 248 Live Area (L x W x H): in. = 69 x 70.5 x 113 cm = 175 x 178 x 287 Max User Weight: 300 lbs.
- Page 31 Dip (LPP-DI) Machine Weight: 27 lbs. 12.2 kg. Size (L x W x H): in. = 32 x 28 x 13 cm = 81 x 71 x 33 Live Area (L x W x H): in. = 68 x 52 x 96 cm = 173 x 132 x 244 Max User Weight: 300 lbs.
- Page 32 Dual Cable High (LPP-DH) Machine Weight: 430 lbs. 195 kg. Size (L x W x H): in. = 18.1 x 50 x 92.1 cm = 46 x 127 x 234 Live Area (L x W x H): in. = 108 x 168 x 92.1 cm = 274.3 x 426.7 x 234 Max User Weight: 300 lbs.
- Page 33 Dual Cable Low (LPP-DL) Machine Weight: 435 lbs. 197.3 kg. Size (L x W x H): in. = 20 x 50 x 92.1 cm = 51 x 127 x 234 Live Area (L x W x H): in. = 108 x 168 x 92.1 cm = 274.3 x 426.7 x 234 Max User Weight: 300 lbs.
- Page 34 Dual Cable Pulldown (LPP-DP) Machine Weight: 340 lbs. 154.2 kg. Size (L x W x H): in. = 35.9 x 47.6 x 92.7 cm = 91 x 121 x 235 Live Area (L x W x H): in. = 60 x 84 x 92.1 cm = 152 x 213 x 234 Max User Weight: 300 lbs.
- Page 35 Dual Cable Row (LPP-DR) Machine Weight: 360 lbs. 163.3 kg. Size (L x W x H): in. = 73 x 26.6 x 92.1 cm = 185 x 68 x 234 Live Area (L x W x H): in. = 97 x 69 x 92.1 cm = 246 x 175 x 234 Max User Weight: 300 lbs.
- Page 36 Power Pivot (LPP-PP) Machine Weight: 80 lbs. 36.3 kg. Size (L x W x H): in. = 87.5 x 39 x 86.6 cm = 222 x 99 x 220 Live Area (L x W x H): in. = 108 x 108 x 96 cm = 274 x 274 x 244 Max User Weight: 300 lbs.
- Page 37 Power Pivot - Rope Pull (LPP-PR) Machine Weight: 179 lbs. 81.2 kg. Size (L x W x H): in. = 87.5 x 39 x 95.8 cm = 222 x 99 x 243 Live Area (L x W x H): in. = 108 x 108 x 96 cm = 274 x 274 x 244 Max User Weight: 300 lbs.
- Page 38 Pulldown (LPP-PD) Machine Weight: 340 lbs. 154.2 kg. Size (L x W x H): in. = 35.9 x 47.6 x 92 cm = 91 x 121 x 234 Live Area (L x W x H): in. = 60 x 84 x 92 cm = 152 x 213 x 234 Max User Weight: 300 lbs.
- Page 39 Punching Bag Anchor (LPP-BA) Machine Weight: 70 lbs. 31.8 kg. Size (L x W x H): in. = 34.4 x 26.6 x 98.5 cm = 87 x 68 x 250 Live Area (L x W x H): in. = 108 x 108 x 99 cm = 274 x 274 x 251 Max User Weight: 300 lbs.
- Page 40 Rope Pull (LPP-RP) Machine Weight: 134 lbs. 60.7 kg. Size (L x W x H): in. = 14.4 x 10 x 95.8 cm = 36.5 x 25.4 x 243 Live Area (L x W x H): in. = 108 x 108 x 96 cm = 274 x 274 x 244 Max User Weight: 300 lbs.
- Page 41 Row (LPP-RW) Machine Weight: 360 lbs. 163.3 kg. Size (L x W x H): in. = 73 x 26.6 x 92.1 cm = 185 x 68 x 234 Live Area (L x W x H): in. = 97 x 69 x 92.1 cm = 246 x 175 x 234 Max User Weight: 300 lbs.
- Page 42 Station Panel (LPP-PA) Machine Weight: 15 lbs. 6.8 kg. Product Dimensions Page 40 of 61...
- Page 43 Stall Bars (LPP-SB) Machine Weight: 100 lbs. 45.4 kg. Size (L x W x H): in. = 10.6 x 42 x 97.4 cm = 27 x 107 x 247 Live Area (L x W x H): in. = 108 x 108 x 113 cm = 274 x 274 x 287 Max User Weight: 300 lbs.
- Page 44 Step (LPP-ST) Machine Weight: 50 lbs. 22.7 kg. Size (L x W x H): in. = 30.5 x 24.5 x 13 cm = 77 x 62 x 33 Live Area (L x W x H): in. = 67 x 97 x 96 cm = 170 x 246 x 244 Max User Weight: 300 lbs.
- Page 45 Triceps Pushdown (LPP-TP) Machine Weight: 225 lbs. 102.1 kg. Size (L x W x H): in. = 20.1 x 14.3 x 92.1 cm = 51 x 36 x 234 Live Area (L x W x H): in. = 48 x 36 x 92.1 cm = 122 x 91 x 234 Max User Weight: 300 lbs.
- Page 46 Versa (LPP-VA) Machine Weight: 189 lbs. 85.7 kg. Size (L x W x H): in. = 25.6 x 14.5 x 92.6 cm = 65 x 37 x 235 Max User Weight: 300 lbs. 136 kg. Product Dimensions Page 44 of 61...
-
Page 47: Recommended Live Area
Recommended Live Area Details Zone #1 • Boxing • Stall Bar • Step & Dip Zone #2 • Cable • Body Weight Training • Elastic Bands • Power Pivot • Rope Pull Zone #3 • Battle Rope Page 45 of 61... -
Page 48: Example Of Product Live
Example of Product Live Area Functional Four Station Page 46 of 61... -
Page 49: Maintenance Procedures
3. Maintenance Procedures Maintenance Schedule ACTION DAILY WEEKLY MONTHLY AS NEEDED CLEAN Guide Rods Hand Grips Shrouds Upholstery Frames INSPECT Belt Cable Frame Hand Grips Hardware Labels Paint Shrouds LUBRICATE Guide Rods Clean • Upholstery with an approved or compatible cleaner. •... - Page 50 • Visually inspect cables for wear at and around connections and along the entire length of the cable. Always replace at first sign of wear. Once a Week • Visually inspect all hardware for loosening, tampering or wear. • Check jam nut at top of weight stack for tightness. •...
- Page 51 • DO NOT clean shrouds in hot sun or at elevated temperatures. • NEVER use benzene, gasoline, acetone or carbon tetrachloride on the shrouds. • Manufacturer recommends that cables be inspected daily after installation and replaced annually. Page 49 of 61...
-
Page 52: Warranty
Who Pays Transportation and Insurance For Service If the Product or any covered part must be returned to a service facility for repairs, We, Life Fitness, will pay all transportation and insurance charges for the first year. You are responsible for transportation and insurance charge after the first year. - Page 53 http://lifefitness.com/warranties Page 51 of 61...
-
Page 54: Cable Handling Guide
WARNING: Use of non certified “techs” note: Service warranties may be void if a non-Life Fitness-certified technician performs service work. Replacement of any strength cables should be performed by a Life Fitness certified technician. -
Page 55: Tensioning Cable
Tensioning Cable Cable should have enough tension so it stays seated into the pulley but not so tight that it pulls the head plate off the weight plate below it. 1. If the head plate has lifted, loosen the jam nuts at the terminations and loosen the threaded plugs a half turn until the head plate comes to rest on the weight plate below. -
Page 56: Strength Cable Wear
Strength Cable Wear Guide Replace cable at first sign of any of the following: FRACTURES: Casing can crack or fracture under strains during use. Any crack in the casing merits cable replacement even if no wire rope is exposed. Be especially observant for fractures near the components on the cable assembly - IE. -
Page 57: Insert Inspection
Insert Inspection Inspect insert within the strain-relief cable end assembly and replace if any sign of damage. 1. Check around plastic insert and the plastic housing for any excessive wear or damage. Item Description Qty. Plastic Insert Plastic Housing 2. Replace plastic insert if cracked, torn, separated, overly worn or damaged in any way. Item Description Status... -
Page 58: Bolt To Floor Guide Introduction
6. Bolt to Floor Guide Introduction Life Fitness designs its products to be stable when used as designed. Because strength training is dynamic, we cannot predict how users will ultimately use the products in all circumstances. Therefore, Life Fitness recommends that strength training equipment be secured to a solid, level surface to stabilize and eliminate rocking or tipping over. -
Page 59: Anchor Type - Dynamic
Flooring (wood/tile/rubber/screed) Thickness Base Plate Thickness (See Foot Dimensions) Pullout Force Life Fitness specifies Hilti ™ static and dynamic anchors. According to the anchor manufacturer, the recommended design pullout force (in tension) for the specified anchors, when properly installed in cracked concrete, is provided in the side table. -
Page 60: Tools Required
Dynamic Anchors Design Resistance in Tension * KB-TZ2 3/8" x 5” and HST3 10mm x 130mm Greater than 2,000 lb (2.7kN) Static Anchors Design Resistance in Tension * KH-EZ 1/4” 830 lb (3.6 kN) HUS-H 6mm 3.3 kN (741lb) * Design strength extracted from the Hilti ™... -
Page 61: Anchor Procedure
Anchor Procedure 1. Place unit into position to be mounted and cycle unit to set its stance. 2. Wearing protective glasses, drill down into flooring perpendicularly to the required depth, ensuring that the foot thickness of the unit is being accounted for; refer to Anchor Selection and Foot Dimensions. NOTE: Use 3/8"... - Page 62 5. Tighten to 30 foot-pounds for Imperial (45Nm for Metric), assuring there are at least 3 threads left exposed. Item Description Qty. Torque Wrench Anchor Assembly 6. If necessary, cut extra length from top of anchor with a rotary tool leaving proper concrete engagement, torque requirements and at least 3 exposed threads.
-
Page 63: Foot Dimensions
Foot Dimensions Use below images to determine foot height thickness per strength family. Page 61 of 61... - Page 64 1025032-0001...
