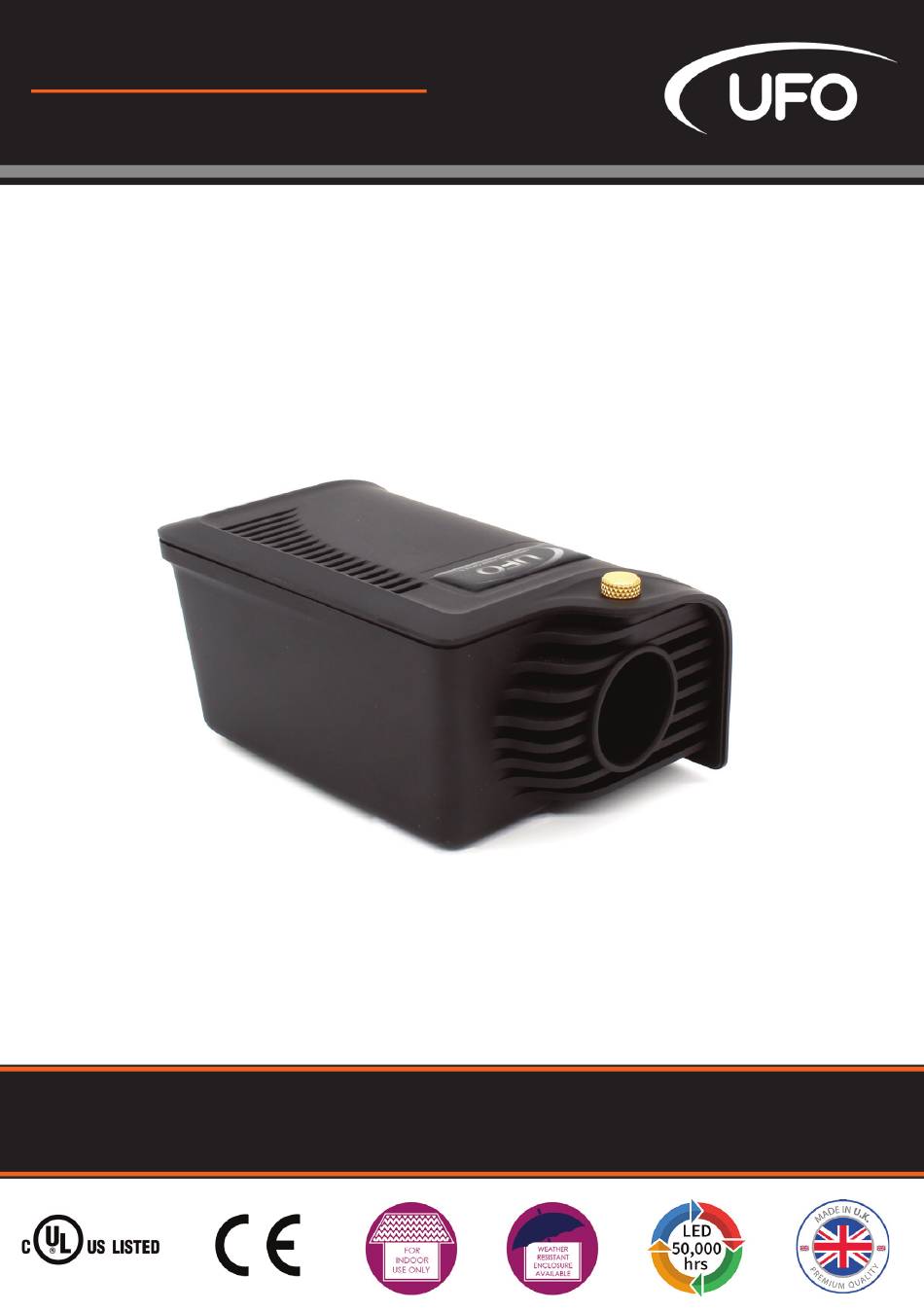

- Page 1 PRODUCT USER GUIDE MicroLED 100P Light Source Rev: C5 PLEASE READ THIS USER GUIDE BEFORE INSTALLING OPERATING OR PERFORMING MAINTENANCE ON THE LIGHT SOURCE UNIT E357731...
- Page 2 Warning: The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 2.7 metres is not expected. UFO will accept no liability for damage, or associated claims, caused by not following the installation and safety instructions contained within this user guide.
-
Page 3: Installation
This luminaire is powered by a 12V Power Supply Unit or 12V Constant Voltage Driver. Remove the PSU/driver from its box. Plug the jack plug into the socket in the back, and the light source is now ready for connection. UFO LIGHTING... -
Page 4: Operation
INSTALLATION & OPERATION CONNECTION There are 2 connections required - the fibre port and the mains supply. The fibre port should be connected first. Connect and secure the fibre optic connector into the front of the unit and secure using the M5 locking screw. Plug the mains plug into the electrical supply socket. -
Page 5: Safety Guidance
The outer body of the light source may become hot - keep away from all combustible materials and DO NOT locate this light source within 200mm (8”) of any flammable surface. • The light source must not be run without the fibre optic harness fitted. MAINTENANCE LOG Date Maintenance Undertaken UFO LIGHTING... -
Page 6: Troubleshooting
PSU failed Replace PSU illuminated Unit is dead no light output but LED power LED array failure Contact UFO indicator is still illuminated Carefully clean LED Lens with dry cloth Unit needs cleaning Poor light Clean fibre common end output on fibre... -
Page 7: Technical Specification
3000K \ 80CRI \ 120lm Neutral White Option 4000K \ 75CRI \ 126lm Cool White Option 5000K \ 75CRI \ 150lm Supply Voltage 90264Vac Mains Running Current 0.03A @ 240Vac Mains Voltage VA rating External PSU Type Power Pax, 12V, 2A, 24W UFO LIGHTING... - Page 8 United Kingdom • United States • Germany • Europe • Universal Fibre Optics Ltd Universal Fiber Optic Lighting USA LLC UFO Licht GmbH Home Place Coldstream 1749 Northgate Blvd Friendsfactory AG Gutenbergstraße 1 TD12 4DT Sarasota FL34234 85737 Munchen Deutschland...
