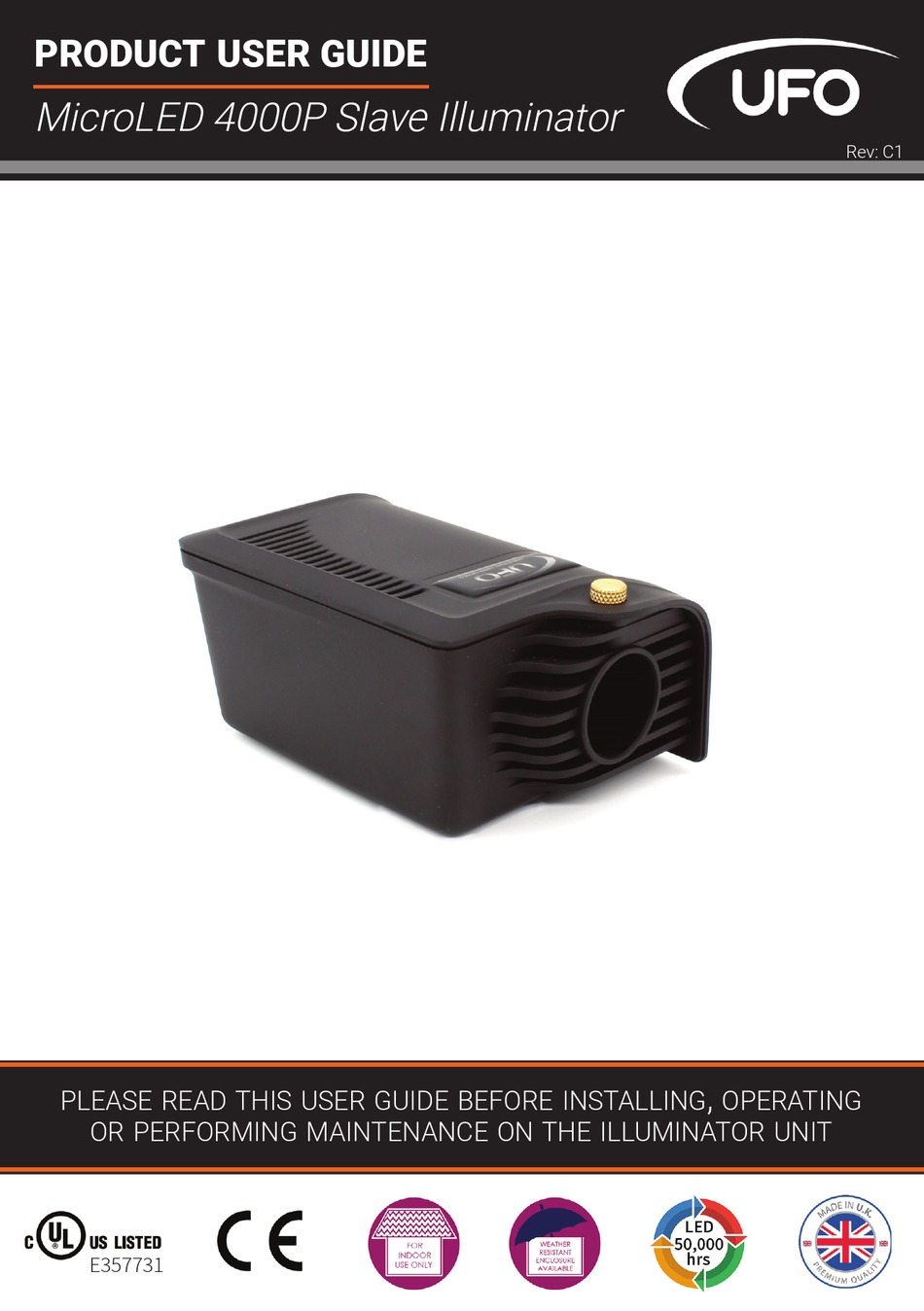

- Page 1 PRODUCT USER GUIDE MicroLED 4000P Slave Illuminator Rev: C1 PLEASE READ THIS USER GUIDE BEFORE INSTALLING OPERATING OR PERFORMING MAINTENANCE ON THE ILLUMINATOR UNIT E357731...
- Page 2 INTRODUCTION Thank you for purchasing this UFO illuminator/luminaire. To ensure that the illuminator is set up optimally and gives a long service life, please read this user guide before installing, operating or performing any maintenance on the unit. Please keep this User Guide for future reference. This User Guide is laid out in three sections...
-
Page 3: Installation
This luminaire is powered by a 12V Power Supply Unit or 12V Constant Voltage Driver. Remove the PSU/driver from its box. Connect the jack plug into the socket in the back, and the illumina- tor is now ready for connection. UFO LIGHTING... -
Page 4: Operation
INSTALLATION CONNECTION There are 3 connections required - the fiber port, the mains supply and the DMX interlink cable. The fiber port should be connected first. Connect and secure the fiber optic connector into the front of the unit and secure using the M5 locking screw. Plug the mains plug into the electrical supply socket. - Page 5 Speed C Slowest 1 (White Start) Push once Push once Push once 2 (Red Start) Push once Push once Push once At any time the cycle can be stopped on a color and started again using the lower push button. UFO LIGHTING...
-
Page 6: Dmx Operation
OPERATION DMX OPERATION To use the Slave in DMX operation connect a DMX Cat5 cable between one of the RJ45 sockets at the rear of the Slave Illuminator and the Master Illuminator or the DMX Controller- see RJ45 connection details and drawing below. To connect multiple Slave Illuminators connect link Cat5 cables between the spare RJ45 socket on the first Slave Illuminator and a RJ45 socket on the next Slave Illuminator and so on. -
Page 7: Maintenance Log
MAINTENANCE MAINTENANCE LOG Date Maintenance Undertaken Note: A record of all maintenance MUST be kept in the table above, indicating what maintenance was undertaken and when. This MUST be dated for warranty purposes. UFO LIGHTING... -
Page 8: Troubleshooting
TROUBLESHOOTING Problem Possible Cause(s) Remedy Unit is dead LED Mains supply off Check supply and reinstate power Loose mains plugs Check plugs indicator is not illuminated PSU failed Replace PSU Unit is dead no LED array failure Replace LED unit light output but LED power Recycle power to illuminator or switch on via re... -
Page 9: Technical Specification
Green: 530nm / 93lm Wavelength and Luminous Flux Blue: 460nm / 12lm White: 3500K / 120lm Supply Voltage 90264Vac Mains Running Current 0.06A @ 240Vac Mains Voltage VA rating 14VA External PSU Type Power Pax, 12V, 2A, 24W UFO LIGHTING... - Page 10 NOTES 4000 MICROLED P SLAVE USER GUIDE...
- Page 11 NOTES UFO LIGHTING...
- Page 12 INSTALL United Kingdom • United States • Germany • Europe • Universal Fiber Optics Ltd Universal Fiber Optics USA LLC UFO Licht GmbH Home Place Coldstream 1749 Northgate Blvd Friendsfactory AG Gutenbergstraße 1 TD12 4DT Sarasota FL34234 85737 Munchen Deutschland...
