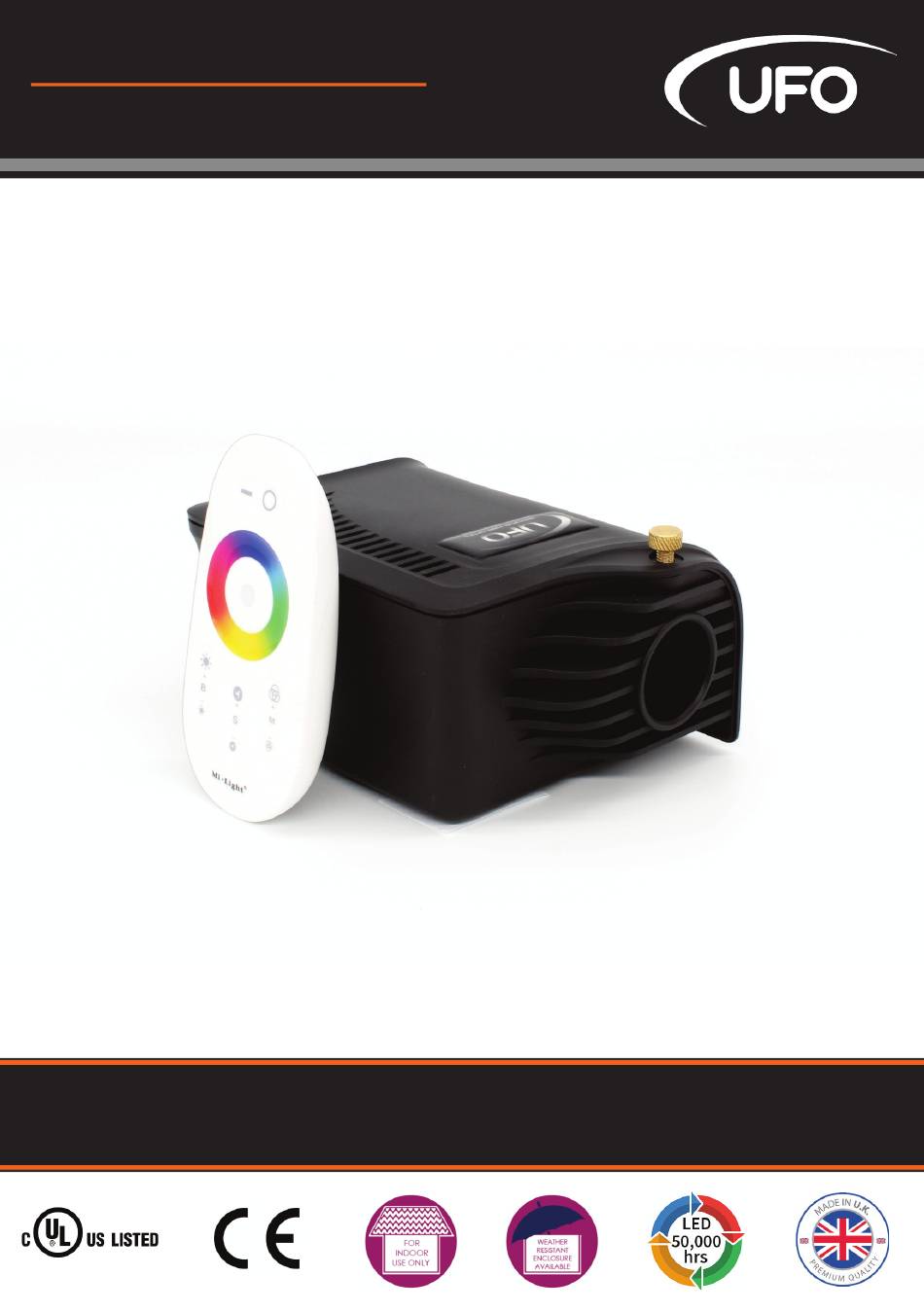

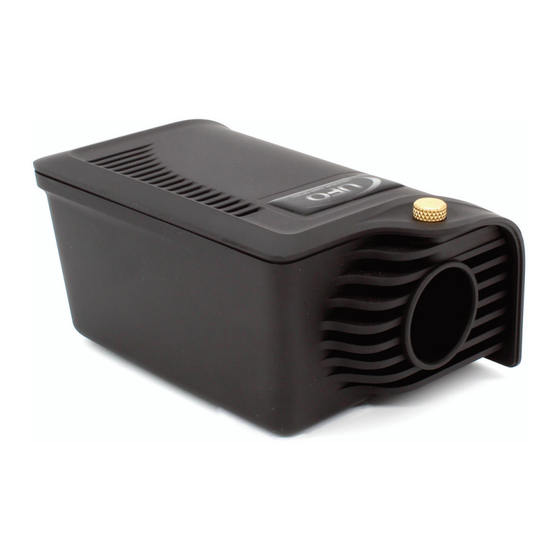

- Page 1 PRODUCT USER GUIDE MicroLED 4000P Light Source Rev: C2 PLEASE READ THIS USER GUIDE BEFORE INSTALLING OPERATING OR PERFORMING MAINTENANCE ON THE LIGHT SOURCE UNIT E357731...
- Page 2 INTRODUCTION Thank you for purchasing this UFO light source/luminaire. To ensure that the light source is set up optimally and gives a long service life, please read this user guide before installing, operating or performing any maintenance on the unit.
-
Page 3: Installation
This luminaire is powered by a 12V Power Supply Unit or 12V Constant Voltage Driver. Remove the PSU/driver from its box. Connect the jack plug into the socket in the back, and the light source is now ready for connection. UFO LIGHTING... -
Page 4: Remote Control
INSTALLATION CONNECTION There are 2 connections required - the fibre port and the mains supply. The fibre port should be connected first. Connect and secure the fibre optic connector into the front of the unit and secure using the M5 locking screw. Plug the mains plug into the electrical supply socket. -
Page 5: Operation
Light Source will “blink” 9 times indicating that the Remote Controller is unmatched from the Light Source. Note: More than one Light Source controlled by one Remote Controller will eventually run out of sync with each other (colour cycle mismatch UFO LIGHTING... - Page 6 OPERATION REMOTE CONTROL MODES AND FUNCTIONS Mode Brightness Speed Comment Touch colour ring then Static white Adjustable Non adjustable mode + to enter this mode at any time Colour ring control. Touch White and Adjustable Non adjustable colour ring to enter this colours mixed mode at any time All colours fade...
- Page 7 Note: Where a light source has more than one remote control, reduction in operating range may be experienced when both (or multiple) remote controls are used simultaneously. Description Date Max Range Controller 1 Controller 2 Controller 3 Dead Areas UFO LIGHTING...
- Page 8 OPERATION STANDALONE OPERATION USING INBUILT BUTTONS To disable the remote and revert to manual operation press one of the buttons on the rear of the light source. The light source will now respond to manual commands from the 2 control buttons as described below.
-
Page 9: Operation And Maintenance
MicroLED 4000 Slave Light Sources. See MicroLED 2000 or MicroLED 4000 Slave User Guides for DMX wiring connections MAINTENANCE LOG Date Maintenance Undertaken Note: A record of all maintenance MUST be kept in the table above, indicating what maintenance was undertaken and when. This MUST be dated for warranty purposes. UFO LIGHTING... -
Page 10: Troubleshooting
TROUBLESHOOTING Problem Possible Cause(s) Remedy Unit is dead - LED Mains supply off Check supply and reinstate power Loose mains plugs Check plugs indicator is not PSU failed Replace PSU illuminated Unit is dead - no LED array failure Replace LED unit light output but LED power indicator is Recycle power to light source or switch on via... - Page 11 90-264Vac Mains Running Current 0.06A @ 240Vac Mains Voltage VA rating 14VA External PSU Type Power Pax, 12V, 2A, 24W RF Remote Frequency 2.4GHz RF Remote Range 30m, depending on environment RF Remote Power 2 x AAA batteries (supplied) UFO LIGHTING...
