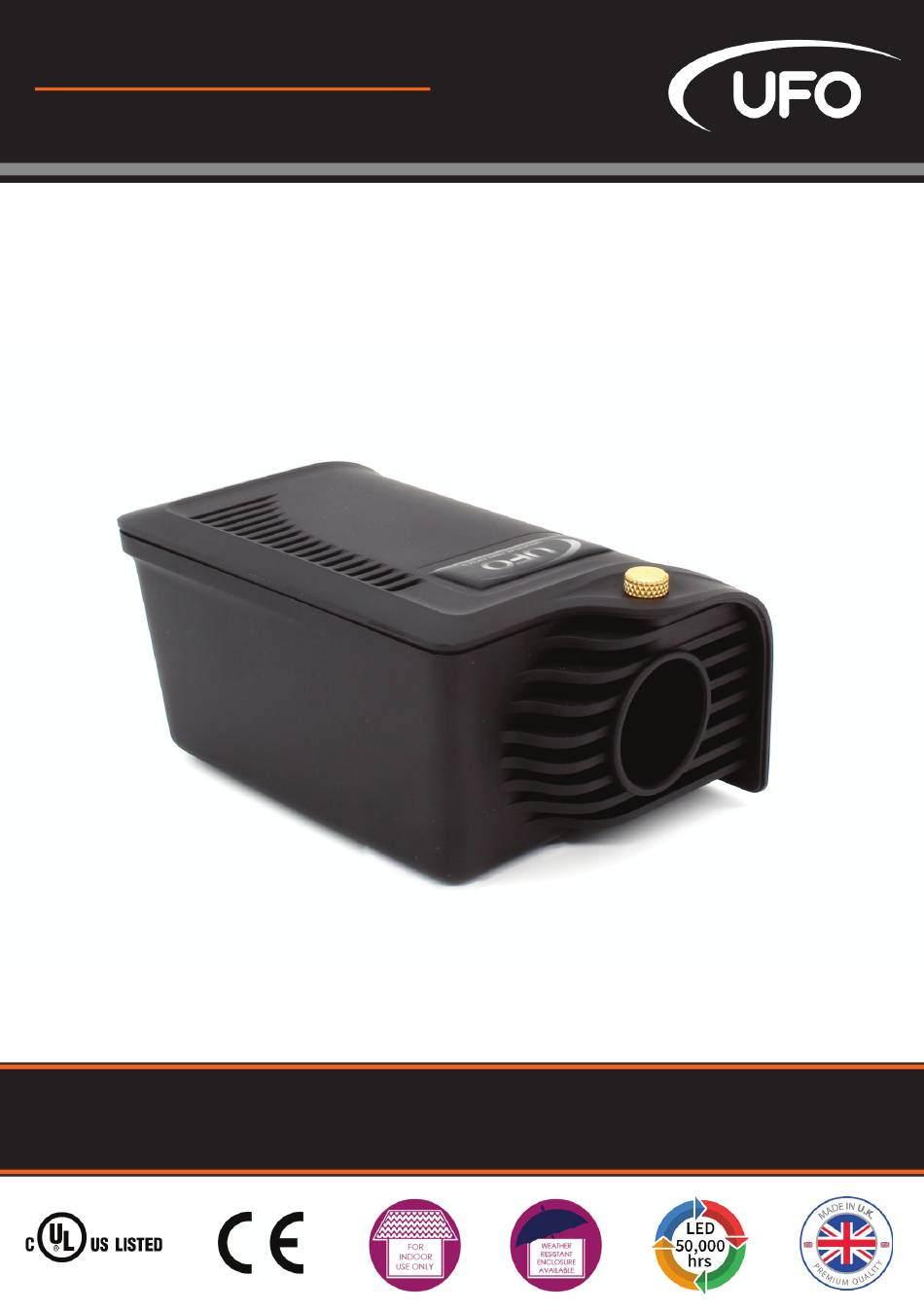

- Page 1 PRODUCT USER GUIDE MicroLED 1000P Light Source Rev: C2 PLEASE READ THIS USER GUIDE BEFORE INSTALLING OPERATING OR PERFORMING MAINTENANCE ON THE LIGHT SOURCE UNIT E357731...
- Page 2 INTRODUCTION Thank you for purchasing this UFO light source/luminaire. To ensure that the light source is set up optimally and gives a long service life, please read this user guide before installing, operating or performing any maintenance on the unit.
-
Page 3: Installation
Power supplies are available to suit UK, European and USA power outlets. The UK model is shown below. Plug the jack plug into the socket in the back of the light source, and the unit is now ready for connection. UFO LIGHTING... -
Page 4: Operation
OPERATION CONNECTION There are 2 connections required - the fibre port and the mains supply. The fibre port should be connected first. Connect and secure the fibre optic connector into the front of the unit and secure using the M5 locking screw. Plug the mains plug into the electrical supply socket. -
Page 5: Troubleshooting
Stationary on pressed one colour LED driver has failed Replace Light Source Colour cycle cannot be LED driver has failed Replace Light Source stopped Note: please complete relevant troubleshooting procedures before returning the unit to us for further investigation. UFO LIGHTING... -
Page 6: Maintenance Log
MAINTENANCE MAINTENANCE LOG Date Maintenance Undertaken Note: a record of all maintenance MUST be kept in the table above, indicating what maintenance was undertaken and when. This MUST be dated for warranty purposes. 1000 MICROLED P USER GUIDE... -
Page 7: Technical Specification
Red: 625nm / 45lm Green: 530nm / 93lm Wavelength and Luminous Flux Blue: 460nm / 12lm White: 3500K / 120lm Supply Voltage 90-264Vac Mains Running Current 0.03A @ 240Vac Mains Voltage VA rating External PSU Type Power Pax, 12V, 2A, 24W UFO LIGHTING... - Page 8 INSTALL United Kingdom • United States • Germany • Europe • Universal Fibre Optics Ltd Universal Fiber Optics USA LLC UFO Licht GmbH Home Place Coldstream 1749 Northgate Blvd Friendsfactory AG Gutenbergstraße 1 TD12 4DT Sarasota FL34234 85737 Munchen Deutschland...
