Summary of Contents for UFO IP-02

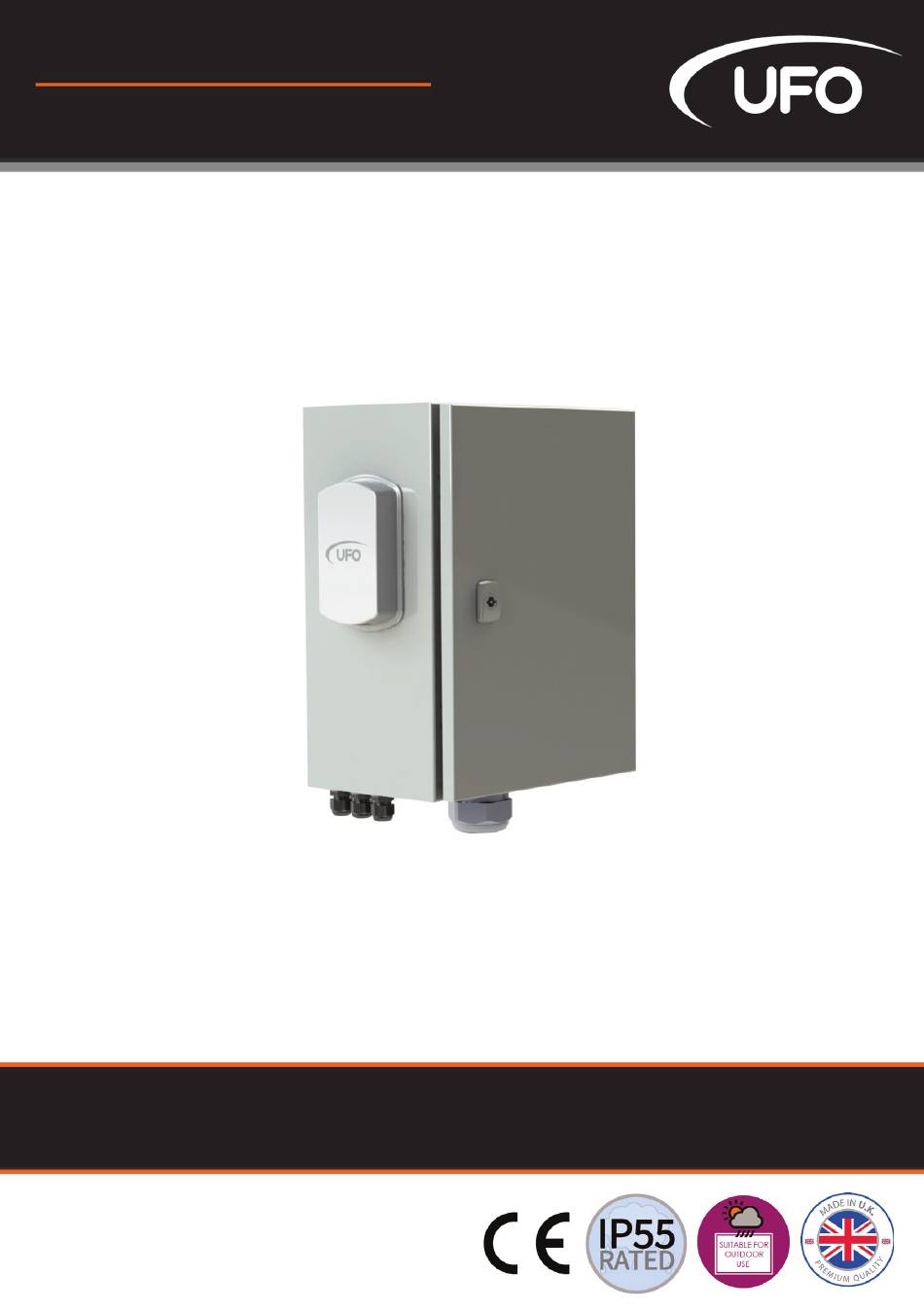

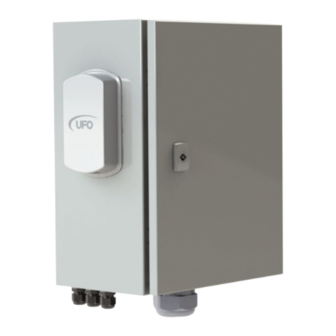

- Page 1 PRODUCT USER GUIDE IP-02 Weatherproof Enclosure Rev: C1 PLEASE READ THIS USER GUIDE BEFORE INSTALLING OPERATING OR PERFORMING MAINTENANCE ON THE ENCLOSURE...
- Page 2 INTRODUCTION Thank you for purchasing this UFO weatherproof enclosure which is fitted with an LED light source unit. To ensure the enclosure is mounted and connected correctly please read this user guide before installing and operating or performing any maintenance on the enclosure. To ensure that the...
-
Page 3: Model Variations
DC supply to a terminal block inside the enclosure. For this version, the PSU can be supplied by UFO or the customer. For the USA and Canada, if supplied by the customer the PSU must be UL listed and not only suitable in terms of correct voltage and wattage but also suitable for the environment/location in which the PSU is to be installed. - Page 4 INTRODUCTION FIGURE 1 AC SCHEMATIC USING NOVA LIGHT SOURCE 02 WEATHERPROOF ENCLOSURE USER GUIDE...
- Page 5 INTRODUCTION FIGURE 2 24 V DC SCHEMATIC USING NOVA LIGHT SOURCE UFO LIGHTING...
- Page 6 INTRODUCTION FIGURE 3 AC SCHEMATIC USING GEMINI LIGHT SOURCE 02 WEATHERPROOF ENCLOSURE USER GUIDE...
- Page 7 INTRODUCTION FIGURE 4 12 V DC SCHEMATIC USING GEMINI LIGHT SOURCE UFO LIGHTING...
- Page 8 CT in product code is used to designate white colour temperature - 30 (3000K), 40 (4000K) or 65 (6500K). GEMINI SLIMLINE PRODUCT CODES Ordering Code Control Options Power Variant Max. Power UFO IP02GEM SLPCTMAC Manual 240VAC 50Hz UFO IP02GEM SLPCTMDC Manual 12V DC UFO IP02GEM SLPCTDMXAC...
- Page 9 CT in product code is used to designate white colour temperature - 30 (3000K), 40 (4000K) or 65 (6500K). VEGA SLIMLINE WHITE LIGHT PRODUCT CODES Ordering Code Control Options Power Variant Max. Power UFO IP02VEGA SLPCTMAC Manual 240VAC 50Hz UFO IP02VEGA SLPCTMDC Manual 24V DC UFO IP02VEGA SLPCTDMXAC...
-
Page 10: Installation
INSTALLATION MODEL INFORMATION VEGA DECORATIVE PRODUCT CODES Ordering Code Control Options Power Variant Max. Power UFO IP02VEGACTMCMAC Manual Dim & Speed 240VAC 50Hz UFO IP02VEGACTMCMDC Manual Dim & Speed 24V DC UFO IP02VEGACTMTMAC Manual Dim & Speed 240VAC 50Hz UFO IP02VEGACTMTMDC Manual Dim &... - Page 11 INSTALLATION MICROLED 5000T PRODUCT CODES Ordering Code Control Options Power Variant Max. Power UFO IP02MIC5000TAC DMX, Manual 240VAC 50Hz UFO IP02MIC5000TDC DMX, Manual 12V DC DIMENSIONS Note that dimensions are shown in mm. UFO LIGHTING...
-
Page 12: Mounting The Enclosure
300mm (12”) of space around all sides to allow for air circulation and to prevent overheating. Mounting the enclosure in any other way will invalidate the IP rating and the product warranty. UFO will accept no responsibility for any loss or damage that occurs due to incorrect mounting. 02 WEATHERPROOF ENCLOSURE USER GUIDE... - Page 13 3. Choose appropriate fixings for the surface that the enclosure is being mounted to. Note that unless UFO are installing the unit then we do not supply fixings. This is due to the large variance of surface types the enclosure may be mounted to.
- Page 14 INSTALLATION FOR DIRECT MAINS OPERATION ( AC SUFFIX MODELS ) CONNECTION There may up to three connections required via the appropriate gland: 1. The fibre harness. 2. The DMX or 0-10V cables for any light sources with that control functionality 3.
- Page 15 (AC version) or the remote PSU (DC version). If no light is produced consult the TROUBLESHOOTING section in this manual and the light source manual. UFO LIGHTING...
-
Page 16: Maintenance
Check fuse/trip & replace/reset if necessary. If Blown fuse or circuit tripped PSU is out problem persists, isolate mains and contact UFO AC & DC enclosure Refer to Troubleshooting section in Light source not connected correctly model. Unit is dead light source user guide –... -
Page 17: Technical Information
* Note that the IP protection category only applies when the enclosure is mounted as specified by UFO - see page 2 for details. Mounting the enclosure in any other way invalidates the IP rating and the product warranty. UFO will accept no responsibility for any loss or damage that occurs due to incorrect mounting. - Page 18 NOTES 02 WEATHERPROOF ENCLOSURE USER GUIDE...
- Page 19 NOTES UFO LIGHTING...
- Page 20 United Kingdom • United States • Germany • Europe • Universal Fibre Optics Ltd Universal Fiber Optics USA LLC UFO Licht GmbH Home Place Coldstream 1749 Northgate Blvd Andreasstraße 20 TD12 4DT Sarasota FL34234 93059 Regensburg Deutschland +44 (0)1890 883416...
