UFO MIC100P-3 User Manual

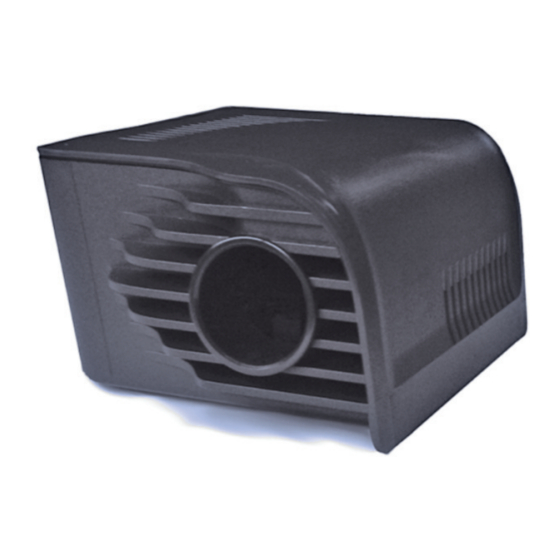

Microled 100p v2 illuminator
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

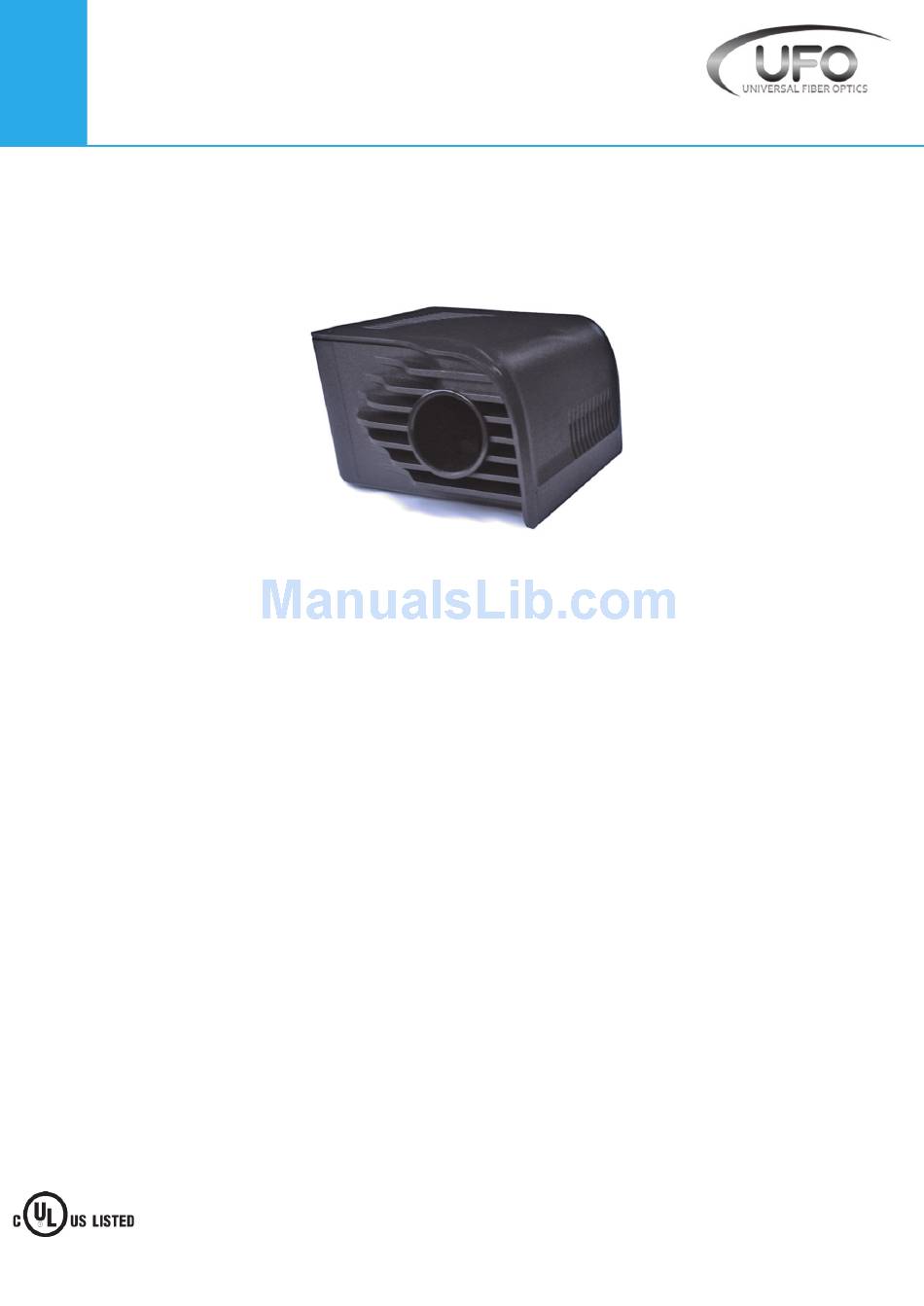

Illuminator
Please read this manual fully before installing, operating or performing
Issue 2 | Revised: 15112016
User Guide
MicroLED 100P V2
Models covered by this manual:
UFO MIC100P-3
UFO MIC100P-4
UFO MIC100P-6
maintenance on the illuminator unit.
Illuminator
Universal Fiber Optic Lighting LLC
6119A Clark Center Avenue | Sarasota | FL34238
Tel: 941-343-8115 | 800-UFO-5554
www.fiberopticlighting.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UFO MIC100P-3 and is the answer not in the manual?

Questions and answers

Related Manuals for UFO UFO MIC100P-3

Summary of Contents for UFO UFO MIC100P-3

  • Page 1 UFO MIC100P-6 Please read this manual fully before installing, operating or performing maintenance on the illuminator unit. Universal Fiber Optic Lighting LLC 6119A Clark Center Avenue | Sarasota | FL34238 Tel: 941-343-8115 | 800-UFO-5554 www.fiberopticlighting.com Issue 2 | Revised: 15112016...
  • Page 2 Please read these instructions fully before connecting your unit to the electrical supply, and keep them for future reference. The UFO Mic100P utilises a white light array and is suitable for use with either glass or PMMA fiber optic harnesses.
  • Page 3 INSTALLATION INSTRUCTIONS POWER SUPPLY REQUIREMENTS The illuminator is powered by an AC adapter power supply unit. Remove the AC adapter PSU from its box. Connect the jack plug into the socket in the back, and the illuminator is now ready for connection.

  • Page 4: Maintenance

    CONNECTION There are 2 connections required - the fiber port and the mains supply. The fiber port should be connected first. Connect and secure the fiber optic connector into the front of the unit, and secure using the M5 locking screw. Plug the mains plug into the electrical supply socket.
  • Page 5 MAINTENANCE (continued) Please note that a record of all maintenance MUST be kept in the table below, indicating what maintenance was undertaken and when. This must be DATED for warranty purposes. Date Maintenance Undertaken Universal Fiber Optic Lighting LLC...

  • Page 6: Troubleshooting

    TROUBLESHOOTING Problem Probable cause(s) Remedy Mains supply off Check supply and reinstate Unit is dead - LED power indicator is not Loose mains plugs Check plugs illuminated PSU failed Replace PSU Unit is dead - no light output but LED power LED array failure Replace LED unit indicator is still...

  • Page 7: Technical Specifications

    TECHNICAL SPECIFICATIONS Description Details Port connector size 30mm Glass/PMMA Fiber type 100 - 240V AC, 50/60 Hz Supply voltage PSU Output 12DC, 1.5A, 18W Maximum LED Power -10ºC Min Ambient Temperature Max Ambient Temperature +45ºC 2.1 x 5.5 x 12mm Power Connection LED Type / Model White light...
  • Page 8 Universal Fiber Optic Lighting LLC 6119A Clark Center Avenue | Sarasota | FL34238 Tel: 941-343-8115 | 800-UFO-5554 www.fiberopticlighting.com...

This manual is also suitable for:

Ufo mic100p-4Ufo mic100p-6
