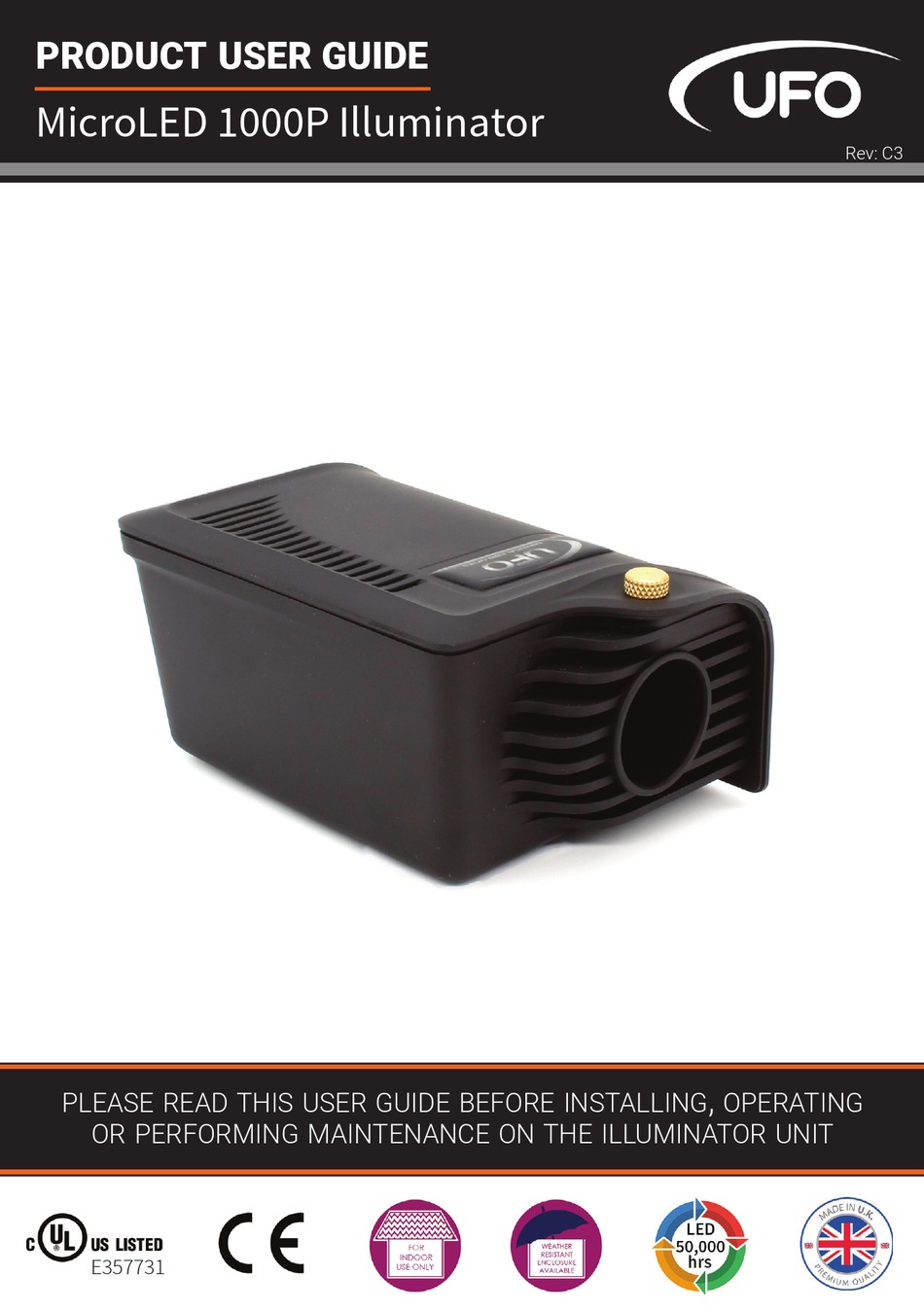

- Page 1 PRODUCT USER GUIDE MicroLED 1000P Illuminator Rev: C3 PLEASE READ THIS USER GUIDE BEFORE INSTALLING OPERATING OR PERFORMING MAINTENANCE ON THE ILLUMINATOR UNIT E357731...
- Page 2 INTRODUCTION Thank you for purchasing this UFO illuminator/luminaire. To ensure that the illuminator is set up optimally and gives a long service life, please read this user guide before installing, operating or performing any maintenance on the unit. Please keep this User Guide for future reference. This User Guide is laid out in three sections...
-
Page 3: Installation
Power supplies are available to suit UK, European and USA power outlets. The UK model is shown below. Plug the jack plug into the socket in the back of the illuminator, and the unit is now ready for connection. UFO LIGHTING... -
Page 4: Operation
OPERATION CONNECTION There are 2 connections required - the fiber port and the mains supply. The fiber port should be connected first. Connect and secure the fiber optic connector into the front of the unit and secure using the M5 locking screw. Plug the mains plug into the electrical supply socket. -
Page 5: Troubleshooting
PSU failed Replace PSU Unit is dead no light output but LED power LED array failure Contact UFO indicator is still illuminated Carefully clean LED Lens with dry cloth Unit needs cleaning Poor light Clean fiber common end output on fiber... -
Page 6: Maintenance Log
MAINTENANCE MAINTENANCE LOG Date Maintenance Undertaken Note: a record of all maintenance MUST be kept in the table above, indicating what maintenance was undertaken and when. This MUST be dated for warranty purposes. 1000 MICROLED P USER GUIDE... -
Page 7: Technical Specification
Red: 625nm / 45lm Green: 530nm / 93lm Wavelength and Luminous Flux Blue: 460nm / 12lm White: 3500K / 120lm Supply Voltage 90264Vac Mains Running Current 0.03A @ 240Vac Mains Voltage VA rating External PSU Type Power Pax, 12V, 2A, 24W UFO LIGHTING... - Page 8 INSTALL United Kingdom • United States • Germany • Europe • Universal Fiber Optics Ltd Universal Fiber Optics USA LLC UFO Licht GmbH Home Place Coldstream 1749 Northgate Blvd Friendsfactory AG Gutenbergstraße 1 TD12 4DT Sarasota FL34234 85737 Munchen Deutschland...
