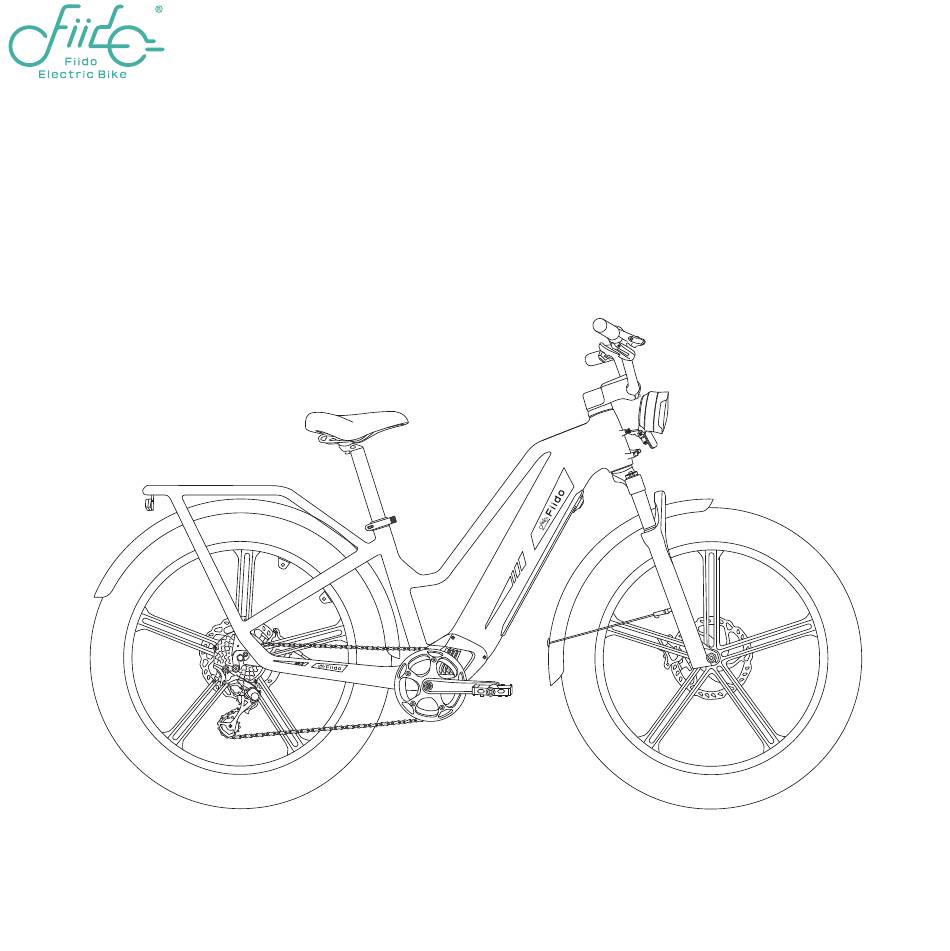

- Page 1 Fiido Titan Cargo Electric Bike D ear u sers, please r ead this manu al car efully b efor e op erat ing the bike . W ARN IN G:D O N OT OPERAT E TH E B IKE BEF OR E UN DERSTA NDING HOW TO USE IT .
- Page 2 In this manual,we will introduce the specification,installation,usage,precautions,and maintenance of FIIDO Titan.Be sure you know everything you need to know about the bike that introduced in this manual. Any questions,please contact Fiido After-sales Team or our Local Service Center,and a prompt reply and feasible solution will be provided.
- Page 3 9. Do not attempt to charge while the charger or power supply is wet, please follow the local safety regulations if you need to charge the bike in public area. 10. For effective protection and as convenient as possible for yourself, please be sure to use Fiido specific parts.
-
Page 4: Table Of Contents
CONTENTS 1.Product introduction 2. Using guide 3. Maintenance precautions 4. Service directory 1.1 Bike overview 2.1 Installation guide 3.1 Using precautions 4.1 Troubleshooting methods 1.2 Packing list 2.2 First time using 3.2 Bike maintenance & repair 4.2 Specifications 1.3 Bike diagrams 2.3 Charging instructions 3.3 Motor maintenance &... -
Page 5: Product Introduction
1.Product introduction 1.1 Bike overview 1.2 Packing list 1.3 Bike diagrams 1.4 Function DESC... -
Page 6: Bike Overview
1.1 Bike overview Titan is the latest cargo electric bike of Fiido. With the reputation of two-wheeled heavy-duty urban SUV, Titan was designed for bigger power, bigger tires, bigger adventure. Equipped with a powerful 70N·m motor and 26''*4.0 inch flat tires. The torque sensor with exclusive algorithm providing a riding experience that beyond imagination. The exclusive keyless removeable battery system not only saves you from trouble, but also offer reassuring protection for battery. -
Page 7: Packing List
1.2 Packing list Bike parts Front axle*1 Handlebar*1 Electric Bike*1 Front wheel*1 Battery*1 Bike accessories Front light*1 Fender*1 Charger*1 Pendals*1 key*2 Bell*1 Handlebar cover*1 Tools Open spanner*1 Hex wrench*8 Y-Type Allen Wrench*1 10# socket wrench*1 15# socket wrench*1 *Please carefully check whether all items are complete and intact. If there is any problem such as missing or damaged, please contact the official after-sales team asap. -
Page 8: Bike Diagrams
1.3 Bike Diagrams Handlebar Saddle Display Headlight Battery Cover Battery Front suspension fork Rear Light Front Fender Front wheel Disc Brake Disc Brake Tire Motor Pedal Rear Derailleur Crank Chain Chainwheel *Non professionals are forbidden to assistance and assemble the battery. Please contact after-sales team for assistance. -
Page 9: Function Desc
（Long press for more than 3 sec：turn on/off the power assisted mode.） (Click to achieve the power-assisted downshif.) Battery Battery key hole ChargingPort (Insert the battery key and turn (Insert the Fiido charger ONLY) it to unlock to remove the battery separately) -
Page 10: Using Guide
2.Using Guide 2.1 Installation guide 2.2 First time using 2.3 Charging instructions... -
Page 11: Installation Guide
2.1 Installation guide The basic installation of the bike has been completed before out of the factory.When you receive the bike.you only need to install the handlebar.baskets,headlight, front wheel,pedals and lock the seat saddle. lnstall the handlebar ① Install the handlebar cover ：Turn the ②... - Page 12 ③ Adjust the handlebar to the right position,should be in a parallel with the fork;close the handlebar clamp and tighten the screw. Caution:The screws should be tighten in case safety problems. ① Install the handlebar wire: Follow the color of cable connector, and align the connector arrow direction to access the handlebar.
- Page 13 Install the front wheel ① First take out the nut and collar on the wheel. ② Install the front axle into the front wheel, please notice that there's a nut on the front axel that should be placed on the end without the disk. ①...
- Page 14 Install fenders ② Tighten the screws on both sides of the fender stick to ① Put the front fender through the gap of the complete the fender installation. tire and fork, then screw tightenly. Insert the battery ① Remove the battery cover: Using thumb to press the button on the battery cover, and slide the button downward, to remove the battery cover.
- Page 15 lnstall the battery cover ① Insert the lower end of the battery cover first into ② Installation is completed by pressing the battery the lower end of the frame first. cover button firmly with your thumb and pushing the button upward until the cover cannot come off automatically.
- Page 16 Install pendals Use the open spanner of the tools bag, screw the pedal shaft into the threaded hole and tighten it in the direction of the arrow. Caution: While installing the pedal, pay attention to the left / right pendal corresponding to the left / right crank, the pendal screw and the inside of the crank are respectively marked L(left) / R(right).
-
Page 17: First Time Using
2.2 First time using Before riding, please follow the installation guide to install components properly, check whether the firmware is loose, ensure sufficient power, and take appropriate protection for riding. Step 1：Adjust the seat Please adjust the seat to the appropriate riding height according to your height. （the recommended height is when the saddle is level with the user’s pelvis when standing naturally. - Page 18 The bike will be on pedalling mode. The bike has been factory settings in 3 power-assisted gear, if you need to set it in 5 power-assisted gear, please download Fiido APP and operate it. Step 4：Start riding Please take corresponding protection before starting riding.
-
Page 19: Charging Instructions
2.3 Charging instructions The battery comes with a small amount of electricity, before the first time use, please make sure to charge it to full power before riding. Charging 1. Charging connection: Connect the charging interface of the charger to the charging port, then connect the power plug of the charger to the power socket. - Page 20 (Note: a long sound means that the unlock is successful. Two beeps means wrong password) 2）Using APP to unlock: Open the Fiido cycling APP, connect with the bike, and click the unlock button (a long sound means that the unlock is successful).
- Page 21 4）Unlock with key： Turn the key clockwise to the "unlock" state, the upper end of the battery will automatically pop out and ready to be removed. ③ Remove the battery: After the battery lock is unlocked, press the upper part of the battery and release it.
-
Page 22: Maintenance Precautions
3.Maintenance precautions 3.1 Using precautions 3.2 Bike maintenance & repair 3.3 Motor maintenance & repair 3.4 Battery maintenance & repair 3.5 Reflex reflector cautions... -
Page 23: Using Precautions
3.1 Using precautions （Ⅰ）Users should pay attention to the safety of bicycle use 1. No parking in building foyers, evacuation stairs, walkways and safety exits. 2. No charging in residential buildings. Charging should be far away from combustible, and no longer than 9 hours. 3. - Page 24 （Ⅲ）Examination before riding: please repair in time or go to the local maintenance point for repair, if there’s any abnormality. 1. Please confirm the normal power use when using the kickstand and the rear wheel is off the ground. 2. Turn on the power, check whether the indicator light is normal, and the power supply is sufficient. 3.
-
Page 25: Bike Maintenance & Repair
3.2 Bike maintenance & repair 1. The bicycle has been checked and adjusted before out of factory, any problems please contact Fiido After Sales Team for support. 2. Normally the spokes of the wheel should be adjusted once after half a month of riding to ensure the best use. -
Page 26: Service Directory
4.Service directory 4.1Troubleshooting methods 4.2 Specifications 4.3 Warranty coverage 4.4 Repair record... -
Page 27: Troubleshooting Methods
4.1 Troubleshooting methods Fault code description Fault phenomenon Fault code Communication issues Throttle issues Brake lever issues Motor hall issues Motor issues Controller issues Overheating protection General fault Fault phenomenon Fault cause Rule out way Poor contact of regulating handlebar Change regularing handlebar Poor contact of brake cut-off... -
Page 28: Specifications
4.2 Specifications Property index Item Titan Before folding: Length*Width*Height (mm) 1850*710*1070 Product size Tires （Inch） 26*4.0 Product weight Net weight 37.8kg(83lb) Maximum load 120kg(265lb) Riding requirement Applicable age Applicable height 155cm(5'1") - 200cm(6'7") Serial numbe Location On the controller box Maximum speed 15.5MPH (25km/h) -
Page 29: Warranty Coverage
Torque（N·m） Rated speed（r/min） Moter type Brushless geared motor Motor Undervoltage protection (V) 39±1 Overcurrent protection (A) 25±1 Input voltage (V) 100-240 Output voltage (V) 54.6 Charger Output current (A) Charging hours (h) Front light Others Tail light Riding mode Electric mode+Power assisted mode+Pedal mode Caution：... - Page 30 (Ⅱ）Warranty scope and period Item Parts Guarantee time Service Frame 36 months Natural deformation, open welding, desoldering fracture phenomenon, quality problems caused by poor manufacturing can be replaced. Self-modification, collision 24 months Fork, Handlebar, Stem, Seatpost damage, etc. are not warranted. Kickstand, Tires, Saddles, Fenders, Safety hook, Seat Basic parts...
-
Page 31: Repair Record
Warranty notification 1. Accessories will be guaranteed in strict accordance with the warranty period. 2. The warranty period shall be calculated from the date of delivery. 3. No warranty will be provided if the charger, battery and motor are disassembled without permission. 4. - Page 32 If you have any questions or suggestions about this user manual, please contact us via following mailaddress Contact us：support@fiido.com Fiido APP EPAC according to EN 15194 6971957790730 4.003.M25002...
