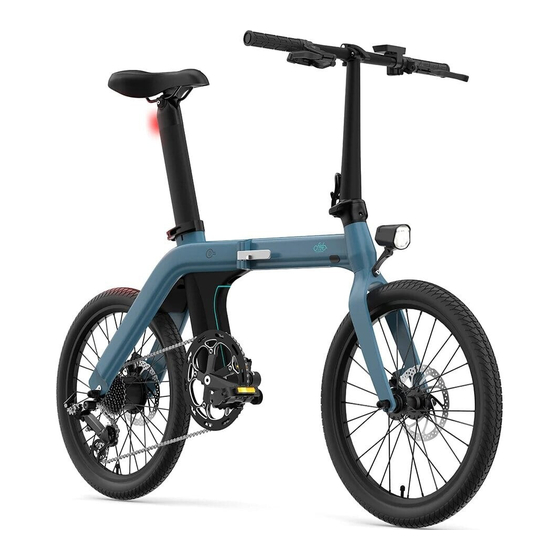

- Page 1 Electric Bike Fiido D11 User's Manual SHENZHEN FIIDO TECHNOLOGY DEVELOPMENT CO.,LTD NO.142 Fiido Industrial Park,Futong Rd. Yuanshan St. Longgang District, Shenzhen, China Made in China https://www.fiido.com email：support@fiido.com...
- Page 2 FIIDO Electric Bicycle Catalog I.Important Note II.Bike Diagrams III.Unfolding Instructions IV.Folding Instructions V.Specifications...
- Page 3 I．Important Note This manual includes important safety performance and service information. Please make sure to read the following warnings before using our products for the first time. a) If you lend your e-bike to other people, please confirm that he/she has read this manual to decrease the risk of accident. b) Please wear a suitable and safe helmet before riding, please wear clothes with fluorescent and reflective stripes when riding at night.
- Page 4 II．Bike Diagrams 1.Removable battery 5.Valve 9.Chain 13.Handle bar 17.Brake disc 2.Quick release 6.Folding system 10.Chain wheel 14.Stem 3.Brake disc 7.Charge port 11.Pedal 15.Folding system 4.Hub motor 8.Controller box 12.Crank 16.Headlight...
- Page 5 １ 1.Brake power off system 10.Electric assist gear 4.Power on/off button 7.Power off brake 2.Light button 11.Press the handle 5.Power adjustment 8.Battery level 3.Horn button 12.USB output port 6.Press the handle 9.Speed (Note: The bike will automatically shut down when it is stationary if not used within 10 minutes.) 13.Battery charging port 14.On/Off...
-
Page 6: Unfolding Instructions
III. Unfolding Instructions 1.Unfold the D11 bike frame to straightened position and tighten the frame folding handle and safety clasp. 2.Unfold the handle bar tube to the upper position, lock the raised tube into position, and tighten the safety clasp. Adjust the T-handle bar into riding position. -
Page 7: Folding Instructions
Step 2. Open up the lock at the base of the steering tube, then gently fold down the tube and handle bar. Step 3. Open up the lock at in the centre of the bike frame, and then fold the D11 in half. -
Page 8: Specifications
5．Specifications Name Specification Electric Bike System FIIDO System Electric Motorcycle Support Power Assist System Support Max Load weight 120kg Maximum Speed 25km/h Maximum Range Power assisted model up to 80-100KM Battery High quality lion battery 36V 11.6Ah Battery adaptation DC 42V 2A...
