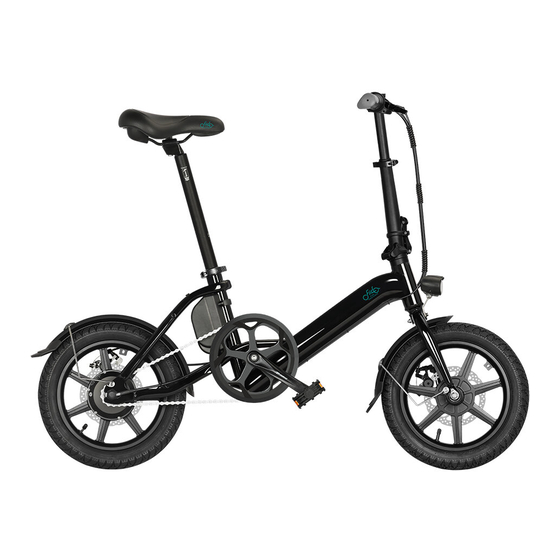

- Page 1 D3Pro Users Manual SHENZHEN FIIDO TECHNOLOGY DEVELOPMENT CO.,LTD NO.142 Fiido Industrial Park,Futong Rd. Yuanshan St. Longgang District, Shenzhen, China https://www.fiido.com email：support@fiido.com Made in China...
- Page 2 Fiido Electric Bicycle Catalog 1．Important Note 2．Product components 3．Unfolding instructions 4．Folding instructions 5．Pump instructions 6．Product parameters...
-
Page 3: Important Note
1．Important Note a) This manual include important safety performance information and service information. Please make sure you have read the following warning content before the first time you use our product.. b) If you borrow your electric bicycle to other people, please let the user read this manual, it could help to decrease the risk of accident. c) Please wear a suitable and safe helmet before riding, please wear the clothes with fluorescent and reflective stripes when you ride at night. -
Page 4: Product Components
2．Product components 1.Seatpost Pump 5.Brake disc 9.Charge port 13.Pedal 17.Handlepost clamp 21.Brake disc 2.Seat clamp 6.Motor 10.Controller box 14.Crank 18.Stem 3.Reflector 7.Valve 11.Chain 15.Mudguard 19.Folding system 4.Mudguard 8.Battery tube 12.Chain wheel 16.Handle bar 20.Headlight... - Page 5 1.Brake power off system 4.Power on/off button 7.Provide electric assistant 10.Odometer (Left brake handle for rear brake) (Long press turn on/off electric power mode) (Electric-assist throttle) （ 2.Light button 5.Power adjustment 8.Speed long press M to display the total mileage) 11.USB charging port (Click oncepower on/off) (Click once to shift gears, a total of 3 gears)
-
Page 6: Unfolding Instructions
3．Unfolding instructions 1.Fold the riser to the upper end,lock the riser folding handle,adjust the riser safety hook to the tightening state,and adjust the position of the T handle. 2.Open the clip on the seat tube clamp and insert the seat tube into the position within the marking line on the seat tube. Adjust the seat to the comfortable height according to individual needs, and fasten the seat tube clip. - Page 7 Release the clamp Release the clamp of the handlebar Adjust up and down to the right place， Lock the clamp and make sure the insertion depth must be higher than the scale mark Release the clamp of the seat post, Lock the clamp Rotate the handlebar to proper position Lock the clamp...
-
Page 8: Folding Instructions
4．Folding instructions Step 1. Open the quick lock on the head end, to let the handle be perpendicular to the care frame. Step 2. Open the quick lock on the Stem, lower the riser,as well as locking the quick lock. Step 3. -
Page 9: Pump Instructions
5．Pump instructions Release the quick clamp Take out the pump Twist the bottom of the inflator Until fully twisted Pull out the lower side Twist the tire inflation ear caps Until fully twisted Align one side of the pump with the valve core of the tire Then Squeeze it into position Lock the pump towards... -
Page 10: Product Parameters
6．Product parameters Name Specification Electric Bike System Fiido System Electric Motorcycle Support Power Assist System 3 Gears Assist Max Load weight 120kg Maximum Speed 25km/h Maximum Range Power assisted models up to 60KM Battery High quality lion battery 36V 5.2/7.8Ah...
