- Page 1 Fiido X Folding Electric Bike De ar us e r s ! Be f or e en j oy i ng t he r id e, ple ase be su re t o r ead the use r m anu al car e fu l l y , unde rst and t he re l e v a nt ope rat ion s p e c ifi...
- Page 2 Dear user： In this manual, we will introduce you the common sense and maintenance of electric power bicycle. In order to better riding experience, please be sure to read and understand the product performance, characteristics, precautions and maintenance matters. If you have any questions, please contact the official after-sales team or local authorized service station.
- Page 3 9. Do not attempt to charge while the charger or power supply is wet, please follow the local safety regulations if you need to charge the bike in public area. 10. For effective protection and as convenient as possible for yourself, please be sure to use Fiido specific parts.
-
Page 4: Table Of Contents
CONTENTS 1.Product introduction 2. Using guide 3. Maintenance precautions 4. Service directory 1.1 Bike overview 2.1 Installation guide 3.1 Using precautions 4.1 Troubleshooting methods 1.2 Packing list 2.2 First time using 3.2 Bike maintenance & repair 4.2 Specifications 1.3 Bike diagrams 2.3 Coded lock instructions 3.3 Motor maintenance &... - Page 5 1.Product introduction 1.1 Bike overview 1.2 Packing list 1.3 Bike diagrams 1.4 Function DESC...
-
Page 6: Bike Overview

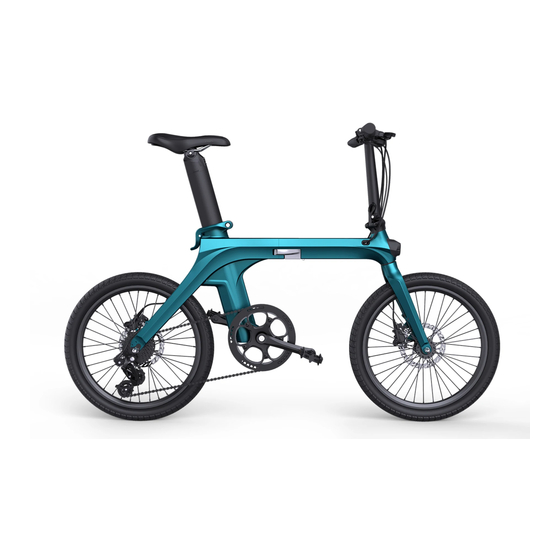

THE FUTURE STARTS HERE Fiido X inherits Fiido's consistently minimalist design aesthetics, the design of the whole bike has a sense of future technology. The body of Fiido X adopts a magnesium alloy integrated molding process, with a smooth and simple frame line. -
Page 7: Packing List
1.2 Packing list Bike parts Electric Bike*1 Seatpost battery*1 Bike accessories Fenders*2 Pendals*2 Charger*1 Adapter*1 User manual*1 (Equipped for EU and UK regions) Tools Open spanner*1 Hex wrench*5 Hex wrench*1 *Please carefully check whether all items are complete and intact. If there is any problem such as missing or damaged, please contact the official after-sales team asap. -
Page 8: Bike Diagrams

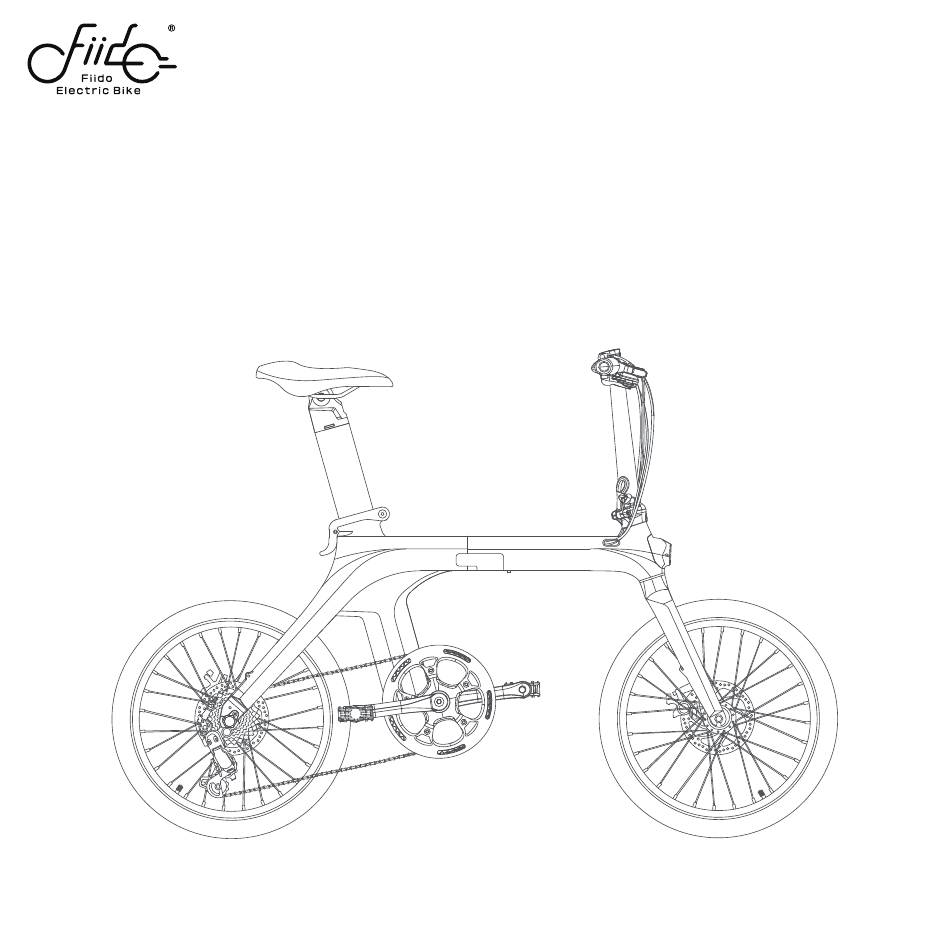

1.3 Bike Diagrams Handlebar Saddle Stem Seatpost battery Seat Clamp Stem Clamp intelligent coded lock Headlight Tire Disc Brake Disc Brake Motor Pedal Derailleur Crank Charge Valve Chain Chainwheel *Non professionals are forbidden to disassemble and assemble the battery. Please contact after-sales team for assist. -
Page 9: Function Desc
ON/OFF Button (Click to turn on/off the battery power) Fuse Charging Port (Battery protection, DO NOT touch) (Insert the Fiido charger ONLY) Discharge Guide (Battery discharge device, DO NOT touch) Coded lock Power Button (Bike power button, enter the password and click the button to start the bike power.) - Page 10 2. Using Guide 2.1 Installation guide 2.2 First time using 2.3 Coded lock instructions 2.4 Charging instructions 2.5 Folding instructions...
-
Page 11: Installation Guide
2.1 Installation guide The basic installation of the bike has been completed before leaving the factory. After receiving the bike, you only need to unfold the stem, install the seatpost battery and pendals for complete installation. Unfold the stem ① Open the quick release, adjust the handlebar direction ②... - Page 12 Install the seatpost battery ① Open the seat clamp, take off the EVA protective ② Adjust the seatpost battery to suitable height, the cotton, insert the seatpost battery. recommended height is when the saddle is level with the user’s pelvis when standing naturally. (Caution: Do not adjust the height beyond the maximum and minimum heights on the battery holder scale.) ③...
- Page 13 Install pendals Use the open spanner of the tools bag, screw the pedal shaft into the threaded hole and tighten it in the direction of the arrow. Caution: While installing the pendal, pay attention to the left / right pendal corresponding to the left / right crank, the pendal screw and the inside of the crank are respectively marked L(left) / R(right).
-
Page 14: First Time Using
2.2 First time using Before riding, please follow the installation guide to install components properly, check whether the firmware is loose, ensure sufficient power, and take appropriate protection for riding. Step 1：Adjust the seat Please adjust the seat to the appropriate riding height according to your height. （the recommended height is when the saddle is level with the user’s pelvis when standing naturally.）... - Page 15 Step 3：Adjust the power assisted gear Adjust the power gear according to the cycling road conditions. （Equipped with 3 power assisted gears, the 1st gear is suitable for relatively flat road conditions, the more/higher the road slope, the larger gear can be adjusted accordingly.） Step 4：Start riding Please take corresponding protection before starting riding.
-
Page 16: Coded Lock Instructions
2.3 Coded lock instructions The original password is “012345”. After receiving the bike, the password can be customized. Please follow the following steps: Password modification 1. Start the power: Input the original password “012345”+” ”, to start the bike power. 2. - Page 17 The coded password can be operated to turn on/off the bike power, and remove the seatpost battery. Please follow the following steps: Turn on power 1. Click the ON/OFF button, to turn 2. Input six-digit password, then on the battery power. The green click the power button to start the light is on means it succeed.
-
Page 18: Charging Instructions
2.4 Charging instructions The seatpost battery comes with a small amount of electricity, before the first time use, please make sure to charge it to full power before riding. Charging 1. Charging connection: Connect the charging interface of the charger to the charging port, then connect the power plug of the charger to the power socket. -
Page 19: Folding Instructions
2.5 Folding instructions Lower the seatpost Lift the seat clamp upward, to keep it in open status. Gently press down the seatpost battery to the bottom. Press down the seat clamp to keep it in closed status. Fold the stem Open the stem safety hook, turn the stem clamp downward to keep it in open status. - Page 20 Fold the bodywork ① Open the safety hook, open the frame clamp outward and keep it in open status. ② Fold the front part of the bike backward, to finish the bike folding.
-
Page 21: Maintenance Precautions
3. Maintenance precautions 3.1 Using precautions 3.2 Bike maintenance & repair 3.3 Motor maintenance & repair 3.4 Battery maintenance & repair 3.5 Reflex reflector cautions... -
Page 22: Using Precautions
3.1 Using precautions （Ⅰ）Users should pay attention to the safety of bicycle use 1. No parking in building foyers, evacuation stairs, walkways and safety exits. 2. No charging in residential buildings. Charging should be far away from combustible, and no longer than 9 hours. 3. - Page 23 （Ⅲ）Examination before riding: please repair in time or go to the local maintenance point for repair, if there’s any abnormality. 1. Please confirm the normal power use when using the kickstand and the rear wheel is off the ground. 2. Turn on the power, check whether the indicator light is normal, and the power supply is sufficient. 3.
-
Page 24: Bike Maintenance & Repair
3.2 Bike maintenance & repair 1. The bicycle has been adjusted well before leaving the factory. please contact after-sales team if there’s any problems. 2. Normally the spokes of the wheel should be adjusted once after half a month of riding to ensure the best use. 3. -
Page 25: Reflex Reflector Cautions
2. Fiido reflex reflector has been fixed on the vehicle, please do not change the position, modify, disassemble, etc. 3. Make sure to check the normal function of reflex reflector before each use, and keep the surface clean. -
Page 26: Service Directory
4. Service directory 4.1Troubleshooting methods 4.2 Specifications 4.3 Warranty coverage 4.4 Repair record... -
Page 27: Troubleshooting Methods
4.1 Troubleshooting methods Fault code description Fault code Fault phenomenon Communication issues Brake lever issues Motor hall issues Motor issues Controller issues General fault Fault phenomenon Fault cause Rule out way Poor contact of regulating handlebar Change regularing handlebar Poor contact of brake cut-off switch Change brake cut-off... -
Page 28: Specifications
4.2 Specifications Property index Item X Standard X US Before folding: Length*Width*Height (mm) 1490*580*1020 After folding: Length*Width*Height (mm) 794*350*803 Product size Tires （Inch） 20*1.95 Product weight Net weight (kg) 19.8kg Maximum load (kg) 120kg Riding requirement Applicable age Applicable height 155cm(5.0') - 200cm(6.5') -
Page 29: Warranty Coverage
Rated power (W) Rated speed（r/min） Moter type Brushless geared motor Motor Undervoltage protection (V) 31±0.5 Overcurrent protection (A) 13±1 Input voltage (V) 100-240 Output voltage (V) Charger Output current (A) Charging hours (h) Front light Others Tail light Riding mode Power assisted mode+Pedal mode Caution：... - Page 30 (Ⅱ）Warranty scope and period Item Parts Guarantee time Service Natural deformation, open welding, desoldering fracture Frame 36 months phenomenon, quality problems caused by poor manufacturing can be replaced. Self-modification, collision Fork, Handlebar, Stem, Seatpost 12 months damage, etc. are not warranted. Kickstand, Tires, Saddles, Fenders, Basic Safety hook, Seat clamp,...
-
Page 31: Repair Record
Warranty notification 1. Accessories will be guaranteed in strict accordance with the warranty period. 2. The warranty period shall be calculated from the date of delivery. 3. No warranty will be provided if the charger, battery and motor are disassembled without permission. 4. - Page 32 Shenzhen Fiido Technology Ltd Address：Shenzhen, Guangdong, China. Website：www.fiido.com If you have any questions or suggestions about this user manual, please contact us via following mailaddress Contact us：support@fiido.com Scan for video instruction...
