- Page 1 Fiido L3 Errands Electric Bike D ear u ser s ！Be su re t o read th is m anu al c aref u lly bef or e r i di ng , do un de r s ta n d t he o pe rat ions an d ke e p thi s man ual an d o ther m ate ri a l f or f u r th e r us i ng .
- Page 2 Fiido L3. Please ensure that you have a thorough understanding of everything outlined in this manual regarding the bike. If you have any questions, please do not hesitate to contact the Fiido After-sales Team or our Local Service Center. We will provide a prompt reply and a feasible solution to your inquiry.
- Page 3 9. Do not attempt to charge while the charger or power supply is wet, please follow the local safety regulations if you need to charge the bike in public area. 10. For effective protection and as convenient as possible for yourself, please be sure to use Fiido specific parts.
-
Page 4: Table Of Contents
CONTENTS 1.Product introduction 2. Using guide 3. Maintenance precautions 4. Service directory 1.1 Bike overview 2.1 Installation guide 3.1 Using precautions 4.1 Troubleshooting methods 1.2 Packing list 2.2 First time using 3.2 Bike maintenance & repair 4.2 Specifications 1.3 Bike diagrams 2.3 Charging instructions 3.3 Motor maintenance &... -
Page 5: Product Introduction
1.Product introduction 1.1 Bike overview 1.2 Packing list 1.3 Bike diagrams 1.4 Function DESC... -
Page 6: Bike Overview
330lbs. L3 has 3 riding modes and 3 power assisted mode to provide a richer riding experience. The body can be folded in three sections and the volume after folding is only 0.17m³. It can be easily carried or transported between different... -
Page 7: Packing List
1.2 Packing list Bike parts Electric Bike*1 Seatpost*1 Bike accessories Adapter*1 Charger*1 User manual*1 (Equipped for EU and UK regions) key*2 Tools Hex wrench*5 *Please carefully check whether all items are complete and intact. If there is any problem such as missing or damaged, please contact the official after-sales team asap. -
Page 8: Bike Diagrams

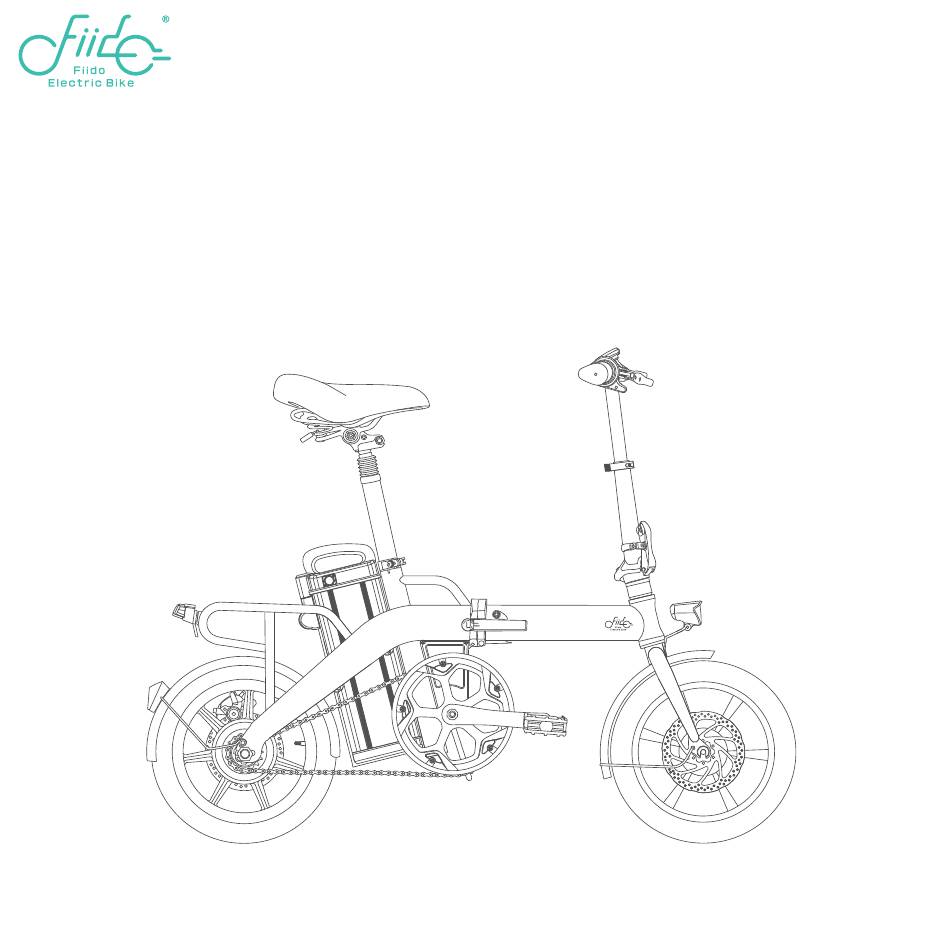

1.3 Bike Diagrams Handlebar Saddle Stem Shock-absorbent seatpost Battery Stem Clamp Charging Port Rear Light Headlight Disc Brake Fenders Front wheel Rear Light Tire Disc Brake Motor Pedal Charge Valve Crank Chainwheel Chain *Non professionals are forbidden to assemble and disassemble the battery. Please contact after-sales team for assistance. -
Page 9: Function Desc
Speed output willbe weakened. Please charge in time.) (Display the current speed.) Connect with bluetooth ( To connect the Fiido Mate cycling watch, Battery Status please simultaneously press the "M" button (Display remaining power.) and "Power-assisted Shift Up" buttons. The... -
Page 10: Using Guide
2.Using Guide 2.1 Installation guide 2.2 First time using 2.3 Charging instructions 2.4 Folding instructions... -
Page 11: Installation Guide
2.1 Installation guide The basic installation of the bike has been completed before out of the factory. When you receive the bike, you only need to unfold the bike, install the seat and pedals. Unfold the stem ① Unfolding the bike, close the frame clamp and lock it. ②... - Page 12 ⑤ Adjust the handlebar direction, to make it at an angle of 15°-20° with the horizontal line, then close the quick release, to complete the unfolding stem. Install the seatpost ① Open the seat clamp. ② insert the seatpost.
- Page 13 ③ Lock the seat clamp, and flip the saddle backwards. ④ Adjust the seatpost battery to suitable height, the recommended height is when the saddle is level with the user’s pelvis when standing naturally. ( The minimum height of the saddle cannot exceed the limit of the battery seat tube, and the maximum height cannot exceed the MIN line of the safety scale of the seatpost battery.)
- Page 14 Unfold the pedal Rotate the crank arm to a suitable position.Push the pedal downwards to unfold it.
-
Page 15: First Time Using
2.2 First time using Before riding, please follow the installation guide to install components properly, check whether the firmware is loose, ensure sufficient power, and take appropriate protection for riding. Step 1：Adjust the seat Please adjust the seat to the appropriate riding height according to your height. （the recommended height is when the saddle is level with the user’s pelvis when standing naturally. - Page 16 Step 3：Adjust the power assisted gear Switch and choose the riding mode according to the cycling road conditions and personal needs. ① Electric mode：Equipped with pure electric mode, gently press down the electric mode button to switch to the pure electric mode, the stonger the press, the faster the speed ②...
-
Page 17: Charging Instructions
2.3 Charging instructions The battery comes with a small amount of electricity, before the first time use, please make sure to charge it to full power before riding. Charging 1. Charging connection: Connect the charging interface of the charger to the charging port, then connect the power plug of the charger to the power socket. - Page 18 How to draw out the battery ① Press and switch the key to “UNLOCK”position ② Press the bar and lift the saddle ③ Grip the handle and draw out the battery...
-
Page 19: Folding Instructions
2.4 Folding instructions Lower the seatpost Open the seatpost clamp, to keep it in open status. Gently press down the seatpost to the bottom. Press down the seat clamp to keep it in closed status. Fold the stem Open the stem safety hook, turn the stem clamp downward to keep it in open status. Gently turn the stem downward to the bottom, to finish the stem folding. - Page 20 Fold the pedal Press the pedal latch and fold it upwards to complete the folding. Fold the bodywork ① Open the safety hook, open the frame clamp outward and keep it in open status. ② Fold the front part of the bike backward, to finish the bike folding.
-
Page 21: Maintenance Precautions
3.Maintenance precautions 3.1 Using precautions 3.2 Bike maintenance & repair 3.3 Motor maintenance & repair 3.4 Battery maintenance & repair 3.5 Reflex reflector cautions... -
Page 22: Using Precautions
3.1 Using precautions （Ⅰ）Users should pay attention to the safety of bicycle use 1. No parking in building foyers, evacuation stairs, walkways and safety exits. 2. No charging in residential buildings. Charging should be far away from combustible, and no longer than 9 hours. 3. - Page 23 （Ⅲ）Examination before riding: please repair in time or go to the local maintenance point for repair, if there’s any abnormality. 1. Please confirm the normal power use when using the kickstand and the rear wheel is off the ground. 2. Turn on the power, check whether the indicator light is normal, and the power supply is sufficient. 3.
-
Page 24: Bike Maintenance & Repair
3.2 Bike maintenance & repair 1. The bicycle has been checked and adjusted before out of factory, any problems please contact Fiido After Sales Team for support. 2. Normally the spokes of the wheel should be adjusted once after half a month of riding to ensure the best use. -
Page 25: Reflex Reflector Cautions
2. Fiido reflex reflector has been fixed on the vehicle, please do not change the position, modify, disassemble, etc. 3. Make sure to check the normal function of reflex reflector before each use, and keep the surface clean. -
Page 26: Service Directory
4.Service directory 4.1Troubleshooting methods 4.2 Specifications 4.3 Warranty coverage 4.4 Repair record... -
Page 27: Troubleshooting Methods
4.1 Troubleshooting methods Fault code description Fault code Fault phenomenon Communication issues Throttle issues Brake lever issues Motor hall issues Motor issues Controller issues General fault Fault phenomenon Fault cause Rule out way Poor contact of regulating handlebar Change regularing handlebar Poor contact of brake cut-off... - Page 28 (Ⅱ）Warranty scope and period 4.2 Specifications Item Parts Guarantee time Service Natural deformation, open welding, desoldering fracture 36 months Frame phenomenon, quality problems caused by poor manufacturing can be replaced. Self-modification, collision 12 months Fork, Handlebar, Stem, Seatpost Property index Item damage, etc.
-
Page 29: Warranty Coverage
Rated power (W) Rated speed（r/min） Moter type Brushless geared motor Motor Undervoltage protection (V) 39±1 Overcurrent protection (A) 14±1 Output voltage (V) 54.6 Charger Output current (A) Charging hours (h) Front light Tail light Others Riding mode Power assisted mode+Pedal mode Caution：... - Page 30 (Ⅱ）Warranty scope and period Item Parts Guarantee time Service Natural deformation, open welding, desoldering fracture 36 months Frame phenomenon, quality problems caused by poor manufacturing 12 months can be replaced. Self-modification, collision Fork, Handlebar, Stem, Seatpost damage, etc. are not warranted. Kickstand, Tires, Saddles, Fenders, Safety hook, Seat Basic parts...
-
Page 31: Repair Record
Warranty notification 1. Accessories will be guaranteed in strict accordance with the warranty period. 2. The warranty period shall be calculated from the date of delivery. 3. No warranty will be provided if the charger, battery and motor are disassembled without permission. 4. - Page 32 Website：www.fiido.com If you have any questions or suggestions about this user manual, please contact us via following mailaddress Contact us：support@fiido.com Fiido APP 6971957790211 4.003.L03004...
