- Page 1 Fiido M1 PRO Folding Electric Bike D ear u sers, please r ead this manu al car efully b efor e op erat ing the bike . W ARN IN G:D O N OT OPERAT E TH E B IKE BEF OR E UN DERSTA NDING HOW TO USE IT .
- Page 2 In this manual,we will introduce the the key features of the bike and give you some advice on how to use and maintain the Fiido M1pro. Please make sure that you understand everything carefully. If you have any questions, please contact support@fiido.com, our customer care team will get in touch with you shortly.
- Page 3 9. Do not attempt to charge while the charger or power supply is wet, please follow the local safety regulations if you need to charge the bike in public area. 10. For effective protection and as convenient as possible for yourself, please be sure to use Fiido specific parts.
-
Page 4: Table Of Contents
CONTENTS 1.Product introduction 2. Using guide 3.Maintenance precautions 4. Service directory 1.1 Bike overview 2.1 Installation guide 3.1 Using precautions 4.1 Troubleshooting methods 1.2 Packing list 2.2 First time using 3.2 Bike maintenance & repair 4.2 Specifications 1.3 Bike diagrams 2.3 Charging instructions 3.3 Motor maintenance &... -
Page 5: Product Introduction
1. Product introduction 1.1 Bike overview 1.2 Packing list 1.3 Bike diagrams 1.4 Function DESC... -
Page 6: Bike Overview

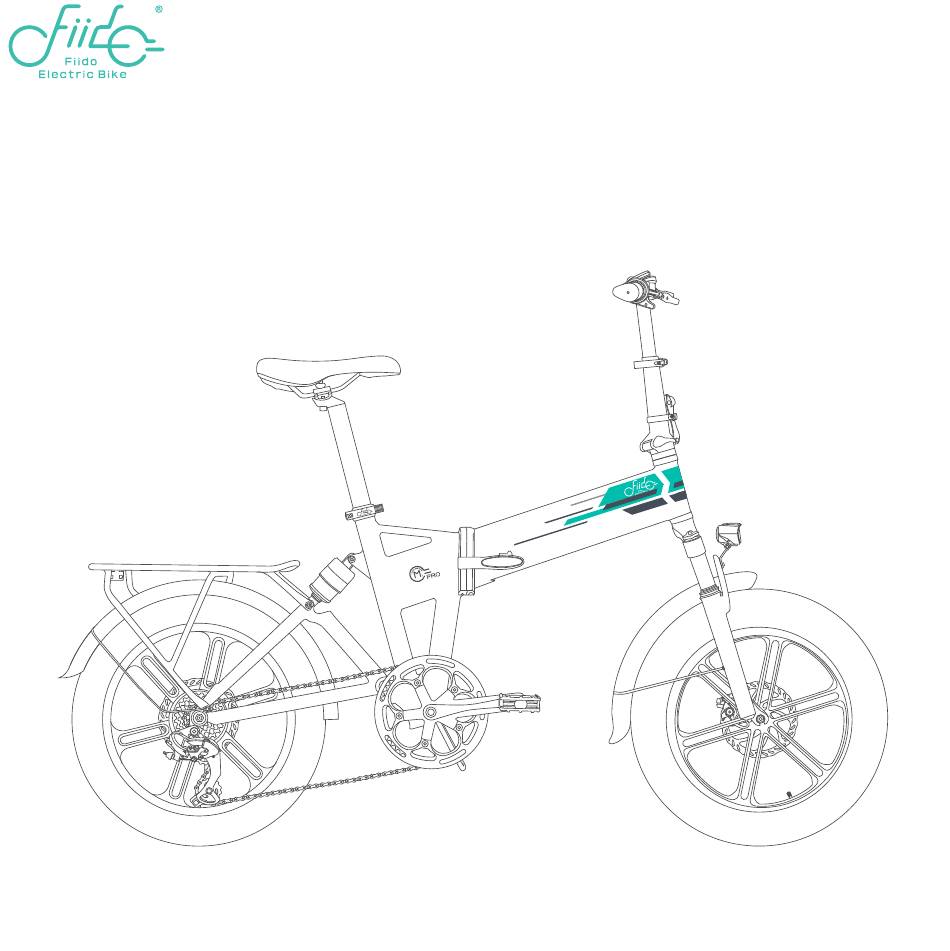

1.1 Bike overview M1 Pro is the classic off-road electric bicycle of Fiido. Aside from its simple sport design, Mq Pro equips larger capacity battery and more powerful motor, providing a faster speed and a longer range. Meanwhile, the whole bike surprisingly remain the same lightweight of only 26.8kg(59lb), With 20 inch off-road tyres and upgraded suspension system,... -
Page 7: Packing List
1.2 Packing list Bike parts Key*2 Front wheel quick release*1 Electric Bike*1 Seatpost*1 Tires*1 Bike accessories Fender*1 Charger*1 Rear reflector *1 User manual*1 Tools Hex wrench*8 Open spanner*1 *Please carefully check whether all items are complete and intact. If there is any problem such as missing or damaged, please contact the official after-sales team asap. -
Page 8: Bike Diagrams

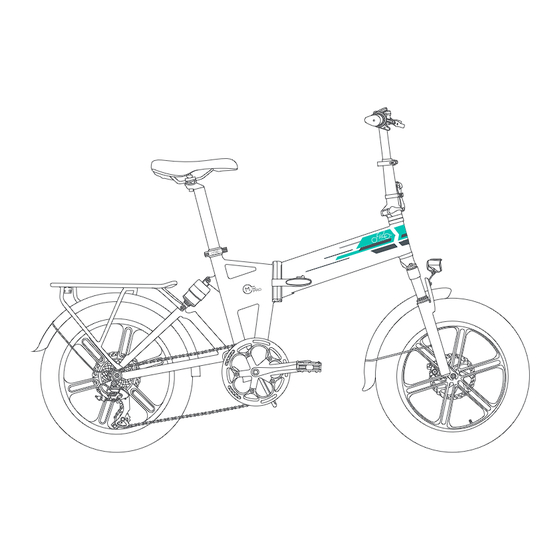

1.3 Bike Diagrams Handlebar Stem Saddle Stem Clamp Seat Clamp Headlight Shock absorber Shock absorber Rear Light Tire Disc Brake Motor Disc Brake Derailleur Pedal Charge Valve Crank Chainwheel Chain *Non professionals are forbidden to assistance and assemble the battery. Please contact after-sales team for assistance. -
Page 9: Function Desc
Fiido Watch Connection Indicator (Keep the throttle steady for around 8 seconds to turn on cruise control, ( To connect the Fiido Mate cycling watch, and the icon will light up.Brake or changethe throttle to turn off cruise please press the button "∧" and"V" at the control, and the icon will go off.) -
Page 10: Using Guide
2.Using Guide 2.1 Installation guide 2.2 First time using 2.3 Charging instructions 2.4 Folding instructions... -
Page 11: Installation Guide
2.1 Installation guide The basic installation of the bike has been completed before leaving the factory. After receiving the bike, you only need to install the handlebar, front wheel and front light for complete installation. Install the handlebar ① Lift the vertical tube upwards, as shown in the ②... - Page 12 ⑤ Adjust the handlebar direction, Open the handlebar quick release to make it at an angle of 15°-20° with the horizontal line, then close the quick release,to complete the unfolding stem. Install the front wheel ① Unscrew the nut and spring of the front wheel ②...
- Page 13 ③ Put the front axle through the front wheel, and load the spring, screw the nut, lock the front wheel quick disassembly. Installing Mudguards and Front Light ① Put the front fender through the gap of the tire and fork, ②...
- Page 14 ③ Align the front light screw holes with the front basket screw holes, insert screws and nuts and tighten them. 安装座管 安装座管 Install the seatpost ① Open the seat clamp, insert the seatpost. ② Adjust the seatpost to suitable height, the recommended height is when the saddle is level with the user’s pelvis when standing naturally.The height of the adjustment can NOT exceed the safety line.
-
Page 15: First Time Using
2.2 First time using Before riding, please follow the installation guide to install components properly, check whether the firmware is loose, ensure sufficient power, and take appropriate protection for riding. Step 1：Adjust the seat Please adjust the seat to the appropriate riding height according to your height. (the recommended height is when the saddle is level with the user’s pelvis when standing naturally. - Page 16 Step 3：Mode switching Switch and choose the riding mode according to the cycling road conditions and personal needs. ① Electric mode：Equipped with pure electric mode, gently press down the electric mode button to switch to the pure electric mode, the stonger the press, the faster the speed ②...
-
Page 17: Charging Instructions
2.3 Charging instructions The battery comes with a small amount of electricity, before the first time use, please make sure to charge it to full power before riding. Charging mode: The bike supports two charging modes: vehicle charging and disassembly battery charging. E-bike Charging connection: Connect the charging interface of the charger to the charging port, then connect the power plug of the charger to the power socket. - Page 18 Step 2：Fold the E-bike Open the frame clamp and fold the bike in half. Step 3： Take out the battery to charge Hold the handle of the battery cover and pull out the battery to charge. Fully charged：When the indicator light of the charger is red, means it’s normal charging. When the light is green, means it’s fully charged.
-
Page 19: Folding Instructions
2.4 Folding instructions Lower the seatpost Lift the seat clamp upward, to keep it in open status. Gently press down the seatpost to the bottom. Press down the seat clamp to keep it in closed status. Fold the head tube Open the stem safety hook, turn the stem clamp downward to keep it in open status. - Page 20 Press the pendal in the direction of the arrow to fold for easier storage. Fold the bodywork ① Open the safety hook, open the frame clamp outward and keep it in open status. ② Fold the front part of the bike backward, until the front and rear wheel is matched, to finish the bike folding. (Little difference of the parts is allowed in mass production , products you received is the final answer.)
-
Page 21: Maintenance Precautions
3.Maintenance precautions 3.1 Using precautions 3.2 Bike maintenance & repair 3.3 Motor maintenance & repair 3.4 Battery maintenance & repair 3.5 Reflex reflector cautions... -
Page 22: Using Precautions
3.1 Using precautions （Ⅰ）Users should pay attention to the safety of bicycle use 1. No parking in building foyers, evacuation stairs, walkways and safety exits. 2. No charging in residential buildings. Charging should be far away from combustible, and no longer than 9 hours. 3. - Page 23 （Ⅲ）Examination before riding: please repair in time or go to the local maintenance point for repair, if there’s any abnormality. 1. Please confirm the normal power use when using the kickstand and the rear wheel is off the ground. 2. Turn on the power, check whether the indicator light is normal, and the power supply is sufficient. 3.
-
Page 24: Bike Maintenance & Repair
3.2 Bike maintenance & repair 1. The bicycle has been checked and adjusted before out of factory, any problems please contact Fiido After Sales Team for support. 2. Normally the spokes of the wheel should be adjusted once after half a month of riding to ensure the best use. -
Page 25: Battery Maintenance & Repair
2. Fiido reflex reflector has been fixed on the vehicle, please do not change the position, modify, disassemble, etc. 3. Make sure to check the normal function of reflex reflector before each use, and keep the surface clean. -
Page 26: Service Directory
4.Service directory 4.1 Troubleshooting methods 4.2 Specifications 4.3 Warranty coverage 4.4 Repair record... -
Page 27: Troubleshooting Methods
4.1 Troubleshooting methods Fault code description Fault phenomenon Fault code Communication issues Throttle issues Brake lever issues Motor hall issues Motor issues Controller issues Overheating protection General fault Fault phenomenon Fault cause Rule out way Poor contact of regulating handlebar Change regularing handlebar Poor contact of brake cut-off... -
Page 28: Specifications
4.2 Specifications Property index Item Fiido M1Pro Before folding: Length*Width*Height (mm) 1750*580*1060 After folding: Length*Width*Height (mm) 1010*510*770 Product size Tires 20'x4 inch Net weight Product weight 26.8kg(59lb) Maximum load 120kg(265lb) Riding requirement Applicable age Applicable height 155cm(5'1") - 200cm(6'7") Serial numbe Location... -
Page 29: Warranty Coverage
Torque（N·m） Motor Rated speed（r/min） Brushless toothed motor Moter type 39±1 Undervoltage protection (V) Controller 18±1 Overcurrent protection (A) 100-240 Input voltage (V) 54.6 Output voltage (V) Charger Output current (A) Charging hours (h) Front light Tail light Others Electric mode+Power assisted mode+Pedal mode Riding mode Caution：... - Page 30 (Ⅱ）Warranty scope and period Item Parts Guarantee time Service Natural deformation, open welding, desoldering fracture 36 months Frame phenomenon, quality problems caused by poor manufacturing 12 months can be replaced. Self-modification, collision Fork, Handlebar, Stem, Seatpost damage, etc. are not warranted. Kickstand, Tires, Saddles, Fenders, Safety hook, Seat Basic parts...
-
Page 31: Repair Record
Warranty notification 1. Accessories will be guaranteed in strict accordance with the warranty period. 2. The warranty period shall be calculated from the date of delivery. 3. No warranty will be provided if the charger, battery and motor are disassembled without permission. 4. - Page 32 If you have any questions or suggestions about this user manual, please contact us via following mailaddress Contact us：support@fiido.com 6971957790143 Fiido APP EPAC according to EN 15194 4.003.M1P007...
