Logosol EASY SET User Manual page 24

16
4 x
4 x
1 x
17

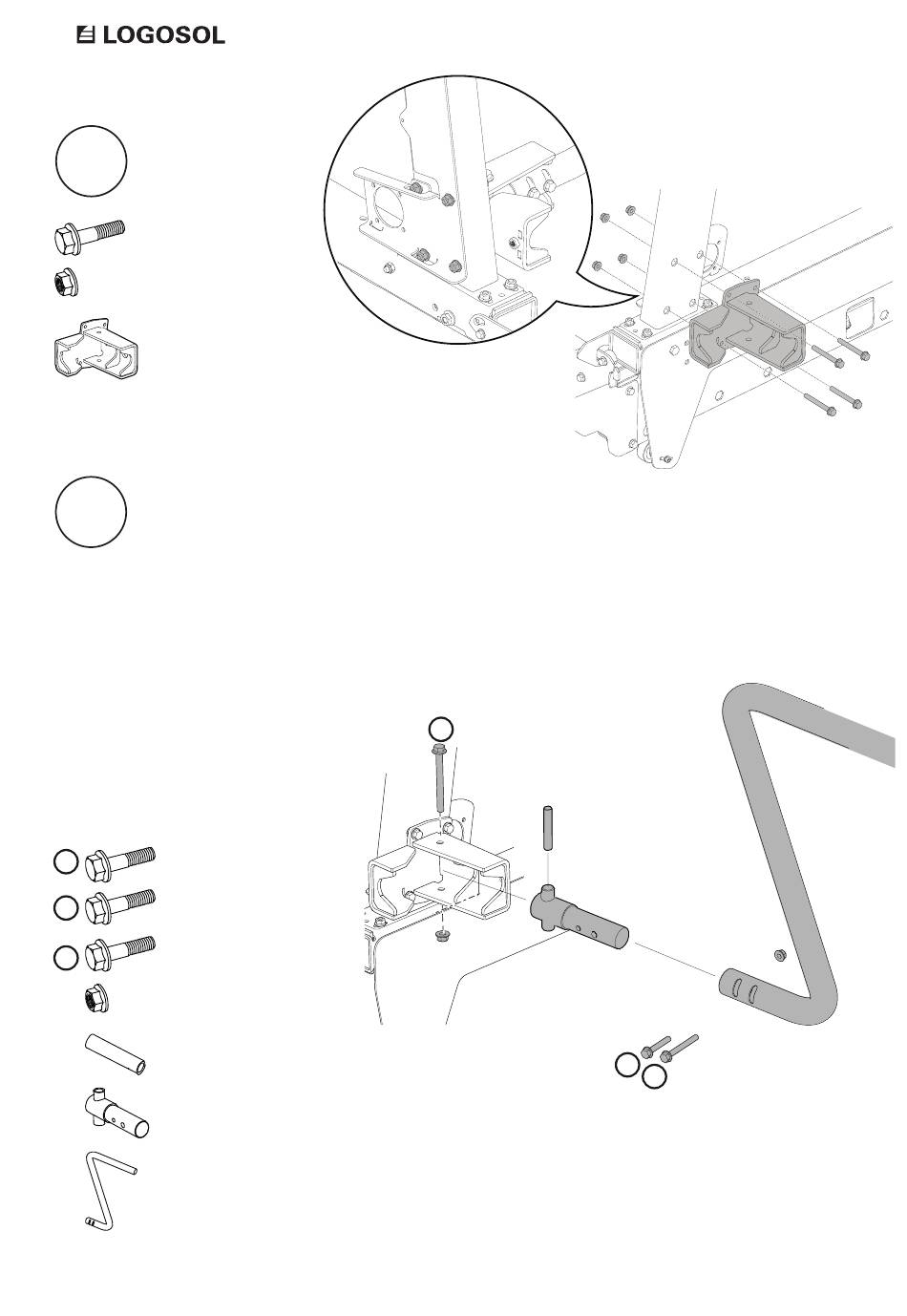

Place the arm in the bracket and lock it using a nut and bolt.
A lock bolt (B) is included for securing the arm in the bracket.
The arm can be locked in a position 90° from the machine,
bolt (B). Another option is to turn the arm alongside the
machine
and lock it in the designated hole.
Arm height is steplessly adjustable. Refer
to the Arm Height Adjustment chapter.
A
B
C
24
– M8x70
– M8
1 x
– M8x50
1 x
– M8x70
1 x
– M10x100
1 x
– M10
1 x
1 x
1 x
C
A
B
