USER MANUAL

ORIGINAL USER MANUAL

SKU 0458-395-5631

REV: 1

EASY SET / PRO SET

FOR GASOLINE ENGINE

Need help?

Do you have a question about the EASY SET and is the answer not in the manual?

Questions and answers

Summary of Contents for Logosol EASY SET

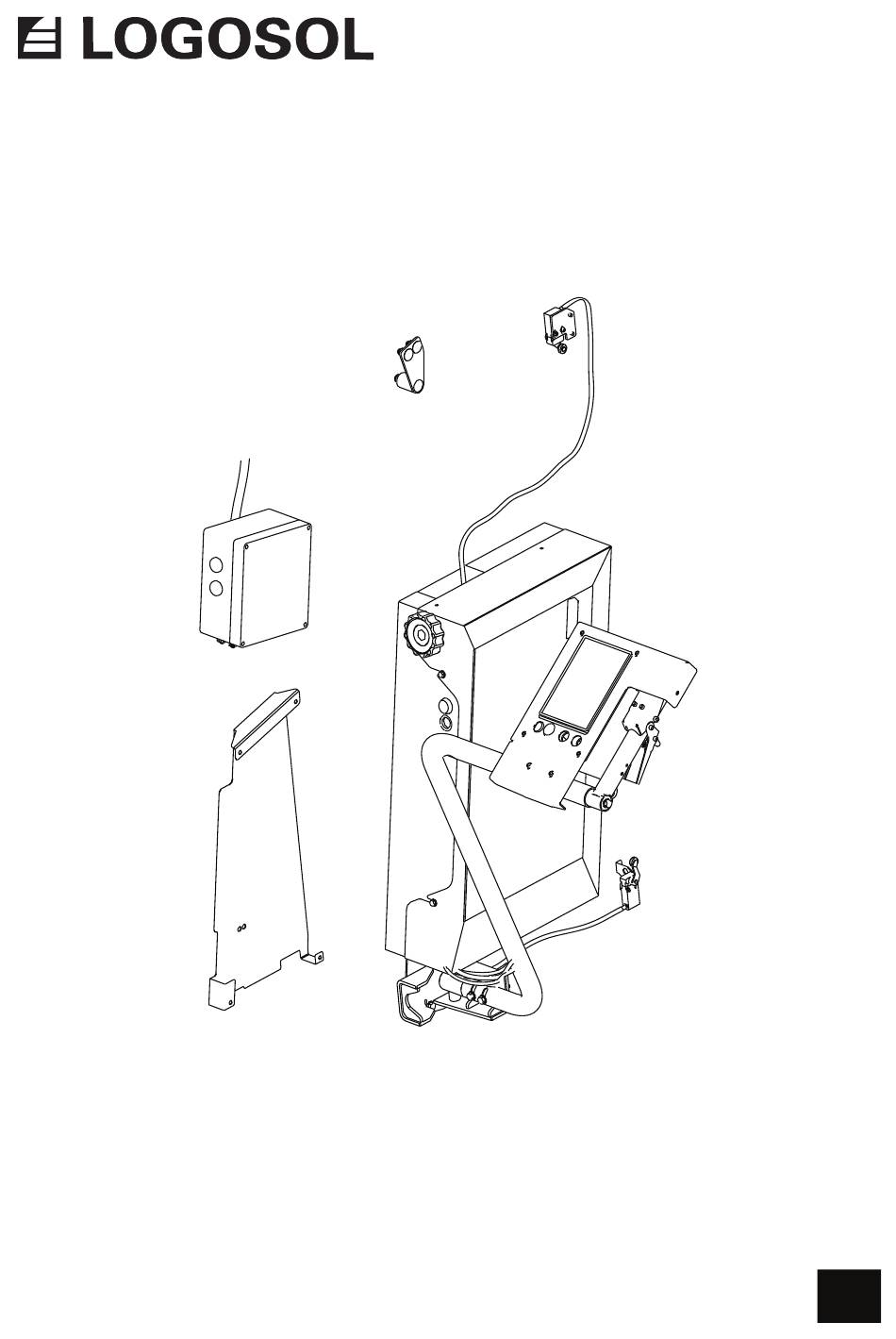

Page 1 USER MANUAL ORIGINAL USER MANUAL SKU 0458-395-5631 REV: 1 EASY SET / PRO SET FOR GASOLINE ENGINE...
Page 2 We are grateful for the confidence you have shown in us by purchasing this product, and we will do our utmost to live up to your expectations. LOGOSOL has been manufacturing sawmills since 1989, and since then we have supplied around 50,000 machines to satisfied customers the world over.
Page 3 TABLE OF CONTENTS Safety instructions Maintenance Technical specification Component parts: on delivery Preparatory work for a retrofit Easy Set installation Pro Set installation Arm height adjustment First start-up Drilling template for limit switch Troubleshooting Schedule Machine declaration...
Page 4 SAFETY INSTRUCTIONS KEY TO SYMBOLS WARNING! This symbol means that you have to Always wear approved hearing protection when take particular care. It is always using the machine. Even brief exposure to high accompanied by information on the frequency noise can damage your hearing. Always specific risk.
Page 5 Persons under the age of 18 are not allowed to use When adding extra equipment, use only LOGOSOL the machine. manufactured products or those expressly approved by LOGOSOL for the purpose.
Page 6 MAINTENANCE Scheduled machine maintenance intended for performance by the operator is described in this section. Adhere strictly to the specified maintenance intervals, as these form the basis for good function of the sawmill. LUBRICATION POINTS Make sure the machine lift and feed chains, where fitted, are lubricated at regular intervals. Also check and lubricate the machine’s other mechanical parts.
Page 7 TECHNICAL SPECIFICATION Weight: 100 kg Electrical system: 12 V INFORMATION ON THE COMPUTER SETWORKS This manual includes a general description of the computer setworks in the First start-up section. Refer to separate documentation for more detailed information about the computer setworks: ”Pro Set –...
Page 8 NUTS AND BOLTS Definition of the fasteners on following pages. Shoulder bolt Allen screw Allen screw Cross screw (partially threaded) Hex bolt Slotted screw Locking screw Hex bolt (partially threaded) Hex nut Flange screw Flange nut Flange screw (partially threaded) Carriage bolt Flat washer ADDITIONAL SYMBOLS...
Page 9 8250-000-0092 B751 PRO – EASY SET RETROFIT PETROL 1 x – 01-00832 B751 PRO 1 x – 01-01025 01-00923 Drill kit – 01-00690 1 x – 0 5,5 mm – M5x16 – 01-01004 B751 PRO – M5 01-00999-DIV – 01-00894 –...
Page 10 01-01082 – 01-00902 – BAG-0101082-DIV 01-00865 – M6x12 – M6x10 – 03-03538 – M6x12 01-00865-SKP – M6 – 03-03539 – 03-03468 – 03-03572 – 04-00708 01-01112 – 01-01112 6 x – M8x25 2 x – M8x14 B751 PRO – 01-01112-B751 –03-03889 4 x –...
Page 11 01-01082-DIV – M4x20 – M6x12 – 03-03423 – M6x8 – 03-22282 – M6x20 – M8x12 – 04-00702 – M4 – 04-00714 – M6 – 6605-001-0320 – M6 – M8 – 6605-001-0090 1 x – 03-03774 – 4.3x12x1.6 – 8.2x18x10 – 03-03788 –...
Page 12 01-00832 – 02-00541 – M10x100 – 03-03505 – M10 – 9037-012-0005 – M8 – M8x70 – 02-00542 01-00832-SKP – M8x50 – M8x65 – 02-00543 – 03-03566 – 03-03567 01-00904 - PRO SET MM – M4x16 – 03-03507 – M4x35 – M5x45 –...
Page 13 Let’s get started! We recommend laying out all fasteners on a tray or similar to make the task easier.
Page 14 PREPARATORY WORK FOR A RETROFIT Some disassembly may be necessary before Easy Set / Pro Set installation can begin. Lower the saw head to its bottom position. Undo the chain tensioner screw and move the tensioner away from the chain to reduce chain tension.
Page 16 EASY SET INSTALLATION The following steps concern Easy Set installations. Installation involves heavy lifting that may require two people. WARNING! Heavy! Risk of injury. WARNING! Risk of crush injuries. Wear safety gloves and take care when Always be two people when lifting setting the components down.
Page 17 – M8 – M8x12 – M8...
Page 18 Fit the key on the gearbox shaft, then slide the sprocket onto the shaft. Adjust sprocket position to align with the drivetrain’s top sprocket. WARNING! If the chain is not properly aligned, it may jump off the sprockets. The saw head will then fall with full force and may cause injury or material damage.
Page 19 There is a chamfer on the position sensor shaft for the setscrew to lock against when it is fitted to the gearbox. Turn the gearbox knob to align the shaft hole with the position sensor hole. – M6x8 – M6x30 –...
Page 20 M4x20 WARNING! High-voltage electrical equipment may only be installed and connected by a qualified electrician! Otherwise there is a risk of fire or electric shock! M6x12 – M4x20 – M6x12 – M4 – M6 – M4...
Page 21 Fit the cable holder. The mounting differs depending on the sawmill model. Look at the top of the saw head to see if it has lifting eyes or not. If there are lifting eyes, spacer plates need to be used. Use the plates and screw holes that fit your model.
Page 22 Note the specified length of the hose between the cable ties and the upper mounting point. The length of the hose is important to ensure that is does not get cumpled or become too long at it end positions. B751 PRO, 65 cm B1001, 75 cm Position the battery and route the cable as illustrated.
Page 23 4 x – M8x12 4 x – M8 B751 PRO B1001 Note the cable exit from the side of the plate.
Page 24 – M8x70 – M8 Place the arm in the bracket and lock it using a nut and bolt. A lock bolt (B) is included for securing the arm in the bracket. The arm can be locked in a position 90° from the machine, bolt (B).
Page 25 – M8x65 The instructions on how to assemble and mount the throttle handle can be found in your motor manual. Pull the wire and wire housing into the handle as illustrated.
Page 26 2 x – M4x20 2 x – M4 2 x – M6x12 If there are no pre-drilled holes in the frame, a template for this step is available on at the end of this manual. 2 x – M5x16 2 x – M5...
Page 27 1 x – M6x20 1 x – 03-03774 – 8.2x18x10 2 x – M4x20 2 x – M4...
Page 28 Raise the saw head a little to facilitate installation of the lower limit switch. This step only needs to be performed if you have a retrofit. If the machine you are installing this on has a chain tensioner, ignore this assembly step. 2 x –...
Page 29 Slide the chain tensioner into the upper frame of the sawmill. Do not fully tighten the nuts until the chain is installed. If you are only going to install the Easy Set and not the Pro Set, go to page 32, step 35 and continue there.
Page 30 PRO SET INSTALLATION The following steps concern the Pro Set computer setworks. Installation involves heavy lifting that may require two people. WARNING! Heavy! Risk of injury. WARNING! Risk of crush injuries. Wear safety gloves and take care when Always be two people when lifting setting the components down.
Page 31 Plug the cable into the Pro Set unit’s connector. Route the cable in the tubular arm. Plug the Pro Set cable into the electronics box.
Page 32 Mount the electronics cabinet rear cover onto the mounting plate. Secure using two bolts. – M6x12 Thread the four bolts a few turns into the rear cover of the electronics cabinet and into the electronics box and cable holders. – M6x12...
Page 33 2 x – M6x12 2 x – M6 Slide the electronics cabinet’s front cover under the four bolts installed in the step before. Tighten the four bolts. Press in the four quarter-turn fasteners and tighten the bolts.
Page 34 Motormodel might vary, see your motor manual on how to connect it correctly. Main fuse Accessories...
Page 35 ARM HEIGHT ADJUSTMENT Loosen the lower tubular arm bolts. Adjust the Loosen the upper tubular arm bolts. Adjust the arm to the desired height. Then tighten the bolts. arm to the desired height. Then tighten the bolts.
Page 36 FIRST START-UP Calibration The saw blade height position value must be calibrated at the first start-up. The computer setworks will show a value in the display at start-up. Measure the distance between the saw blade on a downward-set tooth and a log bed.
Page 37 DRILLING TEMPLATE FOR LIMIT SWITCH - RETROFIT 5,5mm 40 mm 17,5 mm 14 mm...
Page 38 TROUBLESHOOTING SCHEDULE PROBLEM/SYMPTOM CONTROL/SOLUTION Nothing happens when you press any Open the box and check the cable that connects to of the keys on the control panel. the keypad, unplug and replace the cable. If it still doesn't work, then it is likely that the keypad is faulty. The UP/DOWN motor is not working.
Page 40 In accordance with Directive 2006/42/EC, Annex 2A Logosol AB Arkivvägen 6 SE 871 53 Härnösand hereby declares that the add on Easy Set / Pro Set for gasoline engine to Logosol B751 PRO/B1001 has been manufactured in conformity with: Machinery Directive 2006/42/EC, EMC Directive 2014/30/EU...
