Logosol EASY SET User Manual page 19

7

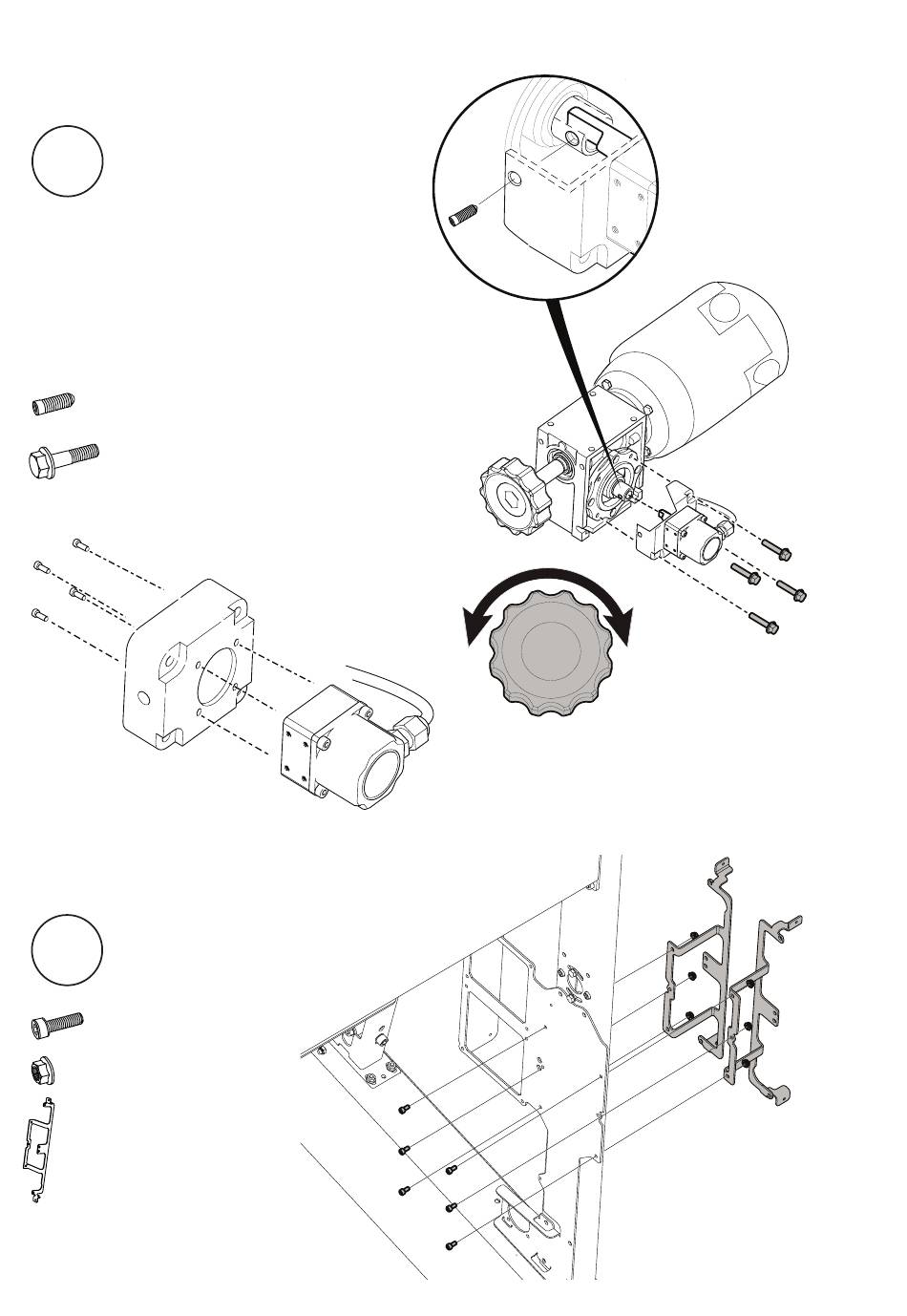

There is a chamfer on the position
sensor shaft for the setscrew to lock against
when it is fitted to the gearbox.
Turn the gearbox knob to align the shaft hole
with the position sensor hole.
1 x
– M6x8
4 x
– M6x30
8
6 x
– M6x10
6 x
– M6
2 x
