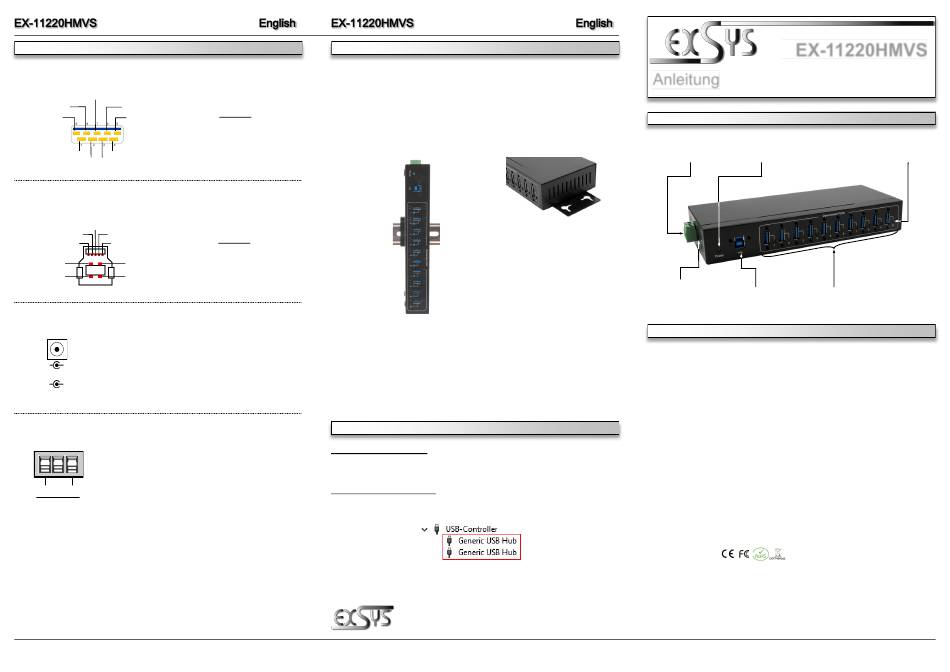

CONNECTORS
USB 3.2 Gen 1 A-Port:
GND_DRAIN
StdB_SSTX+
StdB_SSTX+
StdB_SSTX -
StdB_SSTX -
VCC
GND
D-
D+
USB 3.2 Gen 1 B-Port:
GND_DRAI
StdB_SST
StdB_SSTX
StdB_SST
StdB_SST
D-
VBus
D+
GN
9V to 40V DC-Connector:
It is not necessary to pay attention to the polarity.
ATTENTION!
-
+
Only for use with optionally available power supply or
or
other compliant power supply!
+
-
9V to 40V T-Block:
It is not necessary to pay attention to the polarity.
ATTENTION!
+V
-V
Never connect the power supply to the terminal block
or
while it is switched on!
-V
+V
5
HARDWARE INSTALLATION
Because there are large differences between PC's, we can give you only a general installation
guide for the EX-11220HMVS. Please refer your computer's reference manual whenever in
doubt.
1.
Install the EX-11220HMVS on a mounting rail by using the DIN-Rail Kit or on the wall using
Attention!
the Wall Mounting Brackets.
Never plug in with
force or in wrong
Mounting of the DIN-Rail Kit with
direction.
two screws on the rear side
Attention!
Never plug in with
force or in wrong
direction.
2.
Connect the USB 3.2 Gen 1 cable with the USB 3.2 Gen 1 Upstream B-Port at the EX-
11220HMVS.
3.
Now connect the power connector of the optionally available power supply to the DC-
Connector or to the Terminal Block of the hub and insert the power plug of the power
supply into an electrical outlet.
4.
Now connect the other end from the USB 3.2 Gen 1 cable (A-Plug) to the USB A-Port at
your PC.
DRIVER INSTALLATION
All Operating Systems
After the hardware installation the Operating System will recognize the EX-11220HMVS auto-
matically and install the drivers.
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „USB-Controller" the following new
entry:
If you see this or a similar information the hub is installed correctly.
Mounting the Wall Mounting Bracket
on the sides
Germany:
Switzerland:
EXSYS Vertriebs GmbH
EXSYS Vertriebs GmbH
Industriestrasse 8
Dübendorfstrasse 17
61449 Steinbach
8602 Wangen
www.exsys.ch
www.exsys.de
6
EX-11220HMVS
Anleitung
Vers. 1.0 / 20.09.22
AUFBAU
9-40V T-Block für optional
erhältliches Netzteil
Betriebs LED
9-40V DC-Buchse für
optional erhältliches
1x USB 3.2 Gen 1
10x USB 3.2 Gen 1
Netzteil
Upstream B-Buchse
Downstream A-Buchse
BESCHREIBUNG & TECHNISCHE DATEN
Der robuste und industrietaugliche EX-11220HMVS USB-Hub im Metallgehäuse ist mit zehn
USB-A 3.2 Gen 1 Buchsen ausgestattet. Er unterstützt alle USB-Anschlüsse von 1.1 bis 3.2.
Jede USB-Buchse an der EX-11220HMVS ist zusätzlich verschraubbar. Durch die Stromversor-
gung über die DC-Buchse oder den Terminal Block können an jedem USB-Port 1,1A zur Verfü-
gung gestellt werden. Dies ermöglicht Ihnen ein problemloses aufladen von iPhone, iPad,
Smartphone und Tablet. Der USB 3.2 Bus unterstützt optimal die Leistung des schnellen VIA
Chipsatz. Der EX-11220HMVS gewährleistet so eine sichere Datenübertragung und exzellente
Performance von bis zu 5Gbit/s. Er unterstützt den Self-Powered und USB-Bus-Powered
Modus. Zusätzlich ist der EX-11220HMVS mit einem 15KV ESD Überspannungsschutz ausge-
stattet. Der EX-11220HMVS unterstützt die Norm IP30. Im Lieferumfang ist ein DIN-Rail Kit für
die Installation auf einer Tragschiene und Wandmontagehalterungen für eine Montage an eine
Wand enthalten. Das DIN-Rail Kit wird mit zwei Schrauben auf der Rückseite festgeschraubt.
Die Wandmontagehalterungen können ohne Schrauben an den Seiten des EX-11220HMVS
befestigt werden.
Kompatibilität:
USB 1.1, 2.0 & 3.2
Betriebssysteme:
Alle Betriebssysteme
Anschlüsse:
10x USB 3.2 Gen 1 A-Buchse, 1x USB 3.2 Gen 1 B-Buchse,
1x DC-Buchse 9-40V, 1x Terminal Block 9-40V
Lieferumfang:
EX-11220HMVS, USB 3.2 Gen 1 Kabel, DIN-Rail Kit,
Wandmontagehalterung, Anleitung
Zertifikate:
1
Status LED für
jeden Port
