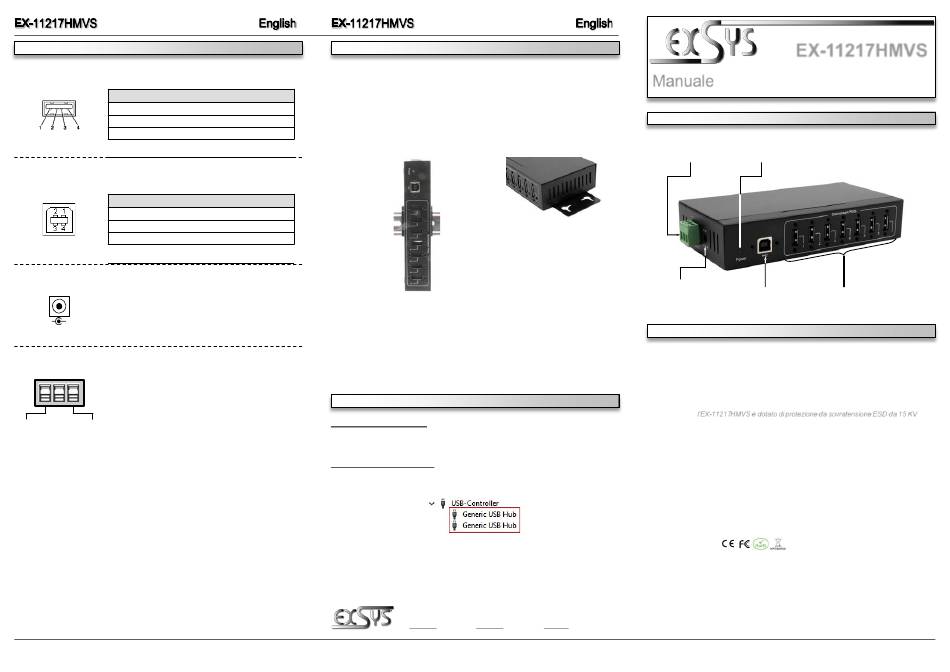

CONNECTORS
USB 2.0 A-Port:
USB 2.0 A-Port
Pin
Signal
1
VCC
2
DATA-
USB 2.0 B-Port:
USB 2.0 B-Port
Pin
Signal
1
VCC
2
DATA-
5V DC-Connector:
ATTENTION!
Only for use with included power supply or another
compliant power supply!
-
+
9V to 36V T-Block:
ATTENTION!
Please pay attention to the correct polarity!
Never connect the power supply to the terminal block
while it is switched on!
+V
-V
5
HARDWARE INSTALLATION
Because there are large differences between PC's, we can give you only a general installation
guide for the EX-11217HMVS. Please refer your computer's reference manual whenever in
doubt.
Pin
Signal
1.
Install the EX-11217HMVS on a mounting rail by using the DIN-Rail Kit or on the wall using
the Wall Mounting Brackets.
3
DATA+
4
GND
Mounting of the DIN-Rail Kit with
two screws on the rear side
Pin
Signal
3
DATA+
4
GND
2.
Connect the USB 2.0 cable with the USB 2.0 Upstream B-Port at the EX-11217HMVS.
3.
Now connect the power connector of the included power supply to the DC-Connector or the
optionally available power supply to the Terminal Block of the hub and insert the power plug of
the power supply into a power outlet.
4.
Now connect the other end from the USB 2.0 cable (A-Plug) to the USB A-Port at your PC.
DRIVER INSTALLATION
All Operating Systems
After the hardware installation the Operating System will recognize the EX-11217HMVS auto-
matically and install the drivers.
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „USB-Controller" the following new entry:
If you see this or a similar information the hub is installed correctly.
Mounting the Wall Mounting Bracket
on the sides
Germany:
Switzerland:
Italy:
EXSYS Vertriebs GmbH
EXSYS Vertriebs GmbH
EXSYS Italia Srl
Dübendorfstrasse 17
Via Belvedere, 45/B
Industriestrasse 8
61449 Steinbach
8602 W angen
22100 Como (CO)
www.exsys.de
www.exsys.ch
www.exsys.it
6
EX-11217HMVS
Manuale
Vers. 1.0 / 15.09.22
STRUTTURA
T-Block 9-36V per
alimentazione esterna
opzionale
LED di funzionamento
Alimentazione Jack DC
5V, Alimentatore incluso
1x USB 2.0
7x USB 2.0
Upstream Type-B
Downstream Type-A
DESCRIZIONE E DATI TECNICI
L'EX-11217HMVS è un Hub USB di livello industriale in un alloggiamento robusto e in metallo,
è dotato di sette porte USB 2.0 Type-A. Supporta tutte le porte USB da 1.1 a 3.2. Ogni presa
USB dell'EX-11217HMVS può anche essere avvitata. Fornendo alimentazione tramite la presa
Jack DC o la morsettiera TB, è possibile fornire 500 mA su ciascuna porta USB. Il bus USB 2.0
supporta in modo ottimale le prestazioni del veloce chipset Genesys. L'EX-11217HMVS
garantisce una trasmissione dati sicura e prestazioni eccellenti fino a 480 Mbit/s. Supporta solo
la modalità auto alimentata e quindi è assolutamente necessario collegare un alimentatore
esterno. Inoltre, l'EX-11217HMVS è dotato di protezione da sovratensione ESD da 15 KV. L'EX-
11217HMVS supporta lo standard IP30. La fornitura comprende un kit guida DIN per
l'installazione su una guida di montaggio e staffe di montaggio a parete per il montaggio a
parete. Il kit guida DIN si avvita sul retro con due viti. Le staffe per il montaggio a parete
possono essere fissate ai lati dell'EX-11217HMVS senza viti.
USB 1.1, 2.0 & 3.2
Compatibilità:
Tutti i Sistemi Operativi
Sistema Operativo:
7x USB 2.0 Type-A, 1x USB 2.0 Type-B, 1x Jack DC 5V, 1x Terminal
Attacchi:
Block 9-36V
Contenuto:
EX-11217HMVS, Alimentatore (5 V/4 A), cavo USB 2.0, kit guida DIN,
Staffa per montaggio a parete, Manuale
Certificati:
1
