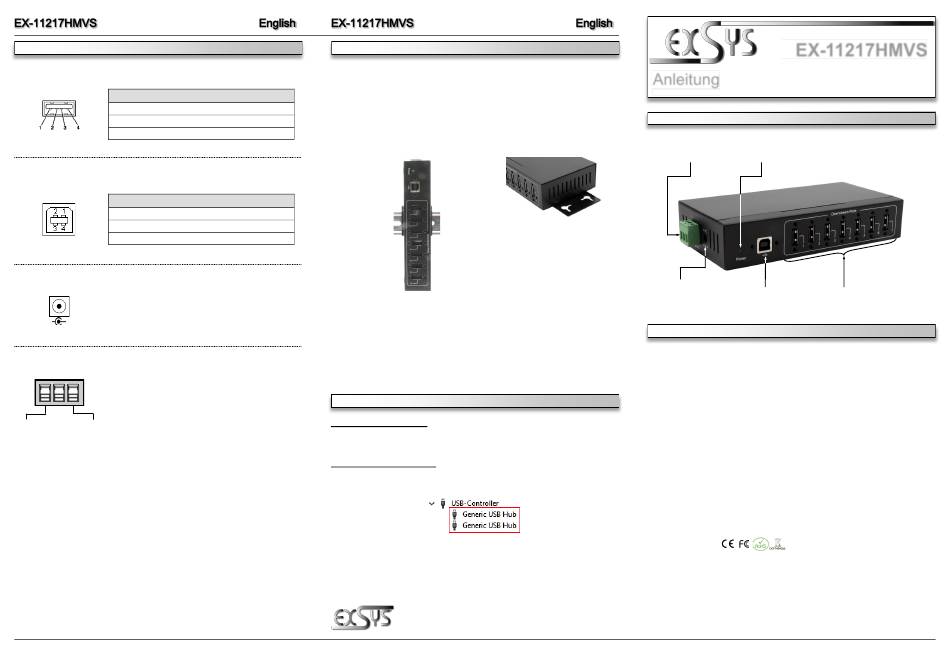

CONNECTORS

USB 2.0 A-Port:
USB 2.0 A-Port
Pin
Signal
1
VCC
2
DATA-
USB 2.0 B-Port:
USB 2.0 B-Port
Pin
Signal
1
VCC
2
DATA-
5V DC-Connector:
ATTENTION!
Only for use with included power supply or another
-
+
compliant power supply!
9V to 36V T-Block:
ATTENTION!
Please pay attention to the correct polarity!
Never connect the power supply to the terminal block
while it is switched on!
+V
-V
5

HARDWARE INSTALLATION

Because there are large differences between PC's, we can give you only a general installation
guide for the EX-11217HMVS. Please refer your computer's reference manual whenever in
doubt.
1.
Install the EX-11217HMVS on a mounting rail by using the DIN-Rail Kit or on the wall using
Pin
Signal
the Wall Mounting Brackets.
3
DATA+
4
GND
Mounting of the DIN-Rail Kit with
two screws on the rear side
Pin
Signal
3
DATA+
4
GND
2.
Connect the USB 2.0 cable with the USB 2.0 Upstream B-Port at the EX-11217HMVS.
3.
Now connect the power connector of the included power supply to the DC-Connector or the
optionally available power supply to the Terminal Block of the hub and insert the power plug of
the power supply into a power outlet.
4.
Now connect the other end from the USB 2.0 cable (A-Plug) to the USB A-Port at your PC.

DRIVER INSTALLATION

All Operating Systems
After the hardware installation the Operating System will recognize the EX-11217HMVS auto-
matically and install the drivers.

CHECK INSTALLED DRIVER

Open the >Device manager<. Now you should see at „USB-Controller" the following new entry:
If you see this or a similar information the hub is installed correctly.
Mounting the Wall Mounting Bracket
on the sides
Germany:
Switzerland:
EXSYS Vertriebs GmbH
EXSYS Vertriebs GmbH
Industriestrasse 8
Dübendorfstrasse 17
61449 Steinbach
8602 Wangen
www.exsys.ch
www.exsys.de
6
EX-11217HMVS
Anleitung
Vers. 1.0 / 15.09.22

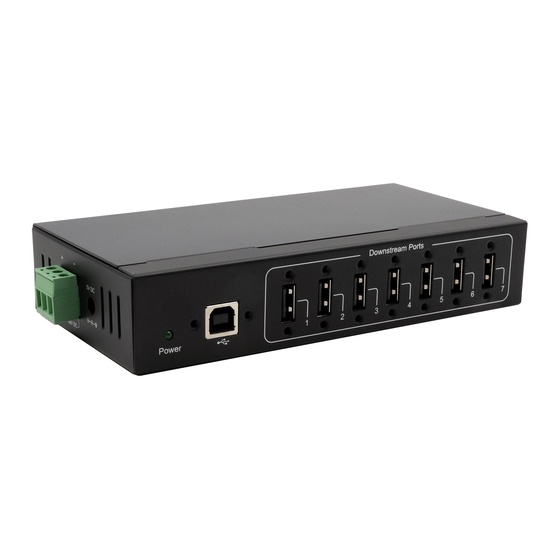

AUFBAU
9-36V T-Block für optional
erhältliches Netzteil
Betriebs LED
5V DC-Buchse für
im Lieferumfang
1x USB 2.0
7x USB 2.0
enthaltenen Netzteil
Upstream B-Buchse
Downstream A-Buchse
BESCHREIBUNG & TECHNISCHE DATEN
Der robuste und industrietaugliche EX-11217HMVS USB-Hub im Metallgehäuse ist mit sieben
USB-A 2.0 Buchsen ausgestattet. Er unterstützt alle USB-Anschlüsse von 1.1 bis 3.2. Jede USB-
Buchse an der EX-11217HMVS ist zusätzlich verschraubbar. Durch die Stromversorgung über die
DC-Buchse oder den Terminal Block können an jedem USB-Port 500mA zur Verfügung gestellt
werden. Der USB 2.0 Bus unterstützt optimal die Leistung des schnellen Genesys Chipsatz. Der
EX-11217HMVS gewährleistet so eine sichere Datenübertragung und exzellente Performance von
bis zu 480Mbit/s. Er unterstützt nur den Self-Powered Modus und somit ist es zwingend erforder-
lich ein externes Netzteil anzuschließen. Zusätzlich ist der EX-11217HMVS mit einem 15KV ESD
Überspannungsschutz ausgestattet. Der EX-11217HMVS unterstützt die Norm IP30. Im Lieferum-
fang ist ein DIN-Rail Kit für die Installation auf einer Tragschiene und Wandmontagehalterungen für
eine Montage an eine Wand enthalten. Das DIN-Rail Kit wird mit zwei Schrauben auf der Rückseite
festgeschraubt. Die Wandmontagehalterungen können ohne Schrauben an den Seiten des EX-
11217HMVS befestigt werden.
Kompatibilität:
USB 1.1, 2.0 & 3.2
Betriebssysteme:
Alle Betriebssysteme
Anschlüsse:
7x USB 2.0 A-Buchse, 1x USB 2.0 B-Buchse, 1x DC-Buchse 5V,
1x Terminal Block 9-36V
Lieferumfang:
EX-11217HMVS, Netzteil (5V/4A), USB 2.0 Kabel, DIN-Rail Kit,
Wandmontagehalterung, Anleitung
Zertifikate:
1
