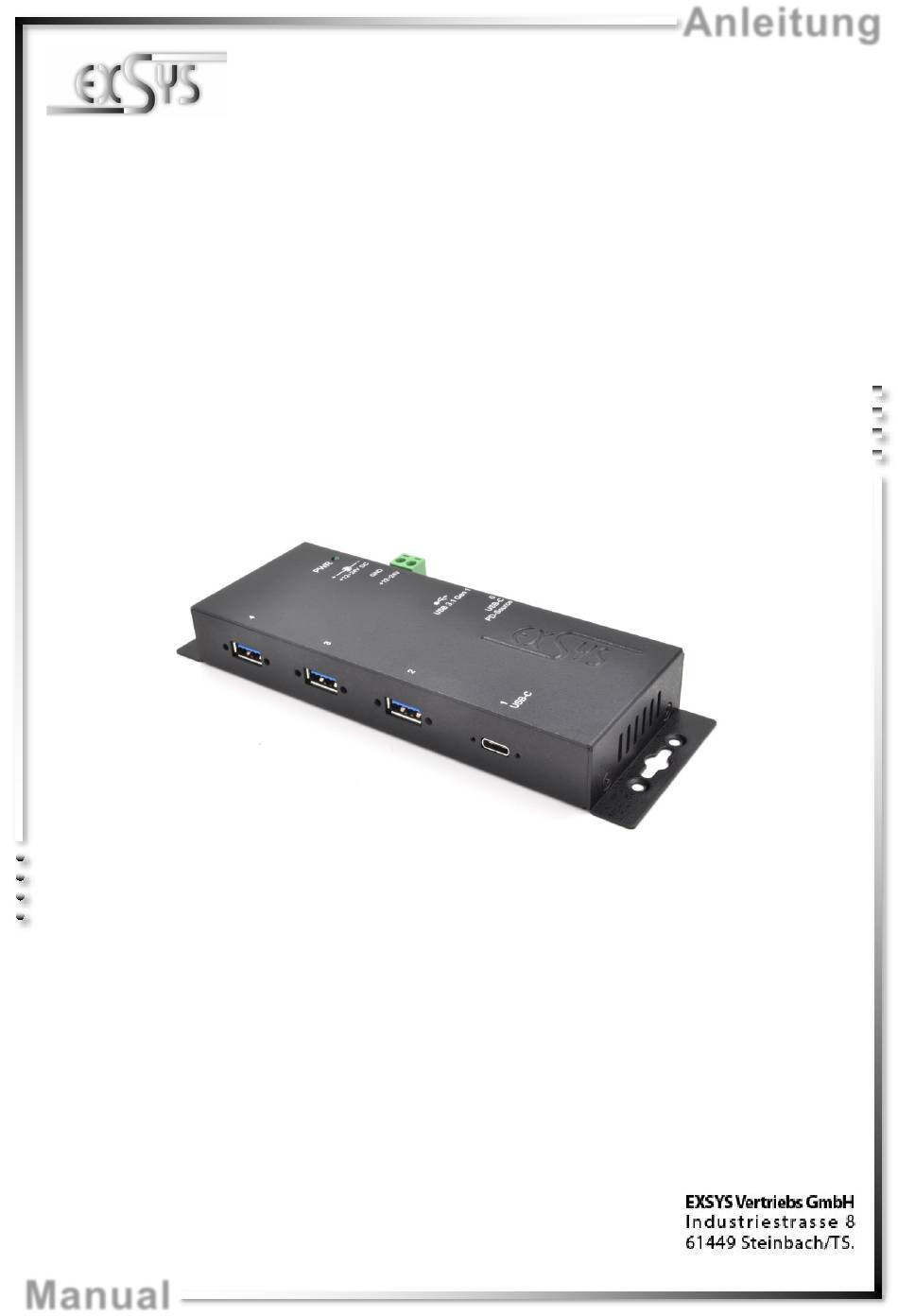

- Page 1 Anleitung EX-1191HMVS-PD 4 Port USB 3.2 Gen 1 Metall HUB mit USB PD-Aufladung und 15KV ESD Überspannungsschutz 4 Port USB 3.2 Gen 1 Metal HUB with USB PD-Chaging and 15KV ESD Surge Protection Vers. 1.0 / 09.11.21 Manual...
-
Page 2: Table Of Contents
Layout & Connections ····················································································· 9-10 Layout ························································································································ 9 Connections ············································································································ 9-10 Hardware Installation ························································································· 11 Driver Installation ······························································································ 11 Cleaning ········································································································· 11 Technical Information ························································································ 12 Technical Drawing ···························································································· 12 © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 3: Beschreibung
Deutsch 1. Beschreibung Der EX-1191HMVS-PD ist ein USB 3.2 (Gen1) Metall HUB für bis zu 4 Endgeräte. Der Hub ist mit 4 Ports für Endgeräte und 1 Port für den Anschluss an den PC ausgestattet. Er unterstützt alle USB Anschlüsse von 1.1 bis 3.2. Jeder Anschluss an der EX-1191HMVS-PD ist zusätzlich verschraubbar. -
Page 4: Aufbau & Anschlüsse
PD Aufladung enthaltenem Netzteil externes Netzteil 3.2 Anschlüsse +12V - 24V T-Block: ACHTUNG!!! Schließen Sie niemals Strom an Ground an, dadurch kann Ihre Hardware zerstört werden!!! GND (Ground) +12V - 24V © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... - Page 5 StdB_SSTX - Stecker niemals umgekehrt oder mit Gewalt einstecken. USB 3.2 Gen 1 C-Buchse: Hinweis! Durch die Doppelbelegung der Pins, kann der USB-C Stecker beidseitig in die Buchse ge- steckt werden. © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
-
Page 6: Hardware Installation
4. Hardware Installation Beachten Sie bitte die folgenden Installationshinweise. Da es große Unterschiede zwischen PC‘s gibt, können wir Ihnen nur eine generelle Anleitung zum Anschluss des EX-1191HMVS-PD geben. Bei Unklarheiten halten Sie sich bitte an die Bedienungsanleitung Ihres Computersystems. 1. Verbinden Sie das mitgelieferte USB 3.2 Gen 1 Kabel mit dem USB 3.2 Gen 1 Upstream C- Anschluss des Hubs. -
Page 7: Technische Daten
0° bis 55° Celsius Lagertemperatur: -20° bis 85° Celsius Rel. Luftfeuchtigkeit: 5% bis 95% Stromversorgung: +12 bis +24 Volt Abmessung: 178,60 x 59,20 x 23,20 mm Gewicht: 880g 8. Technische Zeichnung © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 8: Description

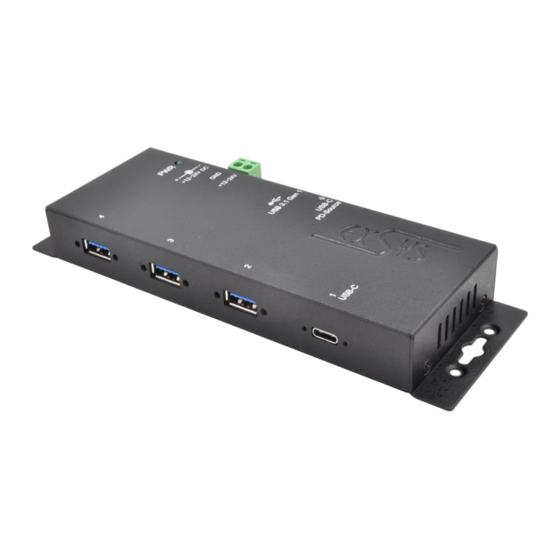

EX-1191HMVS-PD 1. Description The EX-1191HMVS-PD is a plug & play high-speed USB 3.2 Gen 1 metal hub for 4 USB devices. The EX-1191HMVS-PD provides 4 ports for USB devices and 1 uplink port for PC. It supports all USB connections from 1.1 to 3.2. All ports can fix with screw lock. Via a external power supply it is possible to load the host PC via the USB-C upstream port and a device via the USB-C downstream port. -
Page 9: Layout & Connections
PD Charging Power Supply Power Supply 3.2 Connections +12V - 24V T-Block: ATTENTION!!! Never connect power to GND, it will destroy your Hardware!!! GND (Ground) +12V - 24V © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... - Page 10 Never plug in with force or in wrong direction. USB 3.2 Gen 1 C-Port: Note! By dual assignment of the pins, the USB-C plug can be plugged into the port on both sides. © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
-
Page 11: Hardware Installation
For cleaning please use only a dry fluff less cloth and remove the dirt with gently pressure. In the area of the connectors please make sure that no fibres from the cloth remain in the connectors. Attention! Never use a moist or wet cloth for cleaning! © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 12: Technical Information
32°F to 131°Fahrenheit Storage Temperature: -40°F to 185°Fahrenheit Rel. Humidity: 5% to 95% Power: +12 to +24 Volt Size: 178,60 x 59,20 x 23,20 mm Weight: 880g 8. Technical Drawing © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
