- Page 1 MANUAL ENGLISH Mirrorball Motor 30 cm Ordercode: 604081 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Mirrorball Motor 30 cm Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains............................4 Return Procedure ................................5 Claims ....................................5 Description of the device ..............................6 Features ..................................6 Overview .................................. -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: Showtec Mirrorball Motor 30 cm with a power cable (1 m) • User manual •... - Page 4 The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely • (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
Mirrorball Motor 30 cm Operating Determinations • This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. • The maximum ambient temperature t = 25°C must never be exceeded. •... -
Page 6: Return Procedure
Mirrorball Motor 30 cm Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 7: Description Of The Device

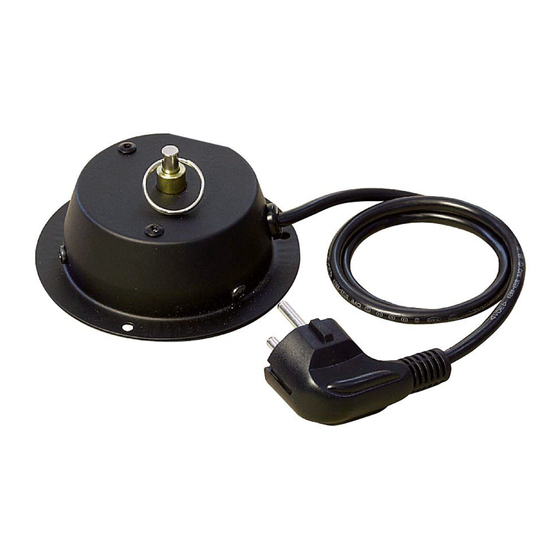

Mirrorball Motor 30 cm Description of the device Features The Showtec Mirrorball Motor 30 cm is a mirror ball control system. • Input voltage: 220-240V AC, 50Hz • Power consumption: 3,2W • Max. rotation speed: ± 1,5 RPM • Mirror ball max. size: 30 cm / 3 kg •... -
Page 8: Installation
Mirrorball Motor 30 cm Installation Remove all packing materials from the Mirrorball Motor 30 cm. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 9: Set Up And Operation
Suspect two potential problem areas as: the power supply and the motor. 01) Power supply. Check if the unit is plugged into an appropriate power supply. 02) The motor. Return the device to your Showtec dealer. 03) If both of the above appear to be O.K., plug the unit in again. -
Page 10: Product Specifications
Mirrorball Motor 30 cm Product Specifications Model: Showtec Mirrorball Motor 30 cm Input voltage: 220-240V AC, 50Hz Power consumption: 3,2W Dimensions: 112 x 60 mm (WxH) Weight: 0,4 kg Electro-mechanical effects: Max. rotation speed: ± 1,5 RPM Mirror ball max. size:... - Page 11 Mirrorball Motor 30 cm Ordercode: 604081...
- Page 12 ©2017 Showtec...
