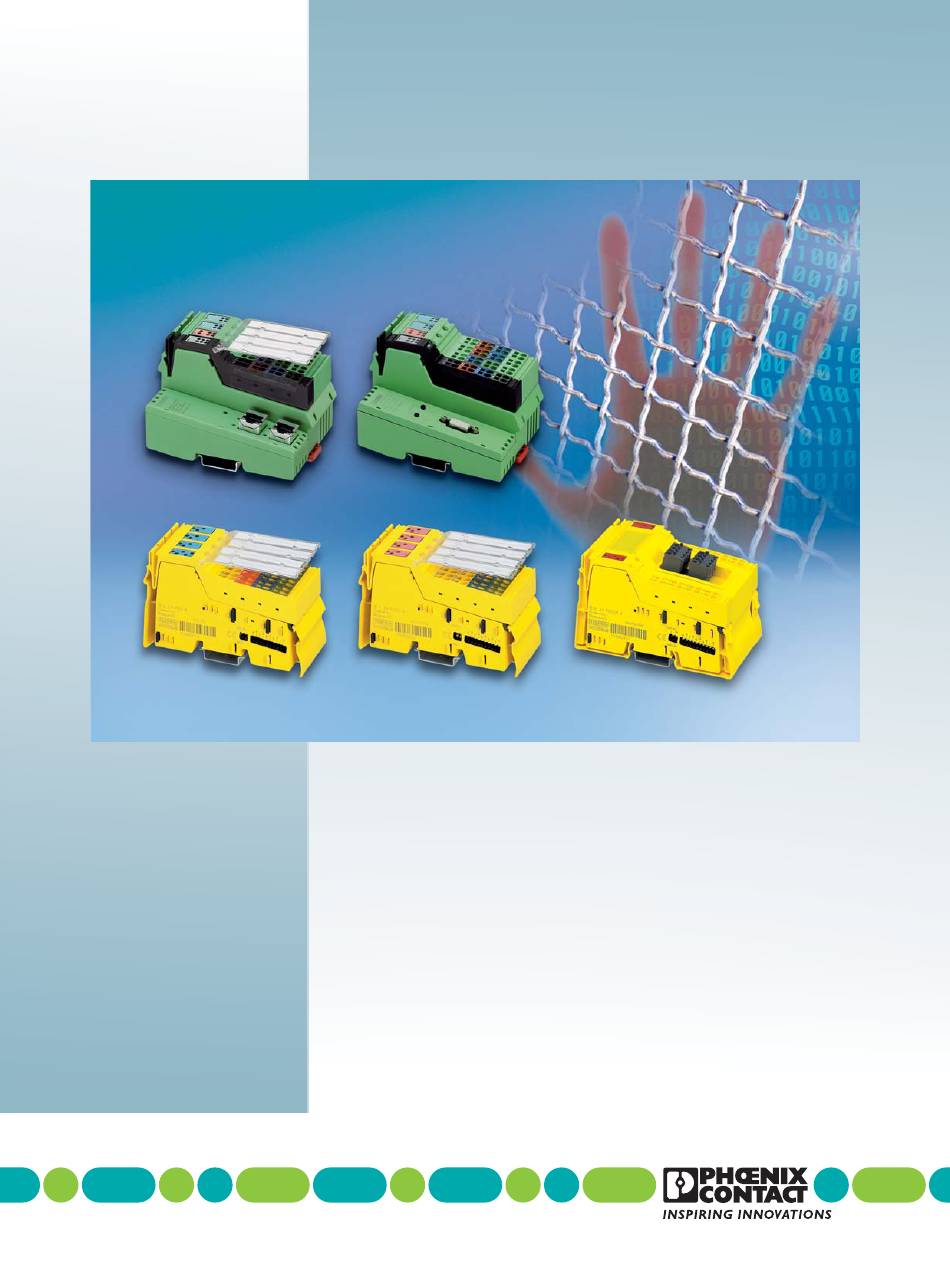

- Page 1 AUTOMATION Quick Start Guide UM QS EN IB IL 24 PSDX - S7 Order No.: 2910648 Configuring Inline modules with safe inputs or ® outputs under PROFIsafe on a SIMATIC controller...
- Page 3 UM QS EN IB IL 24 PSDX - S7 Revision: Order No.: 2910648 This user manual is valid for: Designation Order No. IB IL 24 PSDI 8-PAC 2985688 IB IL 24 PSDO 8-PAC 2985631 IB IL 24 PSDO 4/4-PAC 2916493 IB IL 24 PSDOR 4-PAC...
-
Page 4: Please Observe The Following Notes
Phoenix Contact accepts no liability for erroneous handling or damage to products from Phoenix Contact or third-party products resulting from disregard of information contained in this manual. - Page 5 The receipt of technical documentation (in particular data sheets, installation instructions, manuals, etc.) does not constitute any further duty on the part of Phoenix Contact to furnish information on alterations to products and/or technical documentation. Any other agreement shall only apply if expressly confirmed in writing by Phoenix Contact.
- Page 6 Phoenix Contact. Violators are liable for damages. Phoenix Contact reserves all rights in the case of patent award or listing of a registered design, in as far as this concerns software of Phoenix Contact that meets the criteria of technicity or has technical relevance.
-
Page 7: Table Of Contents
Diagnostics for PROFINET................. 3-1 Diagnostics for PROFIBUS................. 3-2 Error acknowledgment via function blocks ............3-3 3.3.1 FC800: COPY_ALARM_DB - Indicating an error ........3-3 3.3.2 Error evaluation ...................3-4 3.3.3 FB801: PxC_SAFE - Acknowledging an error ........3-5 Appendix: Revision history ..................... A-1 7739_en_01 PHOENIX CONTACT... - Page 8 IB IL 24 PSDx - S7 PHOENIX CONTACT 7739_en_01...
-
Page 9: Introduction
IEC 61784-3. This manual uses the example of STEP 7 software to describe the integration of Phoenix Contact safety modules in a PROFIsafe system based on PROFIBUS or PROFINET. It does not describe the entire configuration process of a system or the creation of a project under STEP 7, only the points that should be observed with regard to the safety modules. -
Page 10: Additional Documentation
Please refer to the documentation provided by Siemens for the STEP 7 software. Please refer to the documentation for the components used in your application. Documentation for the Phoenix Contact devices is available on the Internet at www.download.phoenixcontact.com. Safety hotline Should you have any technical questions, please contact our 24-hour hotline. -
Page 11: Configuring And Parameterizing Safety Modules
Bus coupler for PROFIsafe based on PROFINET – IL PN BK DI8 DO4-2TX-PAC Inline bus coupler for PROFINET Safety modules – IB IL 24 PSDI 8-PAC Inline module with safe digital inputs – IB IL 24 PSDO 8-PAC Inline module with safe digital outputs –... -
Page 12: Creating/Opening A Project
• Select the relevant GSD file from the list and confirm with "Install". Close the dialog box. • Update the hardware catalog. The devices described in the installed GSD file are now available in the hardware catalog. PHOENIX CONTACT 7739_en_01... -
Page 13: Inserting The Bus Coupler In The Hardware Configurator
STEP 7 hardware catalog via the path "PROFINET IO\Additional Field Devices\I/O\Inline". • Select the bus coupler from the hardware catalog and move it into the PROFINET IO system using drag and drop. Figure 2-3 Inserting the bus coupler 7739_en_01 PHOENIX CONTACT... - Page 14 A name is suggested in the "Device name" field. This name can be adjusted depending on your application. Click on "Ethernet" to open the "Properties - Ethernet Interface" dialog box. Figure 2-4 "Properties" dialog box • Enter the settings for the device name and IP address according to your project. PHOENIX CONTACT 7739_en_01...
-
Page 15: Inserting Inline Station Devices On The Bus Coupler
2-1). The procedure for inserting modules is the same for standard and PROFIsafe modules and is shown using the example of the IB IL 24 PSDI 8-PAC module. • In the hardware catalog, select the devices to be inserted under the bus coupler. Move the devices to a free slot in the bus coupler using drag and drop. - Page 16 IB IL 24 PSDx - S7 • Proceed accordingly to insert all the other connected devices. The complete bus configuration is illustrated in the following figure. Figure 2-6 Complete bus configuration PHOENIX CONTACT 7739_en_01...
-
Page 17: Properties Of A Safe Device
The iParameters that apply for the entire safe device (device- specific) are parameterized here. Input/Output The channel-specific iParameters, i.e., the iParameters for the inputs and outputs of the safe device, are parameterized here. PROFIsafe The F-Parameters for the safe device are parameterized here. 7739_en_01 PHOENIX CONTACT... -
Page 18: Profisafe" Tab: F-Parameters
All the F-Parameters for the device are displayed on this tab. Some F-Parameters must be parameterized according to your application. To do this, proceed as follows: • Double-click on the module entry for the safe device (e.g., IB IL 24 PSDI 8-PAC). • Select the "PROFIsafe" tab. - Page 19 To set the switch on the safety module accordingly, convert this value into a binary value. = C8 = 11001000 Example switch position: F-Address 7739B002 Figure 2-9 Switch for F_Destination_Address (F_Dest_Add) Switch position for 200 = C8 = 11001000 Switch Validity Switch on (1) position off (0) Value (bin) 7739_en_01 PHOENIX CONTACT...
-
Page 20: Parameters" Tab: Iparameters
"Parameters" tab: iParameters The iParameters are parameterized on this tab according to your application. • Switch to the "Parameters" tab. Figure 2-10 IB IL 24 PSDI 8-PAC properties: "Parameters" tab, "Device Parameter" entry INTERBUS Parameter No settings are required here. Device Parameter •... -
Page 21: Completing This Part Of The Parameterization
Input x • Open the "Input X" entry. Figure 2-11 IB IL 24 PSDI 8-PAC properties: "Parameters" tab, "Input X" entry • Parameterize each input of the safety module by modifying the value displayed in this window. To do so, proceed as described in the documentation for the safety module used. -
Page 22: Calculating The F_Ipar_Crc Parameter
Select the module entry for the safety module. • Right-click to activate the context menu. • Select the "Start Device Tool... calculate F_iPar_CRC" menu item. Figure 2-12 Starting the device tool • Confirm the "Save changes?" prompt. 2-12 PHOENIX CONTACT 7739_en_01... - Page 23 Close the device tool, open the "Properties" dialog box, and make the necessary modifications. • Then open the device tool again to calculate F_iPar_CRC. If all parameterizations are OK: • Select the "I have checked all device parameters. They are correctly set!" checkbox. 2-13 7739_en_01 PHOENIX CONTACT...
- Page 24 The window expands to include the details of the calculated F_iPar_CRC. Figure 2-14 Window with F_iPar_CRC details displayed • Click on "Copy F_iPar_CRC to the clipboard and close the application". F_iPar_CRC is copied to the clipboard and the device tool is closed. 2-14 PHOENIX CONTACT 7739_en_01...
-
Page 25: Inserting F_Ipar_Crc Under "Parameters" And "Profisafe
Switch to the "PROFIsafe" tab. • Double-click on the "F_iPar_CRC" entry. • In the input dialog box that opens, insert the copied value from the clipboard using <CTRL> + <V>. Figure 2-16 Inserting F_iPar_CRC under "PROFIsafe" 2-15 7739_en_01 PHOENIX CONTACT... -
Page 26: Completing Parameterization
Save the configured configuration and translate it. – Establish an online connection between the PC and the configured configuration. – Load the configured configuration to the controller. To do so, proceed as described in the documentation for your PROFIsafe system. 2-16 PHOENIX CONTACT 7739_en_01... -
Page 27: Differences Between Profibus And Profinet
PROFIBUS is the same. In a PROFIsafe system based on PROFIBUS, use the IL PB BK DI8 DO4/EF-PAC bus coupler. This is listed under "PROFIBUS DP\Additional Field Devices\I/O\Phoenix Contact\Inline". Figure 2-17 PROFIBUS project with the IL PB BK DI8 DO4/EF-PAC bus coupler Please note the following differences for PROFIBUS configuration: –... - Page 28 IB IL 24 PSDx - S7 2-18 PHOENIX CONTACT 7739_en_01...
-
Page 29: Diagnostics And Error Acknowledgment
"X" in Figure 3-1. Double-clicking on the module entry opens the "Module Information" window. The message is displayed here in plain text. Figure 3-1 Diagnostics for PROFINET 7739_en_01 PHOENIX CONTACT... -
Page 30: Diagnostics For Profibus
The head station address is 1, i.e., the address of the nth Inline module is n+1. For more detailed information about diagnostics, please refer to the documentation for the bus coupler used. PHOENIX CONTACT 7739_en_01... -
Page 31: Error Acknowledgment Via Function Blocks
Diagnostics and error acknowledgment Error acknowledgment via function blocks Phoenix Contact blocks can be used to acknowledge errors. For each safety module at which an error message is to be processed, integrate the calls for both function blocks (COPY_ALARM_DB, e.g., in OB82 and PxC_SAFE in OB1). -
Page 32: Error Evaluation
ClearAll : BOOL; // DBX9.7 Depending on the module address, the offset is calculated as: Offset := Module address x 10 Therefore, in PxC_SDB the area for a module with the address 46 starts from DBB 460. PHOENIX CONTACT 7739_en_01... -
Page 33: Fb801: Pxc_Safe - Acknowledging An Error
CALL FB PxC_SAFE, instance DB PxC_SDB := DB800 Phoenix DB for the safety modules F_ID := 8 Module address from which an error is to be processed E.g., acknowledgment button "PxC_SDB".MDL_Adr[8].OUT_ACK_REQ When error is detected and indicated, "PxC_SDB".MDL_Adr[8].IN_ACK_REI then start acknowledgment 7739_en_01 PHOENIX CONTACT... - Page 34 IB IL 24 PSDx - S7 PHOENIX CONTACT 7739_en_01...
-
Page 35: A Appendix: Revision History
A Appendix: Revision history Version Date Contents 10/2008 First publication 7739_en_01 PHOENIX CONTACT... - Page 36 IB IL 24 PSDx - S7 PHOENIX CONTACT 7739_en_01...
