FL WLAN 1100/1101/2100/2101
User manual
UM EN FL WLAN 1100
DOWNLOADED FROM WWW.SCATTS.CO.UK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FL WLAN 1100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Phoenix Contact FL WLAN 1100

Summary of Contents for Phoenix Contact FL WLAN 1100

  • Page 1 DOWNLOADED FROM WWW.SCATTS.CO.UK FL WLAN 1100/1101/2100/2101 User manual UM EN FL WLAN 1100 DOWNLOADED FROM WWW.SCATTS.CO.UK...
  • Page 2 DOWNLOADED FROM WWW.SCATTS.CO.UK User manual FL WLAN 1100/1101/2100/2101 2018-07-11 Designation: UM EN FL WLAN 1100 Revision: Order No.: — This user manual is valid for: Designation Order No. FL WLAN 1100 2702534 FL WLAN 1101 2702538 FL WLAN 2100 2702535...
  • Page 3 How to contact us Internet Up-to-date information on Phoenix Contact products and our General Terms and Condi- tions can be found on the Internet at: phoenixcontact.com. Make sure you always use the latest documentation.
  • Page 4 The receipt of technical documentation (in particular user documentation) does not consti- tute any further duty on the part of Phoenix Contact to furnish information on modifications to products and/or technical documentation. You are responsible for verifying the suitability and intended use of the products in your specific application, in particular with regard to ob- serving the applicable standards and regulations.

  • Page 5: Table Of Contents

    General description ....................7 1.1.1 Product variants ..................8 Country approvals for FL WLAN 110x/210x ............8 1.2.1 FL WLAN 1100/2100 ................8 1.2.2 FL WLAN 1101/2101 ................9 Firmware ......................11 Mounting/antenna configuration ....................13 Connections and operating elements ..............13 2.1.1...
  • Page 6 DOWNLOADED FROM WWW.SCATTS.CO.UK FL WLAN 1100/1101 Using the CLI Network Scripting UI..............40 Diagnostics ..........................43 WLAN signal strength diagnostics in Client mode ..........43 WLAN channel assignment diagnostics in Access Point mode ......45 Technical data .........................47 Ordering data ...................... 50...

  • Page 7: Technical Description

    DOWNLOADED FROM WWW.SCATTS.CO.UK Technical description Technical description Unless otherwise expressly stated, all information provided in this user manual always ap- plies to both the FL WLAN 1100/1101 and the FL WLAN 2100/2101. General description Robust, compact WLAN module with integrated antennas: –...

  • Page 8: Product Variants

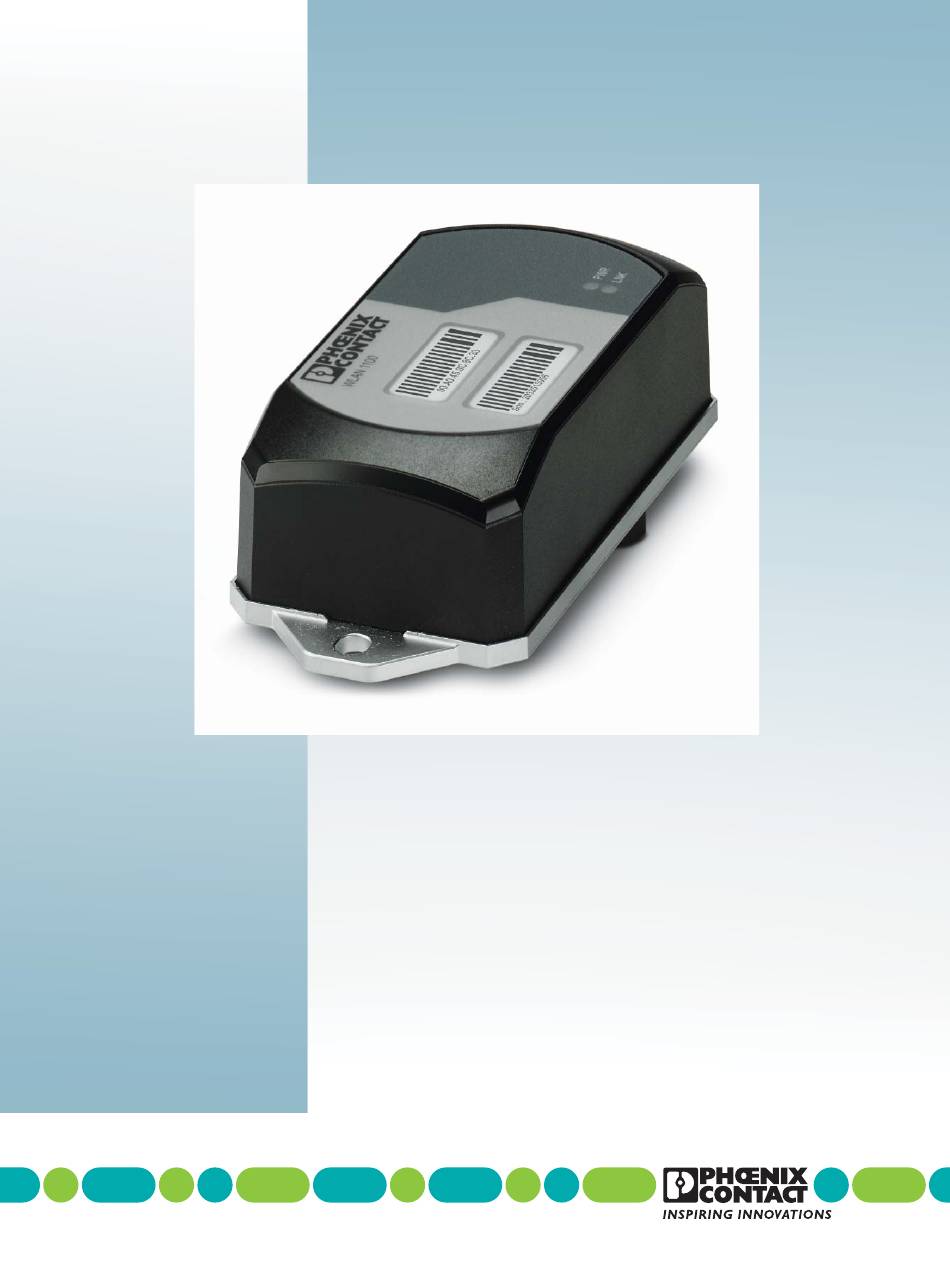

    Country approvals for FL WLAN 110x/210x 1.2.1 FL WLAN 1100/2100 The FL WLAN 1100/2100 is a WLAN device with access point and client functionality. The device uses the WLAN standard in the license-free 2.4 GHz and 5 GHz bands, which are free of charge.

  • Page 9: Fl Wlan 1101/2101

    L'exploitation est autorisée aux deux conditions suivantes: l'appareil ne doit pas produire de brouillage, et l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. 107390_en_03 PHOENIX CONTACT DOWNLOADED FROM WWW.SCATTS.CO.UK...
  • Page 10 DOWNLOADED FROM WWW.SCATTS.CO.UK FL WLAN 1100/1101/2100/2101 NOTICE: Changes or modifications made to this equipment not expressly approved by Phoenix Con- tact GmbH & Co. KG may void the FCC authorization to operate this equipment. Information on radio frequency radiation exposure: This equipment complies with FCC and IC radiation exposure limits set forth for an uncon- trolled environment.

  • Page 11: Firmware

    Technical description Firmware Table 1-2 Firmware version Functions FW 1.0x Initial version Additional information on the latest firmware changes for the respective product can be found in the e-shop at phoenixcontact.com or at phoenixcontact.net/product/2702534. 107390_en_03 PHOENIX CONTACT DOWNLOADED FROM WWW.SCATTS.CO.UK...
  • Page 12 DOWNLOADED FROM WWW.SCATTS.CO.UK FL WLAN 1100/1101/2100/2101 PHOENIX CONTACT 107390_en_03 DOWNLOADED FROM WWW.SCATTS.CO.UK...

  • Page 13: Mounting/Antenna Configuration

    Connections and operating elements of the device Mounting holes Marking fields Status and diagnostic LEDs Ethernet connection in RJ45 format with 100 Mbps Connections for supply voltage and one digital input via COMBICON Two integrated WLAN antennas 107390_en_03 PHOENIX CONTACT DOWNLOADED FROM WWW.SCATTS.CO.UK...

  • Page 14: Housing Dimensions

    DOWNLOADED FROM WWW.SCATTS.CO.UK FL WLAN 1100/1101/2100/2101 2.1.1 Housing dimensions The outside dimensions of the FL WLAN 110x and FL WLAN 210x devices are 62.8 mm x 36.5 mm x 113.2 mm (width x height x depth). Figure 2-2 Housing dimensions and distances 2.1.2...

  • Page 15: Table 2-1 Connection Data For The Male Connector

    The device must be connected to ground (functional earth ground) via the metal part of the housing. If this is not possible, ensure a low-resistance ground connection (functional earth ground) for the shielding of the Ethernet cable. 107390_en_03 PHOENIX CONTACT DOWNLOADED FROM WWW.SCATTS.CO.UK...

  • Page 16: Mounting The Device On A Level Surface

    DOWNLOADED FROM WWW.SCATTS.CO.UK FL WLAN 1100/1101/2100/2101 FL WLAN 110x and FL WLAN 210x: it is recommended that the base plate of the device is grounded by connecting the mounting screws to a grounded metal surface (functional earth ground/FE). If this is not possible, e.g., because the device is installed on a plastic surface, you must make sure that the Ethernet cable is properly shielded.

  • Page 17: Figure 2-5: Drill Hole Template For Devices With Flattened Housing Flange

    Drill hole template for devices with flattened housing flange Figure 2-6 Drill hole template for devices with round housing flange In the following table you will find a list of the devices including revision with regard to the flange. 107390_en_03 PHOENIX CONTACT DOWNLOADED FROM WWW.SCATTS.CO.UK...

  • Page 18: Mounting The Device With Cable Feed-Through And Seal

    DOWNLOADED FROM WWW.SCATTS.CO.UK FL WLAN 1100/1101/2100/2101 Order designation Article revision Hardware revision Flange FL WLAN 1100 from 2702534-04 Flattened FL WLAN 1101 from 2702538-03 FL WLAN 2100 from 2702535-03 FL WLAN 2101 from 2702540-03 FL WLAN 1100 to 2702534-03 Round...

  • Page 19: Figure 2-8 Handling The Fl M32 Adapter

    The devices in the FL WLAN 110x/210x series have internal antennas for WLAN commu- nication. The device should therefore be mounted on the outside of metal objects to en- sure that the WLAN signal can be transmitted. 107390_en_03 PHOENIX CONTACT DOWNLOADED FROM WWW.SCATTS.CO.UK...

  • Page 20: Figure 2-9 Mounting Distance From Lateral Conductive Surfaces

    DOWNLOADED FROM WWW.SCATTS.CO.UK FL WLAN 1100/1101/2100/2101 In order to optimize the device's performance with respect to transmission, the same rules that apply when mounting antennas should be observed. An important criterion here is the lateral distance from conductive surfaces. These surfaces can influence the radio propaga- tion (directional characteristics of the antenna) due to reflections and interference.

  • Page 21: Startup And Configuration

    NOTE: Do not open or modify the device. Do not repair the device yourself; replace it with an equivalent device instead. Repairs may only be carried out by the manufacturer. The manufacturer is not liable for damage resulting from noncompliance. 107390_en_02 PHOENIX CONTACT DOWNLOADED FROM WWW.SCATTS.CO.UK...

  • Page 22: Delivery State/Factory Settings

    DOWNLOADED FROM WWW.SCATTS.CO.UK FL WLAN 1100/1101/2100/2101 Delivery state/factory settings By default upon delivery or after the system is reset to the factory settings, the following functions and properties are available: – The user name is: “admin” – The password is: “private”...

  • Page 23: General Sequence For Startup

    The device can be configured by setting all parameters via the web interface (see “Startup via the web interface” on page 27) or the Command Line Interface (CLI). In order to do this, the device must first be assigned an IP address. The factory default setting is BootP. 107390_en_02 PHOENIX CONTACT DOWNLOADED FROM WWW.SCATTS.CO.UK...

  • Page 24: Assigning The Ip Address Via Bootp (With Ipassign)

    DOWNLOADED FROM WWW.SCATTS.CO.UK FL WLAN 1100/1101/2100/2101 3.2.3 Assigning the IP address via BootP (with IPAssign) This section explains IP address assignment using the “IP Assignment Tool” Windows soft- ware (IPAssign.exe). This software can be downloaded free of charge at phoenixcon- tact.net/product/2702534.

  • Page 25: Figure 3-1 "Ip Address Request Listener" Window

    Adjust the IP parameters according to your requirements. If inconsistencies are no longer detected, a message appears indicating that a valid IP ad- dress has been set. • Click on the “Next” button and perform a voltage reset. 107390_en_02 PHOENIX CONTACT DOWNLOADED FROM WWW.SCATTS.CO.UK...

  • Page 26: Reset To The Factory Settings

    DOWNLOADED FROM WWW.SCATTS.CO.UK FL WLAN 1100/1101/2100/2101 Step 5: “Assign IP Address” The program attempts to transmit the set IP parameters to the device. Figure 3-3 “Assign IP Address” window Following successful transmission, the next window opens. Step 6: completing IP address assignment The window that opens informs you that IP address assignment has been successfully com- pleted.

  • Page 27: Startup Via The Web Interface

    Four bars: excellent link quality The device is in “Access Point” mode and connected to a number of clients. The number of connected clients is displayed. If “0” is dis- played, there is no connection to a client. 107390_en_02 PHOENIX CONTACT DOWNLOADED FROM WWW.SCATTS.CO.UK...

  • Page 28: Quick Setup

    DOWNLOADED FROM WWW.SCATTS.CO.UK FL WLAN 1100/1101/2100/2101 Table 3-2 Meaning of the icons [...] Icon Meaning Connection status: connected Indicates whether the PC with the browser has an active connection to the device. Connection status: disconnected  During a configuration change or if a configuration change has been made via WLAN and the connection has been disabled.

  • Page 29: Figure 3-6 "Login" Web Page

    At the end of the wizard, you are prompted to confirm all the settings that have been made. The device is then rebooted in order to apply all the settings. 107390_en_02 PHOENIX CONTACT DOWNLOADED FROM WWW.SCATTS.CO.UK...

  • Page 30: Operating Modes Of The Device

    DOWNLOADED FROM WWW.SCATTS.CO.UK FL WLAN 1100/1101/2100/2101 Operating modes of the device The device supports “Access Point”, “Client”, and “Repeater” modes. “Client” mode is sub- divided into three options: “FTB - Fully Transparent Bridge”, “SCB - Single Client Bridge”, and “MCB - Multi Client Bridge”. Each operating mode supports different applications.

  • Page 31: Operating Mode: Client

    Overview of the various client modes 3.4.2.2 Operation as a single client Client Ethernet alle Hersteller Ethernet Figure 3-8 Diagram: single client mode Properties: – Transparently connects an Ethernet device to the access point on Layer 2 via WLAN. 107390_en_02 PHOENIX CONTACT DOWNLOADED FROM WWW.SCATTS.CO.UK...
  • Page 32 DOWNLOADED FROM WWW.SCATTS.CO.UK FL WLAN 1100/1101/2100/2101 Automatic SCB It is not necessary to manually enter the MAC or IP address of the connected device in the FL WLAN 110x. It requests them automatically. Only one wired device may be connected in SCB mode.
  • Page 33 This is possible, but rather unlikely. More detailed information regarding interoperability in FTB mode with other manufacturers cannot be provided. 107390_en_02 PHOENIX CONTACT DOWNLOADED FROM WWW.SCATTS.CO.UK...

  • Page 34: Operating Mode: Repeater

    DOWNLOADED FROM WWW.SCATTS.CO.UK FL WLAN 1100/1101/2100/2101 3.4.3 Operating mode: Repeater The FL WLAN 110x offers repeater functionality. This means that several devices in one line can be connected via WLAN. One or more clients can log onto the individual devices in this repeater chain.

  • Page 35: Firmware Update

    To activate the new firmware, the device must be restarted. This can be done by click- ing on the “Reset” button at the top of the “System” web window or by performing a volt- age reset for the device. 107390_en_02 PHOENIX CONTACT DOWNLOADED FROM WWW.SCATTS.CO.UK...
  • Page 36 DOWNLOADED FROM WWW.SCATTS.CO.UK FL WLAN 1100/1101/2100/2101 PHOENIX CONTACT 107390_en_02 DOWNLOADED FROM WWW.SCATTS.CO.UK...

  • Page 37: Configuration And Diagnostics Via

    Section “Assigning the IP ad- dress via BootP (with IPAssign)” on page 24. Figure 4-1 Configuration of a Telnet connection in PuTTY Figure 4-2 Establishing a Telnet connection via Windows command prompt 107390_en_03 PHOENIX CONTACT DOWNLOADED FROM WWW.SCATTS.CO.UK...

  • Page 38: Basic Principles For Using Cli Commands

    DOWNLOADED FROM WWW.SCATTS.CO.UK FL WLAN 1100/1101/2100/2101 Figure 4-3 Command terminal in Windows command prompt Basic principles for using CLI commands In this section, the CLI command names are written in bold. CLI parameters are written in italics and must be replaced by appropriate values (e.g., names or numbers). If a command has several parameters, the order of these must be strictly observed.

  • Page 39: Using The Cli Help

    Table 4-2 Structure of CLI commands Command Description Displays the available commands Typing a question mark (?) after each entry displays all the available command names or parameters from this point on. 107390_en_03 PHOENIX CONTACT DOWNLOADED FROM WWW.SCATTS.CO.UK...

  • Page 40: Auto-Completion Of Commands

    DOWNLOADED FROM WWW.SCATTS.CO.UK FL WLAN 1100/1101/2100/2101 If Help outputs a parameter in angle brackets, this parameter must be replaced by a value. Example: <ipaddr> Enter the IP address If at any point there are no further command names or parameters available, or further pa-...
  • Page 41 The following examples illustrate the correct syntax for entering commands via the CLI Net- work Scripting UI: Example: changing the device name http://192.168.10.42/php/command.php?usr=admin&pwd=private&cmd=device-identity name Device2000 Example: displaying the network parameters and changing the user password http://192.168.10.42/php/command.php?usr=admin&pwd=private&cmd=show network | users passwd private2 107390_en_03 PHOENIX CONTACT DOWNLOADED FROM WWW.SCATTS.CO.UK...
  • Page 42 DOWNLOADED FROM WWW.SCATTS.CO.UK FL WLAN 1100/1101/2100/2101 PHOENIX CONTACT 107390_en_03 DOWNLOADED FROM WWW.SCATTS.CO.UK...

  • Page 43: Diagnostics

    “Interface Status – WLAN” menu. Here, the “Show signal bar” check box must be activated (see Figure 5-2 on page 44). The check box can only be acti- vated if a connection already exists. 107390_en_03 PHOENIX CONTACT DOWNLOADED FROM WWW.SCATTS.CO.UK...

  • Page 44: Figure 5-2 Display Of The Current Signal Strength As A Bar Graph

    DOWNLOADED FROM WWW.SCATTS.CO.UK FL WLAN 1100/1101/2100/2101 The current signal strength in dBm is displayed to the right of the bar graph. The average signal strength as well as maximum and minimum values during the current measuring pe- riod are displayed below the bar graph. Measurement is stopped when you exit the web page.

  • Page 45: Wlan Channel Assignment Diagnostics In Access Point Mode

    In Access Point mode, the WLAN networks that are within range are displayed in the “Diag- nostics” – “Channel Allocation” menu when you click on the “Scan” button. Figure 5-3 Display of WLAN channel assignment at the access point 107390_en_03 PHOENIX CONTACT DOWNLOADED FROM WWW.SCATTS.CO.UK...
  • Page 46 DOWNLOADED FROM WWW.SCATTS.CO.UK FL WLAN 1100/1101/2100/2101 PHOENIX CONTACT 107390_en_03 DOWNLOADED FROM WWW.SCATTS.CO.UK...

  • Page 47: Technical Data

    Web-based management via http or https, SNMPv2/v3, CLI via Telnet/SSH, password-protected Pollution degree Overvoltage category None Weight 340 g Impact strength IK08 Absence of substances that would hinder coating with paint or varnish Solvent test according to specification 3.10.7 107390_en_03 PHOENIX CONTACT DOWNLOADED FROM WWW.SCATTS.CO.UK...
  • Page 48 Recommended crimping pliers: trapezoidal or square Nominal voltage 24 V DC / SELV FL WLAN 1100 / 1101 to HW revision 04 as well as FL WLAN 2100 / 2101 to HW revision 05 Supply voltage range 18 V DC - 32 V DC, PELV/SELV Current consumption 120 mA typical @24 V DC...
  • Page 49 Interfaces [...] max. antenna gain @ 5 GHz 5 dBi FL WLAN 1100 / 2100 Receiver category according to EN 300 440 FL WLAN 1100/2100 regulatory domain: Europe (ETSI) Channels  Mode Bandwidth (MHz) Maximum transmission (in case of 40 MHz: central chan-...

  • Page 50: Ordering Data

    DOWNLOADED FROM WWW.SCATTS.CO.UK FL WLAN 1100/1101/2100/2101 Conformance with EMC directives for the FL WLAN 1100/2100 Noise emission in accordance with EN 55022 Class B Electrostatic discharge (ESD) in accordance with EN 61000-4-2 Contact discharge: ± 4 kV Indirect discharge: ± 6 kV Electromagnetic fields in accordance with IEC 61000-4-3 80 MHz - 1000 MHz, 10 V/m...
  • Page 51 28 32 61 6 Patch cable, CAT5, pre-assembled, 10.0 m long, 10 pieces FL CAT5 PATCH 10 28 32 62 9 PHOENIX CONTACT GmbH & Co. KG Flachsmarktstr. 8 32825 Blomberg Germany + 49 - (0) 52 35 - 3-00 + 49 - (0) 52 35 - 3-4 12 00 www.phoenixcontact.com...
  • Page 52 DOWNLOADED FROM WWW.SCATTS.CO.UK FL WLAN 1100/1101/2100/2101 PHOENIX CONTACT 107390_en_03 DOWNLOADED FROM WWW.SCATTS.CO.UK...
  • Page 53 “expired”, but it cannot be reused with other parameters under any circum- stances. Phoenix Contact provides notification of ASN1 SNMP objects by publishing their descrip- tions on the Internet. Reading SNMP objects is not password-protected. However, a password is required for read access in SNMP, but this is set to “public”, which is usual for network devices, and can-...

  • Page 54: Figure 6-1: Schematic View Of Snmp

    DOWNLOADED FROM WWW.SCATTS.CO.UK FL WLAN 1100/1101/2100/2101 Another benefit for the user is the option of sending traps using the Simple Network Man- agement Protocol. Management Information Base (MIB) Database which contains all the data (objects and variables) required for network manage- ment.
