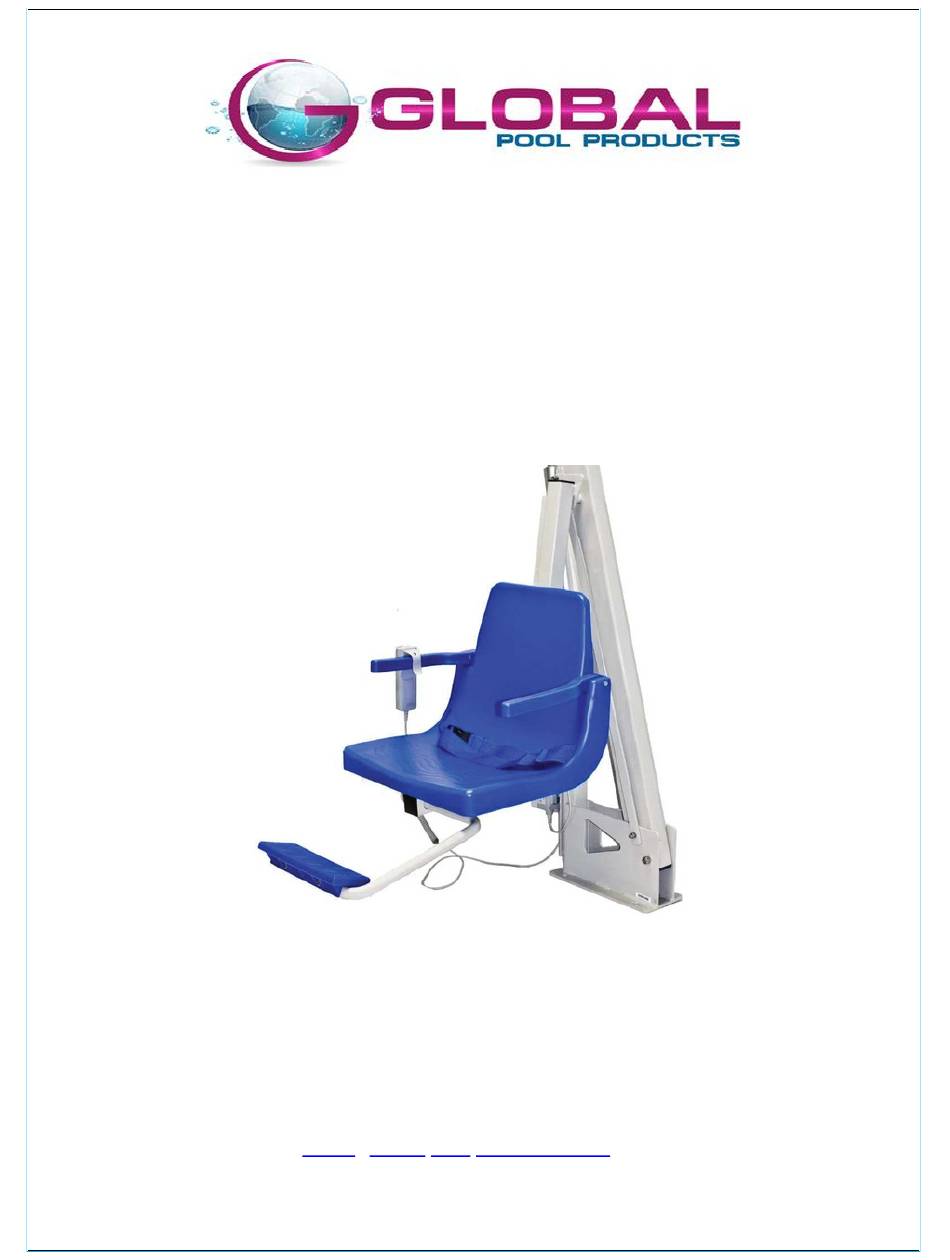

- Page 1 OWNER’S MANUAL Home Series H-350 1330 Pigeon Rd Bad Axe, MI 48413 Toll Free: 866-712- 0606 Fax: 989-269-5902 www.global-poolproducts.com...
- Page 2 HOME SERIES POOL LIFTS TABLE OF CONTENTS INTRODUCTION PAGE – 3 ADA GUIDELINES FOR PLACEMENT PAGE – 4 24 VOLT BATTERY SYSTEM/WITH CONTROLS PAGE – 5 HOME SERIES OPERATING INSTRUCTIONS PAGE – 5 UNIT MAINTENANCE AND CARE PAGE – 6 PAGE –...
- Page 3 Our products are made in the United States. Global Pool Products uses only the finest materials and processes to provide our customers with the highest...
- Page 4 ADA GUIDELINES FOR POOL LIFT PLACEMENT Pool Lift Location. Pool lifts shall be located where the water level does not exceed 48 inches (1220 mm). Seat Location. In the raised position, the centerline of the seat shall be located over the deck and 16 inches (405 mm) minimum from the edge of the pool.
- Page 5 “STOP” position. Prior to using the Home Series Pool Lift, perform a test run of the lift while empty. Once the test is completed and the lift is in its original position, ensure that the arm rests are lifted to the up position and the seatbelt is unbuckled.
-
Page 6: Maintenance
MAINTENANCE Regular servicing will help prolong the life of your lift. Routine maintenance and cleaning is very important. The following is a routine maintenance you should follow. Daily Check and charge battery if needed o Test for normal operations Inspect your lift o Clean and dry the lift and seat with clean water Cover lift after use Weekly... -
Page 7: Troubleshooting Guide
TROUBLESHOOTING GUIDE 1. Testing the Battery Charger: Use a voltmeter to test the battery charger. It should read between 27.5 and 30 volts. Ensure you are not using the control box port as a charger. The control box port will not charge the battery or operate the lift without a functional battery. - Page 8 TROUBLESHOOTING GUIDE Important Note: Do not open the components of the lift for internal repairs. Most components are hardwired or sealed. Opening them will void the warranty and may cause further damage to the system. 7. Initial Diagnostic Checks: After performing the initial checks, determine if the lift is making any sound when buttons are pressed on the handset.
- Page 9 Global Pool Products Pool Lift - Warranty Information The Home Series lift has a 2 year structural limited warranty. Global Pool Products warrants to the retail end user only products manufactured by Global Pool Products, when properly installed in accordance to the assembly and installation...
- Page 10 Global Pool Products’ decision regarding the claim. If the request made by Global Pool Products for the product to be returned to its factory or distributor of choice for inspection and/or repair, purchaser will be liable for “Freight Prepaid”.
- Page 11 Warranty Procedure Warranty Claims shall be submitted to Global Pool Products by the distributor which originated the sale with Global Pool Products or directly to Global Pool Products. All RMA (Return Materials Authorization) documents shall be requested by and issued only to the distributor which originated the sale or directly to Global Pool Products.
-
Page 12: Warranty Registration
Signature: ______________________________________ Date: ______________ This card must be completed and returned to Global Pool Products within 30 days of purchase date to assure coverage. Please mail to: Global Pool Products, 1330 Pigeon Rd, Bad Axe, MI 48413 or Email to: warranty@globalpoolprod.com... - Page 13 HOME SERIES LIFTS H-350 4-POINT ANCHORING SYSTEM New Construction or Saw Cut INSTALLATION MANUAL Patent Pending December 2024...
-
Page 14: Parts List
HOME SERIES H-350 4-POINT ANCHORING SYSTEM INSTALLATION Patent Pending PARTS LIST 1 - Anchor Plate with bonding Lug & bolt 4 - 5/8” x 1” Stainless Steel Bolts 4 - 6” Anchoring Rods 4 – Plastic Caps ANCHORING PLATE, ANCHORS & BONDING LUG 5/8”... - Page 15 HOME SERIES 4-POINT ANCHORING SYSTEM Water Pool Wall Front of Anchor Plate can be placed 12” to 17” from water’s edge depending on your application Overview 3’ Anchor Plate Section Detail 3’ 3’ 6” Threaded Anchors Bonding Lug Cold Pin Cold Pin 6”...
-
Page 16: Installation Instructions
Step 1: Determine the location for installation (Make sure all ADA requirements are met. See pg. 4). *NOTE: The installation of Global Pool Products’ anchor systems are a guideline of minimum requirements. Some states or municipalities may have local codes or ordinances that require additional steps. - Page 17 Step 9: After the concrete has set for 48 hours, it’s time to install your lift. Place your Home Series Lift over the anchor holes, screw in the anchor bolts that are included and tighten down securely. Once you have completed the installation, please refer to the User’s Manual for safe operation.
- Page 18 Drop in Anchor Home Series H-350 Pre-drilled holes on the base of the H-350 Hole for bonding wire and screw to attach bonding wire to base Locate the 4 pre-drilled holes on the base of the lift. Position the lift so that the base of the lift is from 12”...
-
Page 19: Assembly Manual
ASSEMBLY MANUAL Home Series Lifts December 2024... -
Page 20: Assembly Steps
Main Components - Lift Your new Home Series LIft has an adjustable seat tube. You can install it to the height that you prefer. Line up the seat tube between the two guides in the bracket. This should be done so the lower portion of the seat tube points away from the lift. - Page 21 INSTALLATION MANUAL (Foot rest Optional) SEAT AND FOOT REST PARTS LIST 1 - Seat 1 - Foot Rest 2 – Arm Rests 1 - Seat Belt & Buckle 1 – ½” x 2 3/4” Securing Bolt 3 – 5/16 x 3” Attaching Pin with lock nut 1 –...
-
Page 22: Installation Steps
INSTALLATION STEPS Picture A Step 1: Unpack your custom seat (picture A). Optional Items will consist of: Foot Rest and Tube 3- 5/16” x 3” Bolt with Lock nut... - Page 23 INSTALLATION STEPS Picture A Picture B Step 2: Align your custom seat (Picture A), with 3 pre-drilled holes as shown in Picture B. Step 3: Once you have the seat in place, take one 5/6” x 3” bolt and slide it through the pre-drilled holes (Picture B).
- Page 24 Locate the 5/16” x 2” bolt and insert into the pre-drilled holes as shown in Picture G to secure the foot rest to the lift. Place the lock nut on the bolt and tighten. Once completed, you are ready to use your Global Pool Products pool lift.
- Page 25 1330 Pigeon Rd. Bad Axe, MI 48413 Global Pool Products IS PROHIBITED.
- Page 26 1330 Pigeon Rd. Bad Axe, MI 48413 Global Pool Products IS PROHIBITED.
- Page 27 1330 Pigeon Rd. Bad Axe, MI 48413 Global Pool Products IS PROHIBITED.
- Page 28 1330 Pigeon Rd. Bad Axe, MI 48413 Global Pool Products IS PROHIBITED.
