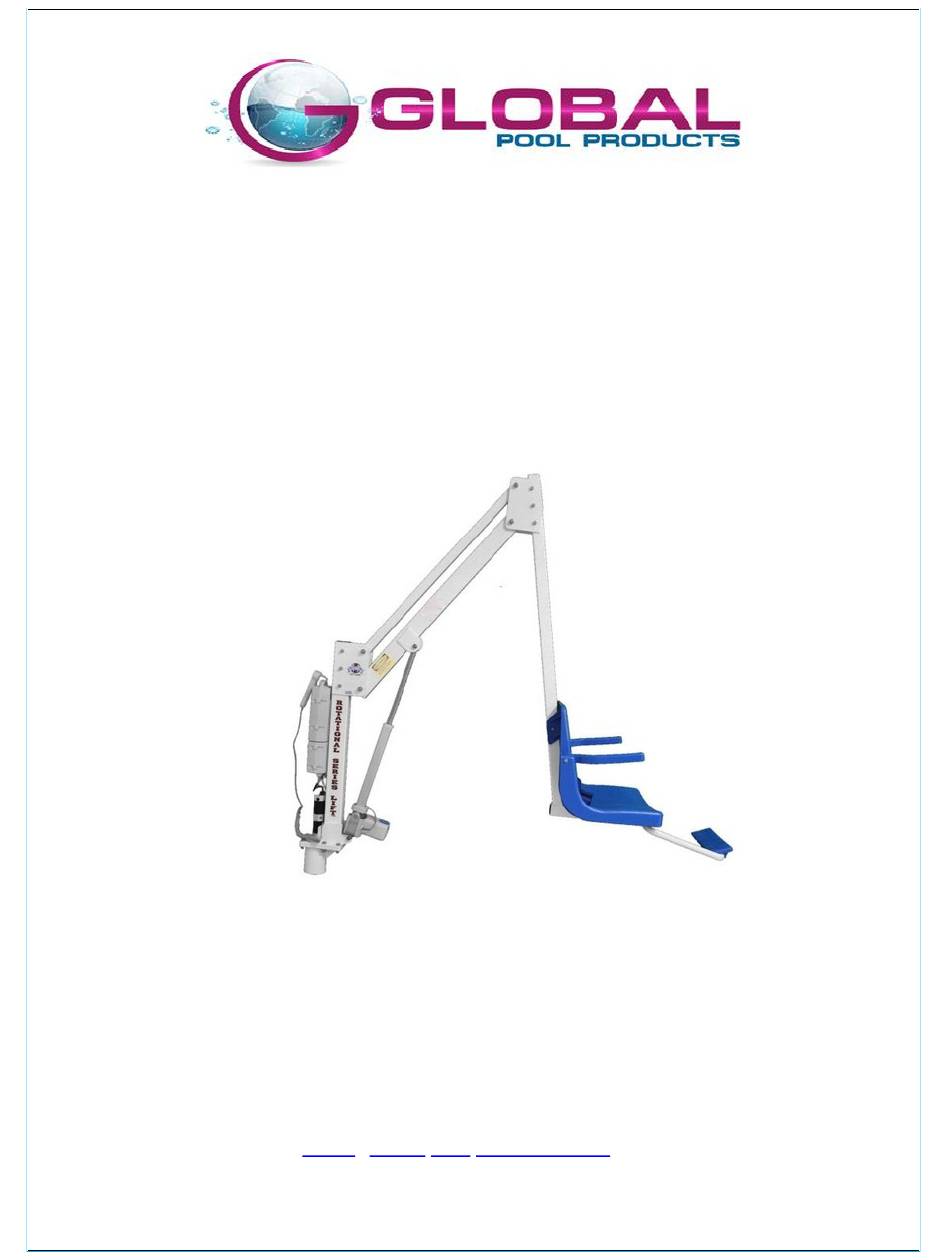

  • Page 1 OWNER’S MANUAL Rotational Series R-450R 1330 Pigeon Rd Bad Axe, MI 48413 Toll Free: 866-712- 0606 Fax: 989-269-5902 www.global-poolproducts.com...
  • Page 2 ROTATIONAL SERIES POOL LIFTS R-450R TABLE OF CONTENTS INTRODUCTION PAGE – 3 ADA GUIDELINES FOR PLACEMENT PAGE – 4 24 VOLT BATTERY SYSTEM/WITH CONTROLS PAGE – 5 ROTATIONAL SERIES OPERATING INSTRUCTIONS PAGE – 6 UNIT MAINTENANCE AND CARE PAGE – 7 PAGE –...
  • Page 3 Our products are made in the United States. Global Pool Products uses only the finest materials and processes to provide our customers with the highest...
  • Page 4 ADA GUIDELINES FOR POOL LIFT PLACEMENT Pool Lift Location. Pool lifts shall be located where the water level does not exceed 48 inches (1220 mm). Seat Location. In the raised position, the centerline of the seat shall be located over the deck and 16 inches (405 mm) minimum from the edge of the pool.
  • Page 5 24 VOLT BATTERY SYSTEMS WITH CONTROLS All of Global Pool Products' Rotational Series Lifts are equipped with a sealed 24 volt battery that is rechargeable. Along with a charging unit, hand held controller and control compartment. The 24 volt battery mounts into the control compartment and the battery s imply snaps in.
  • Page 6 ROTATIONAL SERIES POOL LIFT OPERATING INSTRUCTIONS Prior to using the Rotational Series Pool Lift, perform a test run of the lift empty. Once that is completed and the lift is back to original position, make sure that the arm lifts are in the up position and the seatbelt is unbuckled, once acknowledged you are ready! Once you are in the seat, buckle the seatbelt (make sure it is snug) and lower the arm rails.

  • Page 7: Maintenance

    MAINTENANCE Regular servicing will help prolong the life of your lift. Routine maintenance and cleaning is very important. The following is a routine maintenance you should follow. Daily o Check and charge battery if needed o Test for normal operations o Inspect your lift o Clean and dry the lift and seat with clean water o Cover lift after use...

  • Page 8: Troubleshooting Guide

    TROUBLESHOOTING GUIDE 1. Testing the Battery Charger: Use a voltmeter to test the battery charger. It should read between 27.5 and 30 volts. Ensure you are not using the control box port as a charger. The control box port will not charge the battery or operate the lift without a functional battery.
  • Page 9 TROUBLESHOOTING GUIDE Important Note: Do not open the components of the lift for internal repairs. Most components are hardwired or sealed. Opening them will void the warranty and may cause further damage to the system. 7. Initial Diagnostic Checks: After performing the initial checks, determine if the lift is making any sound when buttons are pressed on the handset.
  • Page 10 Warranty on the metal components of the frame, not including the powder coating process. The Superior and Legend series lifts have a 5 year structural limited warranty. Global Pool Products warrants to the original retail end user only products manufactured by Global Pool Products, when properly installed in accordance to...
  • Page 11 Global Pool Product’s decision regarding the claim. If the request made by Global Pool Products for the product to be returned to its factory or distributor of choice for inspection and/or repair, purchaser will be liable for “Freight Prepaid”.
  • Page 12 Warranty claims received from end users by Global Pool Products shall be re- directed to the distributor which originated the sale with Global Pool Products. Page 11...

  • Page 13: Warranty Registration

    Signature: ______________________________________ Date: ______________ This card must be completed and returned to Global Pool Products within 30 days of purchase date to assure coverage. Please mail to: Global Pool Products, 1330 Pigeon Rd, Bad Axe, MI 48413 or Email to: warranty@globalpoolprod.com...
  • Page 14 ROTATIONAL SERIES R-450R LIFT NEW CONSTRUCTION & SAW CUT SLEEVE ANCHORING SYSTEM INSTALLATION MANUAL Prior to installing, please make sure you have filled out a Deck Configuration Form to make sure you have the correct lift that fits your application. New Construction/Saw Cut February 2025 Sleeve Anchor R-450R...
  • Page 15 ROTATIONAL SERIES R-450R SLEEVE ANCHORING SYSTEM INSTALLATION PARTS LIST 1 - Anchor Sleeve w/ Base 1 - Binding screw 1 - Plastic Cap February 2025 New Construction/Saw Cut Sleeve Anchor R-450R...
  • Page 16 ANCHORING SLEEVE, BASE PLATE & BINDING SCREW R-450R February 2025 New Construction/Saw Cut Sleeve Anchor R-450R...
  • Page 17 ROTATIONAL SERIES – SLEEVE ANCHORING SYSTEM Pool Wall Water CAUTION: Minimum anchor distance from a vertical obstacle is 13”, if Closer the lift will hit while in operation Actual application Overview 3’ Anchor Sleeve Section Detail 3’ 3’ Anchor Sleeve Cold Pin 6”...
  • Page 18 Step 1: Determine the location for installation (Make sure all ADA requirements are met). ***NOTE: The installation of Global Pool Products’ anchor systems are a guideline of minimum requirements. In some states or municipalities they may require additional steps due to their local codes or ordinances.***...
  • Page 19 Step 6: Bonding the unit – The binding screw is supplied with the Anchor Sleeve locate the binding screw, connect the binding screw to the bonding grid. NOTE: Make sure that all local codes and ordinances are met. Step 7: Pouring your concrete, (make sure you cover the hole on your anchor sleeve with the plastic cap provided, so you don’t get concrete in the sleeve) a minimum of 4,000 psi concrete with reinforcing rod.
  • Page 20 ROTATIONAL SERIES R-450R LIFT RETRO-FIT SLEEVE ANCHORING METHOD INSTALLATION MANUAL Prior to installing, please make sure you have filled out a Deck Configuration Form to make sure you have the correct lift that fits your application. RETRO-FIT Sleeve Anchor February 2025 R-450R...
  • Page 21 RETRO-FIT SLEEVE ANCHORING SYSTEM R-450R ROTATIONAL SERIES LIFT PACKING LIST 1 - Anchor Sleeve w/ Base 1 - Binding screw 1 - Plastic Cap RETRO-FIT Sleeve Anchor Febuary 2025 R-450R...
  • Page 22 ADA GUIDELINES FOR POOL LIFT PLACEMENT •Pool Lift Location: Pool lifts shall be located where the water level does not exceed 48 inches (1220 mm). Seat Location: In the raised position, the centerline of the seat shall be located over the deck and 16 inches (405 mm) minimum from the edge of the pool.
  • Page 23 12” and the maximum is 36” from the front of the anchor sleeve. See picture B ***NOTE: The installation of Global Pool Products’ anchor systems are a guideline of minimum requirements. In some states or municipalities they may require additional steps due to their local codes or ordinances.***...
  • Page 24 R-450R Front edge of anchor sleeve or an obstacle Measure distance to make sure It’s 12” minimum and 36” maximum from the water’s edge or if an obstacle is present before the water Picture A Picture B Step 2: You will need a 5” diameter core drilling bit. •...
  • Page 25 R-450R STEP 3 : Cementing the anchor sleeve in the concrete. • You will need 10 lbs of Quick dry Anchoring Cement (Commercial Grade Quikrete Exterior Use Anchoring Cement) to complete the installation. You can purchase at any hardware store in your area. Read the label and follow manufacturer’s instructions.
  • Page 26 Fixed Anchor Rotational Series R-450R Locate the drop in anchor (shown above) Place Lift into Anchor and position so anchoring hole is in the desired position. Now mark the concrete so you will know where to drill (the hole should be centered in the slot).
  • Page 27 Fixed Anchor Installation Instructions FIXED ANCHOR INSTALLATION INSTRUCTIONS 1. Always wear safety goggles. 2. Follow the drill manufacturer’s safety instructions. 3. Use only solid carbide-tipped bits meeting the ANSI B94-12 tip diameter (Use 5/8 dia drill bit). 4. Drill the hole perpendicular to the work surface. To assure full holding power do not ream the hole or allow the drill to wobble.
  • Page 28 ROUND SLEEVE ANCHOR – PAVER INSTALLATION OPTION 1 4’ x 4’ Square 6” of Concrete ANCHOR PAVERS PAVERS Please follow Anchor Instructions for Installation...
  • Page 29 ROUND SLEEVE ANCHOR – PAVER INSTALLATION OPTION 2 4’ x 4’ Square 6” of Concrete ANCHOR PAVERS PAVERS Option #2 same as Option 1, just recess the concrete down and reinstall the pavers over the concrete except directly under the pool lift, That section needs to remain concrete! Please follow Anchor Instructions for Installation...
  • Page 30 OVERVIEW ROUND SLEEVE ANCHOR – Paver Option OPTION 1 ROUND ANCHOR 4’ 4’ Please follow Anchor Instructions for Installation...
  • Page 31 OVERVIEW ROUND SLEEVE ANCHOR – Paver Option OPTION 2 ROUND ANCHOR 4’ 4’ Option #2 same as Option 1, just recess the concrete down and reinstall the pavers over the concrete except directly under the lift, That section needs to be concrete. Please follow Anchor Instructions for Installation...
  • Page 32 GLOBAL POOL PRODUC TS INSTALLATION MANUAL (Out of Box) R-Series Lifts...
  • Page 33 INSTALLATION MANUAL (Out of Box) PARTS LIST 1 Part A – Main Unit with Motor 1 Part B – Horizontal Dual Bar Beam 1 Part C – Seat Bar 1 Part D - Seat 1 Part E – Foot Rest 1 Part F - Actuator Tools Needed: (2) ½...

  • Page 34: Installation Steps

    INSTALLATION STEPS Picture 1 Step 1: Unpack your items (picture 1). Loose Items will consist of: Part A Main Beam with Motor Part B Horizontal Dual Bar Assembly Part C Seat Bar Part D Seat Part E Foot Rest and Tube Part F Actuator motor...
  • Page 35 INSTALLATION STEPS Picture 2 Picture 3 Picture 4 Picture 5 Step 2: Insert Main Beam with Motor Into the Anchor Sleeve in your deck. Picture 2 (Sleeve Anchor Pre-Installed Prior to Installation) Attach Actuator as seen in pictures 3 and 4. Step 3: Attach Part B to Part A by removing bolts from Part B (which are already inserted).
  • Page 36 INSTALLATION STEPS Picture 6 Picture 7 Picture 8 Step 4: Attach actuator to Part B beam into the actuator holder location. (Picture 6) Step 5: Attach Part B beam to the Part C seat bar tube using the bolts that are in the tube.
  • Page 37 CUSTOM SEAT INSTALLATION MANUAL R Series Lifts...
  • Page 38 CUSTOM SEAT INSTALLATION MANUAL PARTS LIST 1 - Custom Seat 1 - Foot Rest 2 – Arm Rests 1 - Seat Belt & Buckle 3 – 5/16 x 3” Attaching Pin with lock nut 1 – 5/16 x 2” Foot Rest attaching bolt w/ nut 1 –...
  • Page 39 INSTALLATION STEPS Picture A Step 1: Unpack your custom seat (picture A). Loose Items will consist of: Foot Rest and Tube 3 - 5/16” x 3” Bolt with Lock nut...
  • Page 40 INSTALLATION STEPS Picture A Picture B Step 2: Align your custom seat (Picture A), With 3 pre-drilled holes as shown.. Step 3: Once you have the seat in place, take one 5/6” x 3” bolt and slide it through the pre-drilled holes (Picture B).
  • Page 41 INSTALLATION STEPS Step 4: Locate the other 2- 5/16 x 3” securing bolts (supplied), insert the bolt through the pre-drilled Seat and tube holes (As shown above). Once you have the bolts inserted, secure the installation with the lock nuts that are provided and tighten down.
  • Page 42 Slot. In picture B, locate the 5/16” x 2” bolt and insert into the pre-drilled holes to secure the foot rest to the lift. Place the lock nut on the bolt and tighten down. Once that is complete, you are ready to enjoy your Global Pool Products pool lift.
  • Page 43 X. = .125 PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF FILLET RADII .000 THRU + .094 .062 Bad Axe, MI 48413 XX. = HOLES .000 THRU .015 Global Pool Products IS PROHIBITED. .031 XXX. = ANGLES 1 DEGREE...
  • Page 44 X. = PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF FILLET RADII .000 THRU + .094 .062 Bad Axe, MI 48413 XX. = HOLES .000 THRU .015 Global Pool Products IS PROHIBITED. XXX. = .031 ANGLES 1 DEGREE...
  • Page 45 X. = PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF FILLET RADII .000 THRU + .094 .062 Bad Axe, MI 48413 XX. = HOLES .000 THRU .015 Global Pool Products IS PROHIBITED. XXX. = .031 ANGLES 1 DEGREE...
  • Page 46 R-450R 1330 Pigeon Rd Bad Axe, MI 48413 Global Pool Products IS PROHIBITED.
  • Page 47 X. = PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF FILLET RADII .000 THRU + .094 .062 XX. = Bad Axe, MI 48413 HOLES .000 THRU .015 Global Pool Products IS PROHIBITED. XXX. = .031 ANGLES 1 DEGREE...
  • Page 48 X. = PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF FILLET RADII .000 THRU + .094 .062 XX. = Bad Axe, MI 48413 HOLES .000 THRU .015 Global Pool Products IS PROHIBITED. XXX. = .031 ANGLES 1 DEGREE...
  • Page 49 REV. DESCRIPTION DATE APVD. ITEM NO.PART NUMBER DESCRIPTION QTY. BOLT313-18-3 BOLT NUT313-18 GLCSEATB-6R MOLDED PLASTIC ARM REST, RIGHT GLCSEATB-6L MOLDED PLASTIC ARM REST, LEFT GLCSEATB-1 MOLDED PLASTIC SEAT SCALE: 1:9 REV: 100 DATE: 10/10/2013 DWR: B.E. TITLE: R-450R SEAT EXPLODE WEIGHT: LBS APVD BY: J.I.
