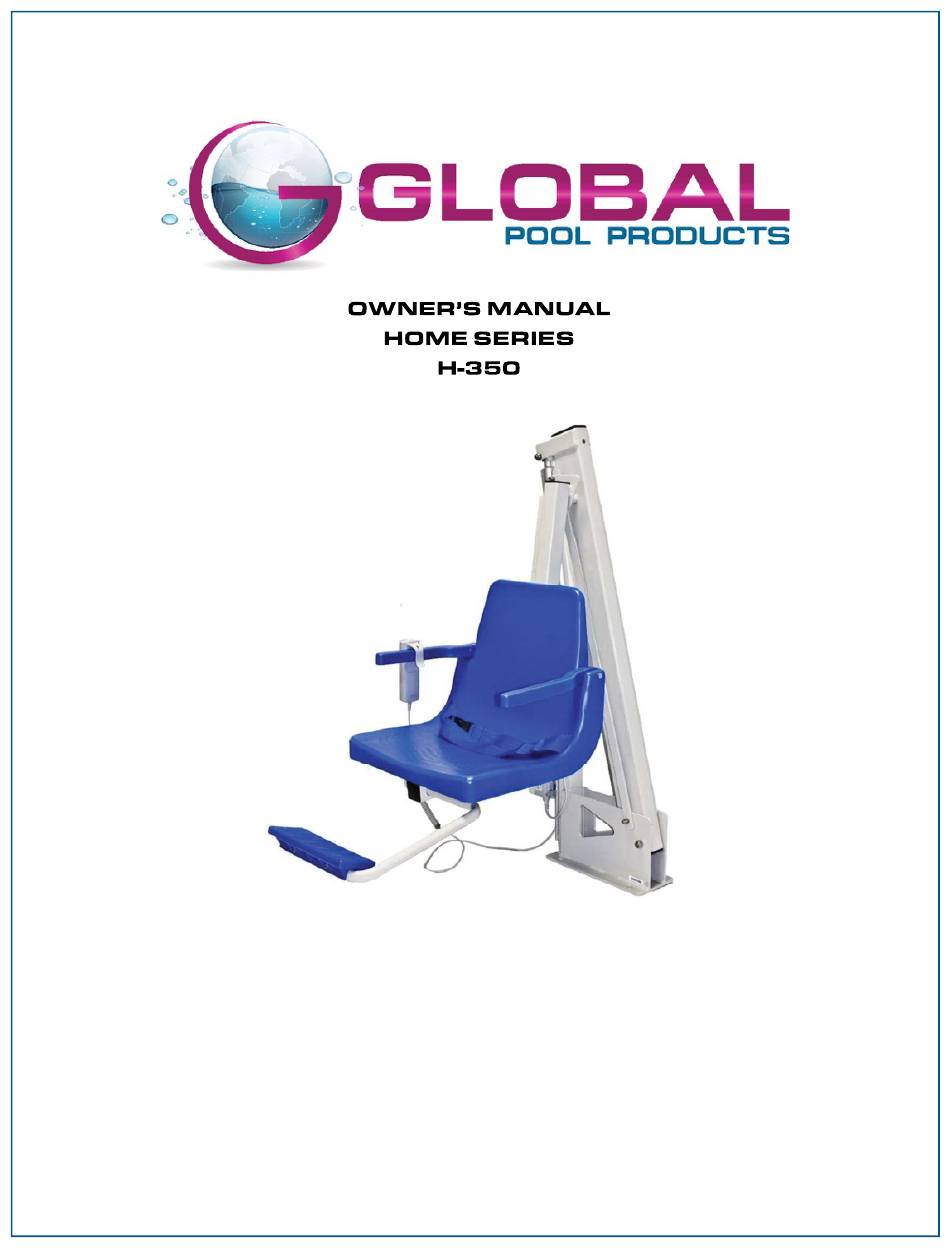

- Page 1 1330 Pigeon Rd Bad Axe, MI 48413 Toll Free: 866-712-0606 Fax: 989-269-5902 www.global-poolproducts.com Page | 1...
- Page 2 Introduction................................3 ADA Guidelines for Placement..........................4 24 Volt Battery System with Controls........................5 Home Series Operating Instructions........................5 Unit Maintenance and Care..........................6 Troubleshooting..............................7 Warranty Information............................8 Warranty Registration Form..........................10 New Construction Installation Manual........................11 Assembly Manual..............................15 Specifi cation Sheets............................19 Page | 2...
- Page 3 Located in Mid-Michigan, Global Pool Products prides itself in being your number one choice for top-of-the-line quality aquatic equipment. Global Pool Products’ key sta has over a century of combined industry experience and we take pride in each and every product that we build. Our products are proudly manufactured right here in the United States. Global Pool Products uses only the fi...
- Page 4 Pool Lift Location: Pool lifts shall be located where the water level does not exceed 48 inches (1220mm.) Seat Location: In the raised position, the centerline of the seat shall be located over the deck and 16 inches (405 mm) minimum from the edge of the pool.
- Page 5 “STOP” position. Prior to using the Home Series Pool Lift, perform a test run of the lift while empty. Once the test is completed and the lift is in its original position, ensure that the arm rests are lifted to the up position and the seatbelt is unbuckled. You are now ready to use your lift.
- Page 6 The following is a maintenance routine that will help prolong the life of your lift. Routine maintenance and cleaning is very important. → Check and charge battery if needed → Test for normal operations → Inspect your lift → Clean and dry the lift and seat with clean water →...
- Page 7 Before any troubleshooting commences make sure the battery has a full charge! (1) Does the lift raise or lower? → Check the battery connection and reconnect → Ensure the red emergency stop button is turned clockwise and in the up position →...
- Page 8 Global Pool Products - All Warranties are Void To commence the warranty claim process of a Global Pool Products product: in writing, provide place of purchase along with the product name and description, date of installation, and a detailed description of the defect, along with a photo of the entire product and claimed defect.
- Page 9 Warranty Claims shall be submitted to Global Pool Products by the distributor which originated the sale with Global Pool Products or directly to Global Pool Products. All RMA (Return Materials Authorization) documents shall be requrested by and issued only to the distributor which originated the sale or directly to Global Pool Products.
- Page 10 Date Purchased: I have read and I accept the warranty terms. Signature: Date: *This form must be completed and returned to Global Pool Products within 30 days of purchase date to ensure coverage.* Mail to: Global Pool Products 1330 Pigeon Rd.
- Page 11 ANCHORING PLATE, ANCHORS, & BONDING LUG 5/8” x 1” bolts Anchor Plate with Bonding Lug & Bolt 5/8” x 1” Stainless Steel Bolts 6” Anchoring Rods Plastic Caps February 2023 Page | 11...
- Page 12 Optimal placement of the anchor system is 13” from the front of the anchor plate to the water’s edge. Attach copper wire to the bonding lug and then to your bonding grid. Cold pins should be 1/2” rebar 6” to 8” long. NOTE: Make sure your anchor plate is level and square with your pool’s edge.
- Page 13 48 hours. STEP 9: After the concrete has set for 48 hours, it’s time to install your lift. Place your Home Series Lift over the anchor holes, screw in the anchor bolts that are included and tighten down securely. Once you have completed the installation, please refer to the User’s Manual for safe operation.
- Page 14 Pre-drilled holes on the base of the lift. Hole for bonding wire and screw to attach wire to base. Locate the 4 pre-drilled holes on the base of the lift. Position the lift so that the base of the lift is from 12” to 17” from the pool’s edge. Mark the concrete so you will know where to drill.
- Page 15 February 2023 Page | 15...
- Page 16 Seat Tube Your new Home Series LIft has an adjustable seat tube. You can install it to the height that you prefer. Line up the seat tube between the two guides in the bracket. This should be done so the lower portion of the seat tube points away from the lift. Slide in the two bolts through the bracket and seat tube.
- Page 17 Seat Foot Rest (Optional) Arm Rests Seat Belt & Buckle 3 5/16” x 3” Attaching Pin with Lock Nut 5/16” x 2” Foot Rest Attaching Bolt with Nut Picture A Picture B Picture C STEP 1: Unpack your custom seat (picture A.) STEP 2: Align your custom seat (Picture A) with 3 pre-drilled holes as shown in Picture B.
- Page 18 Picture G to secure the foot rest to the lift. Place the lock nut on the bolt and tighten. Once completed, you are ready to use your Global Pool Products pool lift. February 2023...
- Page 19 1330 Pigeon Rd. Bad Axe, MI 48413 Page | 19...
- Page 20 1330 Pigeon Rd. Bad Axe, MI 48413 Page | 20...
- Page 21 1330 Pigeon Rd. Bad Axe, MI 48413 Page | 21...
- Page 22 1330 Pigeon Rd. Bad Axe, MI 48413 Page | 22...
