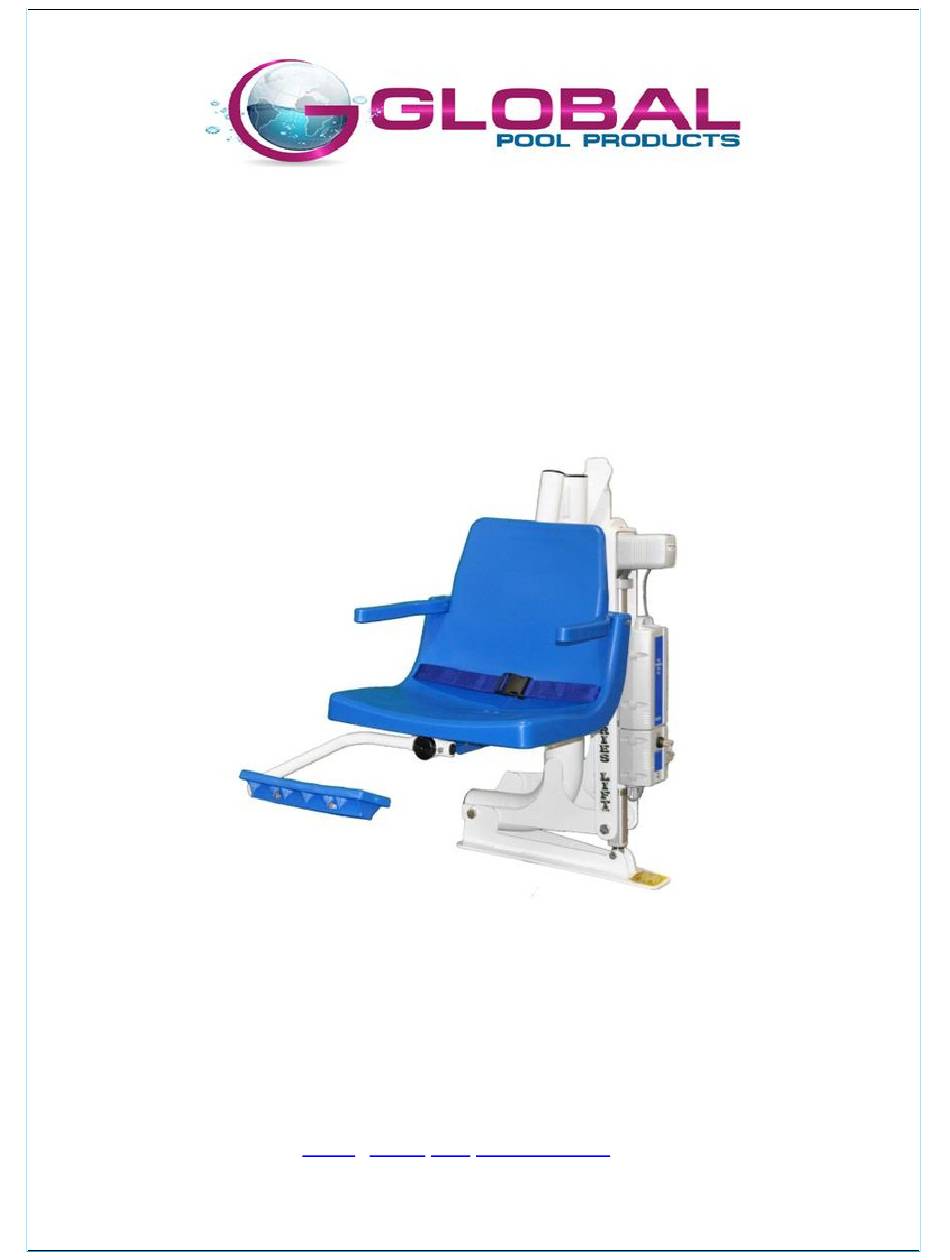

- Page 1 OWNER’S MANUAL Proformance Series P-375 Ti 1330 Pigeon Rd Bad Axe, MI 48413 Toll Free: 866-712- 0606 Fax: 989-269-5902 www.global-poolproducts.com...
- Page 2 SUPERIOR AND PROFORMANCE SERIES POOL LIFTS TABLE OF CONTENTS INTRODUCTION PAGE – 3 ADA GUIDELINES FOR PLACEMENT PAGE – 4 24 VOLT BATTERY SYSTEM/WITH CONTROLS PAGE – 5 SUPERIOR SERIES OPERATING INSTRUCTIONS PAGE – 6 UNIT MAINTENANCE AND CARE PAGE – 7 PAGE –...
- Page 3 Our products are made in the United States. Global Pool Products uses only the finest materials and processes to provide our customers with the highest...
- Page 4 ADA GUIDELINES FOR POOL LIFT PLACEMENT Pool Lift Location. Pool lifts shall be located where the water level does not exceed 48 inches (1220 mm). Seat Location. In the raised position, the centerline of the seat shall be located over the deck and 16 inches (405 mm) minimum from the edge of the pool.
- Page 5 24 VOLT BATTERY SYSTEMS WITH CONTROLS All of Global Pool Products' Superior/Proformance Series Lifts are equipped with a sealed 24 volt battery that is rechargeable. Along with a charging unit, hand held controller and control compartment. The 24 volt battery mounts into the control compartment and the battery simply snaps in.
- Page 6 PROFORMANCE SERIES POOL LIFT OPERATING INSTRUCTIONS Prior to using the Proformance Series Pool Lift perform a test run of the lift empty. Once that is completed and the lift is back to original position, make sure that the arm lifts are in the up position and the seatbelt is unbuckled, once acknowledged you are ready! Once you are in the seat, buckle the seatbelt (make sure it is snug) and lower the arm rails.
-
Page 7: Maintenance
MAINTENANCE Regular servicing will help prolong the life of your lift. Routine maintenance and cleaning is very important. The following is a routine maintenance you should follow. Daily Check and charge battery if needed o Test for normal operations Inspect your lift o Clean and dry the lift and seat with clean water Cover lift after use Weekly... -
Page 8: Troubleshooting Guide
TROUBLESHOOTING GUIDE 1. Testing the Battery Charger: Use a voltmeter to test the battery charger. It should read between 27.5 and 30 volts. Ensure you are not using the control box port as a charger. The control box port will not charge the battery or operate the lift without a functional battery. - Page 9 TROUBLESHOOTING GUIDE Important Note: Do not open the components of the lift for internal repairs. Most components are hardwired or sealed. Opening them will void the warranty and may cause further damage to the system. 7. Initial Diagnostic Checks: After performing the initial checks, determine if the lift is making any sound when buttons are pressed on the handset.
- Page 10 The Superior series lift has a 5 year structural limited warranty. Global Pool Products warrants to the original retail end user only products manufactured by Global Pool Products, when properly installed in accordance to the assembly and installation instructions, and when the equipment is properly used and maintained,...
- Page 11 Global Pool Product’s decision regarding the claim. If the request made by Global Pool Products for the product to be returned to its factory or distributor of choice for inspection and/or repair, purchaser will be liable for “Freight Prepaid”.
- Page 12 Global Pool Products shall determine warranty coverage validation and replacement parts or repair shall be directed to the distributor which originated the sale. Warranty claims received from end users by Global Pool Products shall be re- directed to the distributor which originated the sale with Global Pool Products.
-
Page 13: Warranty Registration
Signature: ______________________________________ Date: ______________ This card must be completed and returned to Global Pool Products within 30 days of purchase date to assure coverage. Please mail to: Global Pool Products, 1330 Pigeon Rd, Bad Axe, MI 48413 or Email to: warranty@globalpoolprod.com... - Page 14 PROFORMANCE SERIES LIFT NEW CONSTRUCTION & SAW CUT SLEEVE ANCHORING METHOD INSTALLATION MANUAL December 2024 Proformance New Construction/ Saw Cut Anchor...
-
Page 15: Parts List
PROFORMANCE SERIES SLEEVE ANCHORING SYSTEM INSTALLATION PARTS LIST 1 - Anchor Sleeve w/ Base 1 - Binding screw 1 - Plastic Cap December 2024 Proformance New Construction/ Saw Cut Anchor... - Page 16 ANCHORING SLEEVE, BASE PLATE & BINDING SCREW Proformance Series December 2024 Proformance New Construction/ Saw Cut Anchor...
- Page 17 ADA GUIDELINES FOR POOL LIFT PLACEMENT •Pool Lift Location: Pool lifts shall be located where the water level does not exceed 48 inches (1220 mm). Seat Location: In the raised position, the centerline of the seat shall be located over the deck and 16 inches (405 mm) minimum from the edge of the pool.
- Page 18 PROFORMANCE SERIES – SLEEVE ANCHORING SYSTEM Water Pool Wall 12” to 17” Distance from Water’s Edge (front edge of anchor sleeve) Actual application Overview 3’ Anchor Sleeve Section Detail 3’ 3’ Anchor Sleeve Cold Pin 6” Cold Pin Concrete Concrete Binding Screw COMPACT SAND Front of Anchor Sleeve must be 12”...
-
Page 19: Installation Steps
Step 1: Determine the location for installation (Make sure all ADA requirements are met). ***NOTE: The installation of Global Pool Products’ anchor systems are a guideline of minimum requirements. In some states or municipalities they may require additional steps due to their local codes or ordinances.***... - Page 20 Step 6: Bonding the unit – The binding screw is supplied with the Anchor Sleeve locate the binding screw, connect the binding screw to the bonding grid. NOTE: Make sure that all local codes and ordinances are met. Step 7: Pouring your concrete, (make sure you cover the hole on your anchor sleeve with the plastic cap provided, so you don’t get concrete in the sleeve) a minimum of 4,000 psi concrete with reinforcing rod.
- Page 21 PROFORMANCE SERIES LIFT RETRO-FIT SLEEVE ANCHORING METHOD INSTALLATION MANUAL S & P Retro Fit Sleeve December 2024 Anchoring Method...
-
Page 22: Packing List
RETRO-FIT SLEEVE ANCHORING SYSTEM PROFORMANCE SERIES LIFT PACKING LIST 1 - Anchor Sleeve w/ Base 1 - Binding screw 1 - Plastic Cap S & P Retro Fit Sleeve December 2024 Anchoring Method... - Page 23 ADA GUIDELINES FOR POOL LIFT PLACEMENT •Pool Lift Location: Pool lifts shall be located where the water level does not exceed 48 inches (1220 mm). Seat Location: In the raised position, the centerline of the seat shall be located over the deck and 16 inches (405 mm) minimum from the edge of the pool.
- Page 24 NOTE: From the water’s edge to the front end of the Anchor sleeve must 12” to 17”. See picture B ***NOTE: The installation of Global Pool Products’ anchor systems are a guideline of minimum requirements. In some states or municipalities they may require additional steps due to their local codes or ordinances.***...
- Page 25 Front edge of anchor sleeve Measure Distance to make sure it’s 12” to 17” to the water’s edge Picture B Picture A Step 2: You will need a 5” diameter core drilling bit. • Make sure you have accurately marked your hole location to be drilled. After drilling your hole (picture A), it must be 6”...
- Page 26 STEP 3 : Cementing the anchor sleeve in the concrete. Make sure your anchor is level and square. • You will need 10 lbs of Quick dry Anchoring Cement (Commercial Grade Quikrete Exterior Use Anchoring Cement) to complete the installation. You can purchase at any hardware store in your area.
- Page 27 Fixed Anchor Proformance Series Once you have completed the installation of your lift, locate the 3/8 bolt and secure it in the pre-drilled hole inside the anchor sleeve and tighten. Your lift is now ready to be used.
- Page 28 Optional Fixed Drop In Anchor Instructions for Proformance Series Pre-drilled hole on the base of S- 350 & P-375 Lift After you have installed your square anchor, you are ready to install the optional fixed drop in anchor. Position the lift into square anchor. Locate the pre-drilled hole on the base of the lift.
- Page 29 CUSTOM SEAT INSTALLATION MANUAL C, P, & S Series Lifts...
- Page 30 CUSTOM SEAT INSTALLATION MANUAL PARTS LIST 1 - Custom Seat 1 - Foot Rest 2 – Arm Rests 1 - Seat Belt & Buckle 1 – ½” x 2 3/4” Securing Bolt 3 – 5/16 x 3” Attaching Pin with lock nut 1 –...
- Page 31 INSTALLATION STEPS Picture A Step 1: Unpack your custom seat (picture A). Loose Items will consist of: Foot Rest and Tube ½” x 3” Bolt w/ lock nut 5/16” x 2 ¾” Bolt with Lock nut...
- Page 32 INSTALLATION STEPS Picture A Picture B Step 2: Align your custom seat (Picture A), slide the lower seat tube into the upper seat tube. Step 3: Once you have the seat in place, take your ½” x 3” bolt and slide it through the pre- drilled holes (Picture B).
- Page 33 In picture B, locate the 5/16” x 2” bolt and insert into the pre-drilled holes to secure the foot rest to the lift. Place the lock nut on the bolt and tighten down. Once that is complete, you are ready to enjoy your Global Pool Products pool lift.
- Page 34 1330 Pigeon Rd Bad Axe, MI 48413 Global Pool Products IS PROHIBITED.
- Page 35 1330 Pigeon Rd Bad Axe, MI 48413 Global Pool Products IS PROHIBITED.
- Page 36 1330 Pigeon Rd Bad Axe, MI 48413 Global Pool Products IS PROHIBITED.
- Page 37 1330 Pigeon Rd Bad Axe, MI 48413 Global Pool Products IS PROHIBITED.
- Page 38 1330 Pigeon Rd Bad Axe, MI 48413 Global Pool Products IS PROHIBITED.
- Page 39 1330 Pigeon Rd Bad Axe, MI 48413 Global Pool Products IS PROHIBITED.
