Dec 2018

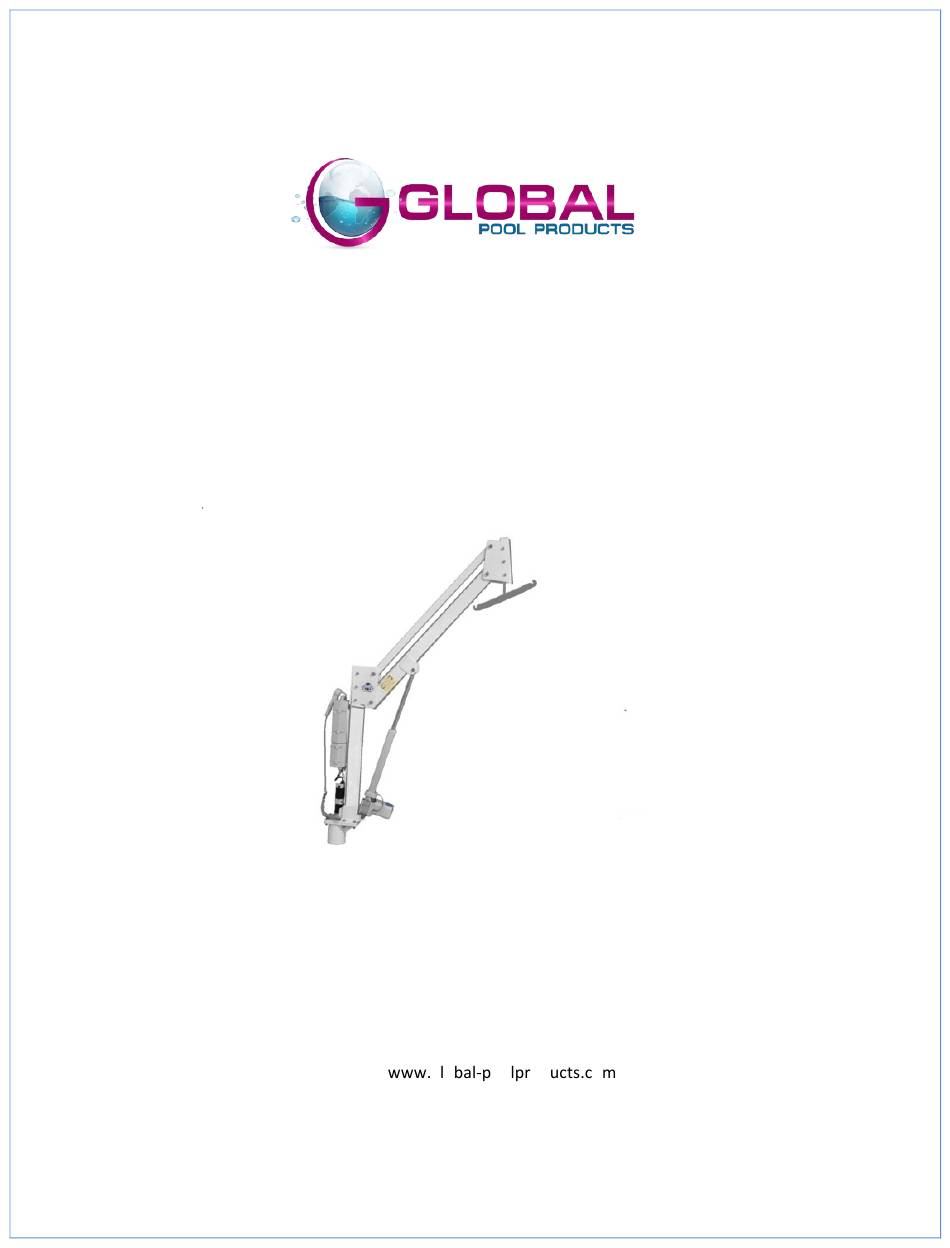

GLOBAL Pool Products

Owner·s Manual

Home Series

HR-350SS

1330 Pigeon Rd

Bad Axe, MI 48413

Toll Free: 866-712-0606

Fax: 989-269-5902

g o

Page 1

Need help?

Do you have a question about the Home Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Global Pool Products Home Series

Page 1 GLOBAL Pool Products Owner·s Manual Home Series HR-350SS 1330 Pigeon Rd Bad Axe, MI 48413 Toll Free: 866-712-0606 Fax: 989-269-5902 Dec 2018 Page 1...
Page 2 HOME SERIES POOL LIFTS HR-350SS TABLE OF CONTENTS INTRODUCTION PAGE ± 3 ADA GUIDELINES FOR PLACEMENT PAGE ± 4 24 VOLT BATTERY SYSTEM/WITH CONTROLS PAGE ± 5 ROTATIONAL SERIES OPERATING INSTRUCTIONS PAGE ± 6 UNIT MAINTENANCE AND CARE PAGE ± 7 TROUBLESHOOTING PAGE ±...
Page 3 Your Number One Choice for Commercial Pool Access Equipment Global Pool Products is committed to engineering and manufacturing world-class pool equipment. All of our products are proudly made in the United States. We back up our commitment to quality with a dedicated staff that has combined experience of over a century in the swimming pool and manufacturing industries.
Page 4 ADA GUIDELINES FOR POOL LIFT PLACEMENT 1. Pool Lift Location. Pool lifts shall be located where the water level does not exceed 48 inches (1220 mm). 2. Seat Location. In the raised position, the centerline of the seat shall be located over the deck and 16 inches (405 mm) minimum from the edge of the pool.
Page 5 24 VOLT BATTERY SYSTEMS WITH CONTROLS All of Global Pool Product's Rotational Series Lifts are equipped with a sealed 24 volt battery that is rechargeable. Along with a charging unit, hand held controller and control compartment. The 24 volt battery mounts into the control compartment and the battery simply snaps in.
Page 6 HOME SERIES POOL LIFT OPERATING INSTRUCTIONS Prior to using the Home Series Pool Lift, perform a test run of the lift empty. Once that is completed and the lift is back to original position, make sure that the arm lifts are in...
Page 7 Maintenance Regular servicing will help prolong the life of your lift. Routine maintenance and cleaning is very important. The following is a routine maintenance you should follow. Daily Check and charge battery Test for normal operations Inspect your lift Clean and dry the lift and seat with clean water Cover lift after use Weekly o Overview Daily Checklist...
Page 8 TROUBLESHOOTING GUIDE Before any troubleshooting commences make sure the battery has a full charge! (1) Does the lift raise or lower (a) Check the battery connection and reconnect (b) Check hand controls, make sure they are connected properly (c) Check for any lose wires on the control compartment (d) Check the connection cable for damage (e) Check to see that the lock on top of the control unit is turned clockwise and in the unlocked position...
Page 9 Global Pool Product's decision regarding the claim. If the request made by Global Pool Products for the product to be returned to its factory or distributor of choice for inspection and/or repair, purchaser will be liable for “Freight Prepaid”. Global Pool Products at...
Page 10 Global Pool Products or directly to Global Pool Products . All RGA (Return Goods Authorization) documents shall be requested by and issued only to the distributor which originated the sale or directly to Global Pool Products . Global Pool Products shall determine warranty coverage validation and replacement...
Page 11 I have read and I accept the warranty terms. Signature: ______________________________________ Date: ______________ This card must be completed and returned to Global Pool Products within 30 days of purchase date to assure coverage. Please mail to: Global Pool Products, 1330 Pigeon rd, Bad Axe, MI 48413...
Page 12 HOME SERIES HR-350SS LIFT NEW CONSTRUCTION & SAW CUT SLEEVE ANCHORING SYSTEM INSTALLATION MANUAL Prior to installing, please make sure you have filled out a Deck Configuration Form to make sure you have the correct lift that fits Your application.
Page 13 HOME SERIES HR-350SS SLEEVE ANCHORING SYSTEM INSTALLATION PARTS LIST 1 - Anchor Sleeve w/ Base ¸ 1 - Plastic Cap ¸ 1 ± Binding Screw ¸ New Construction/Saw Cut Sleeve November 2018 Anchor HR-350SS...
Page 14 ANCHORING SLEEVE, BASE PLATE & BINDING SCREW HR-350SS New Construction/Saw Cut Sleeve November 2018 Anchor HR-350SS...
Page 15 ADA GUIDELINES FOR POOL LIFT PLACEMENT ‡Pool Lift Location. Pool lifts shall be located where the water level does not exceed 48 inches (1220 mm). Seat Location. In the raised position, the centerline of the seat shall be located over the deck and 16 inches (405 mm) minimum from the edge of the pool.
Page 16 ROTATIONAL HOME SERIES ± SLEEVE ANCHORING SYSTEM Pool Wall Water CAUTION: Minimum anchor distance from a vertical obstacle is 13´, if Closer The lift will hit while in operation Actual application 3¶ Overview Anchor Sleeve Section Detail 3¶ 3¶ Anchor Sleeve...
Page 17 INSTALLATION STEPS Step 1: Determine the location for installation (Make sure all ADA requirements are met) ***NOTE: The installation of Global Lift Corp¶s anchor system¶s are a guideline of minimum requirements. In some states or municipalities they may require additional steps due to their local codes or ordinances.*** Step 2: Make sure that all the parts are present (Refer to the parts list) 1 - Anchor Sleeve w/ Base ¸...
Page 18 Step 5: Place the Anchor Sleeve in the cut out area, make sure that the front of the Anchor Sleeve is 12´ (min) to 36´ (max) from the water¶s edge or 13´ min if an obstacle is present before the water. (refer to overview) A key element is to make sure that the Anchor Sleeve is level and square with the pool so that your Rotational Series Lift sits properly on the deck.
Page 19 ROTATIONAL HOME SERIES HR-350SS LIFT RETRO-FIT SLEEVE ANCHORING METHOD INSTALLATION MANUAL Prior to installing, please make sure you have filled out a Deck Configuration Form to make sure you have the correct lift that fits Your application. November 2018 RETRO-FIT Sleeve Anchor HR-350SS...
Page 20 RETRO-FIT SLEEVE ANCHORING METHOD HR-350SS ROTATIONAL SERIES LIFT PACKING LIST • 1 – Anchor Sleeve w/ Base • 1 – Plastic Cap • 1 – Binding Screw November 2018 RETRO-FIT Sleeve Anchor HR-350SS...
Page 21 ADA GUIDELINES FOR POOL LIFT PLACEMENT ‡Pool Lift Location. Pool lifts shall be located where the water level does not exceed 48 inches (1220 mm). Seat Location. In the raised position, the centerline of the seat shall be located over the deck and 16 inches (405 mm) minimum from the edge of the pool.
Page 22 HR-350SS CAUTION: Minimum anchor distance from a vertical obstacle is 13´, if Closer The lift will hit while in operation Front Edge of Anchor Sleeve Picture B Picture A STEP 1: Locate the retro-fit anchoring sleeve (as shown above) picture A •...
Page 23 HR-350SS Front edge of anchor sleeve or an Obstacle Measure Distance to make Sure It¶s 12´ minimum and 36´ maximum from the Water¶s edge or if an obstacle is present before the water Picture A Picture B Step 2: You will need a 5” diameter core drilling bit. •...
Page 24 • Let the concrete set for 24hrs, sand stone to smooth the finish. Make sure the anchor sleeve is flush with the concrete • You are now ready to install your Rotational Home Series Lift. November 2018 RETRO-FIT Sleeve Anchor HR-350SS...
Page 25 GLOBAL POOL PRODUCTS INSTALLATION MANUAL (Out of Box) Home Series Rotational Lifts...
Page 26 GLOBAL POOL PRODUCTS INSTALLATION MANUAL (Out of Box) PARTS LIST ÿ 1 Part A ² Main Unit with Motor ÿ 1 Part B ² Horizontal Dual Bar Beam ÿ 1 Part C ² Spreader Bar ÿ 1 Part D ² Sling Seat Tools Needed: ÿ(2) ½...
Page 27 INSTALLATION STEPS Picture 1 Step 1: Unpack your items (picture 1). Loose Items will consist of: • Main Beam with Motor and Control Unit + Handset • Horizontal Dual Bar Assembly • Spreader Bar and extention chain • Sling Seat •...
Page 28 INSTALLATION STEPS Picture 3 Picture 2 Step 2: Insert Main Beam with Motor Into the Anchor Sleeve Picture 2 (Sleeve Anchor Pre-Installed Prior to Installation) Step 3: Attach Part B to Part A by removing bolts from Part B (which are already inserted). Attach Part B to Part A and tighten bolts (DO NOT OVERTIGHTEN) All bolts need to be tightened to approximately 20 lbs.
Page 29 INSTALLATION STEPS Spreader bar Picture 5 Picture 4 Picture 6 Step 4: Attach actuator to Part B beam into the actuator holder location. Picture 4. Step 5: Remove the bottom bolt of the extended arm to attach the spreader bar(picture 5). Insert the loop of the spreader bar diagonally into the square tube and insert the bolt to pass through the loop(picture 6) or the extention chain if more depth is needed, and attach nut.
Page 30 DATE APVD. MATERIAL: SCALE: REV: 100 DATE: 4/14/2017 DWR: B.E. TITLE: HOME SERIES WEIGHT: LBS APVD BY: J.I. MACH WEIGHT: LBS DO NOT SCALE DRAWING PROPRIETARY AND CONFIDENTIAL UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE TOLERANCES ARE: DWG.
Page 31 ITEM NO. PART NUMBER DESCRIPTION QTY. RS-015-375-0 MAIN SHAFT RS-013-375-0 RGLCSR-1 SNAP RING RGLC5 X .75 BOLT GLCDIA DROP-IN ANCHOR HR-35055 SCALE: l :3 REV: 100 DATE: 10/11/2013 DWR: B.E. TITLE: MAIN SHAFT & HUB APVD BY: J.I. WEIGHT: LBS MACH WEIGHT: LBS EXPLODE DO NOT SCALE DRAWING...
Page 32 ITEM NO. PART NUMBER DESCRIPTION QTY. RGLCDCM-4 MOTOR T5068-2 BATTERY T5068-5 CONTROL BOX RPLASCAP2-3 PLASTIC CAP RS-Ol0R HD MAIN BEAM RGLC5 X .75 BOLT RGLC25X75 FHCS BOLT NUT5-l 3 RGLC25X .SB H B BOLT HR-35055 SCALE: l :6 REV: l 00 DATE: 12/22/2015 DWR: B.E.
Page 33 ITEM NO. PART NUMBER DESCRIPTION QTY. RS-002R PLATE NUT375-16-2 NUT5-13 RGLC-5 x 3.25 BOLT BUSH50-375 BUSHING RS-008R-0 UPPER ARM RS-001 R PLATE RS-007R-0 LOWER ARM NUT-M 12 T5068-11 ACTUATOR BOLT-M 12-65 BOLT BOLT-M12-70 BOLT BOLT375-16-3 BOLT HR-3505S SCALE: 1:7 REV: 100 DATE : 12/22/2015 DWR: B.E.
Page 34 BOLT375- l 6-3 RGLC-5 x 3.25 BOLT MATERIAL: SCALE: REV: 100 DATE: 4/14/2017 DWR: B.E. TITLE: HOME SERIES WEIGHT: LBS APVD BY: J.I. MACH WEIGHT: LBS DO NOT SCALE DRAWING LIFT CORP PROPRIETARY AND CONFIDENTIAL UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES...
