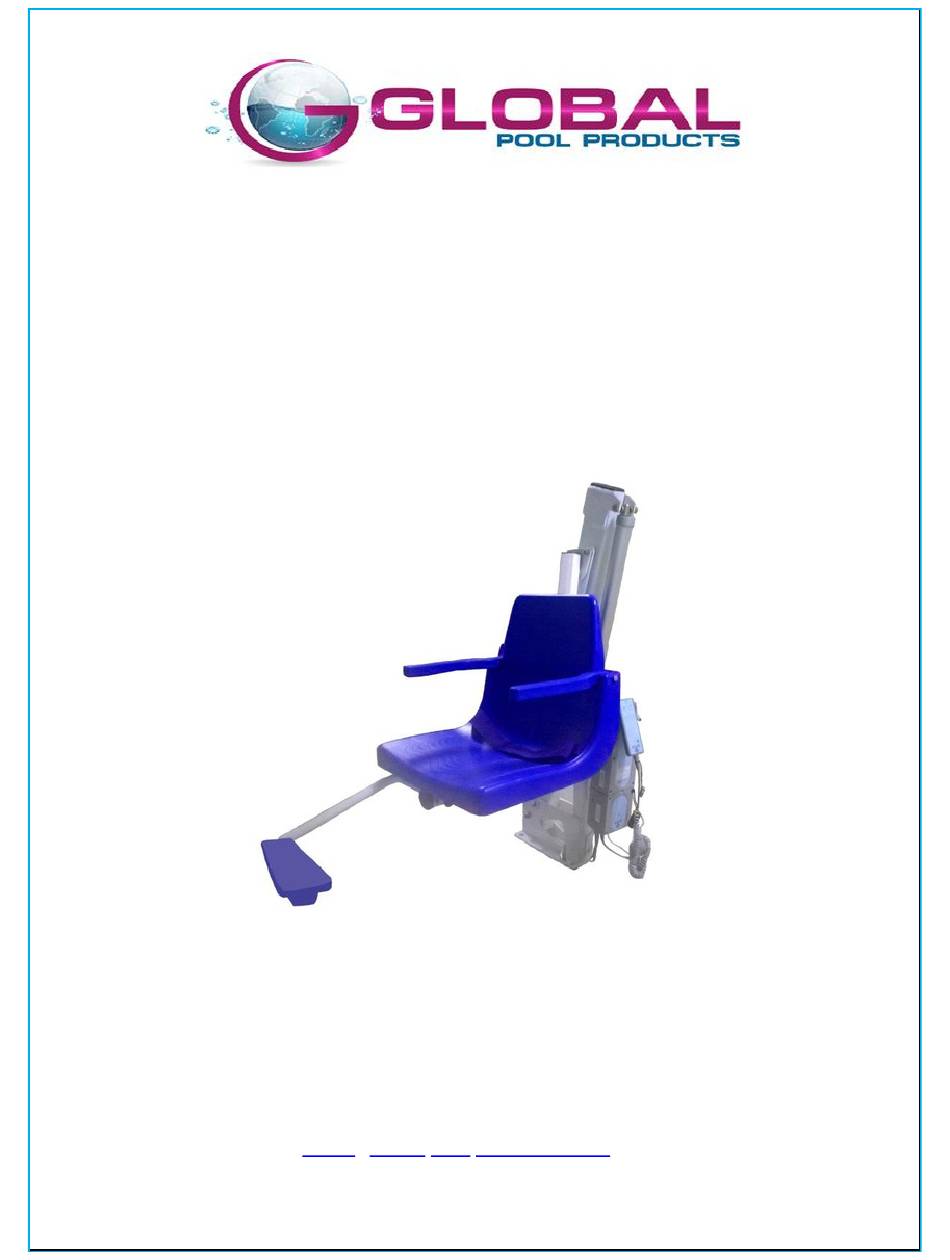

- Page 1 OWNER’S MANUAL Legend Series L-350R2 1330 Pigeon Rd Bad Axe, MI 48413 Toll Free: 866-712- 0606 Fax: 989-269-5902 www.global-poolproducts.com...
- Page 2 LEGEND SERIES POOL LIFTS TABLE OF CONTENTS INTRODUCTION PAGE – 3 ADA GUIDELINES FOR PLACEMENT PAGE – 4 24 VOLT BATTERY SYSTEM/WITH CONTROLS PAGE – 5 LEGEND SERIES OPERATING INSTRUCTIONS PAGE – 6 UNIT MAINTENANCE AND CARE PAGE – 7 PAGE –...
- Page 3 Our products are made in the United States. Global Pool Products uses only the finest materials and processes to provide our customers with the highest...
- Page 4 ADA GUIDELINES FOR POOL LIFT PLACEMENT Pool Lift Location. Pool lifts shall be located where the water level does not exceed 48 inches (1220 mm). Seat Location. In the raised position, the centerline of the seat shall be located over the deck and 16 inches (405 mm) minimum from the edge of the pool.
- Page 5 24 VOLT BATTERY SYSTEMS WITH CONTROLS All of Global Pool Products’ Legend Series Lifts are equipped with a sealed 24 volt battery that is rechargeable. Along with a charging unit, hand held controller and control compartment. The 24 volt battery mounts right above the control compartment and the battery simply snaps in.
- Page 6 LEGEND SERIES POOL LIFT OPERATING INSTRUCTIONS Insert the battery into the lift and push to click in place. Turn the emergency stop button on top of the unit clockwise to ensure it is in the on position. Prior to using the Legend Series Pool Lift perform a test run of the lift empty. Once that is completed and the lift is back to original position, make sure that the arm lifts are in the up position and the seatbelt is unbuckled, once acknowledged you are ready!
-
Page 7: Maintenance
MAINTENANCE Regular servicing will help prolong the life of your lift. Routine maintenance and cleaning is very important. The following is a routine maintenance you should follow. Daily Check and charge battery if needed o Test for normal operations Inspect your lift o Clean and dry the lift and seat with clean water Cover lift after use Weekly... -
Page 8: Troubleshooting Guide
TROUBLESHOOTING GUIDE 1. Testing the Battery Charger: Use a voltmeter to test the battery charger. It should read between 27.5 and 30 volts. Ensure you are not using the control box port as a charger. The control box port will not charge the battery or operate the lift without a functional battery. - Page 9 TROUBLESHOOTING GUIDE Important Note: Do not open the components of the lift for internal repairs. Most components are hardwired or sealed. Opening them will void the warranty and may cause further damage to the system. 7. Initial Diagnostic Checks: After performing the initial checks, determine if the lift is making any sound when buttons are pressed on the handset.
- Page 10 Global Pool Products Warranty Information The Legend series lift has a 2 year structural limited warranty. Global Pool Products warrants to the original retail end user only products manufactured by Global Pool Products, when properly installed in accordance to the assembly and installation...
- Page 11 The Superior series lift has a 5 year structural limited warranty. Global Pool Products warrants to the original retail end user only products manufactured by Global Pool Products, when properly installed in accordance to the assembly and installation instructions, and when the equipment is properly used and maintained,...
- Page 12 Global Pool Product’s decision regarding the claim. If the request made by Global Pool Products for the product to be returned to its factory or distributor of choice for inspection and/or repair, purchaser will be liable for “Freight Prepaid”.
- Page 13 Global Pool Products shall determine warranty coverage validation and replacement parts or repair shall be directed to the distributor which originated the sale. Warranty claims received from end users by Global Pool Products shall be re- directed to the distributor which originated the sale with Global Pool Products.
-
Page 14: Warranty Registration
Signature: ______________________________________ Date: ______________ This card must be completed and returned to Global Pool Products within 30 days of purchase date to assure coverage. Please mail to: Global Pool Products, 1330 Pigeon Rd, Bad Axe, MI 48413 or Email to: warranty@globalpoolprod.com... -
Page 15: Parts List
DROP IN ANCHOR KIT LEGEND SERIES LIFTS PARTS LIST Anchor Kit will contain: 4 anchor sleeves 4 bolts 1 setting tool 4 anchor caps... - Page 16 DROP IN ANCHOR LEGEND SERIES Pre-drilled holes on the base of the L-350R2 Hole for bonding wire and screw to attach bonding wire to base Position the lift in the location to be installed. Locate the 4 pre-drilled holes on the base of the lift. Position the lift so that the base of the lift is from 7.5”...
- Page 17 LEGEND SERIES LIFTS TABLE OF CONTENTS 4-Point Anchor System 4-Point Paver Instruction Anchor Method December 2024...
- Page 18 LEGEND SERIES LIFTS INSTALLATION MANUAL December 2024...
- Page 19 LEGEND SERIES LIFTS ASSEMBLY STEPS Main Components – Lift Seat tube 1. Insert the seat tube into the upper hole on the lift, ensuring the tube is inserted into the side with the protruding tube as shown above. 2. The seat tube will have to be turned in a clockwise direction to thread through the brass bushings.
- Page 20 LEGEND SERIES LIFTS ASSEMBLY STEPS 4. Tighten nut until snug against the bushing. Do not over tighten. 5. Locate the seat stabilizer bar, and raise it up and behind the triangle so that the bar is situated in between the triangle, and the main beam. 6.
- Page 21 INSTALLATION MANUAL SEAT AND FOOT REST PARTS LIST 1 - Seat 1 - Foot Rest 2 – Arm Rests 1 - Seat Belt & Buckle 3 – 5/16 x 3” Attaching Pin with lock nut 1 – 5/16 x 2” Foot Rest attaching bolt w/ nut...
-
Page 22: Installation Steps
INSTALLATION STEPS Picture A Step 1: Unpack your custom seat (picture A). Loose Items will consist of: Foot Rest and Tube 3 - 5/16” x 3” Bolt with Lock nut... - Page 23 INSTALLATION STEPS Picture A Picture B Step 2: Align your custom seat (Picture A), with 3 pre-drilled holes as shown. Step 3: Once you have the seat in place, take one 5/6” x 3” bolt and slide it through the pre-drilled holes (Picture B).
- Page 24 Slot. In picture B, locate the 5/16” x 2” bolt and insert into the pre-drilled holes to secure the foot rest to the lift. Place the lock nut on the bolt and tighten down. Once that is complete, you are ready to enjoy your Global Pool Products pool lift.
- Page 25 LEGEND SERIES REVERSIBLE INSTRUCTIONS Rotate Actuator Using a ¾” wrench and a ¾” socket on a ratchet, loosen the two bolts attaching the actuator to the lift Once loosened remove bolts taking care to not lose any spacers, nuts or bolts (taking a picture of how the spacers are oriented before removing them will help in reassembly later) Rotate actuator around so the ends are at the same points on the lift but the round extended portion of the actuator (that attaches to the...
- Page 26 2. Swap leveling Bracket Loosen the nut holding the leveling bracket to the base and swap to the other side of the base, making sure the stud that goes through the seat tube bracket is facing away from the lift Swap the stud cover cap to the unused side and tighten the nut down to finish installing the...
- Page 27 3. Seat Tube installation Install the seat tube the same as normal just from the opposite side and while installing line up and install the leveling bracket stud through the seat tube bracket and push all the way through. Once everything is lined up install a nut on the seat tube bolt and leveling bracket bolt and tighten both down.
- Page 28 FRACTIONAL DIMESIONS .125 .125 L-350R2 X. = PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF FILLET RADII .000 THRU + .094 .062 XX. = HOLES .000 THRU .015 XXX. = .031 Global Pool Products IS PROHIBITED. ANGLES 1 DEGREE...
- Page 29 FRACTIONAL DIMESIONS .125 .125 X. = MAIN BEAM & ACTUATOR FILLET RADII .000 THRU + .094 PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF .062 XX. = HOLES .000 THRU .015 .031 Global Pool Products IS PROHIBITED. XXX. =...
- Page 30 X. = PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF Bad Axe, MI 48413 FILLET RADII .000 THRU + .094 .062 XX. = HOLES .000 THRU .015 .031 Global Pool Products IS PROHIBITED. XXX. = ANGLES 1 DEGREE...
- Page 31 X. = .125 PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF FILLET RADII .000 THRU + .094 .062 XX. = Bad Axe, MI 48413 HOLES .000 THRU .015 .031 Global Pool Products IS PROHIBITED. XXX. = ANGLES 1 DEGREE...
- Page 32 X. = PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF FILLET RADII .000 THRU + .094 .062 Bad Axe, MI 48413 XX. = HOLES .000 THRU .015 .031 XXX. = ANGLES 1 DEGREE Global Pool Products IS PROHIBITED.
- Page 33 X. = PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF FILLET RADII .000 THRU + .094 XX. = .062 Bad Axe, MI 48413 HOLES .000 THRU .015 .031 XXX. = Global Pool Products IS PROHIBITED. ANGLES 1 DEGREE...
