AUXILIARY CONNECTOR

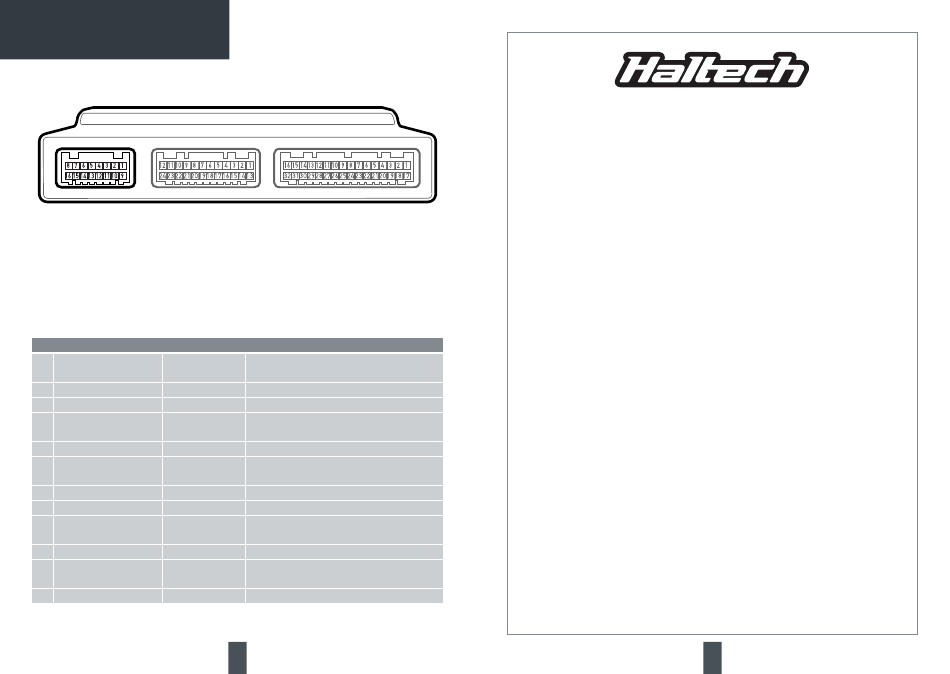

Auxiliary Connector
The 16-pin auxiliary connector located on the rear side of the adapter provides additional inputs and outputs
that link to the Nexus ECU. The kit is supplied with spare pins that you can use if you need to connect to
these additional I/Os. Use an appropriate crimping tool, such as the HT-070300.
Please refer to the pinout information below for details on the spare inputs and outputs available for this
application.
AUXILIARY CONNECTOR (16 PIN)
Pin Connection Function
1 From Nexus ECU (C25) +5V
2 From Nexus ECU (C12) AVI 3
3 From Nexus ECU (C16) AVI 7
4 From Nexus ECU (C26) Signal ground
5* From Nexus ECU (A33) Ignition 7
6* From Nexus ECU (A34) Ignition 8
7 From Nexus ECU (C5) SPI 1
8 From Nexus ECU (A18/A25) +12V
9 From Nexus ECU (C25) +5V
10 From Nexus ECU (A20) HBO 2
11 From Nexus ECU (A34) Ignition 8
12 From Nexus ECU (C26) Signal ground
13 No connection No connection
14* From Nexus ECU (A8) Injector 8
15 From Nexus ECU (C6) SPI 2
16 From Nexus ECU (A18/A25) +12V
* These pins have a direct wired connection to the Nexus ECU. The rest of the pins on this auxiliary connector
loop within the adapter box and back to the Nexus ECU through the 24- and 32-pin Tyco connectors.
Notes
+5V DC sensor supply
Spare input
Spare input
Signal ground for sensors
Fuel pump voltage control (Vehicle conn. pin 111)
VTC solenoid (Vehicle conn. pin 117)
Spare input
+12V DC switched supply for relays and solenoids
+5V DC sensor supply
Spare output
VTC solenoid (Vehicle conn. pin 117)
Signal ground for sensors
No connection
O2 sensor heater control (Vehicle conn. pin 118)
Spare input
+12V DC switched supply for relays and solenoids
14
WARRANTY CERTIFICATE
At Haltech we make every effort to design and
manufacture fault-free products that perform up to
or above the market expectations. All our products
are covered by a Limited 12 Month Warranty.
Haltech Limited Warranty
Unless specified otherwise, Haltech warrants its products
to be free from defects in material or workmanship for a
period of 12 months from the date of purchase.
If the Haltech product is found to be defective as men-
tioned above, it will be replaced or repaired if returned
prepaid along with proof of purchase. Proof of purchase
in the form of a copy of the original purchase invoice,
receipt or bill of sale which indicates that the product is
within the warranty period, must be presented to obtain
warranty service.
Replacement or repair of a defective product shall con-
stitute the sole liability of Haltech. To the extent permitted
by law, the foregoing is exclusive and in lieu of all other
warranties or representations, either expressed or im-
plied, including any implied warranty of merchantability
or fitness. In no event shall Haltech, be liable for special
or consequential damages.
Product Returns
Please include a copy of the original purchase invoice,
receipt or bill of sale along with the unused, undamaged
product and its original packaging. Any product returned
with missing accessory items or packaging will incur ex-
tra charges to return the item to a re-saleable condition.
All product returns must be sent via a freight method
with adequate tracking, insurance and proof of delivery
services. Haltech will not be held responsible for product
returns lost during transit.
Returns of Products Supplied in Sealed
Packaging
The sale of any sensor or accessory supplied in sealed
packaging is strictly non-refundable if the sealed pack-
aging has been opened or tampered with. This will be
clearly noted on the product packaging. If you do not ac-
cept these terms please return the sensor in its original
unopened packaging within 30 days for a full refund.
A sensor or accessory product may be returned after 30
days of purchase (with its sealed packaging intact) for
credit only (no refunds given) and will be subject to a 10%
restocking fee.
Installation of Haltech Products
No responsibility whatsoever is accepted by Haltech for
the fitment of Haltech Products. The onus is clearly on
the installer to ensure that both their knowledge and the
parts selected are correct for that particular application.
Any damage to parts or consequential damage or costs
resulting from the incorrect installation of Haltech prod-
ucts are totally the responsibility of the installer.
Always disconnect the battery when doing electrical
work on your vehicle. Avoid sparks, open flames or use
of electrical devices near flammable substances. Do not
run the engine with a battery charger connected as this
could damage the ECU and other electrical equipment.
Do not overcharge the battery or reverse the polarity of
the battery or any charging unit. Disconnect the Haltech
ECU from the electrical system whenever doing any
welding on the vehicle by unplugging the wiring harness
connector from the ECU.
After completing the ECU installation, make sure there is
no wiring left un-insulated. Uninsulated wiring can cause
sparks, short circuits and in some cases fire. Before at-
tempting to run the engine ensure there are no leaks in
the fuel system.
All fuel system components and wiring should be mount-
ed away from heat sources, shielded if necessary and
well ventilated. Always ensure that you follow work-
shop safety procedures. If you're working underneath a
jacked-up car, always use safety stands!
_____________________________________________
Haltech Off-Road Usage Policy
In many states it is unlawful to tamper with your vehicle's
emissions equipment. Haltech products are designed
and sold for sanctioned off-road/competition non-emis-
sions controlled vehicles only and may never be used on
a public road or highway.
Using Haltech products for street/road use on public
roads or highways is prohibited by law unless a specif-
ic regulatory exemption exists (more information can be
found on the SEMA Action Network website www.sema-
san.com/emissions for state by state details in the USA).
It is the responsibility of the installer and/or user of this
product to ensure compliance with all applicable local
and federal laws and regulations. Please check with your
local vehicle authority before purchasing, using or install-
ing any Haltech product.
