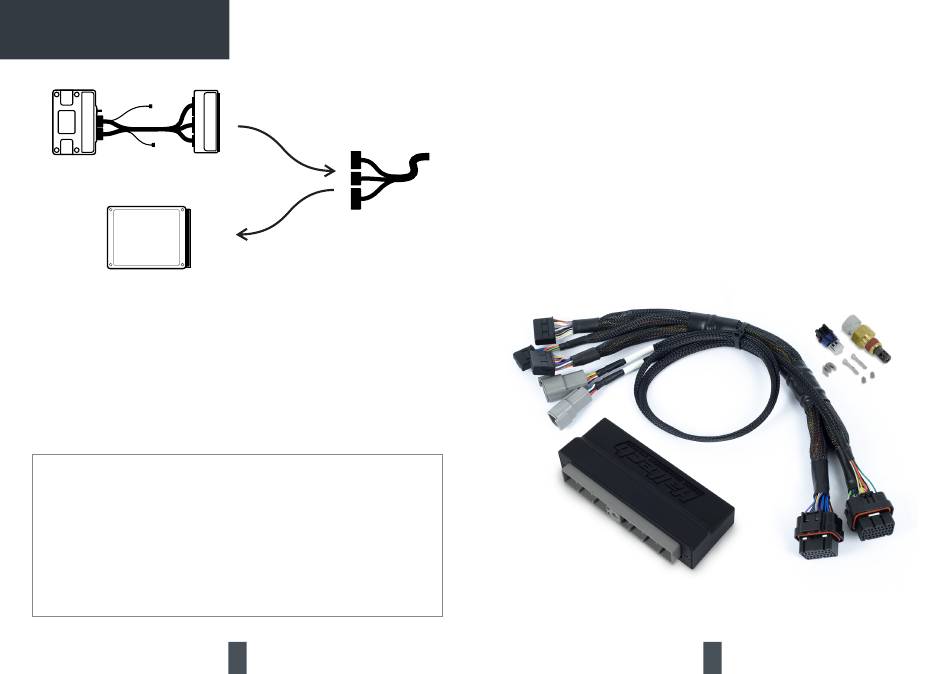

ADAPTER HARNESS OVERVIEW
Nexus ECU with Plug 'N' Play
adapter harness
Example factory ECU
Congratulations on your purchase of a Nexus Plug
'N' Play adapter harness for your vehicle. This
vehicle-specific adapter harness enables you to
seamlessly integrate a Nexus S3 ECU into your
vehicle without the complexities of wiring an ECU.
With this hassle-free solution, you can dive straight
into tuning.
Nexus ECUs stand at the forefront of engine
management systems, featuring cutting-edge
technology and innovative features. Designed for
What's in the box?
• HT-186363 - Nissan Skyline R34 GT-T Nexus Plug 'N' Play adapter box
• HT-130400 - Nexus S3 Plug 'N' Play adapter harness
• HT-010200 - Intake air temperature sensor (M14 x 1.5 thread)
• Quick Start Guide
Example factory ECU
harness connectors
the next generation of automotive enthusiasts and
professionals, this state-of-the-art ECU seamlessly
combines powerful engine control with a range of
additional functionalities, making it a versatile and
comprehensive solution for everyday driving to
high-performance racing.
With full compatibility with a myriad of Haltech
devices, it streamlines the configuration of engine
parameters and additional functionalities, all
programmable using a single piece of software.
2 2
Application Notes
• This Nissan Skyline R34 GT-T Nexus Plug 'N' Play
adapter harness is compatible exclusively with a
Nexus S3 ECU.
• Ensure that the correct basemap is uploaded into
the ECU before powering the unit through the Plug
'N' Play adapter harness.
• Please note that the basemap serves as a
starting point only, and the ECU will require
appropriate tuning. Haltech will not be held
resposible for engine damage due to the improper
use of basemaps.
• ATTESA - Nissan Skyline R34 GT-T vehicles
equipped with Nissan's ATTESA AWD system use
a control unit that requires a TPS signal to operate
correctly. This adapter harness supports this
feature and is equipped with a TPS output circuit
controlled by a Generic Duty Cycle table directly
connected via DPO2. This table is preconfigured
in all GT-T basemaps and is found in the NSP
Software's Navigation Tree under "Generics > 4WD
Out (Generic Output 1)". To ensure the correct
operation of your AWD system, please ensure this
table is enabled.
• Traction Control (TCS) - The factory traction
control system is currently not supported. The TCS
warning lights on the dash will illuminate.
