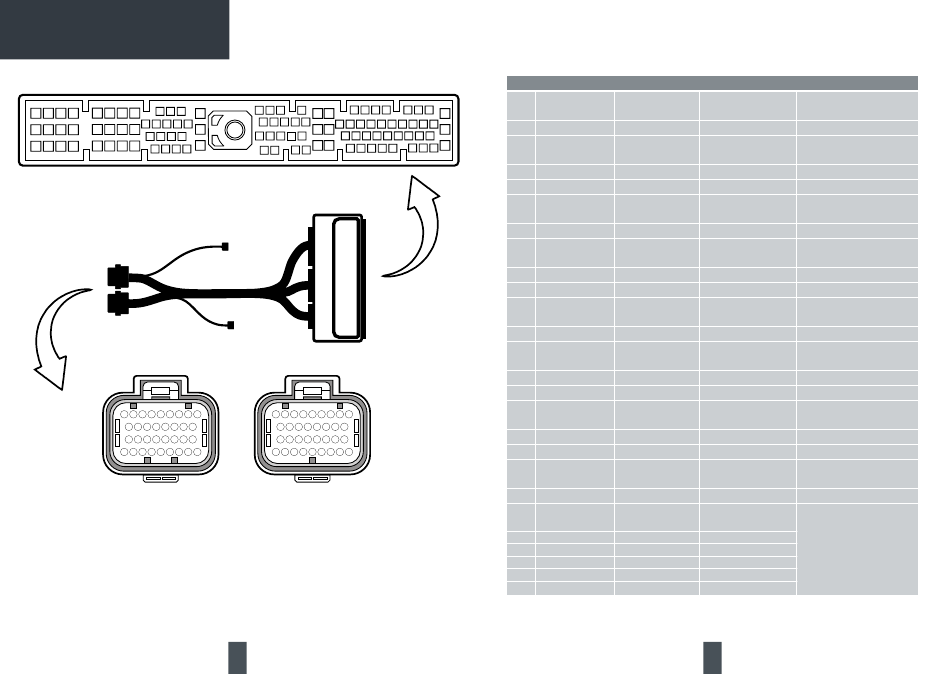

ADAPTER PINOUT REFERENCE
NISSAN R34 GT-T
Vehicle connector:
1 2 3
105 106 107 108
101 102 103 104 4
5 6 7 8 9
109 110 111 112 113 114 115 116 10
11 12 13 14
117 118 119 120 121 122 123 124 19
15 16 17 18
9 8 7 6 5 4 3 2 1
16 15 13 10
17 14 12 11
25 24 23 22 21 20 19 18
34 33 32 31 30 29 28 27 26
Connector C
Keyway Type 2
All connectors above are shown with reference to the pin side (front of connectors).
20 21 22 23 44 45 46 47 64 65 66
24 25
26 27 28 29 30
48 49 50 51 52 53 68 69 70 71
31 32
33 34 35 36 37 54 55 56 57 58 73 74 75 76
42 43 77 78 79 80
59 60 61 62 63
38 39 40 41
9 8 7 6 5 4 3 2 1
16 15 13 10
17 14 12 11
25 24 23 22 21 20 19 18
34 33 32 31 30 29 28 27 26
Connector A
Keyway Type 1
12
Pin Function
C1 Trigger +
67
C2 Trigger -
72
C3 Home +
C4 Home -
C5 SPI 1
C6 SPI 2
C7 SPI 3
C8 SPI 4
C9 +8V
C10 AVI 1
C11 AVI 2
C12 AVI 3
C13 AVI 4
C14 AVI 5
C15 AVI 6
C16 AVI 7
C17 AVI 8
C18 AVI 9
C19 SPI 5
C20 SPI 6
C21 CAN 2 H
C22 CAN 2 L
C23 Knock 1
C24 Knock 2
C25 +5V
C26 Signal ground
C27 AVI 10
C28 AVI 11
C29 WBI 1 Heater +
C30 WBI 1 Input
C31 WBI 1 Pump
C32 WBI 1 Nernst
C33 WBI 1 Heater -
C34 WBI 1 Cal
NEXUS S3 ECU CONNECTOR C (KEYWAY TYPE 2)
Colour Vehicle connector
White 44, 45
Black No connection
White 46
Black No connection
Gray/Brown To auxiliary connector
Gray/Red To auxiliary connector
Gray/Orange 29
Gray/Yellow 21
Orange/White No connection
White 30
White/Yellow 26
White/Gray To auxiliary connector
White/Violet 54
White/Green 57
White/Orange 50
White/Black To auxiliary connector
White/Brown 56
White/Red 47
No connection No connection
No connection No connection
White No connection
Blue No connection
White 62
White 63
Orange 48
Black/White 55, 43
Light Green 23
No connection No connection
Gray Wideband conn. Pin 1
Yellow Wideband conn. Pin 2
Red Wideband conn. Pin 3
Black Wideband conn. Pin 4
White Wideband conn. Pin 5
Green Wideband conn. Pin 6
13
Function
Trigger
No connection
Home
No connection
Auxiliary IO
Auxiliary IO
Vehicle speed
A/C switch
No connection
Headlight switch
Power steering switch
Auxiliary IO
MAF sensor
A/C pressure
Narrowband O2 sensor
Auxiliary IO
Coolant temperature
Turbo pressure sensor
No connection
No connection
No connection
No connection
Knock sensor 1
Knock sensor 2
Sensor power supply
Sensor ground
Throttle position sensor
No connection
Onboard wideband control
(See page 6 for details)
